DS81000GB
Main Image

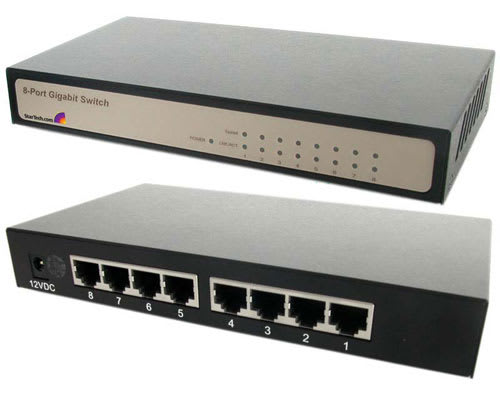

Product Name 8 port Desktop 10/100/1000 Mbps Gigabit Desktop Switch Product Number DS81000GB UPC 065030805032 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) 8 port Desktop 10/100/1000 Mbps Gigabit Desktop Switch Bullet 1 8 Gigabit ports allow simultaneous data transmission thru a internal high-speed data channel Bullet 2 Each Port Automatically Adjusts to Either 10Mbits/sec, 100Mbits/sec or 1000Mbits/sec Speeds Bullet 3 Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports Bullet 4 All Gigabit ports support half duplex and full duplex modes which provides bandwidth of up to 2000 Mbits/sec on connected devices Bullet 5 Compliant with IEEE 802.3u standard and guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks Marketing Copy Applications - Ideal for SOHO environment
- Ideal for small or medium enterprises and data center environments
- Support high bandwidth applications such as Video Conferencing, Graphics, and CAD Systems, bringing gigabit capability to the desktop
- Increases performance in small or remote offices for a wider variety of applications and devices, including file transfers, databases, gaming networks, etc.
Power Source AC Adapter Included TAA Compliant No General Specifications - Gigabit Port: 8 x 1000/100/10 Mbps ports with RJ-45 connectors
- Standards: IEEE802.3, IEEE802.3u & IEEE802.3ab
- MAC Address: 8K
- Buffer Memory: 256 Kbytes/sec
- Network Cable Type:
- : 10Base-T: UTP/STP category 3 or 5 cable
- : 100Base-TX: UTP/STP category 5 cable
- : 1000Base-TX: 4 pairs category 5 cable (Optional - Category 6)
- LED Indicators:
- System status: 1 x Power Indicator
- Gigabit Ports: 8 x Activity status, & 8 x Speed status
- Switching Architecture: Store and Forward
- Duplex Mode: Supports both Half-Duplex and Full-Duplex
- Certifications: FCC Class B & CE Mark & C-Tick
- Weight: .99 Lbs(450 Grams)
- Dimensions:
- : Length: 7.3 Inches (187mm)
- : Width: 3.9 Inches (100 mm)
- : Height: 1.1 Inches (30 mm)
