8-Port Desktop 10/100 Mbps Fast Ethernet Switch

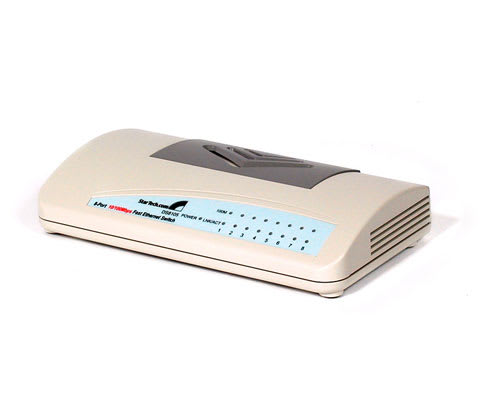

Main Image

Product Name	8-Port Desktop 10/100 Mbps Fast Ethernet Switch
Product Number	DS8105GB
UPC	065030809160
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	1
Country of Origin History (2)	China

Manual https://images.salsify.com/image/upload/s--14IbAsvQ--/9d888f0c9de3b154c80bae24c47ba1f26acdfb39.pdf

Product Title (Long)	8-Port Desktop 10/100 Mbps Fast Ethernet Switch
Bullet 1	Supports full duplex connections of up to 200Mbps
Bullet 2	Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards
Bullet 3	Simple and economical way to bridge 10BaseT network and 100BaseTX network.
Bullet 4	IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex.
Bullet 5	All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function.
Marketing Copy	Include this Fast Ethernet Switch in your networking solution if you need to extend your connection distance, segment network traffic, or bridge both 10BaseT and 100BaseTX together. One set of status leds for each of the 8 half/full duplex RJ45 ports, indicate network connections, activity, collisions, and full duplex mode at a glance. This product replaces DS8100GB.
Applications	An extremely fast small business network Provides a 200Mbps link for servers Segmenting hubs to improve network performance

General Specifications	Dimensions: 187 x 100 x 30 mm (7.4 x 3.94 x 1.18 inches). Weight: 370g(0.81lbs). Port Led's: LNK/ACT(Link/Activity) Yellow--100Mbps, Green--10Mbps, COL/FDX(Collision/Full Duplex) Power: 12V DC, 0.5A

Connector 1	RJ-45
Connector 1 (Quantity)	8
