Main Image
DS8107
8 Port 10/100 Desktop Ethernet Switch
Connect and network up to 8 Ethernet devices from a single desktop switch
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 8 Port 10/100 Desktop Ethernet Switch Product Number DS8107 UPC 065030824217 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 8 Port 10/100 Mbps Fast Ethernet Switch Product Title (Standard) StarTech.com 8-Port Fast Ethernet Switch Product Title (Long) 8 Port 10/100 Mbps Fast Ethernet Switch Title Ingram (Part 1) 8 Port 10/100 Mbps Fast Ethernet Title Ingram (Part 2) Switch Website Product Headline Connect and network up to 8 Ethernet devices from a single desktop switch Bullet 1 All eight RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function Bullet 2 Auto MDIX (crossover) function provides automatic crossover when cascading switches or hubs - crossover cables or special uplink ports are no longer required Bullet 3 Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards Bullet 4 IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex Bullet 5 Simple and economical way to bridge 10BaseT network and 100BaseTX network Marketing Copy Applications - Small business networks requiring fast data transfer
- Segmenting hubs to improve network performance
- Provides a 200Mbps link for servers
Website Search Keyword - Ethernet Network Adapter
- 8 port
- 10/100
Accessory Products - ET90110SC
- ET90110ST
- M45PATCH10BL
- M45PATCH15BL
- M45PATCH100B
Related Products - DS8105
- DS5107
Replacement Product DS81072 Input Voltage 115V AC Output Current 0.6A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Product Length (mm) 140 Product Width (mm) 85 Product Height (mm) 30 Product Weight (g) 155 TAA Compliant No Auto MDIX Yes Full Duplex Support Yes Maximum Data Transfer Rate 100 Mbps Supported Protocols CSMA/CD, Port Auto Sensing/Auto Negotiation Chipset ID Realtek - RTL8309G Industry Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX LED Indicators - 1 - Power
- 8 - Link/ACT

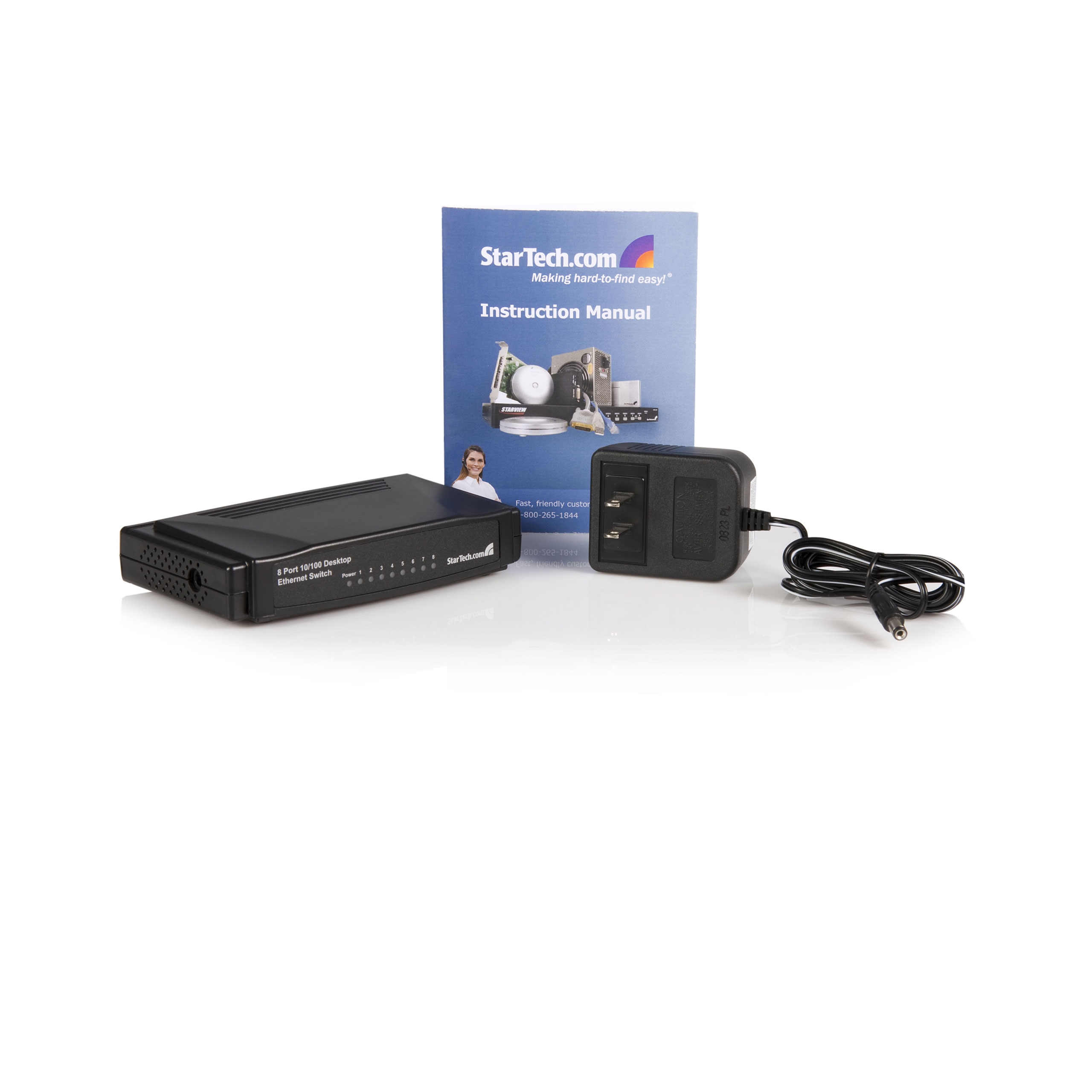

Carton Depth (mm) 515 Carton Height (mm) 350 Carton Quantity 30 Carton Weight Gross (g) 11600 Included in Package - 1 - 8 Port Ethernet Switch
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 66 Package Height (mm) 167 Package Width (mm) 210 Package Weight (g) 870 Packaging Description 8 Port 10/100 Mbps Ethernet Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 8 en-US Content Approved Yes Product Manager Daryl Hunt
