DSRXL
Receiver for Digital Signage Distributor
Extend and centrally manage VGA video, audio and RS232 control signals to multiple displays
Main Image
Product Images
Product Images
BOM Image
Product Name Receiver for Digital Signage Distributor Product Number DSRXL UPC 065030837484 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Extenders Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) Cat5 VGA Digital Signage Receiver Product Title (Standard) Cat5 VGA Digital Signage Receiver Product Title (Long) VGA over Cat5 Digital Signage Receiver for DS128 with RS232 & Audio Product Title (AMZ) VGA over Cat5 Digital Signage Receiver for DS128 w/ RS232 & Audio - VGA Cat5 receiver - VGA over cat5 - VGA to cat5 (DSRXL) Title Ingram (Part 1) Cat5 VGA Digital Signage Receive Title Ingram (Part 2) r with RS232 & Audio Website Product Headline Extend and centrally manage VGA video, audio and RS232 control signals to multiple displays Bullet 1 Receiver supports VGA, audio, and RS-232 serial signals when used with DS Series DS128 8 Port Transmitter Bullet 2 DSNet Manager JAVA based software puts you in control. Software allows access to each receiver to configure system, image quality, power on/off receivers, and turn video or audio off. Bullet 3 Supports resolutions up to 1600x1200 at 100m / 300ft distance. Ability to go up to a total maximum 300m / 900ft when daisy chaining a maximum of five DSRXL receivers. Bullet 4 Easily scalable system allows up to 80 displays to be connected using the DS Series eight port transmitter and DSRXL receivers. Bullets (Consolidated) Video/audio/serial extender - up to 984 ft Marketing Copy Applications - Use digital signage to catch the attention of your audience and deliver up to date content the way you want it to be seen and heard.
- The DS Series can be used in education, health care, retail, hospitality, and other environments.
- Broadcast up to 80 displays when daisy chaining receivers. Deliver a VGA, audio and serial signal to each display along with the DSRXL receivers. With RS-232 controls you can control displays from the PC or media player.
Website Search Keyword - Remote Receiver
- Display Receiver
- VGA Extender Receiver
- VGA and Audio Extender Receiver
- VGA, Audio, and serial Extender Receiver
- Video Extender Receiver
- Video over Cat5 Receiver
- Video over Cat 5 Receiver
- VGA over Cat5 Receiver
- VGA over Cat 5 Receiver
- Multi-Media Receiver
- Multi-Media Extender
- Digital Signage System
- DS Vision 3000
- Digital Signage Narrowcasting
- Serial controlled
- RS-232 controlled
- Ethernet Control
- LAN Control
- JAVA software
- Control Software
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Up to 5 receiver units can be daisy-chained from the broadcaster unit extending to a maximum distance of 300m Accessory Products - DS128
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- MXT101HQ
- MXT101HQ_25
- MXT101HQ_50
- MXT101HQ_100
- MXT101MMHQ
- MXT101MMHQ25
- MXT101MMHQ50
- MXT101MMH100
- SVA5N3NEUA
Related Products - ST124UTPEA
- ST128UTPEA
- STUTPEALR

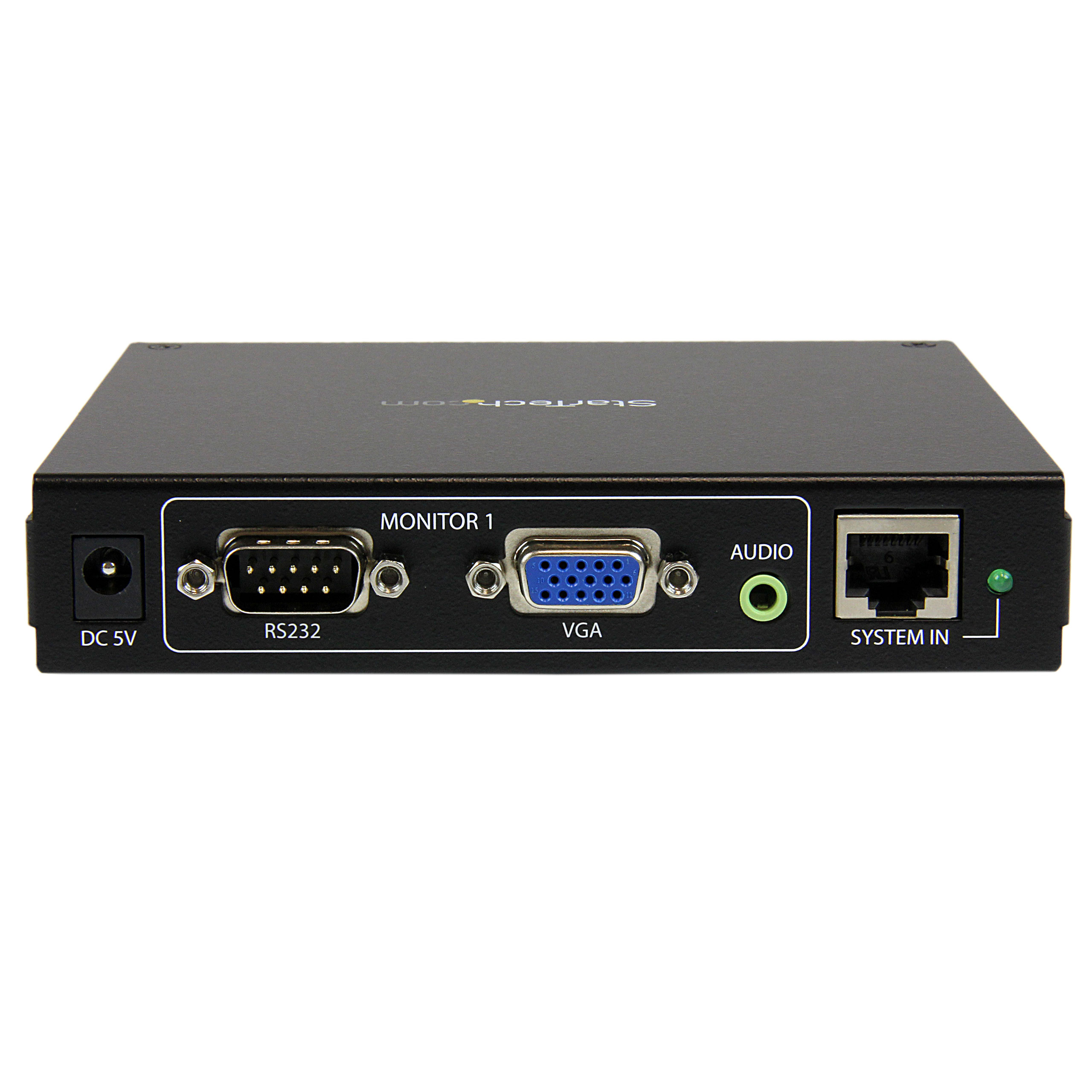

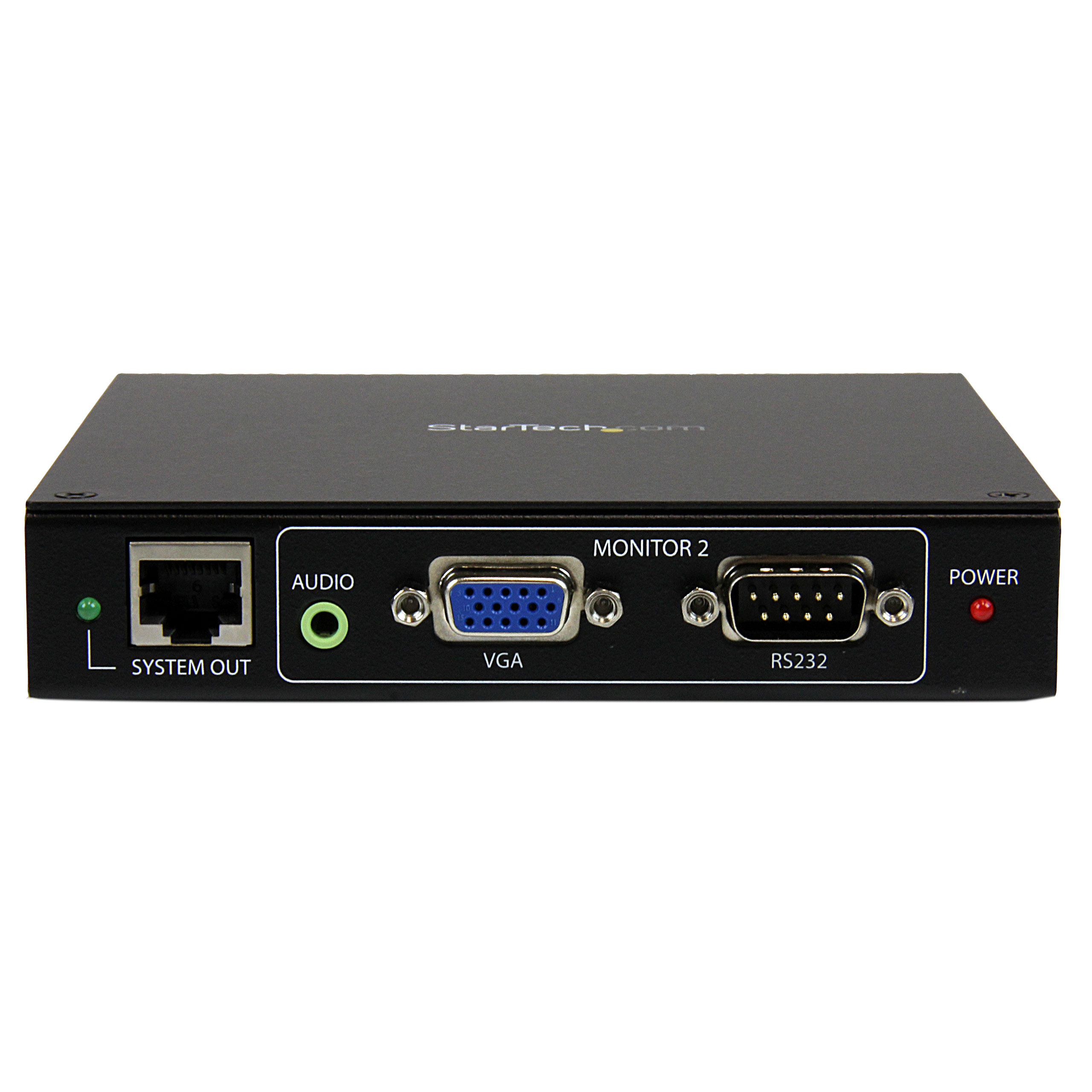

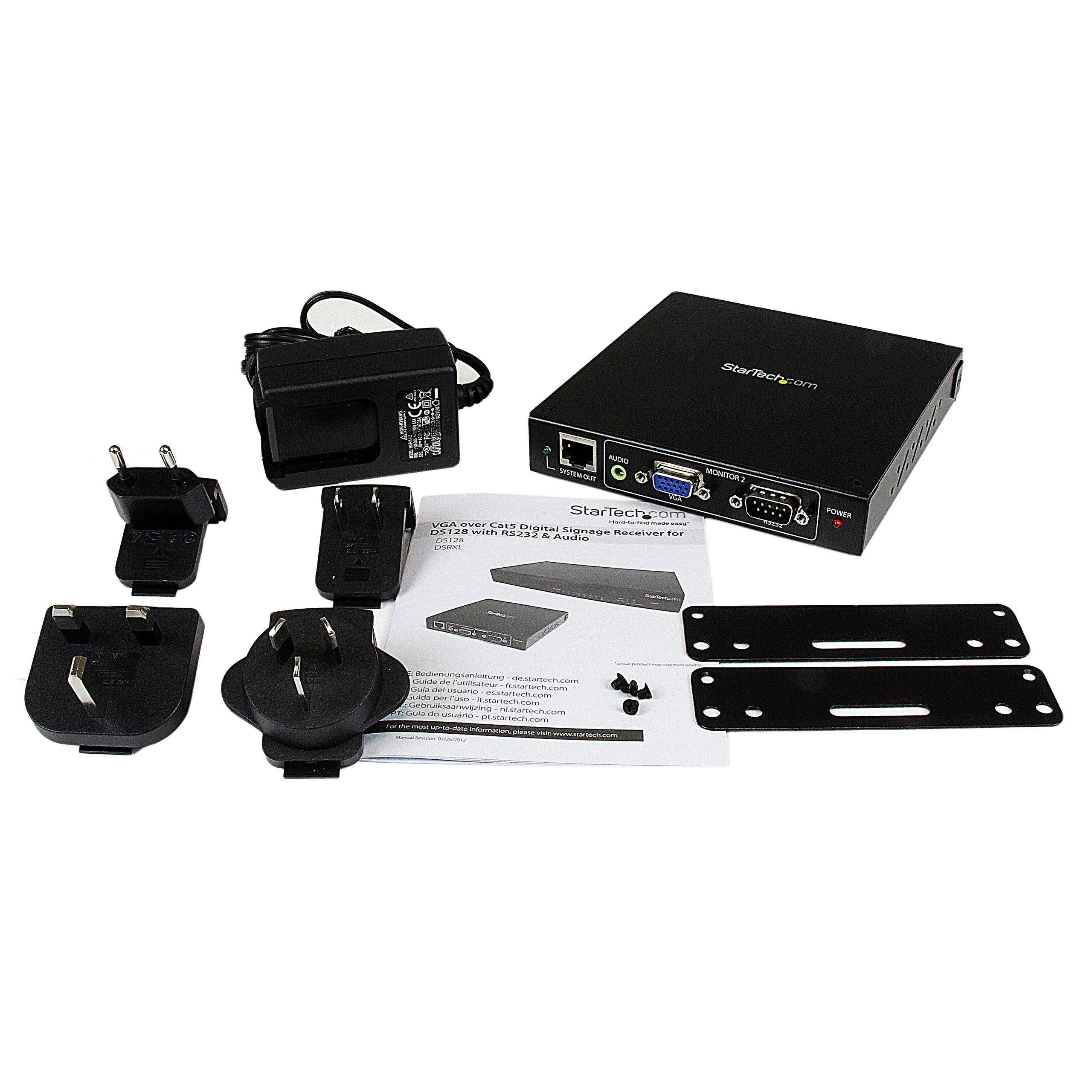

Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 0~90% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 135.000 Product Width (mm) 132.000 Product Height (mm) 26.000 Product Weight (g) 526.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Max Distance 300m [984ft] Maximum Analog Resolutions 1600x1200 Maximum Cable Length (mm) 10000 Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5 UTP Cascadable Yes Industry Standards DDC/EDID Emulation for port 1 monitor Rack-Mountable Yes Carton Depth (mm) 432 Carton Height (mm) 376 Carton Quantity 12 Carton Weight Gross (g) 13800 Included in Package - 1 - Digital Signage Receiver
- 1 - Universal Power Adapter (NA/UK/EU/AUS)
- 1 - Instruction Manual
- 2 - Mounting Brackets w/ Screws
Package Depth (mm) 145 Package Height (mm) 176 Package Width (mm) 206 Package Quantity 1 Package Weight (g) 1050 Packaging Description VGA over Cat5 Digital Signage Receiver (DS128) Packaging Description India VGA over Cat5 Digital Signage Receiver (DS128) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 RJ-45 Connector 2 (Quantity) 2 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Connector 4 DB-9 Serial Connector 4 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
