DUAL-M2-PCIE-CARD-B

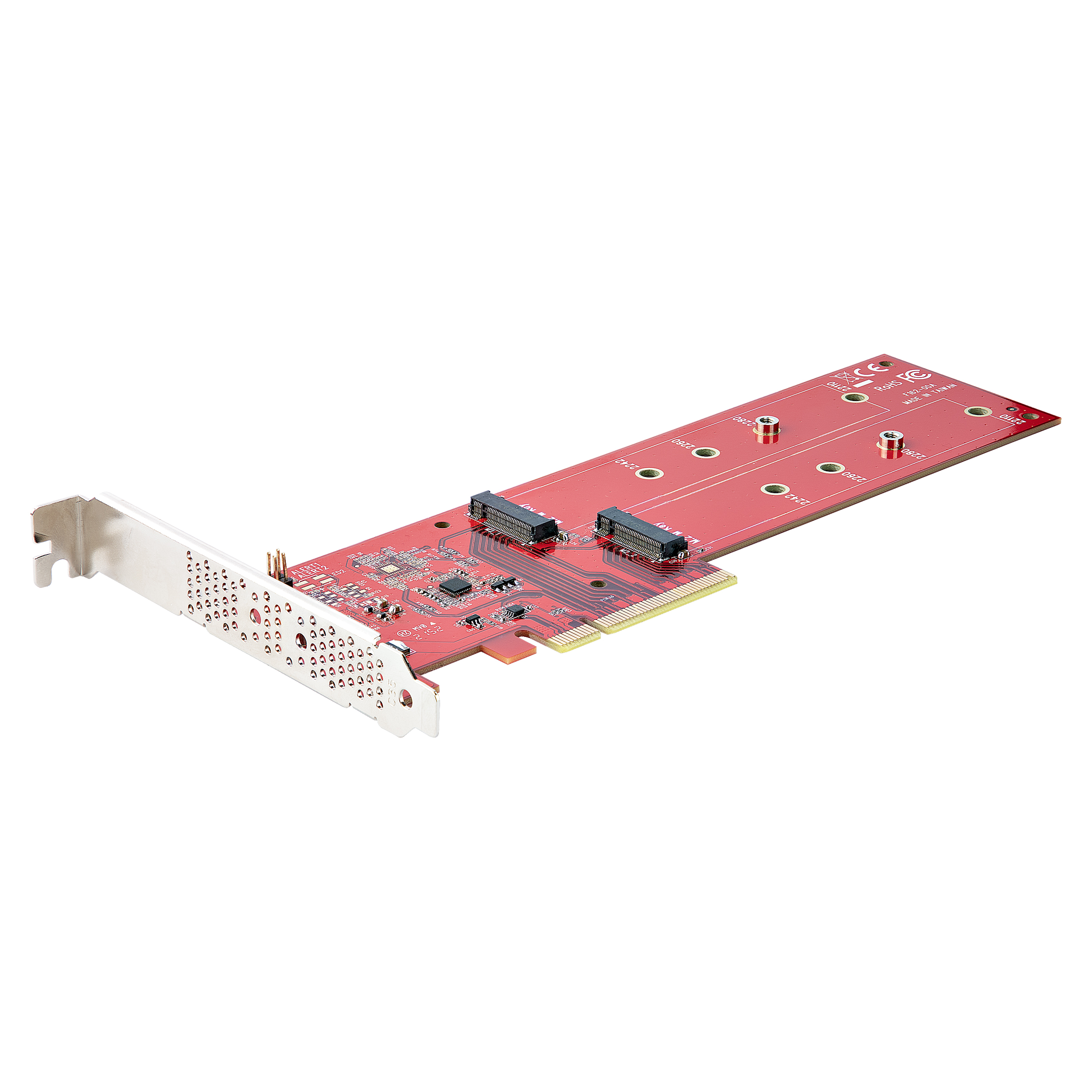

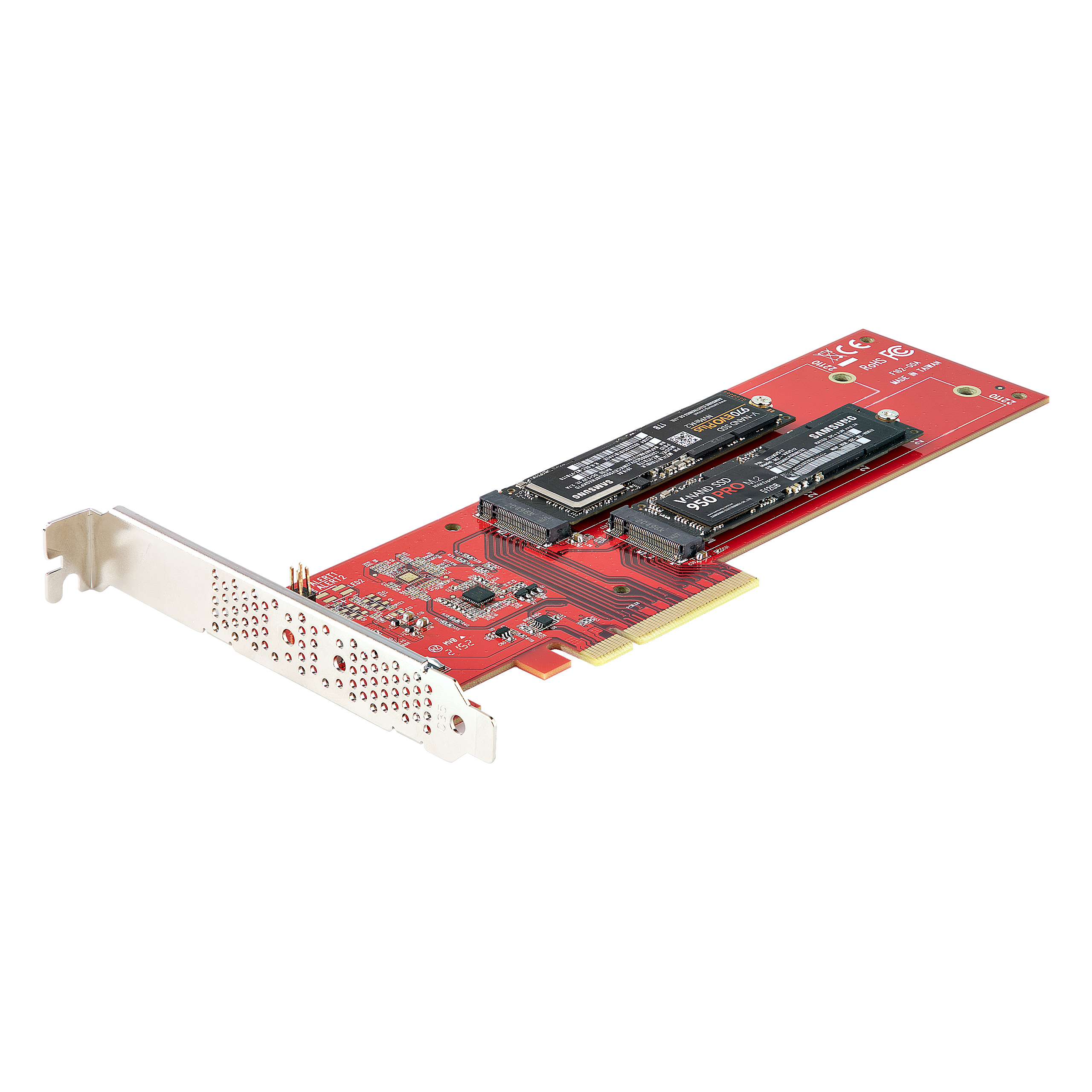

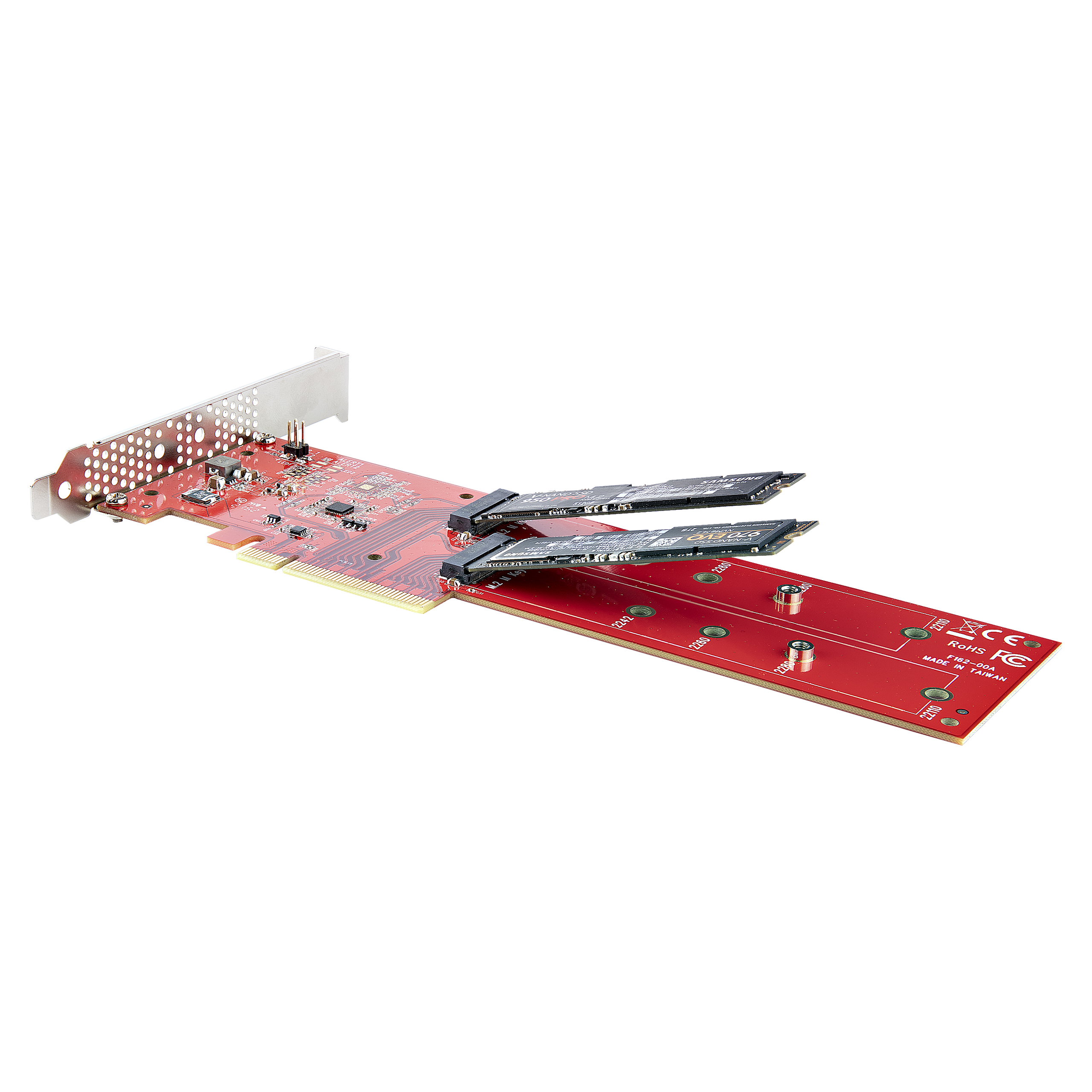

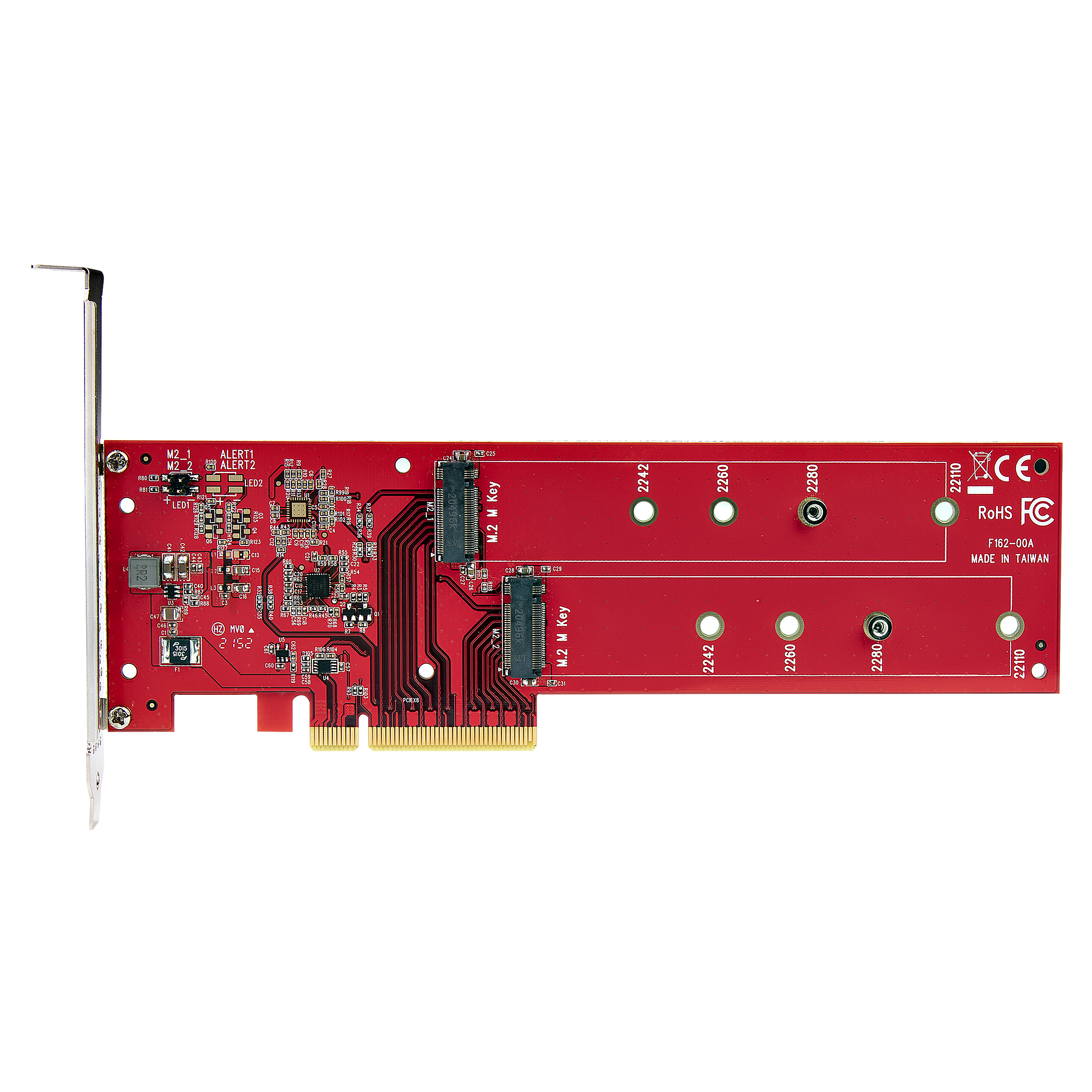

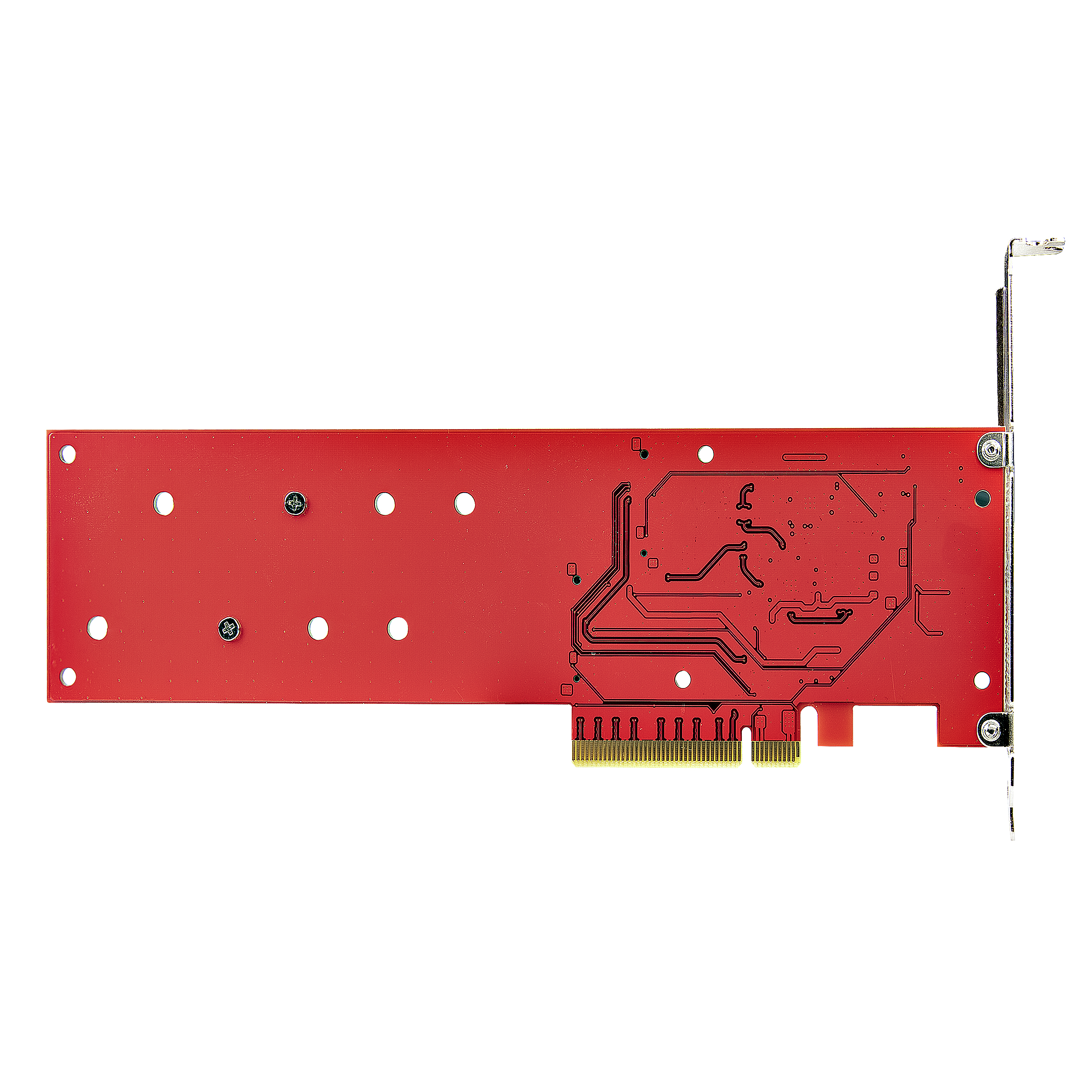

PCI Express x8 to Dual M.2 PCIe SSD Converter with Bifurcati
Dual M.2 NVMe / AHCI | PCIe 4.0 x8 or x16 Slot | Bifurcation

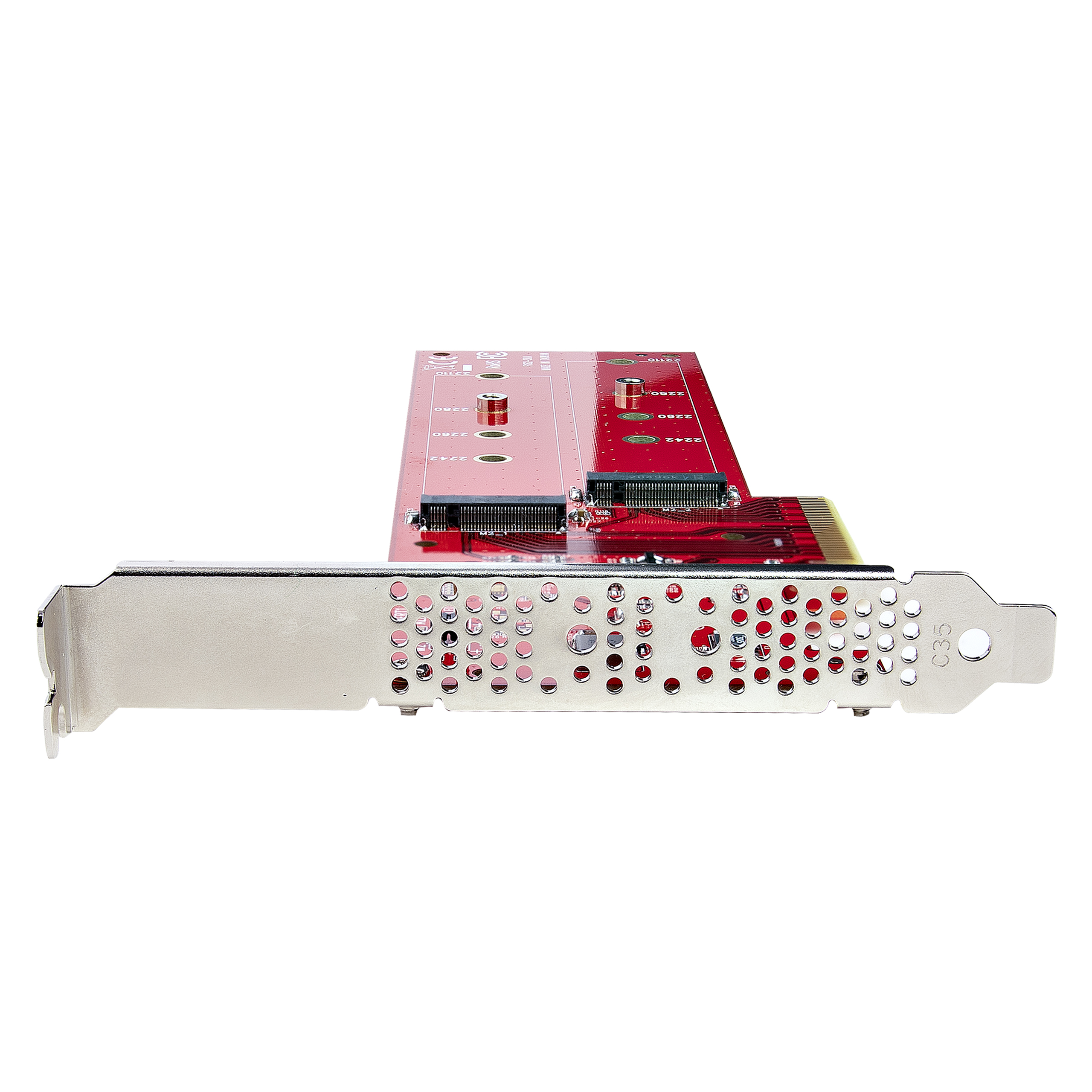

Main Image

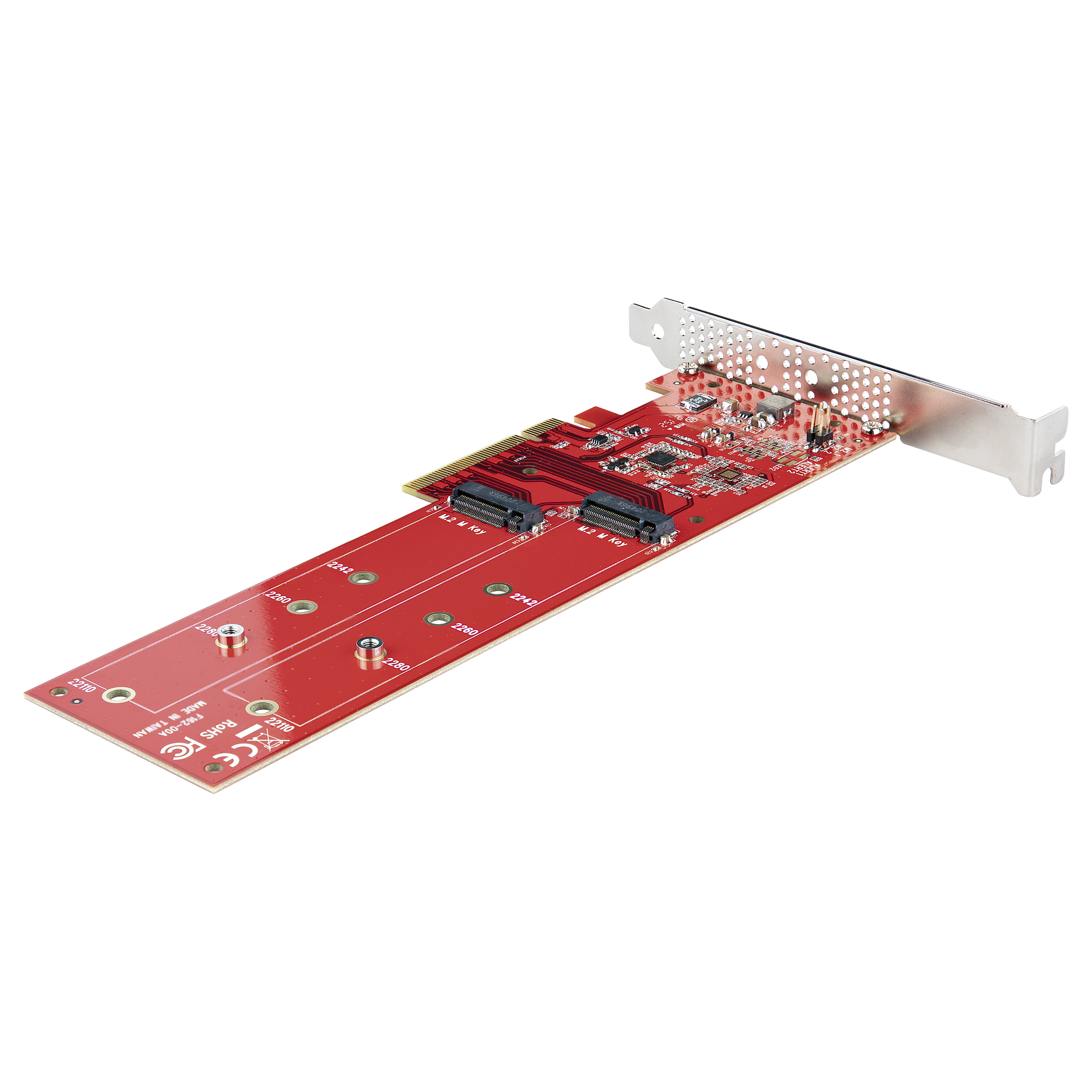

Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name PCI Express x8 to Dual M.2 PCIe SSD Converter with Bifurcati Product Number DUAL-M2-PCIE-CARD-B UPC 065030895620 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 NVME to PCIe Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) M.2 PCIe SSD Adapter Product Title (Short) Dual M.2 PCIe SSD Adapter, NVMe / AHCI Product Title (Medium) Dual M.2 PCIe SSD Adapter Card, x8/x16 to Dual NVMe/AHCI M.2 SSDs w/ Bifurcation Product Title (Standard) Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe/AHCI M2 SSDs, PCI Express 4.0, PC/Linux, Bifurcation Required, TAA Product Title (Long) Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible - TAA Product Title (AMZ) Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible , TAA (DUAL-M2-PCIE-CARD-B) Title Ingram (Part 1) Dual M.2 PCIe SSD Adapter Card Title Ingram (Part 2) with Bifurcation, PCIe 4.0 Website Product Headline Dual M.2 NVMe / AHCI | PCIe 4.0 x8 or x16 Slot | Bifurcation Bullet 1 HIGH PERFORMANCE: Install 2x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x8 or x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive Bullet 2 WIDE COMPATIBILITY: This Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs | Not compatible with SATA based M.2 drives Bullet 3 BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x8 or x16 PCIe slot | PCIe bifurcation is required | Works with all workstation and server OS's such as Windows, Windows Server, and Linux Bullet 4 SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to your M.2 PCIe SSDs individually | With OS or 3rd party RAID software, build an array to add redundancy, higher capacity, or performance through RAID 0, RAID 1, or JBOD Bullet 5 VENTED BRACKETS: Pre-installed full profile bracket with included low-profile (half-height) bracket in the box | Vented brackets allow for better air flow which helps avoid overheating that can cause drive throttling Bullets (Compact) Dual M.2 PCIe SSD Adapter enables installation of 2x PCIe M.2 SSDs (NVMe/AHCI) through an x8/x16 PCI Express 4.0 slot; Read/write speeds up to 7.8GBps/drive; PCIe Bifurcation support is required; Windows/Linux; Vented full/low-profile brackets incl. Bullets (Consolidated) This Dual M.2 PCIe SSD Adapter enables you to install 2x PCIe M.2 SSDs (NVMe or AHCI) into a computer through an available x8/x16 PCI Express 4.0 slot | Read and write speeds up to 7.8GBps per drive - PCIe Bifurcation support is required by the Computer/Motherboard | Compatible with PCIe 3.0 x8 or x16 slots | Windows/Linux - Access the M.2 PCIe SSDs individually | Software RAID support for RAID 0/RAID 1/JBOD - Vented full-profile bracket pre-installed and low-profile bracket included Marketing Copy Marketing Copy (No HTML) Applications - Connect two PCIe M.2 SSDs to your desktop computer or server to boost system speed and increase internal data storage
- Get ultra-fast data access, ideal for high-performance workstations
Website Search Keyword - dual m.2 pcie ssd adapter
- m 2 ssd adapter
- m.2 to pcie x16 adapter
- nvme pcie adapter
- pcie m.2 nvme adapter
- pcie m2 card
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - NVMe SSDs require drivers provided by the manufacture of the drive or may be natively provided by the OS (Windows®️ 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support.
- Consult the documentation that came with the Computer/Motherboard for details regarding how to enable and configure PCIe Bifurcation.
System and Cable Requirements For multiple drives to be detected by the host system, bifurcation support is required on the computer/motherboard. Related Products - QUAD-M2-PCIE-CARD-B
- PEX8M2E2
- PEX4M2E1

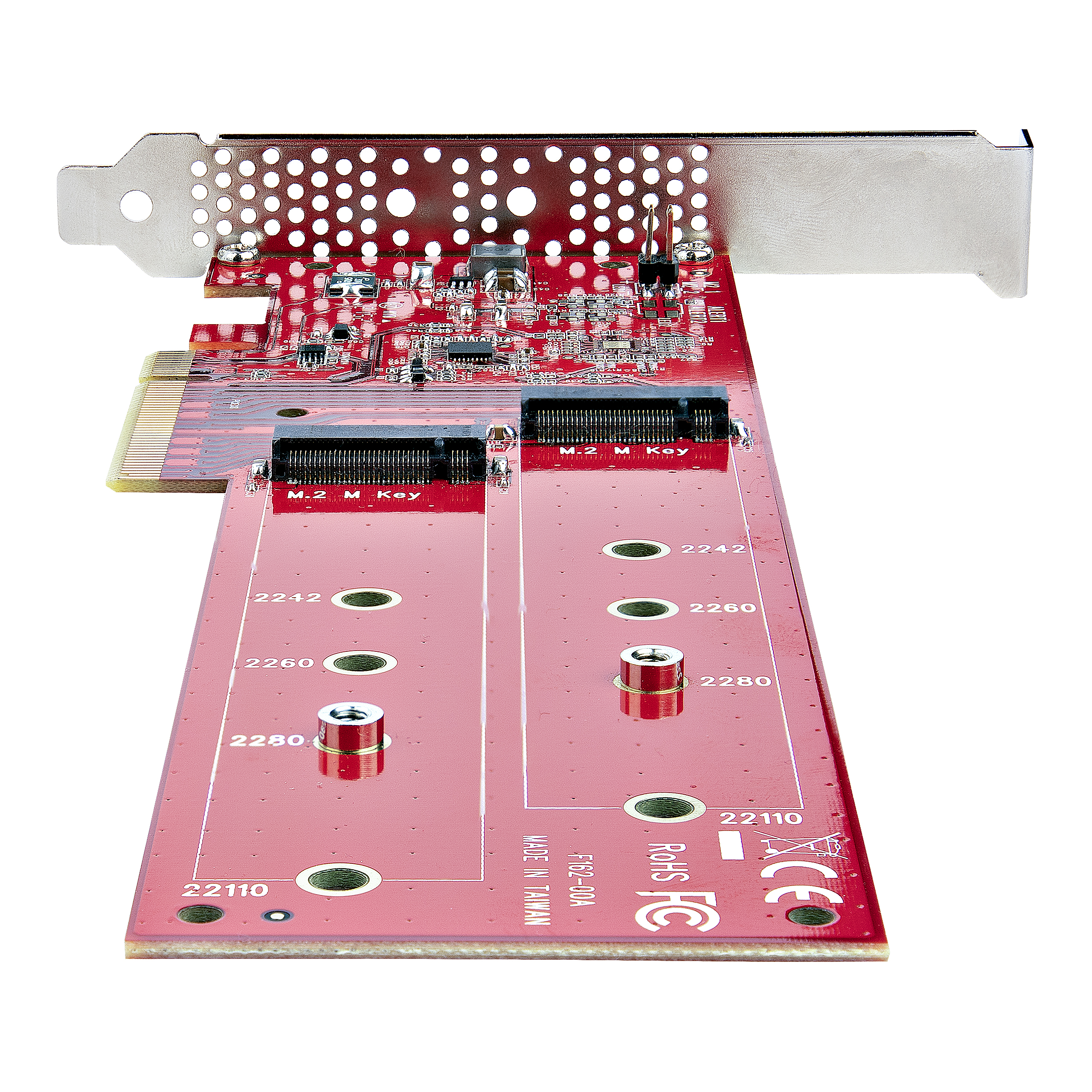

Color Red Humidity 15 ~ 90% RH Operating Temperature -40°C to 80°C (-40°F to 176°F) Product Length (mm) 228.000 Product Width (mm) 102.000 Product Height (mm) 22.000 Product Weight (g) 74.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant Yes Hot Swap Capability No MTBF (hours) 6,493,014 hrs OS Compatibility OS Independent RAID No SATA Type and Rate PCI Express 4.0 (16 Gbps per lane) Bus Type PCI Express Compatible Drive Types M.2 (PCIe, NVMe, M-Key, NGFF) Interface/Bridge M.2 PCIe LED Indicators 2 - Header pins, for drive activity Number of Drives 2 Supported Drive Height(s) - 2242
- 2260
- 2280
- 22110
Carton Depth (mm) 505 Carton Height (mm) 330 Carton Quantity 30 Carton Weight Gross (g) 6558 Included in Package - 1 - PCIe to M.2 Adapter Card

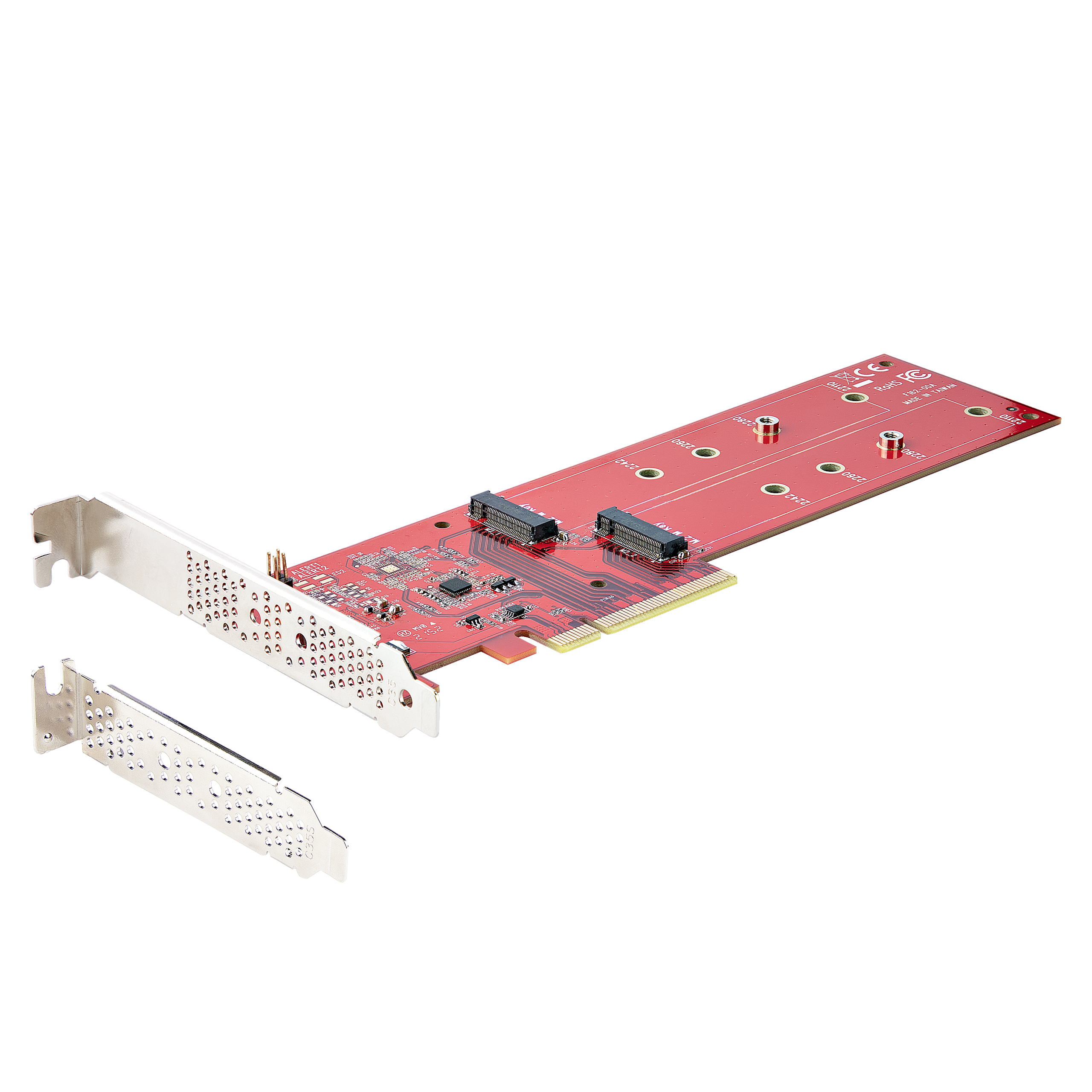

- 1 - Low Profile Bracket
- 1 - Quick-Start Guide
- 1 - Set of Mounting Screws
Included In Package for Label - 1 - PCIe to M.2 Converter Card
- 1 - Low Profile Bracket
- 1 - Quick-Start Guide
- 1 - Set of Mounting Screws
Package Depth (mm) 293 Package Height (mm) 35 Package Width (mm) 176 Package Quantity 1 Package Weight (g) 192 Packaging Description PCI Express x8 to Dual M.2 PCIe SSD Adapter with Bifurcation Packaging Description India PCI Express x8 to Dual M.2 PCIe SSD Converter with Bifurcation Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 M-Key (PCIe, AHCI / NVMe) Connector 1 (Quantity) 2 Host Connector 1 PCI Express x8 Host Connector 1 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Artwork Due Date 2022-02-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-04-04 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-01-28 Target Production Release 2022-03-15 Tech Lead Justin Weaver Technical Writer Maria Powell Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
