DVI2DPA
DVI to DisplayPort with 2 Channel Audio
Connect a DisplayPort® display with audio to a DVI-equipped PC or Mac®
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name DVI to DisplayPort with 2 Channel Audio Product Number DVI2DPA UPC 065030844321 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 DVI Converters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Product Title (Short) DVI to DisplayPort Adapter with Audio Product Title (Standard) DVI to DisplayPort Adapter Converter with Audio - 1920x1200 Product Title (Long) DVI to DisplayPort Adapter Converter with Audio - 1920x1200 Product Title (AMZ) DVI to DisplayPort Adapter Converter with Audio - 1920x1200 - DVI to DP Converter Adapter (DVI2DPA) Title Ingram (Part 1) DVI to DisplayPort Adapter Conve Title Ingram (Part 2) rter with Audio - 1920x1200 Website Product Headline Connect a DisplayPort® display with audio to a DVI-equipped PC or Mac® Bullet 1 Supports resolutions up to 1920x1200 Bullet 2 Supports stereo audio pass-through to DisplayPort output (DisplayPort audio support required on monitor) Bullet 3 USB power, 3.5mm audio and DisplayPort cables included Bullet 4 Stores and passes EDID information Bullet 5 No software or drivers required Marketing Copy Applications - Connect a PC DVI or HDMI output to a DisplayPort monitor
- Convert DVI video and audio to one DisplayPort input on monitors that support audio output
- Adapt a DVI-D output signal and connect supporting audio for use with Apple Cinema Displays
Website Search Keyword - DVI Mac to DisplayPort
- DVI PC to DisplayPort
- DVI to Display Port
- DVI to DisplayPort
- DVI Video Card to DisplayPort
- DVI-D to DisplayPort
- DisplayPort Apple Monitor
- DisplayPort Cinema Display
- DP
- DVI to DP
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes Can be used with HDMI, mini HDMI or mini DVI input using an adapter - See Accessories Accessory Products - GCMDP2DPMF
- ZENDVIHDMI2
- HDMIDVIMM10
- HDMIDVIFM
- HDMIDVIMM6
- MUMFRCA
- MDVIDVIMF
Related Products - MDP2DVI
- DP2HDMI
- DP2DVID
Replacement Product HDMI2DP Input Voltage 5 DC Power Source USB-Powered Cable Length (mm) 610 Color Silver Humidity 10~85% RH Material Aluminum and Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 76.2 Product Width (mm) 63.5 Product Height (mm) 6.6 Product Weight (g) 200 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Maximum Digital Resolutions 1920x1200 Wide Screen Supported Yes Audio Yes AV Input - DVI-D
- 3.5 mm Stereo Audio

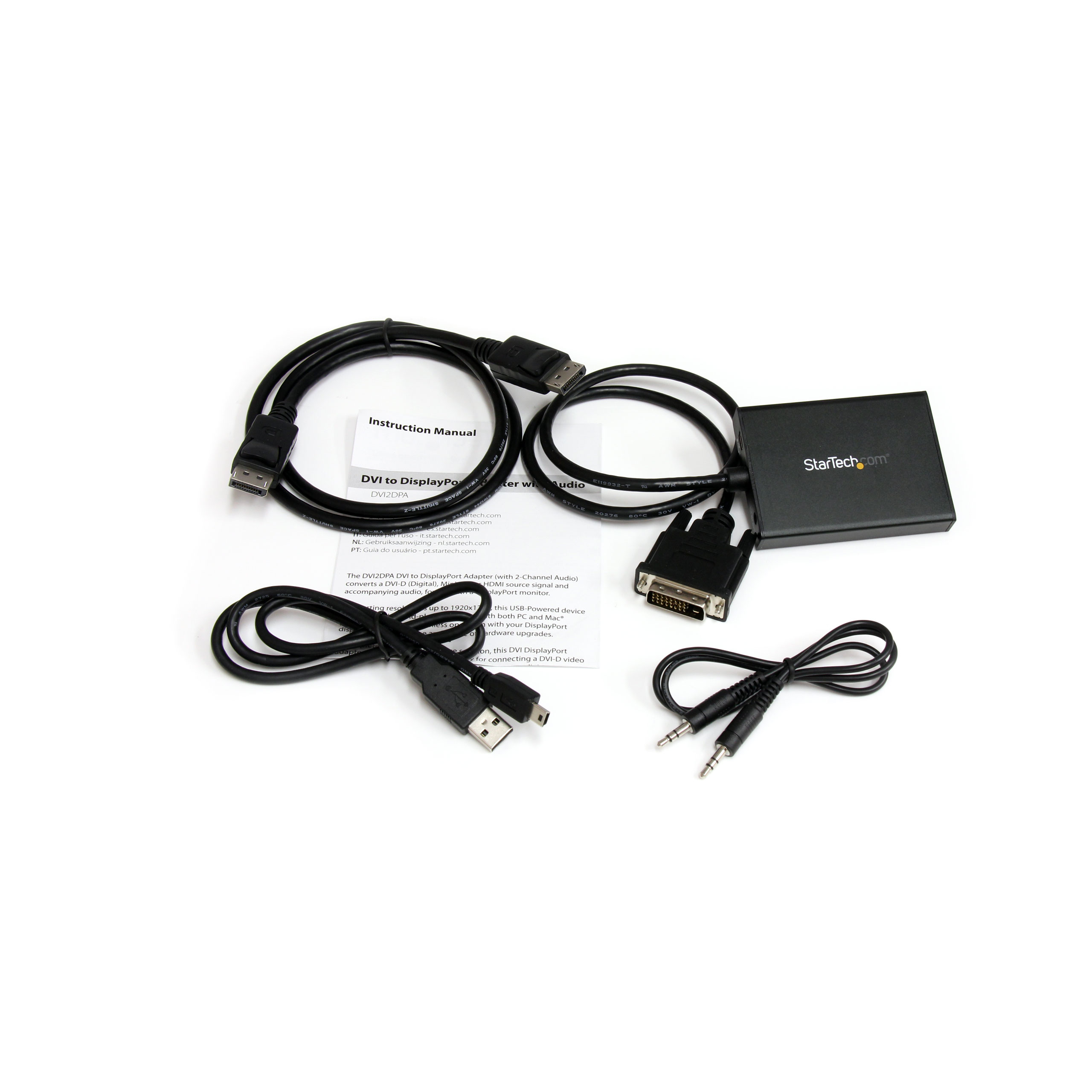

AV Output DisplayPort Converter Type Format Converter Industry Standards LED Indicators 1 - Power indicator Carton Depth (mm) 320 Carton Height (mm) 210 Carton Quantity 90 Carton Weight Gross (g) 18900 Included in Package - 1 - DVI to DisplayPort Converter
- 1 - User Manual
- 1 - 3.5mm Stereo Audio cable
- 1 - USB mini B male to USB A male Cable
- 1 - DisplayPort cable
Package Depth (mm) 200 Package Height (mm) 1 Package Width (mm) 200 Package Quantity 1 Package Weight (g) 210 Packaging Description DVI to DisplayPort® Adapter with Audio Packaging Description India DVI to DisplayPort® Adapter with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-D Dual-Link (25-Pin) Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 USB Mini-B (480Mbps, 2.5W) Connector 3 (Quantity) 1 Connector 4 DisplayPort Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
