DVI2HDMI

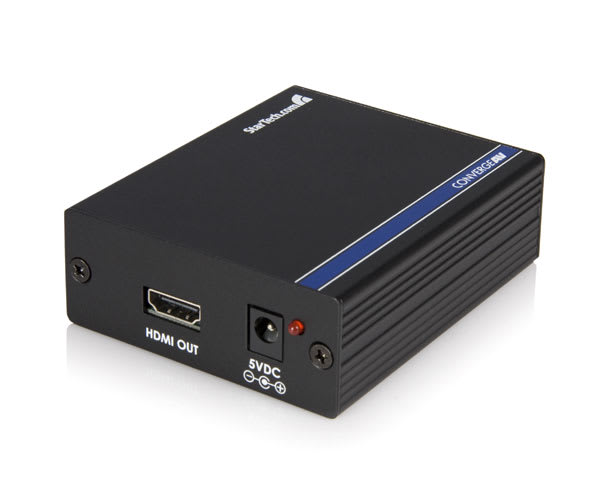

DVI with Audio to HDMI Format Converter
Connect a DVI source with audio to work with an HDMI® display or monitor
Main Image
Product Images
Product Images
Product Images
Product Name DVI with Audio to HDMI Format Converter Product Number DVI2HDMI UPC 065030824675 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) DVI and Digital Audio to HDMI Converter Product Title (Standard) StarTech.com audio converter - DVI - Digital audio - HDMI converter Product Title (Long) DVI and Digital Audio to HDMI® Converter Title Ingram (Part 1) DVI and Digital Audio to HDMI Co Title Ingram (Part 2) nverter Website Product Headline Connect a DVI source with audio to work with an HDMI® display or monitor Bullet 1 Provides signal amplification and equalization for incoming TMDS data to ensure optimal signal quality Bullet 2 Supports two channel stereo, Dolby digital 5.1, and DTS 5.1 sound input and output Bullet 3 Supports resolutions up to 1920x1200 or 1080p input and output Marketing Copy Applications Convert digital DVI and digital audio to HDMI® - ideal for displays that do not have a DVI port or devices that can not output HDMI signals Website Search Keyword - DVI-D to HDMI
- DVI and SPDIF to HDMI
- DVI and Digital Coaxial to HDMI
Accessory Products - DVIDDMM6
- DVIDDMM10
- HDMIMM6
- HDMIMM10
- ZENDIGCOAX2
- SVA5M3NEUA
Related Products - HDMI2DVI
- VGAHD2HDMI
- HDMI2HDMI
Replacement Product DVI2HD Output Current 1A Output Voltage (V) 5 DC Plug Type M Center Tip Polarity Positive Color Black Product Length (mm) 76.000 Product Width (mm) 105.000 Product Height (mm) 30.000 Product Weight (g) 188.000 TAA Compliant Yes General Specifications - HDMI Compliant: Standard HDMI®
- HDCP Compliant: HDCP 1.1
- DVI Compliant: DVI 1.0
- Input Connectors: 1 x DVI-I (only supports DVI-D signal)
- : 1 x Digital Coaxial RCA Female (supports two channel stereo, dolby digital 5.1, and DTS 5.1)
- Output Connector: 1 x HDMI
- Frequency: 165 MHz
- Bandwidth: 1.65Gbps (single link)
- Audio Frequency: 32, 44.1, and 48kHz
- Maximum PC Resolution: 1900x1200
- Maximum HD Resolution: 1080p
Active or Passive Adapter Active Audio Yes AV Input - DVI
- Digital Coaxial

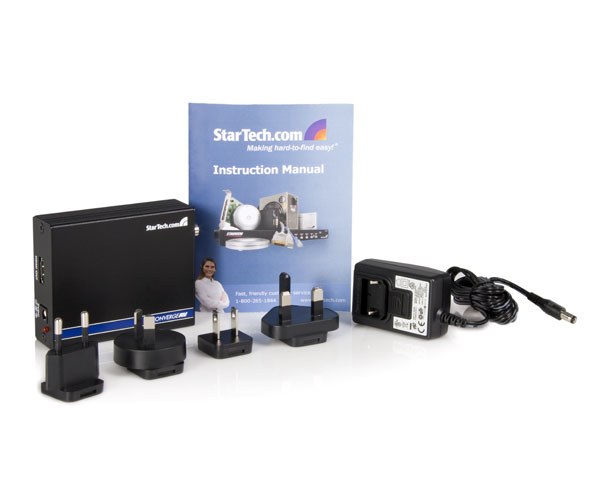

AV Output HDMI Converter Type Format Converter Carton Depth (mm) 153 Carton Height (mm) 133 Carton Quantity 30 Carton Weight Gross (g) 11400 Included in Package - 1 - DVI to HDMI Converter
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 24 Package Height (mm) 46 Package Width (mm) 83 Package Weight (g) 340 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 RCA (S/PDIF Coaxial Audio) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
