DVI2HDMIA
DVI and Analog Audio to HDMI Converter
Connect a DVI-D source device with RCA audio to an HDMI® monitor/television
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name DVI and Analog Audio to HDMI Converter Product Number DVI2HDMIA UPC 065030842808 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 DVI Converters Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Product Title (Short) DVI to HDMI Video Converter with Audio Product Title (Standard) DVI to HDMI Video Converter with Audio Product Title (Long) DVI to HDMI Video Converter with Audio Product Title (AMZ) DVI to HDMI Video Converter with Audio - Video converter - DVI - HDMI - black (DVI2HDMIA) Title Ingram (Part 1) DVI to HDMI Video Converter with Title Ingram (Part 2) Audio Website Product Headline Connect a DVI-D source device with RCA audio to an HDMI® monitor/television Bullet 1 Compact design Bullet 2 Rugged metal enclosure Bullet 3 Supports HD 1080p (1920x1080) resolution Bullet 4 Supports 2-channel RCA audio Bullet 5 DVI-D Video with Audio pass-through to a single HDMI® cable Bullets (Consolidated) Connect a DVI-D source device with RCA audio to an HDMI monitor/television - Video converter - DVI - HDMI - Black Marketing Copy Applications - Deliver audio/video content from your PC or Mac to your A/V devices (HDTV or receiver) for a larger and louder viewing
- Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
- Convert your DVI and audio signals for video and audio pass-through to one HDMI cable
- Keep your existing HDMI® monitor to be used with your DVI device
Website Search Keyword - DVI to HDMI
- DVI to HDMI with audio
- DVI with audio to HDMI
- DVI-D to HDMI
- DVI to HDMI Video Converter with Audio
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes DVI signal must be DVI-D (digital only). Accessory Products - SVA5M3NEUA
- DVIMM6
- DVIDSMM10
- DVIDSMM15
- HDMM6
- HDMM10
- HDMM15
- AUDIORCA15
- AUDIORCA30
- AUDIORCA50
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
Related Products - DVI2HDMI
- HDMI2DVI
- HDMI2HDMI
- HDMIDVIMM10
- HDMIDVIMF
Input Current 0.5A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 5 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~85% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 88.000 Product Width (mm) 25.500 Product Height (mm) 68.000 Product Weight (g) 113.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Bandwidth 225MHz Maximum Data Transfer Rate 2.25Gbps Maximum Digital Resolutions 1080p / 1920x1080 Supported Resolutions Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input - DVI-D
- Audio RCA
AV Output HDMI Converter Type Format Converter Industry Standards Standard HDMI®, HDCP Compliant LED Indicators - 1 - Power indicator
- 1 - Connection indicator

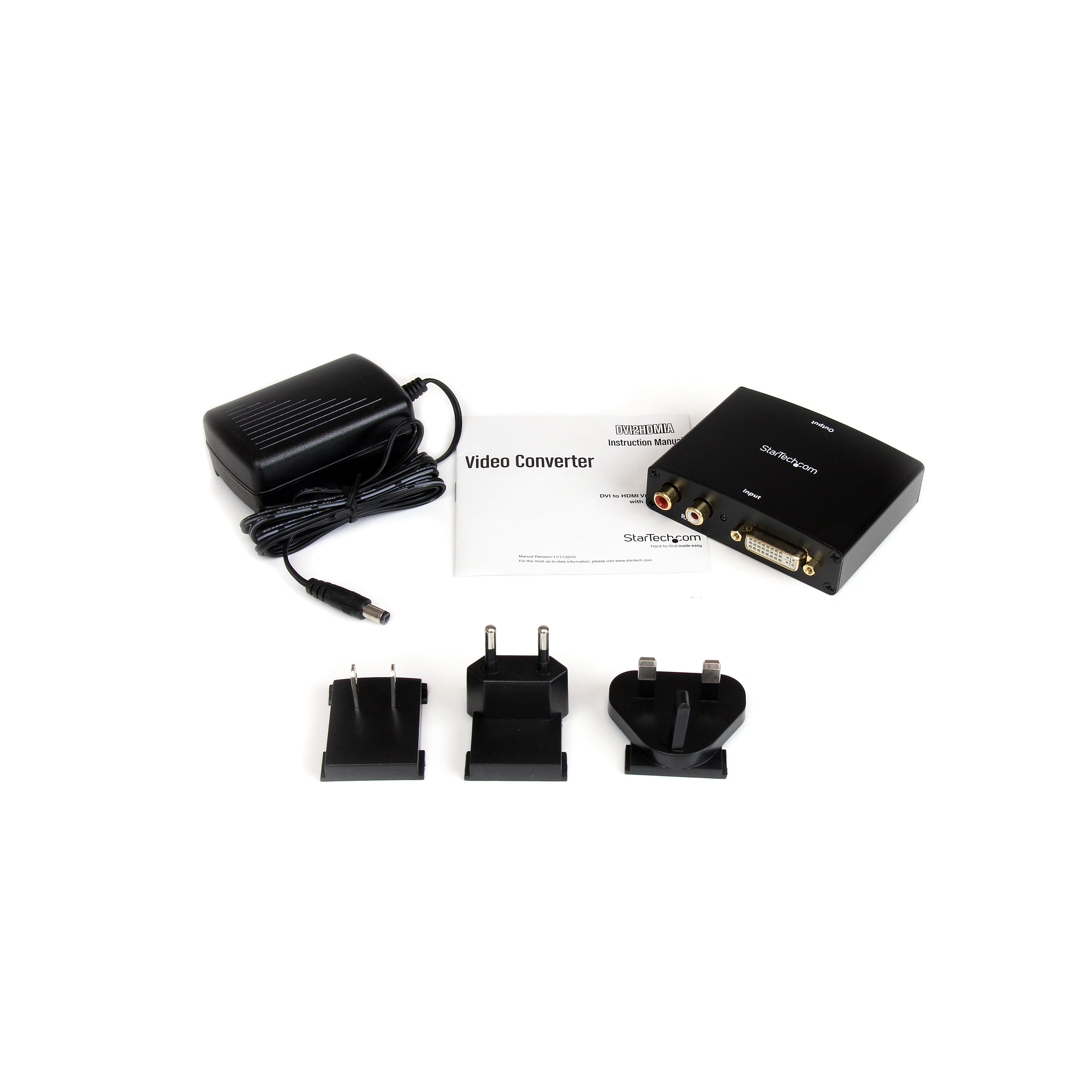

Carton Depth (mm) 420 Carton Height (mm) 305 Carton Quantity 37 Carton Weight Gross (g) 13780 Included in Package - 1 - DVI to HDMI converter
- 1 - Power Adapter
- 1 - User Manual
Package Depth (mm) 172 Package Height (mm) 60 Package Width (mm) 123 Package Quantity 1 Package Weight (g) 362 Packaging Description DVI to HDMI® Converter with RCA Audio Packaging Description India DVI to HDMI® Converter with RCA Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 RCA (Stereo Audio) Connector 2 (Quantity) 2 Connector 3 HDMI Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,NL,PE,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
