Product Name Converge A/V DVI Equalizer Product Number DVIEQ UPC 065030824378 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) DVI Video Extender Equalizer Product Title (Long) DVI Video Extender Equalizer Title Ingram (Part 1) DVI Video Extender Equalizer Bullet 1 Extends cable reach to 40 meters. 20 meters from the source to the equalizer plus 20 meters from the equalizer to the projector, TV/monitor. Bullet 2 HDCP compliant. Bullet 3 Plug and play, easy to install. Bullet 4 Maintains high DVI single link video resolution up to UXGA/1080p Bullet 5 Provides 8 dB input equalization to compensate for cable transmission loss. Marketing Copy Applications - Will eliminate digital noise (sparkles) to ensure you recieve a DVI HD resolutions up to UXGA or 1080p.
- Ideal for adding that extra distance with using DVI cables. Get the signal quality you want with the DVIEQ
Website Search Keyword - DVI Extender
- DVI Booster
- Video Amplifier
- DVI Video Extender
- DVI Video Booster
- DVI Equalizer
Accessory Products - DVIIDMF6
- DVIIDMF10
- DVIIDMF15
- DVIIDMM6
- DVIIDMM10
- DVIIDMM15
Color Silver Product Length (mm) 0 Product Width (mm) 0 Product Height (mm) 0 Product Weight (g) 0 TAA Compliant No General Specifications - DVI data rate: 1.65 Gbps (single link)
- Operation Frequency: Up to 165 MHz
- Notes: HDCP is compliant with HDCP 1.1 downward compatible to HDCP 1.0
- Input/Output Resolution: PC: VGA, SVGA, XGA, SXGA, UXGA up to 165MHz HD: 480i/576i, 480p/576p, 720p, 1080i. 1080p
- 5V 2A center positive power adapter
- Maximum Distance: 40m / 120ft

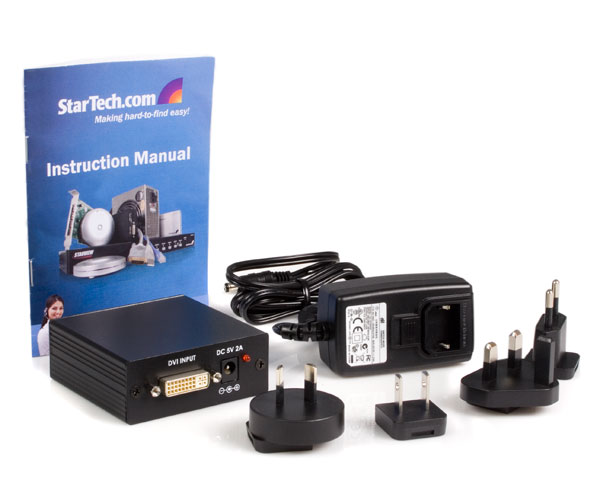

Cabling DVI Carton Depth (mm) 445 Carton Height (mm) 343 Carton Quantity 30 Carton Weight Gross (g) 15000 Included in Package - 1 - DVI Equalizer Box
- 1 - 5V DC Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 115 Package Height (mm) 62 Package Width (mm) 208 Package Weight (g) 460 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
