Main Image
DVIEXTFIBLC
Main Image

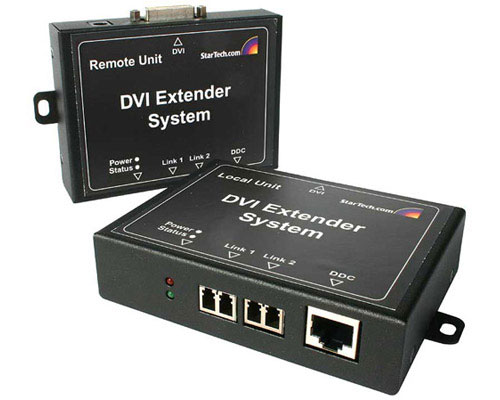

Product Name Long Range DVI Extender Product Number DVIEXTFIBLC UPC 065030811002 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Product Title (Long) Long Range DVI Extender – 330 feet (100 meters) Bullet 1 Supports UXGA resolutions of up to 1600 x 1200 pixels at 60 Hz Bullet 2 Designed to match the capabilities of your display Bullet 3 Extends using multimode fiber and/or Cat 5 cable Bullet 4 Downward compatible resolution support Bullet 5 Power adapter included Marketing Copy Applications - Security (monitoring)
- Hospital (nurses stations, operating rooms)
- Classroom (lectures)
- Transportation (airports, train stations, bus terminals)
- Tradeshows (booth displays)
- Manufacturing (process control and monitoring)
- Video Broadcasting (control room, feed selection, monitoring)
- Point of Sale (video display banks)
- Houses of Worship
Accessory Products - 50FIBLCLC1
- 50FIBLCLC2
- 50FIBLCLC3
- 50FIBLCLC5
- WIRC5E350CMR
- WIRC5E350GR
- WIRC5E350RED
- WIRC5ECMRWH
Related Products - DVIAEXT10
- DVIAEXT20
- DVIAEXT30
- DVIAEXT50
- DVIAEXT100
Material Steel Operating Temperature 4 ~ 40 Product Length (mm) 107 Product Width (mm) 80 Product Height (mm) 26 TAA Compliant No General Specifications - Range using Cat 5 UTP cable and multimode fiber cable: 330 feet (100 meters)
- Range using multimode fiber alone (no DDC support): 1650 feet (500 meters)
- Fiber Cable Compatibility: 62.5/125 um or 50/125 um multimode
- Maximum Resolution: UXGA, 1600 x 1200 at 60 Hz
- Local Unit Ports: Upstream - 1 x DVI-D female
- :Downstream - 1 x RJ-45 female
- :Downstream - 2 x Duplex LC female
- Remote Unit Ports: Upstream – 1 x RJ-45 female
- :Upstream – 2 x Duplex LC female
- :Downstream – 1 x DVI-D female
- Local Unit/Remote Unit Weight: 0.6 lbs (0.3 kg)
- Note: This product is not intended for use with widescreen displays
Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Package Depth (mm) 52 Package Height (mm) 338 Package Width (mm) 335 Package Weight (g) 1890 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Eric Roth
