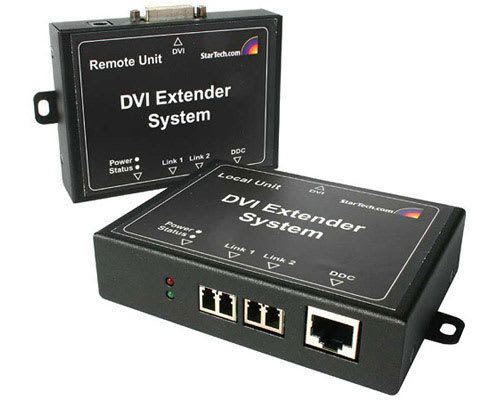

Product Name Long Range DVI Extender – 1650 Feet (500 meters) Product Number DVIEXTFIBLGB UPC 065030879446 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) Long Range DVI Extender – 1650 Feet (500 meters) Bullet 1 Designed to match the capabilities of your display Bullet 2 Downward compatible resolution support Bullet 3 Extends using Cat 5 cable or multimode fiber cable Bullet 4 Power adapter included Bullet 5 Supports UXGA resolutions of up to 1600 x 1200 pixels at 60 Hz Marketing Copy Applications - Classroom (lectures)
- Hospital (nurses stations, operating rooms)
- Houses of Worship
- Manufacturing (process control and monitoring)
- Point of Sale (video display banks)
- Security (monitoring)
- Tradeshows (booth displays)
- Transportation (airports, train stations, bus terminals)
- Video Broadcasting (control room, feed selection, monitoring)
Accessory Products - 50FIBLCLC1
- 50FIBLCLC2
- 50FIBLCLC3
- 50FIBLCLC5
- WIRC5E350CMR
- WIRC5E350GR
- WIRC5E350RED
- WIRC5ECMRWH
Related Products - DVIAEXT10
- DVIAEXT100
- DVIAEXT20
- DVIAEXT30
- DVIAEXT50
Material Steel Operating Temperature 4 ~ 40 Product Length (mm) 107 Product Width (mm) 80 Product Height (mm) 26 Product Weight (g) 1088 TAA Compliant No General Specifications - Fiber Cable Compatibility: 62.5/125 um or 50/125 um multimode
- Maximum Resolution: UXGA, 1600 x 1200 at 60 Hz
- Range using Cat 5 UTP Cable: 330 feet (100 meters)
- Range using multimode fiber: 1650 feet (500 meters)
Maximum Cable Length (mm) 500000 Connector 1 DVI-D Dual-Link (25-Pin) Connector 1 (Quantity) 1 Connector 2 LC Duplex Fiber Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Host Connector 1 DVI-D Dual-Link (25-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 LC Duplex Fiber Host Connector 2 (Quantity) 1 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 en-US Content Approved Yes
