DVISPL1DD

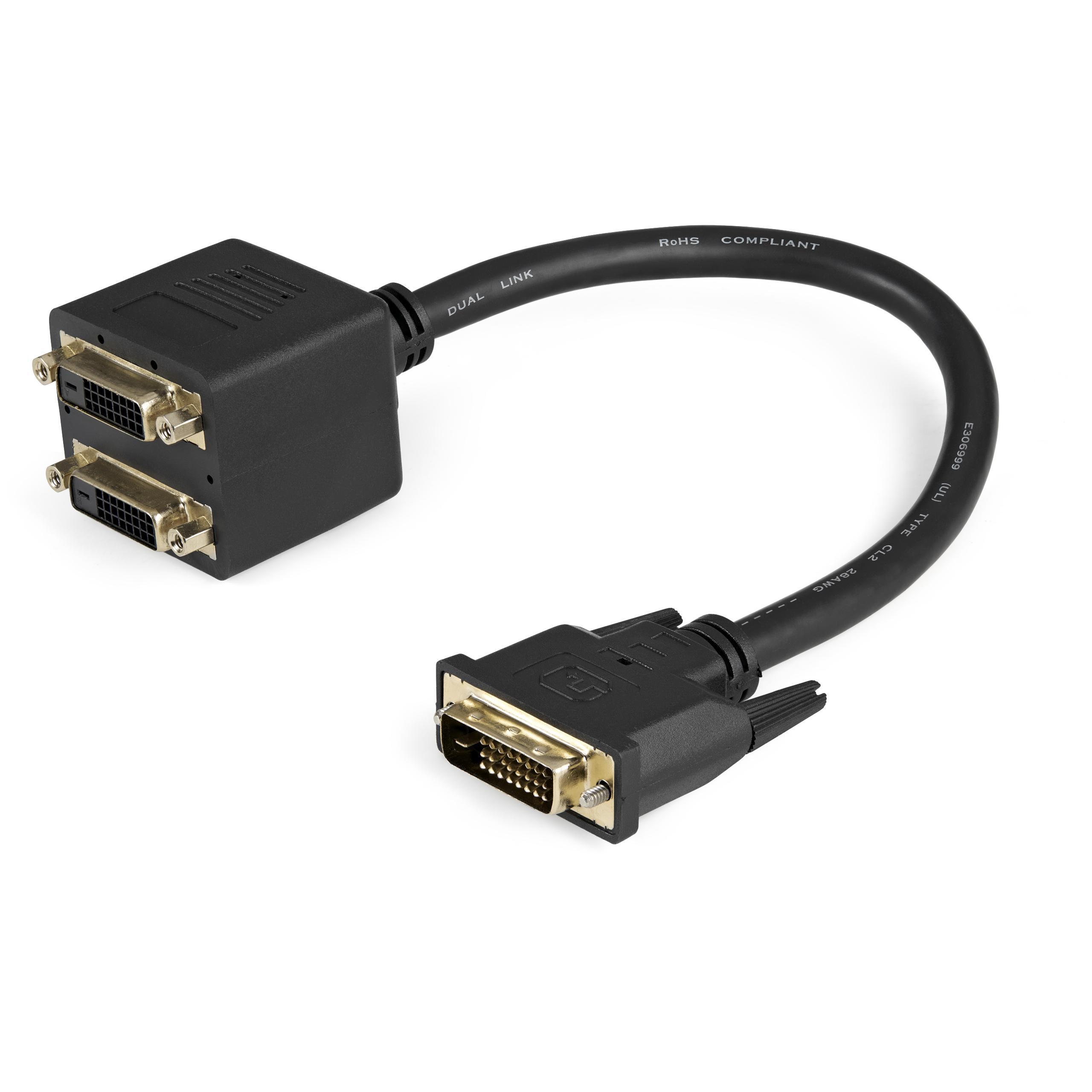

DVI Splitter Cable
Connect two DVI-D displays simultaneously to a single DVI-D video source
Main Image
Product Images
Product Images
BOM Image
Product Name DVI Splitter Cable Product Number DVISPL1DD UPC 065030825870 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Cables - Other Category Level 2 DVI, VGA, Audio Cables Category Level 3 DVI-I Cables - Dual Link Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Product Title (Ultra-Short) . Product Title (Short) 1ft DVI to 2x DVI Video Splitter Cable Product Title (Medium) x Product Title (Standard) 1 ft DVI-D to 2x DVI-D Digital Video Splitter Cable - M/F Product Title (Long) 1 ft DVI-D to 2x DVI-D Digital Video Splitter Cable - M/F Product Title (AMZ) 1ft DVI Splitter Cable - M / F - DVI-D to 2x DVI-D Dual Video Splitter for Your Split Screen Computer Monitor (DVISPL1DD) Title Ingram (Part 1) 1ft DVI-D to 2x DVI-D Digital Title Ingram (Part 2) Video Splitter Cable - M/F Black Website Product Headline Connect two DVI-D displays simultaneously to a single DVI-D video source Bullet 1 DVI SPLITTER FOR MIRRORED DISPLAYS: View two identical DVI-Digital (24-pin) images from a single DVI-Digital (24-pin) source with this 1ft (30cm) DVI-D to 2x DVI-D (DVI-Digital) splitter; DVI-Analog signal is not supported Bullet 2 PERFORMANCE & RELIABILITY: This DVI-D male to 2x DVI-D female splitter offers a built-in 12" cable to remove strain from the DVI-Digital source connector; we recommend DVI-D cables (DVIDDMM6) for high performance & signal reliability Bullet 3 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this DVI-D video splitter is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullet 4 FULL HD SPLITTER: This cable is best suited for PCs that have a graphics card w/ DVI output, and may not work w/ adapters that convert HDMI/DP/USBC to DVI, or docking stations; This is a passive adapter and resolutions over 1920x1200 are not recommended Bullet 5 NOTE: Splitter delivers two identical images of the same resolution; cannot be used to span an image across displays or to show different images on each display; product will display the same image on two monitors Bullets (Compact) Connect two DVI-D displays simultaneously to a single DVI-D video source - dvi splitter cable - dvi-d splitter - dvi y cable Bullets (Consolidated) Mirror two identical DVI-D displays from a single DVI-D video source - 1ft DVI Splitter Cable/30cm DVI-D Splitter/Y Cable/1 ft DVI-D to 2x DVI-D Digital Video Splitter Cable M/F - Output one DVI digital video signal to two DVI-D displays simultaneously - Offers 12" in cable length and removes strain from the DVI-D connectors and reduces the potential of blocking other available ports - Guaranteed reliability with StarTech.com lifetime warranty Marketing Copy Marketing Copy (No HTML) Applications - Output one DVI digital video signal to two DVI-D displays simultaneously
- Ideal for use LCD TV, LCD Projectors, Plasma TV, HDTV and DVD Player and set-top box
Website Search Keyword - dvi splitter cable
- dvi-d splitter
- dvi y cable
- P564-001
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes This product will split your video signal to deliver two identical images of the same resolution. It cannot be used to span an image across two displays, or to show different images on each display. Accessory Products - DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMIDVIMM20
- USB32DVIPRO
- USB2DVIPRO2
- USB32HDE
- USB2DVIE2
- USB2DVIE3
- USB32DVIEH
- USB32HDDVII
- USB2DVIMM6
Related Products - DVISPL1DH
- DVIVGAYMM6
- ST124DVIA
- ST122DVIA
- DVISPL1VV
Cable Length (mm) 304.8 Color Black Primary Material Plastic Product Length (mm) 304.8 Product Width (mm) 42 Product Height (mm) 37 Product Weight (g) 153 TAA Compliant No Wire Gauge 28 AWG Maximum Digital Resolutions 2560 × 1600 @ 60Hz Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Gold Carton Depth (mm) 370 Carton Height (mm) 282 Carton Quantity 100 Carton Weight Gross (g) 16550 Included in Package 1 - 1 ft DVI-D to 2x DVI-D Digital Video Splitter Cable - M/F Included In Package for Label 1 - 1 Ft DVI-D To 2X DVI-D Digital Video Splitter Cable - M/F Number of Sub-Cartons 10 Package Depth (mm) 125 Package Height (mm) 39 Package Width (mm) 225 Package Quantity 1 Package Weight (g) 158 Packaging Description DVI-D to 2x DVI-D Splitter Cable - M/F Packaging Description India DVI-D to 2x DVI-D Splitter Cable - M/F Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1632 Connector 1 DVI-D Dual-Link (25-Pin) Connector 1 (Quantity) 1 Connector 2 DVI-D Dual-Link (25-Pin) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
