Main Image
EC1000S

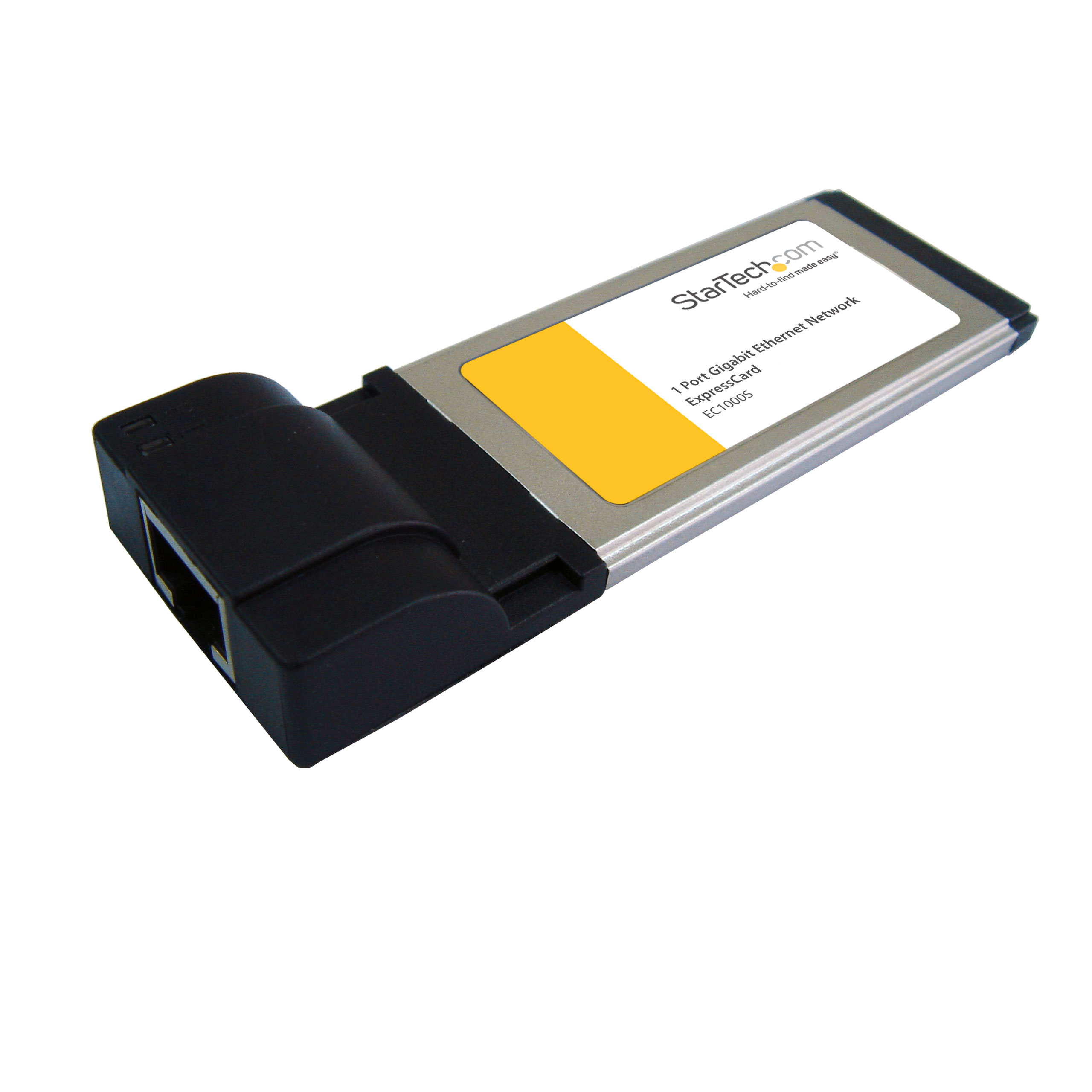

Gigabit Ethernet NIC Card Network Adapter
Add Gigabit network connectivity to any ExpressCard compatible notebook or desktop computer
Main Image
Product Images
BOM Image
Product Name Gigabit Ethernet NIC Card Network Adapter Product Number EC1000S UPC 065030839808 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 ExpressCard Network Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) ExpressCard Gigabit Network Adapter Card Product Title (Medium) x Product Title (Standard) ExpressCard Gigabit Ethernet Network Adapter Card Product Title (Long) 1 Port ExpressCard Gigabit Laptop Ethernet NIC Network Adapter Card Product Title (AMZ) 1 Port ExpressCard Gigabit Laptop Ethernet NIC Network Adapter Card (EC1000S) Title Ingram (Part 1) 1 Port ExpressCard Gigabit Ether Title Ingram (Part 2) net NIC Network Adapter Card Website Product Headline Add Gigabit network connectivity to any ExpressCard compatible notebook or desktop computer Bullet 1 Auto-negotiation between 10/100/1000 Mbps Bullet 2 Auto-MDIX, automatically configures the port for straight through or cross over communication Bullet 3 Fully compliant with ExpressCard 1.0 specifications Bullet 4 Compliant with IEEE 802.3, 802.3u and 802.3ab Bullet 5 Supports Wake On Lan (WOL) power management options Bullets (Consolidated) Add Gigabit network connectivity to any ExpressCard compatible notebook or desktop computer - ExpressCard Ethernet - Gigabit Ethernet Adapter - Gigabit Network Card - ExpressCard LAN Card Marketing Copy Applications Add Gigabit network connectivity to any notebook or desktop PC with an ExpressCard expansion slot Website Search Keyword - ExpressCard
- Gigabit
- Network Card
- 34mm ExpressCard
- 1000BaseTX
- 10/100/1000
- EC1000BT
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - ECBRACKET
- C6PATCH1BK
- C6PATCH1BL
- C6PATCH3BK
- C6PATCH3BL
- C6PATCH6BK
- C6PATCH6BL
- C6PATCH6GN
- C6PATCH6GR
- C6PATCH6RD
- C6PATCH6WH
Related Products - CB1000BT
- ST1000BT32
- ST1000BTPEX
- EC1000BT
- ST1000SPEX
- ST1000SPEXDP
- ST100S
- ST100SLP
- UE1205CB
Humidity 5~85% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 112 Product Width (mm) 34 Product Height (mm) 13 Product Weight (g) 27 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 1000 Mbps OS Compatibility - Linux
- Windows 7
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Windows 8
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
Promiscuous Mode Yes Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID Realtek - RTL8111DL Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 1 - F - Green -Gigabit Link/Activity
- 1 - L - Green -10/100 Link/Activity

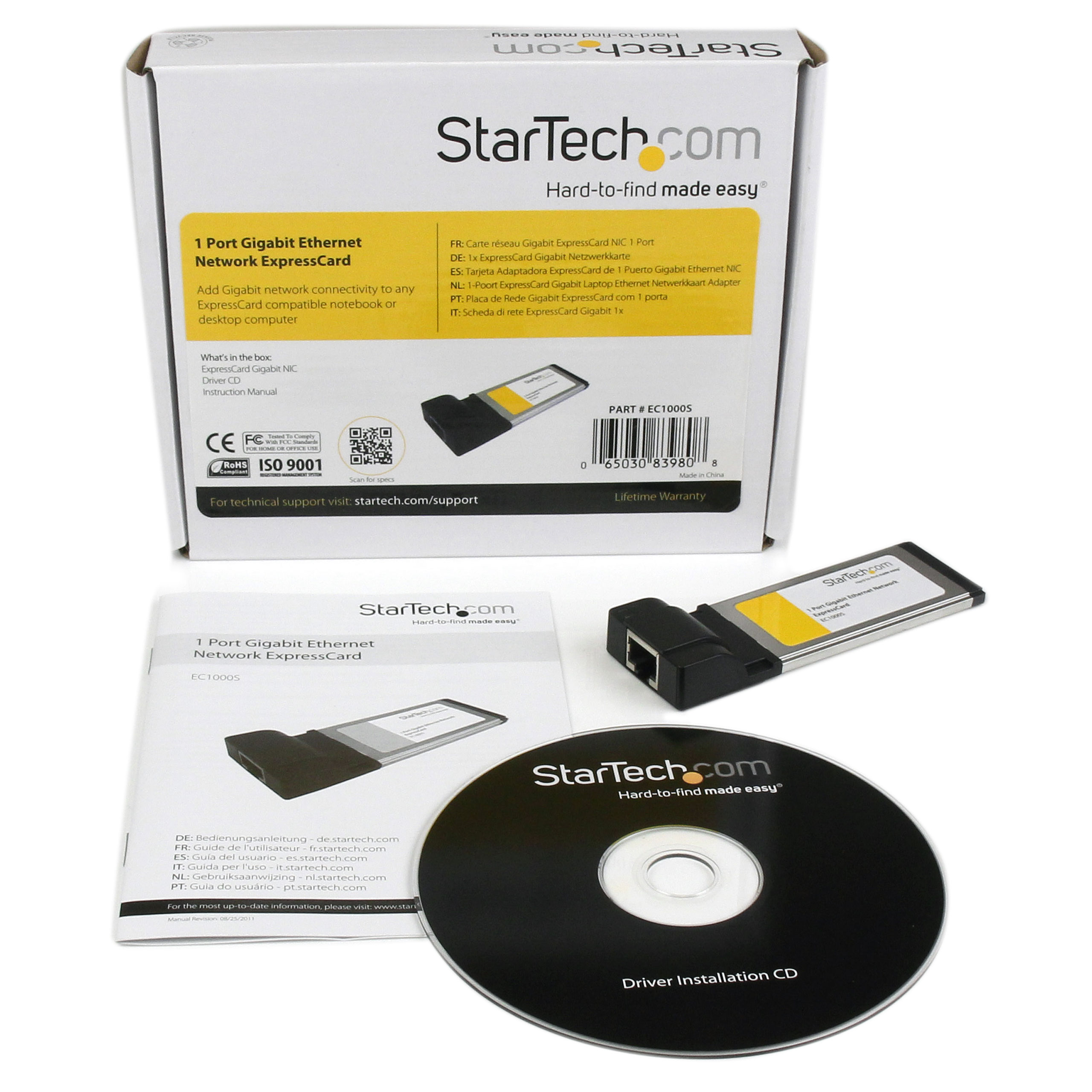

Carton Depth (mm) 605 Carton Height (mm) 395 Carton Quantity 80 Carton Weight Gross (g) 8920 Included in Package - 1 - ExpressCard Gigabit NIC
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 99 Packaging Description ExpressCard Gigabit Network Card Packaging Description India ExpressCard Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,JP,NZ,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
