EC13942
2 Port ExpressCard IEEE-1394 Firewire Card
Add 2 Firewire 400 ports to any ExpressCard equipped laptop
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port ExpressCard IEEE-1394 Firewire Card Product Number EC13942 UPC 065030824286 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 Firewire Cards Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 2 Port ExpressCard 1394a Firewire Card Product Title (Standard) StarTech.com 2 Port ExpressCard IEEE-1394 Firewire Card - FireWire adapter card - ExpressCard/34 - Firewire - 2 ports Product Title (Long) 2 Port ExpressCard Laptop 1394a FireWire Adapter Card Product Title (AMZ) 2 Port ExpressCard Laptop 1394a FireWire Adapter Card - Texas Instruments FireWire Card - Laptop FireWire Card (EC13942) Title Ingram (Part 1) 2 Port ExpressCard Notebook 1394 Title Ingram (Part 2) a Firewire Adapter Card Website Product Headline Add 2 Firewire 400 ports to any ExpressCard equipped laptop Bullet 1 Two 6-pin FireWire ports, each with transfer rates up to 400 Mbps Bullet 2 Compliant with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 standards Bullet 3 Fits in 34mm and 54mm ExpressCard slots Bullet 4 Plug-and-Play and hot-swap compatible Bullets (Consolidated) Add two Firewire 400 ports to any ExpressCard equipped laptop - 2 Port ExpressCard Laptop 1394a Firewire Adapter Card - ExpressCard Firewire Card - ExpressCard IEEE 1394 Adapter Card - Laptop Firewire Card - ExpressCard 34 Firewire Adapter - Notebook Firewire Card - Fits in 34mm and 54mm ExpressCard slots - Two 6 pin FireWire ports each with transfer rates up to 400 Mbps Marketing Copy Applications - Add a high speed FireWire port to a laptop without any FireWire ports
- Connect a digital camera to a laptop with an ExpressCard slot to download photos or video
- Connect a high speed external hard drive to an ExpressCard enabled system
Website Search Keyword - Firewire Card
- 2 Port
- ExpressCard
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements One available ExpressCard Slot Accessory Products - 1394_6
- 1394_10
- 1394_15
- 1394_46_6
- 1394_46_10
- 1394_46_15
- FIRE46FM
- FIRE46MF
- ECBRACKET
Related Products - PEX2EC
- EC13941A1B
- EC1394B2
Output Current 1A+ Output Voltage (V) 12V DC Power Source Not Included (not required for standard applications) Plug Type H Center Tip Polarity Positive Product Length (mm) 120.000 Product Width (mm) 34.000 Product Height (mm) 19.000 Product Weight (g) 100.000 TAA Compliant No Maximum Data Transfer Rate 400 Mbps OS Compatibility - Windows 7
- Linux
- Windows 8
- Windows Server 2016

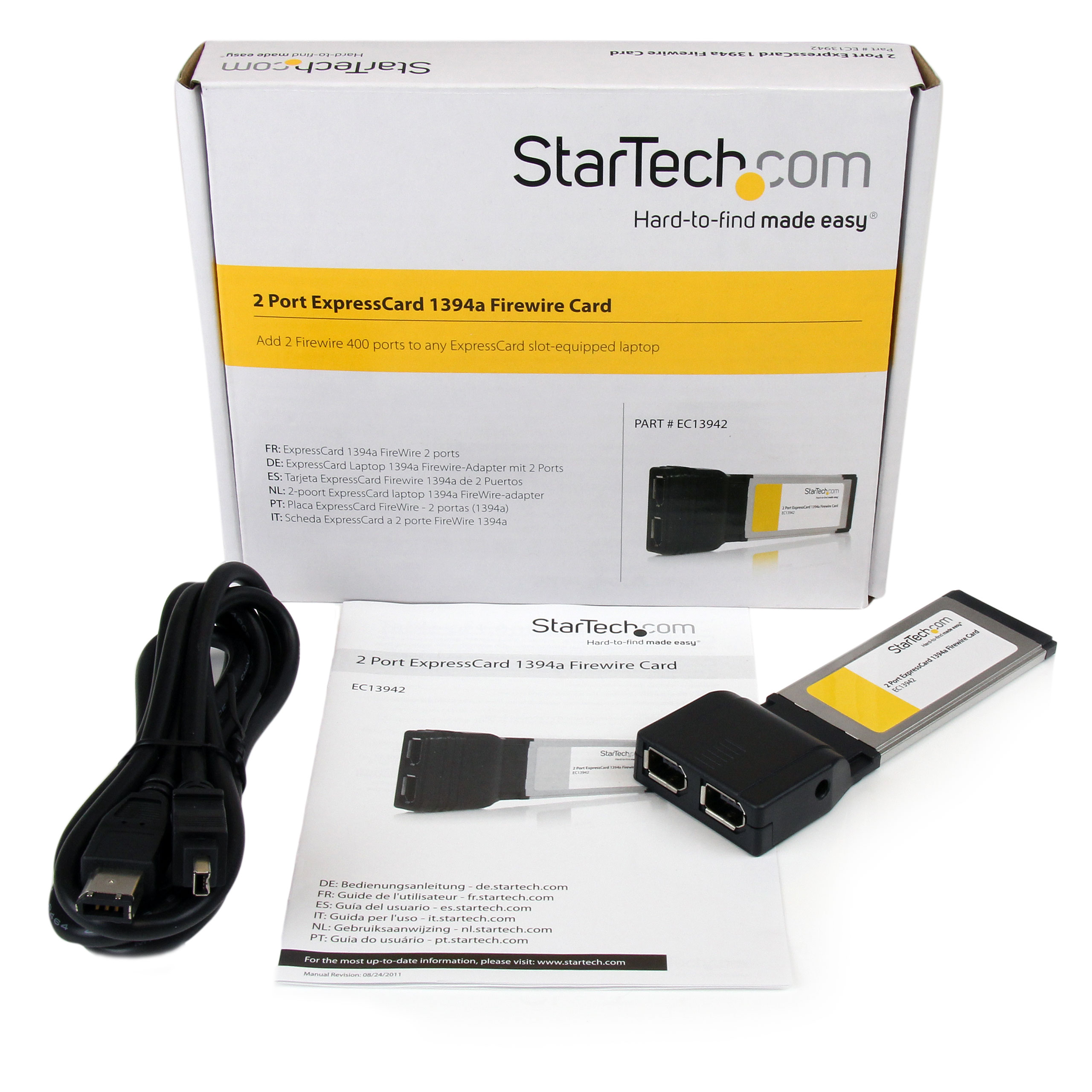

Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID Texas Instruments - XIO2200A Interface/Bridge FireWire 400 (1394a) Carton Depth (mm) 515 Carton Height (mm) 320 Carton Quantity 40 Carton Weight Gross (g) 8400 Included in Package - 1 - FireWire ExpressCard
- 1 - 4-6 Pin FireWire Cable
- 1 - Instruction Manual
Package Depth (mm) 76 Package Height (mm) 245 Package Width (mm) 150 Package Quantity 1 Package Weight (g) 144 Packaging Description 2 Port ExpressCard 1394a Firewire Card Packaging Description India 2 Port ExpressCard 1394a Firewire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
