EC13942A2

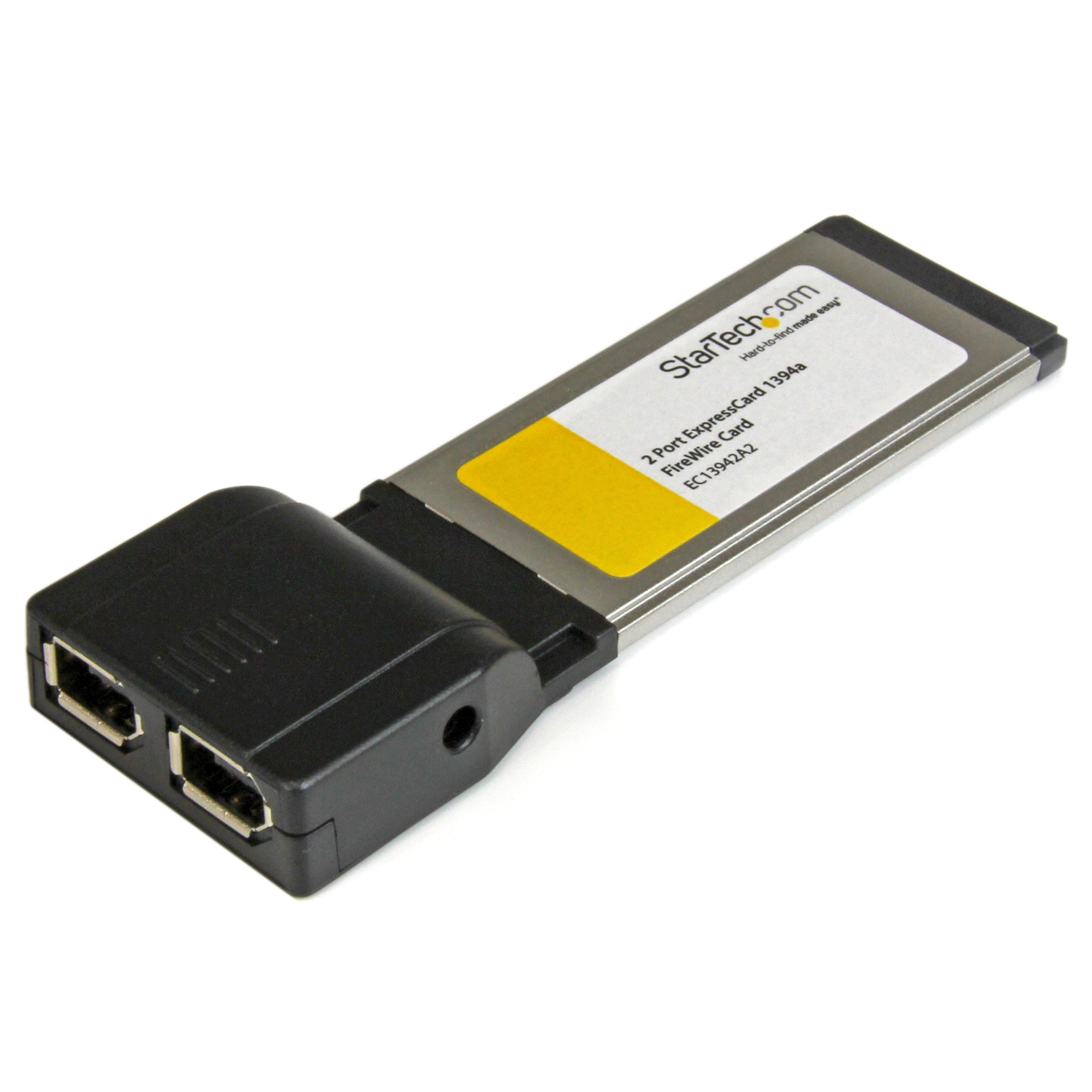

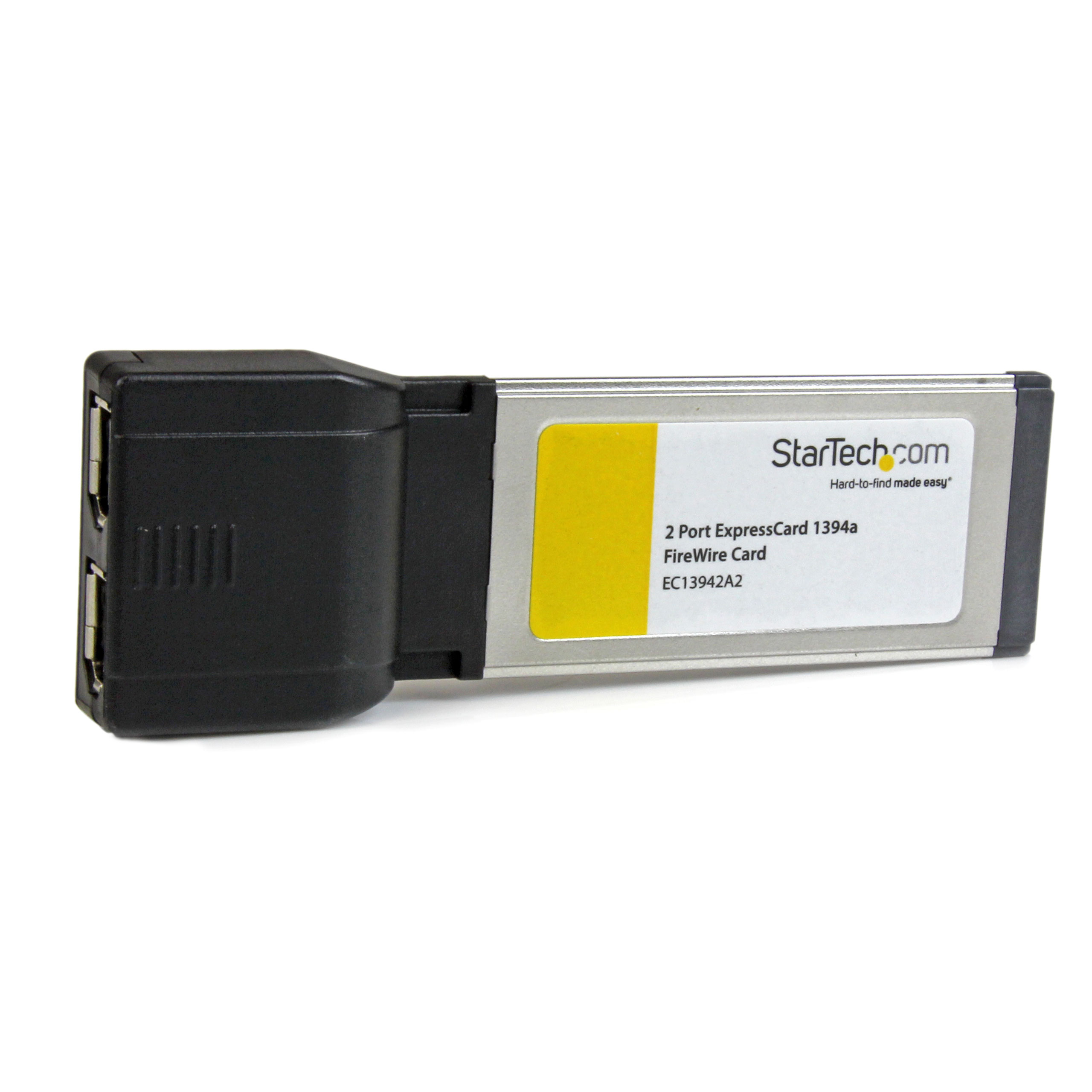

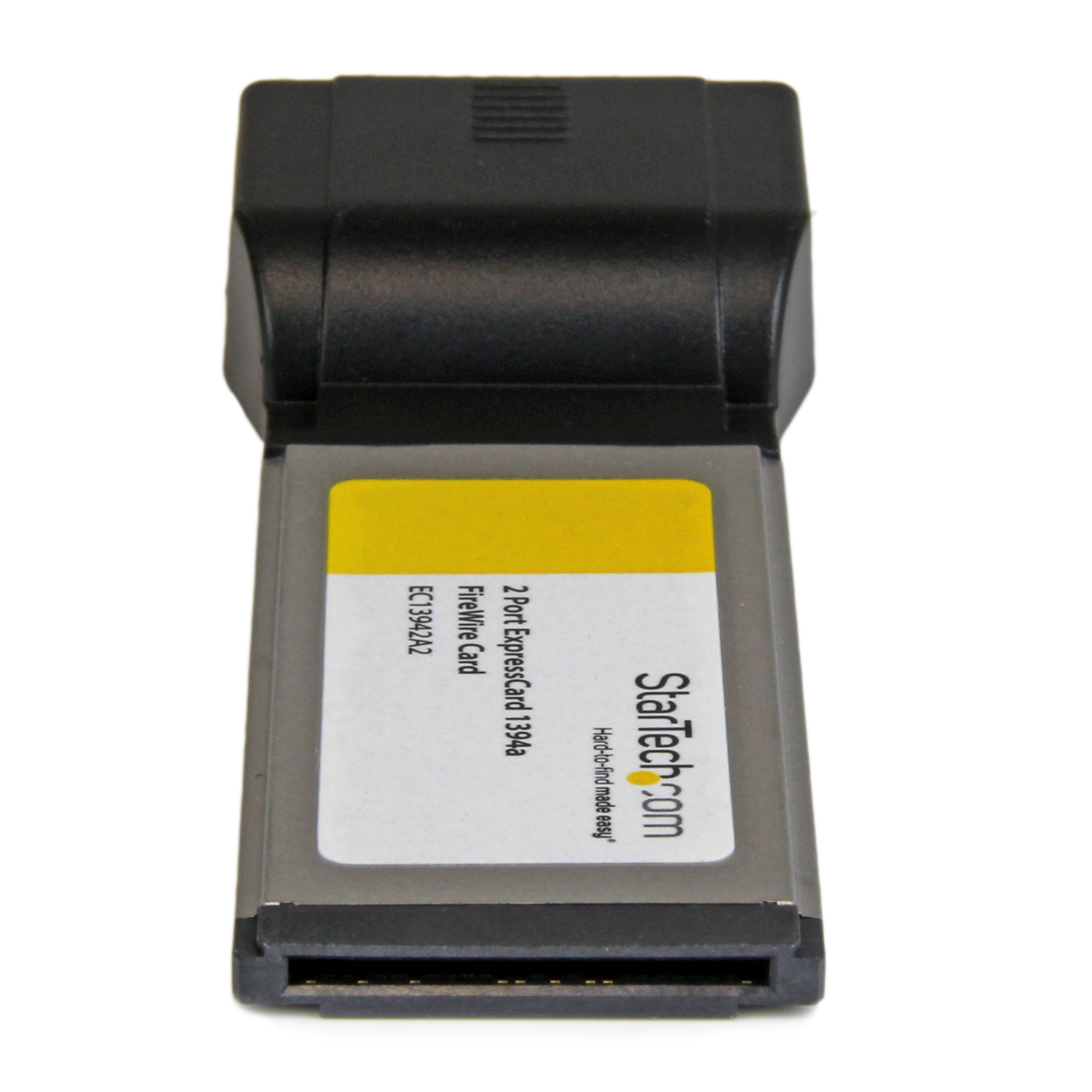

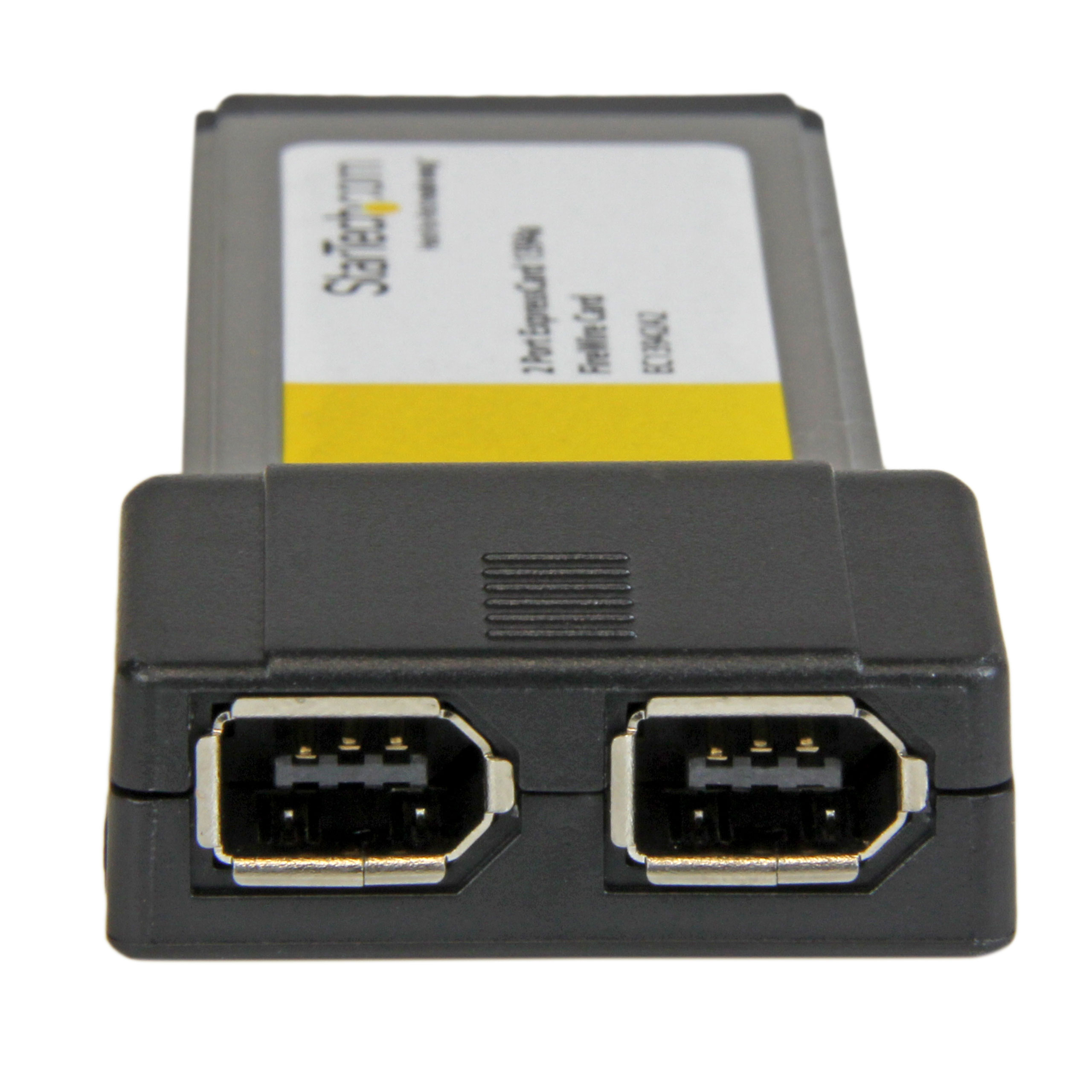

2 Port ExpressCard 1394a FireWire 400 Card
Instantly add 2 FireWire 400 ports to any ExpressCard compatible laptop
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port ExpressCard 1394a FireWire 400 Card Product Number EC13942A2 UPC 065030839433 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 Firewire Cards Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 2 Port ExpressCard FireWire Adapter Card Product Title (Standard) 2 Port ExpressCard 1394a FireWire Adapter Card Product Title (Long) 2 Port ExpressCard 1394a FireWire Laptop Adapter Card Product Title (AMZ) 2 Port ExpressCard 1394a FireWire Laptop Adapter Card - Dual Port ExpressCard 1394a Laptop FireWird Card (EC13942A2) Title Ingram (Part 1) 2 Port ExpressCard 1394a FireWir Title Ingram (Part 2) e Laptop Adapter Card Website Product Headline Instantly add 2 FireWire 400 ports to any ExpressCard compatible laptop Bullet 1 Compliant with ExpressCard revision 1.0 standards Bullet 2 Optional external power support for high-powered FireWire devices Bullet 3 34mm ExpressCard/34 form factor Bullet 4 Complaint with IEEE 1394-1995, 2000, OHCI 1.1 standards Bullet 5 Plug-and-Play and Hot-Swap compatible Bullets (Consolidated) FireWire adapter - ExpressCard - FireWire x 2 Marketing Copy Marketing Copy (No HTML) Applications - Add a high-speed FireWire port to a laptop without any FireWire ports
- Connect a digital camera to a laptop with an ExpressCard slot to download photos and video
- Connect a high-speed external hard drive to an ExpressCard-enabled system
Website Search Keyword - 2 Port
- ExpressCard
- Firewire Card
- IEEE1394a
- 1394a
- FireWire 400
- 34mm ExpressCard
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Accessory Products - 1394_10
- 1394_15
- 1394_46_10
- 1394_46_15
- 1394_46_6
- 1394_6
- ECBRACKET
- FIRE46FM
- FIRE46MF
Related Products - EC13941A1B
- EC1394B2
- EC13942
- EC1U2F
- CB1394
- CB1394_2
- CB1394B3
- PCI1394_4
- PCI1394MP
- PEX13943
- PEX1394A2
- PEX1394A2DV
Output Current 1A Output Voltage (V) 12V DC Power Source Not Included (not required for standard applications) Plug Type H Center Tip Polarity Positive Humidity 5~85% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 115 Product Width (mm) 40 Product Height (mm) 14 Product Weight (g) 29 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No OS Compatibility - Linux
- Windows 7
- Windows 8
- Mac OS X Yosemite (10.10)
- Mac OS X Mavericks (10.9)
- Windows 10
- Mac OS X El Capitan (10.11)
- Windows 11

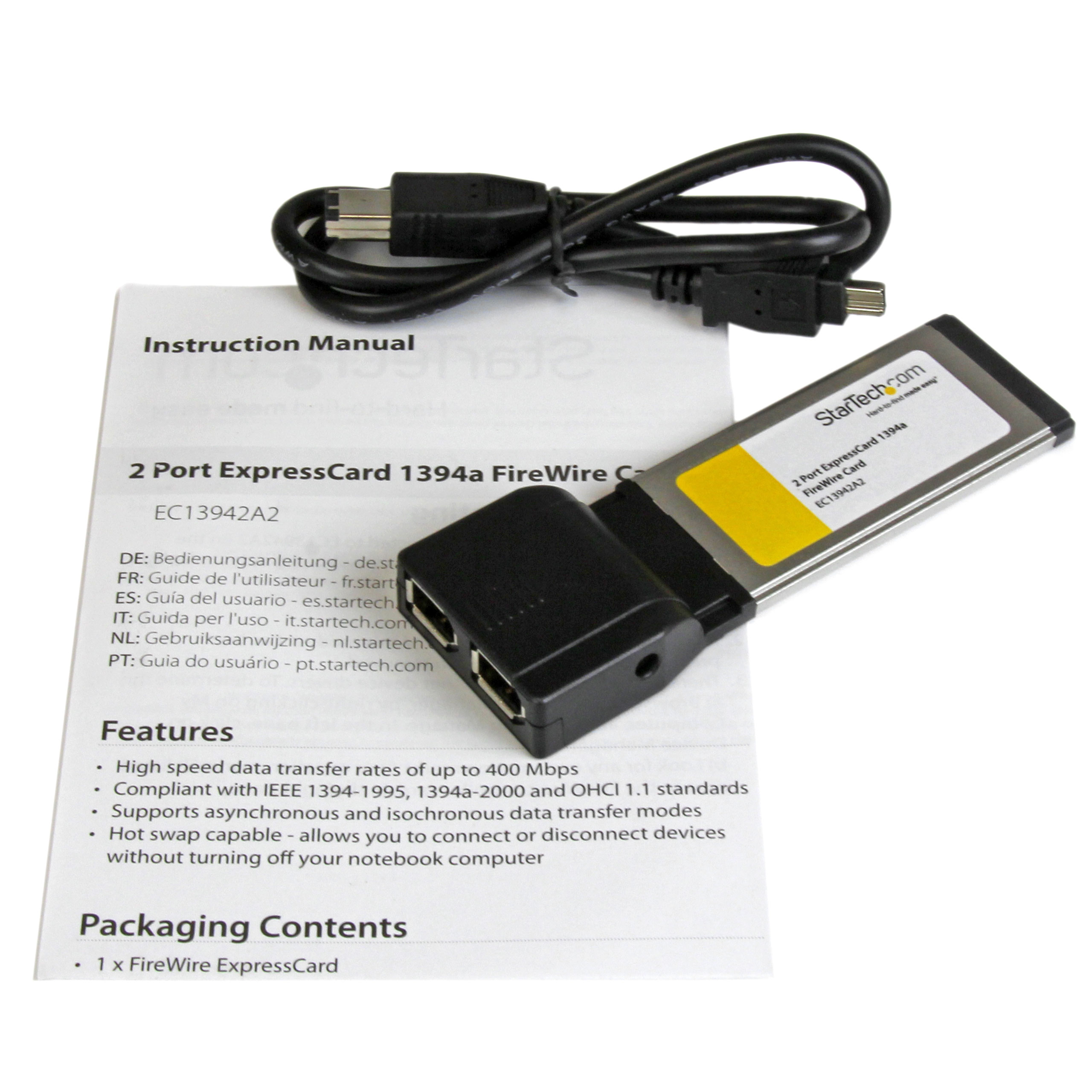

USB Type and Rate FireWire 400 IEEE-1394a (400Mbits) Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID VIA/VLI - VT6315 Interface/Bridge FireWire 400 (1394a) Carton Depth (mm) 365 Carton Height (mm) 304 Carton Quantity 80 Carton Weight Gross (g) 985 Included in Package - 1 - 2 Port FireWire ExpressCard Adapter
- 1 - Instruction Manual
- 1 - Firewire Cable
Package Depth (mm) 170 Package Height (mm) 30 Package Width (mm) 144 Package Quantity 1 Package Weight (g) 117 Packaging Description 2x ExpressCard FireWire Card Packaging Description India 2x ExpressCard FireWire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,CL,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
