Main Image
EC1PECP
Main Image
Product Images
Product Images
Product Images
Product Images

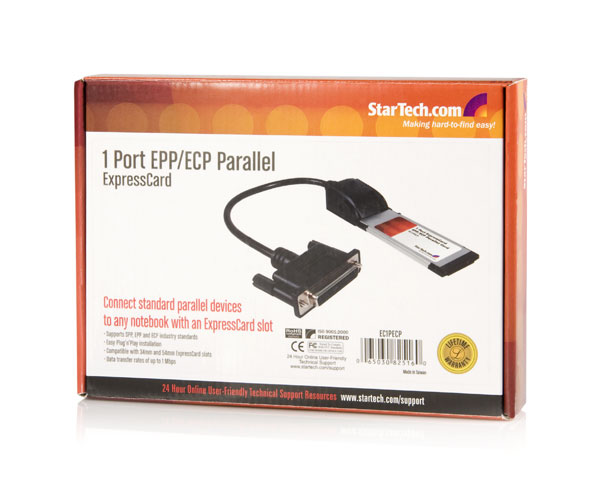

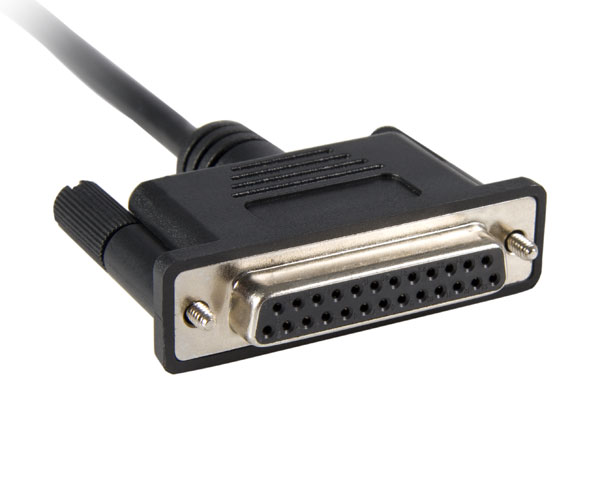

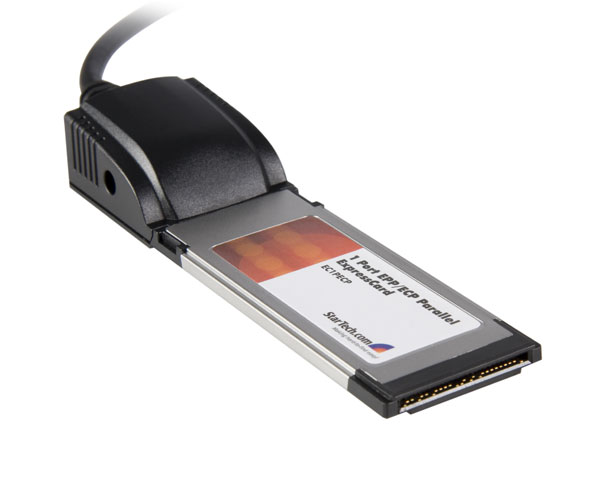

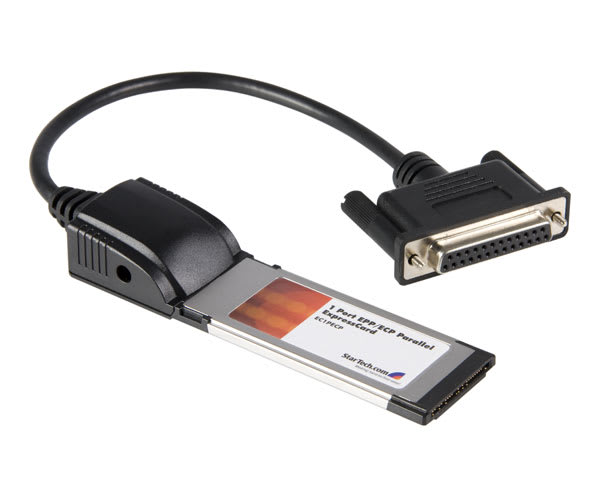

Product Name 1 port ExpressCard EPP/ECP Parallel Card Product Number EC1PECP UPC 065030825160 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Long) 1 Port ExpressCard Laptop Parallel Adapter Card - EPP/ECP Bullet 1 Data transfer rates of up to 1.5 Mbits/sec maximizes the performance of your peripherals Bullet 2 Industry Standards: SPP/EPP/ECP Bullet 3 Easy plug and play installation Marketing Copy This EPP/ECP Parallel ExpressCard offers an easy way to quickly connect your notebook computer to parallel peripherals such as printers, control devices and more, while achieving maximum performance based on ECP and EPP data communication, and providing data transfer rates of up to 1.5 Mbps Applications Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers Website Search Keyword - ExpressCard
- Parallel Card
Accessory Products - SC6MF
- SC6MM
- SC10MF
- SC10FF
- SC50MM
- PB6_
- PB10
- PC20
- PC30
- PC50
- PTXFER6
- PTXFER15
- ECBRACKET
Related Products - PCI1PECP
- PCI2PECP
- CB1PECP
TAA Compliant No General Specifications - Compatible OS: Windows 95, 98, ME; Windows XP (32-bit, 64-bit), Windows Vista (32-bit, 64-bit)
- Max Data Transfer Rate: 250 MBps

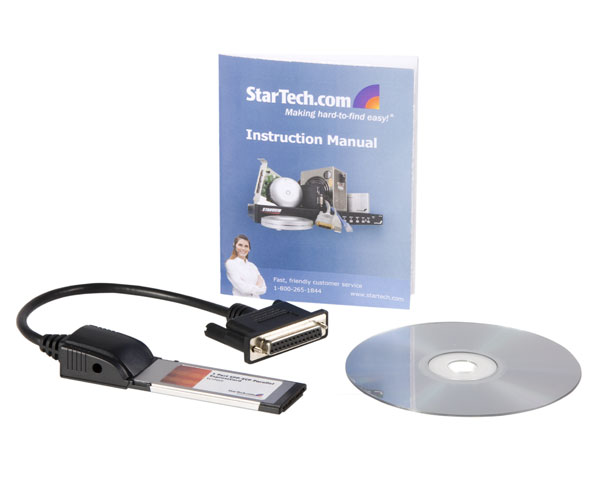

Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID PLX/Oxford - OX12PCI840 IO Card Port Style Integrated on Card Carton Depth (mm) 750 Carton Height (mm) 230 Carton Quantity 50 Carton Weight Gross (g) 11700 Included in Package - 1 - ExpressCard
- 1 - Instruction Manual
- 1 - Drive CD
Package Depth (mm) 43 Package Height (mm) 165 Package Width (mm) 230 Package Weight (g) 210 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-25 Parallel / Serial Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
