EC1PECPS

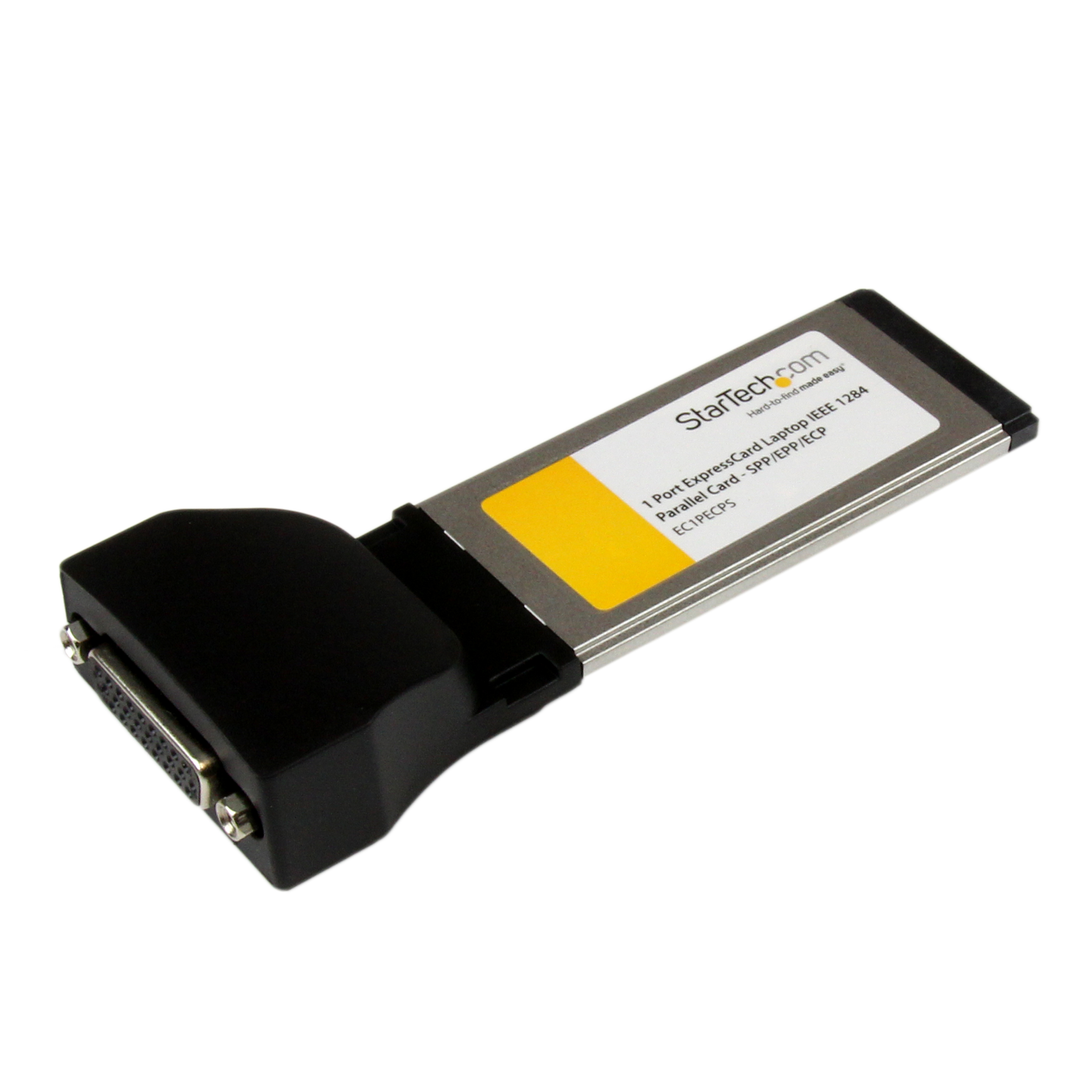

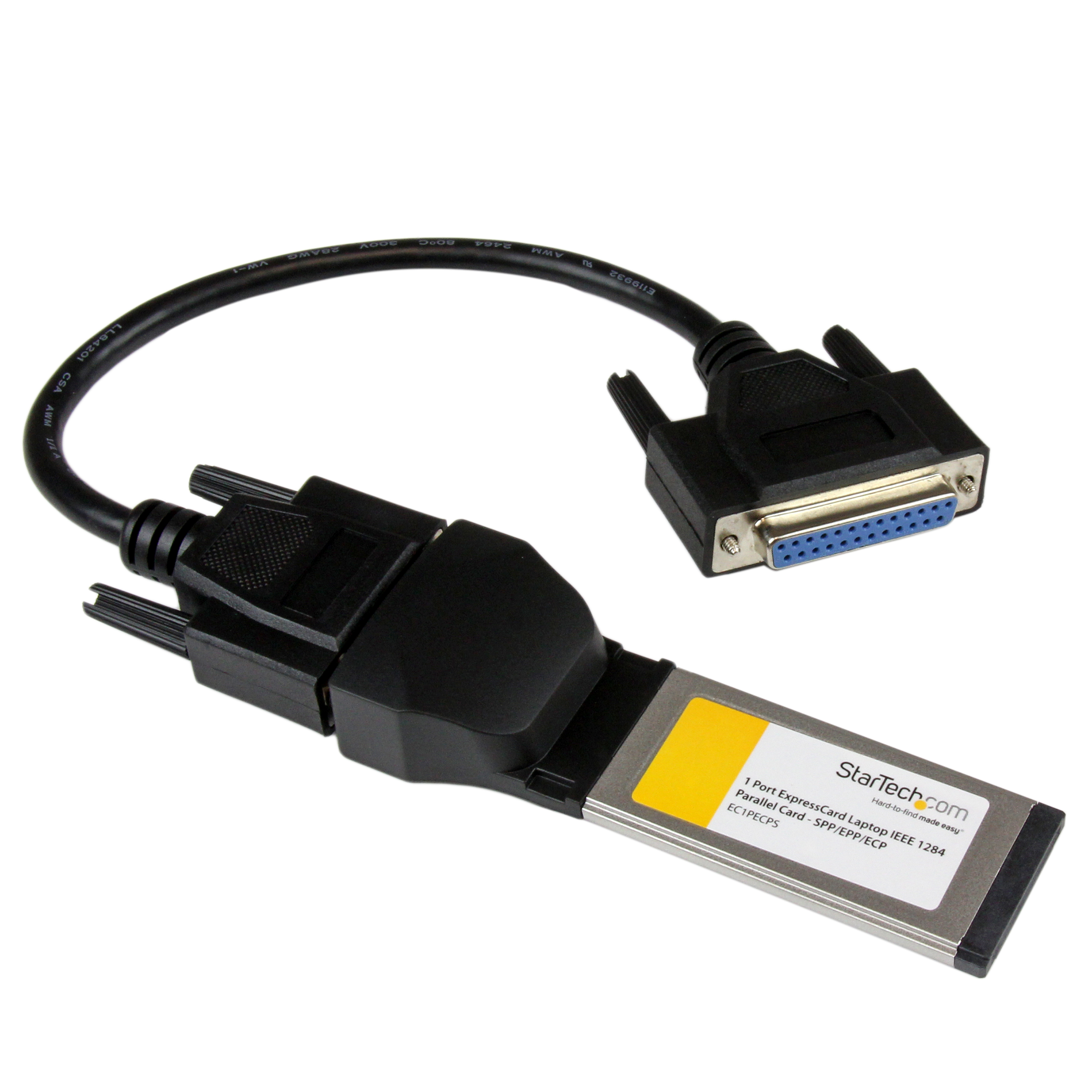

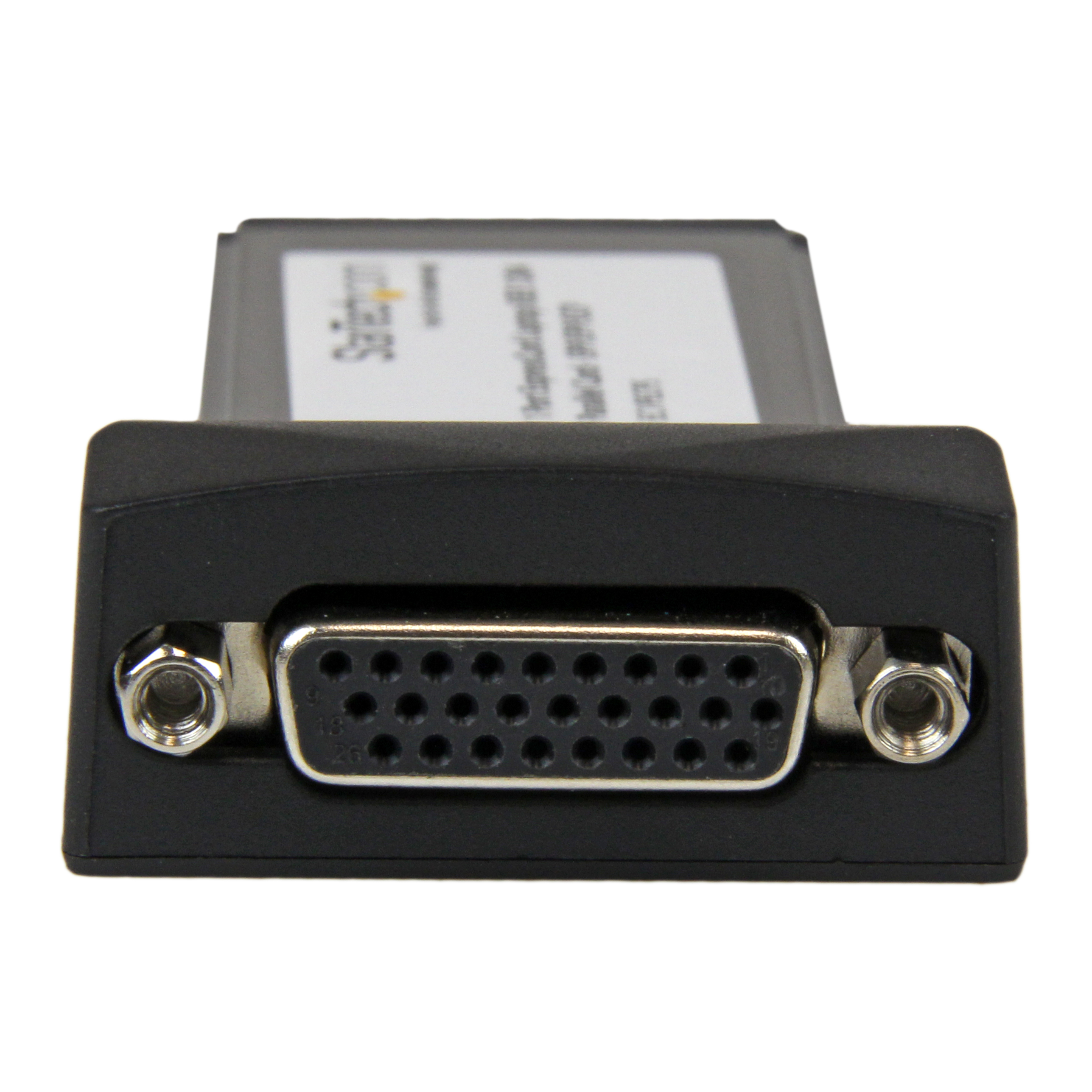

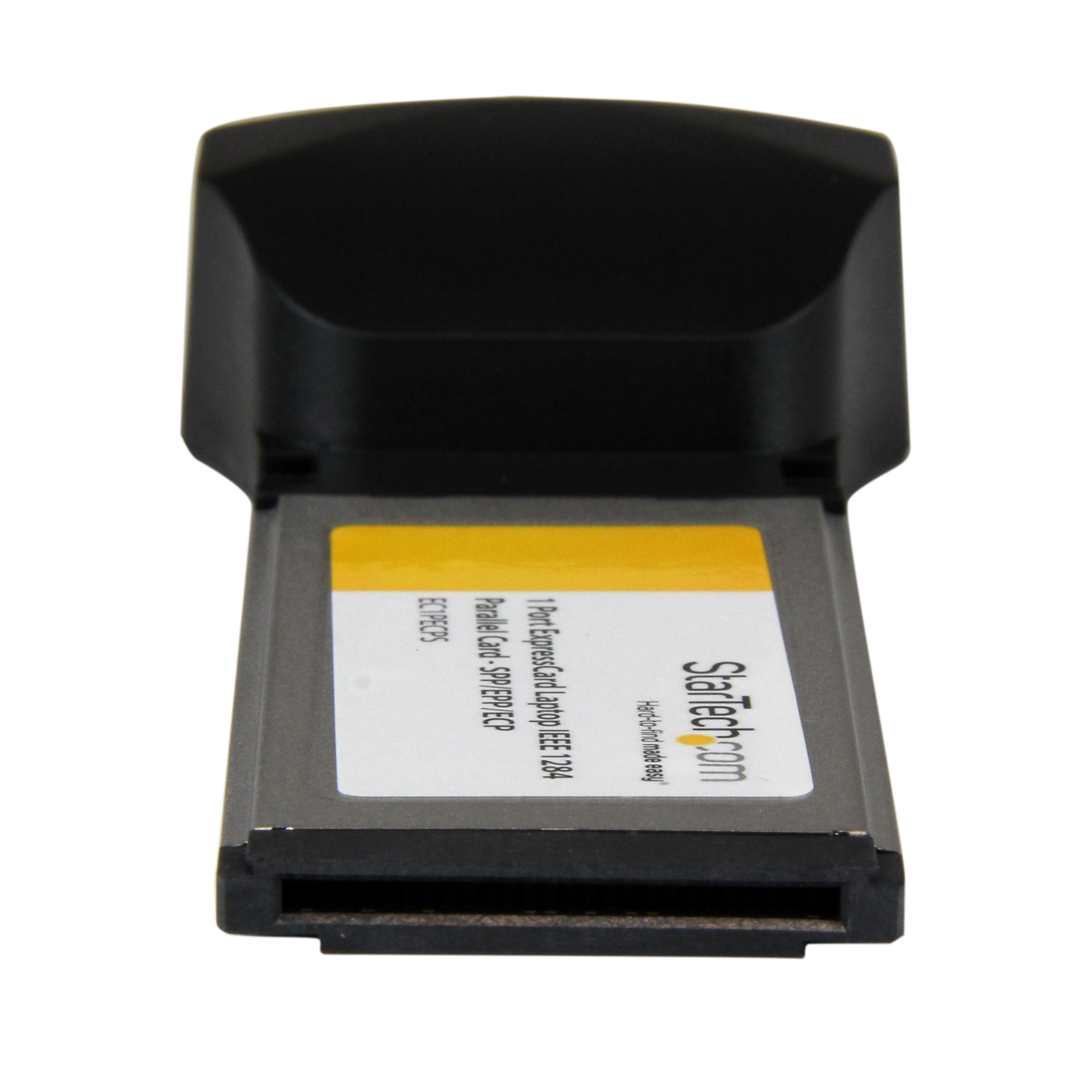

1 Port ExpressCard34 Parallel Card PCIe Base
Add an IEEE 1284 Parallel port to your laptop computer via an ExpressCard slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 1 Port ExpressCard34 Parallel Card PCIe Base Product Number EC1PECPS UPC 065030832793 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Parallel Cards and Adapters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port ExpressCard Parallel Adapter Card Product Title (Medium) x Product Title (Standard) StarTech.com SPP/EPP/ECP Laptop Parallel Adapter Card Product Title (Long) 1 Port ExpressCard Laptop Parallel Adapter Card - SPP/EPP/ECP Product Title (AMZ) 1 Port ExpressCard Laptop Parallel Adapter Card - SPP/EPP/ECP - ExpressCard 54 Serial Card - Parallel ExpressCard (EC1PECPS) Title Ingram (Part 1) 1 Port ExpressCard Parallel Adap Title Ingram (Part 2) ter Card - SPP/EPP/ECP Website Product Headline Add an IEEE 1284 Parallel port to your laptop computer via an ExpressCard slot Bullet 1 Provides one IEEE 1284 SPP/EPP/ECP Parallel Port Bullet 2 Compatible with PCI Express lane bus (x1/x2/x4/x8/x16) Bullet 3 WHQL certified drivers Bullet 4 32-byte FIFO data buffer Bullet 5 Fits into 34mm or 54mm ExpressCard slots Bullets (Consolidated) SPP/EPP/ECP - Parallel adapter - ExpressCard - IEEE 1284 Marketing Copy Applications Connects any parallel-based peripheral to your notebook, including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers Website Search Keyword - ieee 1284
- expresscard slot
- parallel device
- expresscard to parallel
- parallel adapter
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - SC6MF
- SC6MM
- SC10MF
- SC10FF
- SC50MM
- PB6_
- PB10
- PC20
- PC30
- PC50
- PTXFER6
- PTXFER15
- ECBRACKET
Related Products - EC1PECP
- PCI1PECP
- PCI2PECP
- PCI1P
- PCI1P_LP
- CB1PECP
- EC1UP
Product Length (mm) 115.000 Product Width (mm) 44.000 Product Height (mm) 20.000 Product Weight (g) 111.000 TAA Compliant Yes Maximum Data Transfer Rate 1.5Mbps OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows Server 2016
- Windows 7
- Windows 10
- Windows Server 2019
- Windows 11

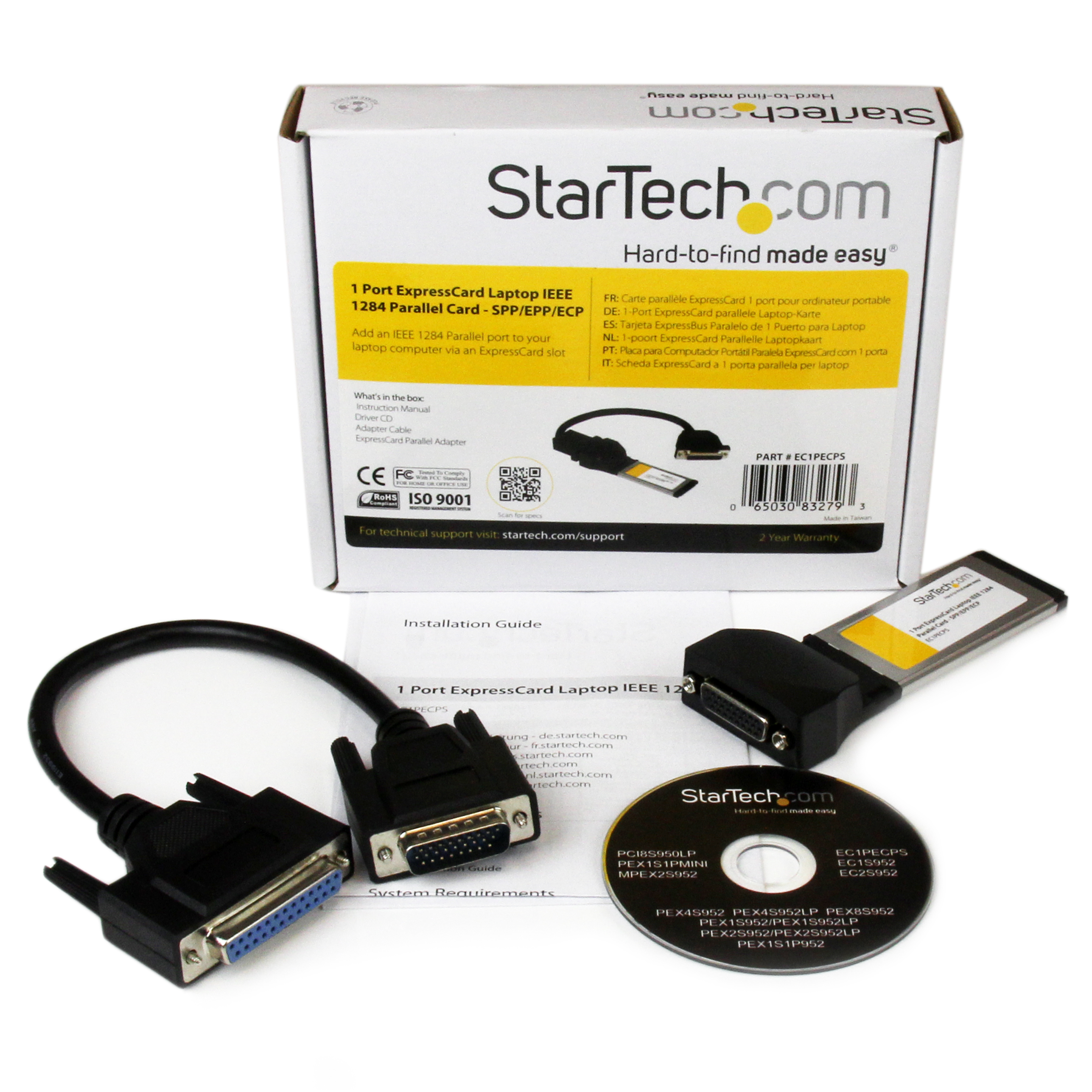

Supported Protocols ECP/EPP/SPP Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID PLX/Oxford - OXPCIe952 Interface/Bridge Parallel IO Card Port Style Integrated on Card Carton Depth (mm) 350 Carton Height (mm) 315 Carton Quantity 75 Carton Weight Gross (g) 13700 Included in Package - 1 - Instruction Manual
- 1 - Driver CD

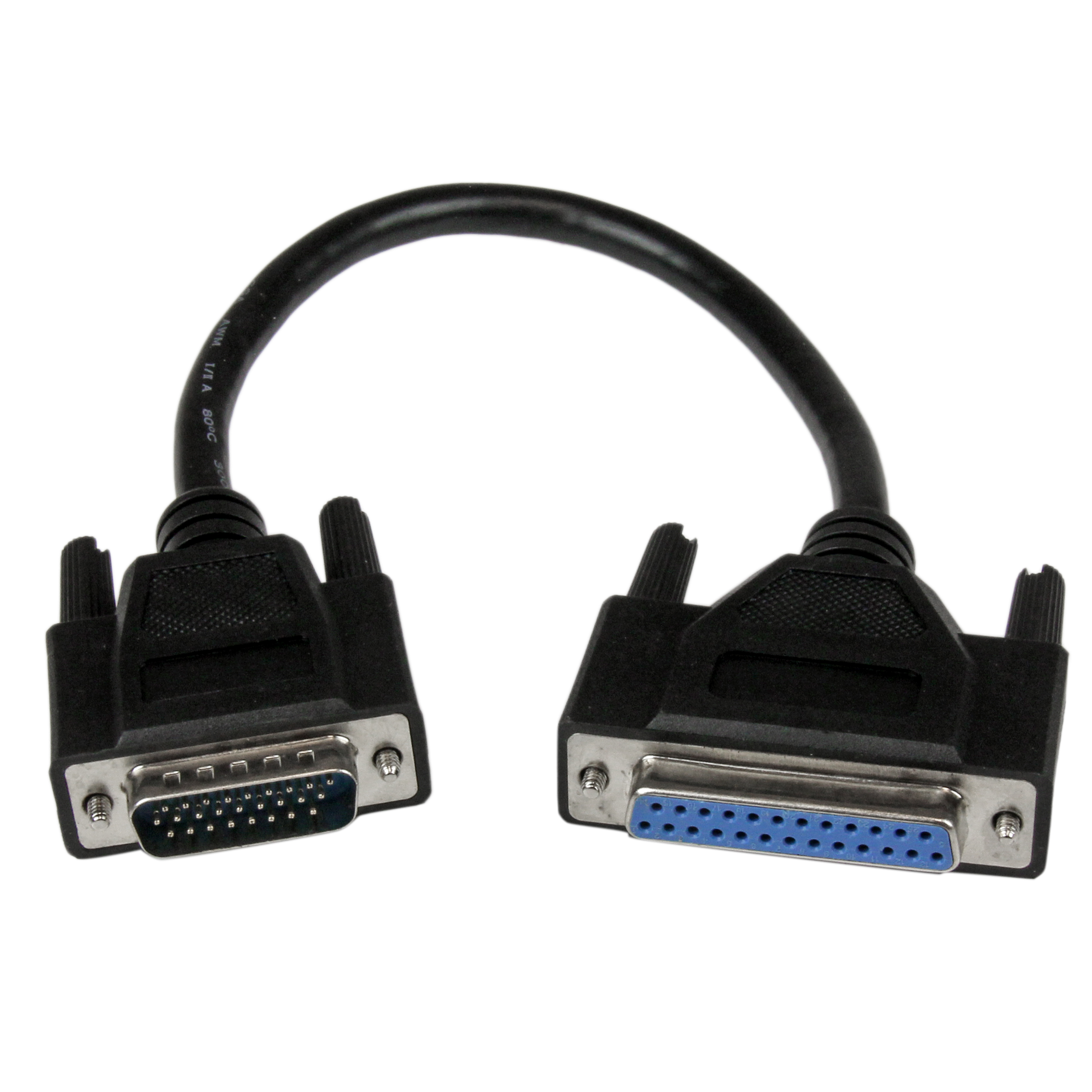

- 1 - Adapter Cable
- 1 - ExpressCard Parallel Adapter
Package Depth (mm) 175 Package Height (mm) 32 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 213 Packaging Description 1 Port ExpressCard Parallel Laptop Card Packaging Description India 1 Port ExpressCard Parallel Laptop Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,JP,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
