EC1S1P55254

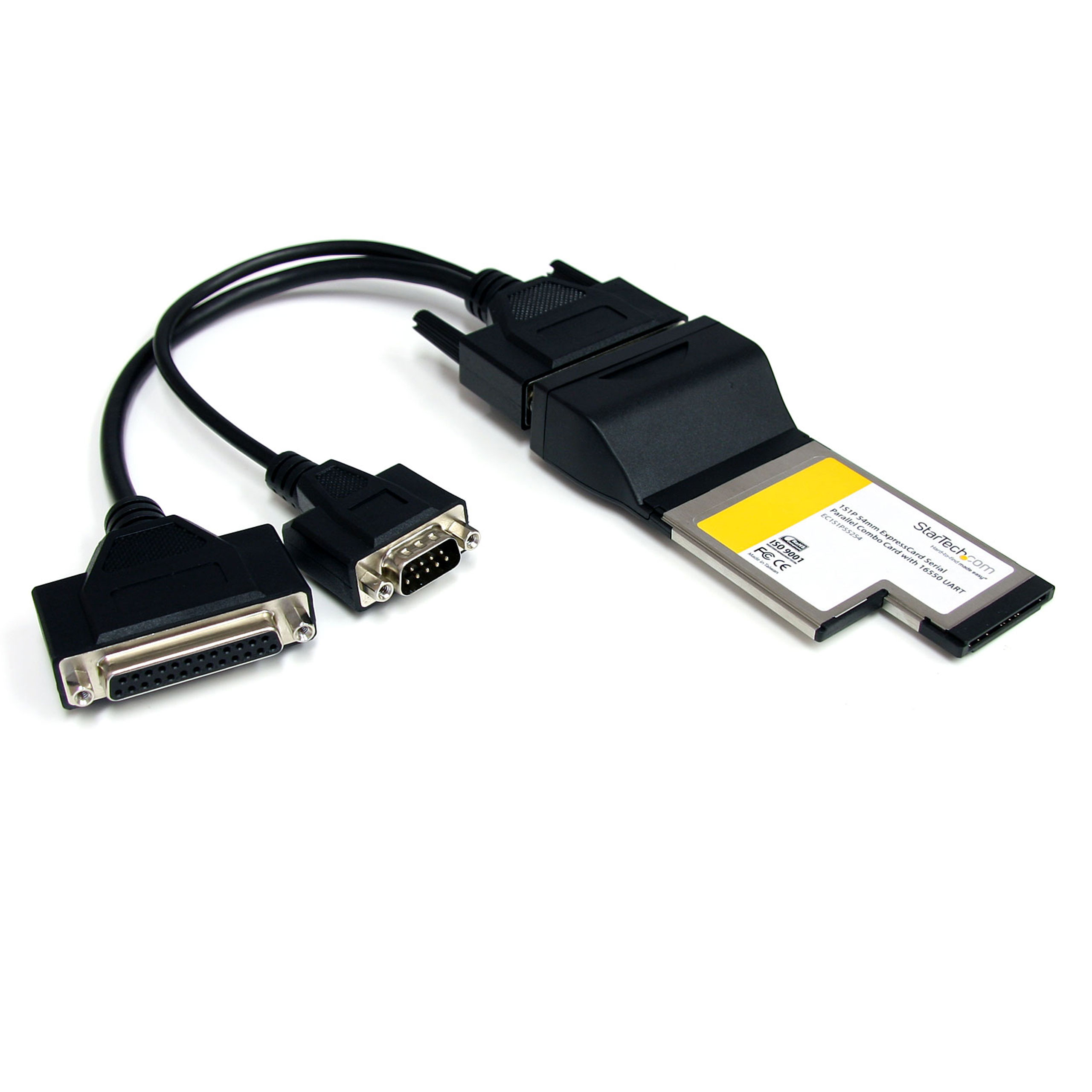

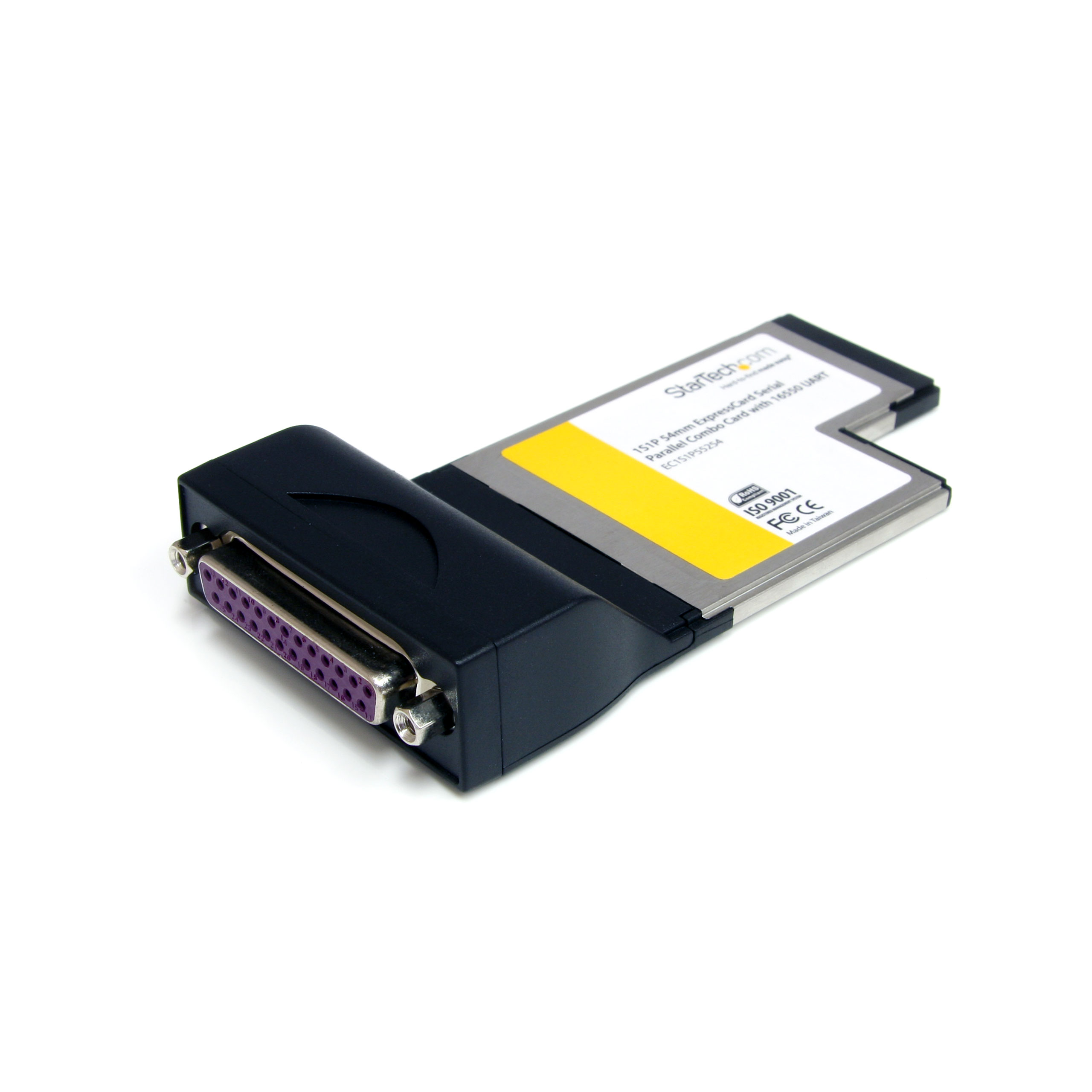

1S 1P 54mm ExpressCard RS232 Serial Adapter Card
Add a Serial and Parallel port to your laptop via a 54mm ExpressCard slot
Main Image
Product Images
Product Images
BOM Image
Product Name 1S 1P 54mm ExpressCard RS232 Serial Adapter Card Product Number EC1S1P55254 UPC 065030843638 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 54mm ExpressCard Serial Parallel Card Product Title (Standard) 1S1P 54mm ExpressCard Serial Parallel Combo Card with 16550 UART Product Title (Long) 1S1P 54mm ExpressCard Serial Parallel Combo Card with 16550 UART Product Title (AMZ) 1S1P 54mm ExpressCard Serial Parallel Combo Card with 16550 UART - Serial Parallel express Card (EC1S1P55254) Title Ingram (Part 1) 1S1P 54mm ExpressCard Serial Par Title Ingram (Part 2) allel Combo Card with 16550 Website Product Headline Add a Serial and Parallel port to your laptop via a 54mm ExpressCard slot Bullet 1 256 Byte deep transmit/receive FIFO Bullet 2 Breakout cable included Bullet 3 Fully compliant with PCI Express Base Specification Revision 1.0a Bullet 4 Supports baud rates up to 128000bps Bullet 5 Supports PCIe Power Management Marketing Copy Applications - Add serial and parallel connectivity to newer systems that lack integrated ports, or expand the amount of available peripheral connections
- Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers
- Embedded system coding, building, and diagnostics applications
- Perfect for mobile administrators who are required to connect to and configure routers, switches and industrial serial devices
- POS retail applications in grocery and other store locations, for controlling keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays
- Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners and label printers
Website Search Keyword - 54 mm
- Express card slot
- Express card to serial
- Native PCI Express
- RS-232
- Serial Card
- Serial Port
- Serial Parallel adapter
- expresscard parallel
- expresscard to parallel
- IEEE 1284
- full size expresscard
- wide expresscard
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - AT925FF
- AT925FM
- DB9CONCABL6
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- NM9FF
- NM9MF
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- SC10MF
- SC10MM
- 1284DB25
Related Products - EC1S232U
- EC1S950
- EC1S952
- EC2S950
- EC2S952
- EC4S950
- EC4S952
- EC1PECPS
- EC1UP
- EC1PECP
Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 115 Product Width (mm) 54 Product Height (mm) 18 Product Weight (g) 52 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No Data Bits 5, 6, 7, 8, 9 FIFO 256 byte Flow Control None , RTS/CTS Max Baud Rate 128 Kbps Maximum Data Transfer Rate 1.5Mbps (Parallel) OS Compatibility - Linux
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 8
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows 11
Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type ExpressCard Card Type 54mm ExpressCard Chipset ID ASIX - MCS9922CV-AA Interface/Bridge - Serial
- Parallel

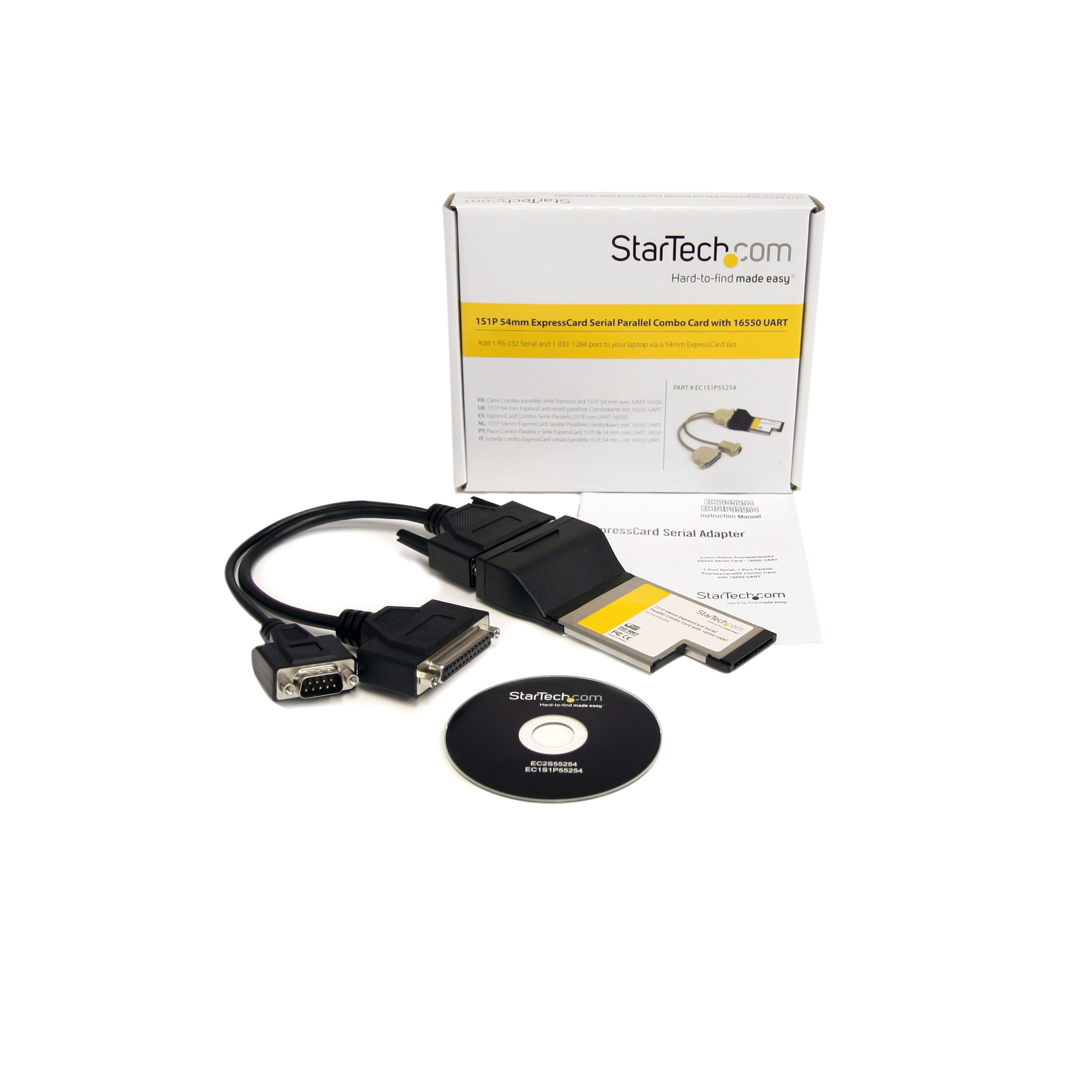

IO Card Port Style Dongle (Included) Carton Depth (mm) 440 Carton Height (mm) 230 Carton Quantity 50 Carton Weight Gross (g) 15850 Included in Package - 1 - 54mm 1S1P ExpressCard

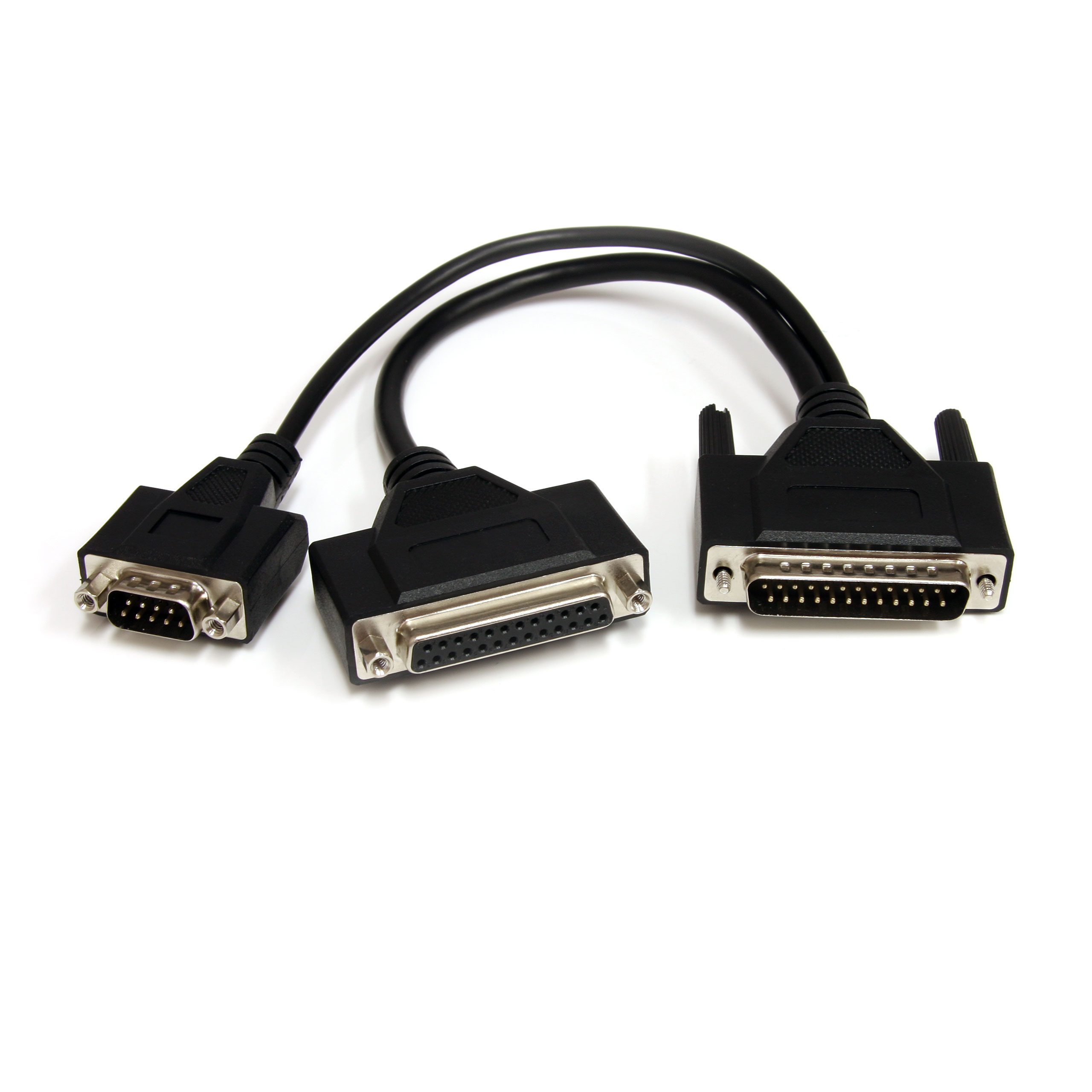

- 1 - Breakout Cable
- 1 - Driver CD
- 1 - User Manual
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 297 Packaging Description 1S1P 54mm ExpressCard Serial Parallel Card Packaging Description India 1S1P 54mm ExpressCard Serial Parallel Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/54 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 DB-25 Parallel / Serial Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
