EC1S232U
ExpressCard to 1 Port Serial Adapter - USB Base
Add a high-speed, USB based RS232 Serial port to your laptop via an ExpressCard slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name ExpressCard to 1 Port Serial Adapter - USB Base Product Number EC1S232U UPC 065030832878 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 1 Port ExpressCard Serial Adapter Card Product Title (Standard) StarTech.com 1 Port ExpressCard RS232 Serial Adapter Card w/ 16950 UART - USB Based - DB9 - Laptop - Notebook Product Title (Long) 1 Port ExpressCard RS232 Serial Adapter Card w/ 16950 UART - USB Based Title Ingram (Part 1) 1 Port ExpressCard RS232 Serial Title Ingram (Part 2) Adapter Card - USB Based Website Product Headline Add a high-speed, USB based RS232 Serial port to your laptop via an ExpressCard slot Bullet 1 128-Byte transmit & receive FIFO Bullet 2 High Performance 16C950 UART with maximum data transfer rate up to 921.6 Kbps Bullet 3 Compatible with USB2.0 Full Speed throughput Bullet 4 Fits into 34mm ExpressCard slots on your notebook Marketing Copy Applications - Works with serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters, and more
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Connect and program LED and Digital signage boards with serial communication ports
Website Search Keyword - notebook card
- expresscard to serial
- serial adapter
- USB based serial card
- serial card
- 1 port serial
Accessory Products - MXT100FF
- SCNM9FM
- SCNM9FF25
- SCNM9FF
- SCNM925FM
- AT925SFM
- AT925FM
- AT925FF
- MXT100_25
- MXT100
- MC6MF
- MC3MF
- ECBRACKET
Related Products - EC1S950
- EC2S950
- CB4S950
Replacement Product EC1S232U2 Humidity 5~85% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 108 Product Width (mm) 34 Product Height (mm) 15.5 Product Weight (g) 25 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No FIFO 128 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Linux
- Mac OS X Yosemite (10.10)
Supported Serial Protocol RS-232 Bus Type ExpressCard (USB 2.0 Bus) Card Type 34mm ExpressCard Chipset ID Prolific - PL2303 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 340 Carton Height (mm) 375 Carton Quantity 50 Carton Weight Gross (g) 6200 Included in Package - 1 - 1 Port RS232 Express Card

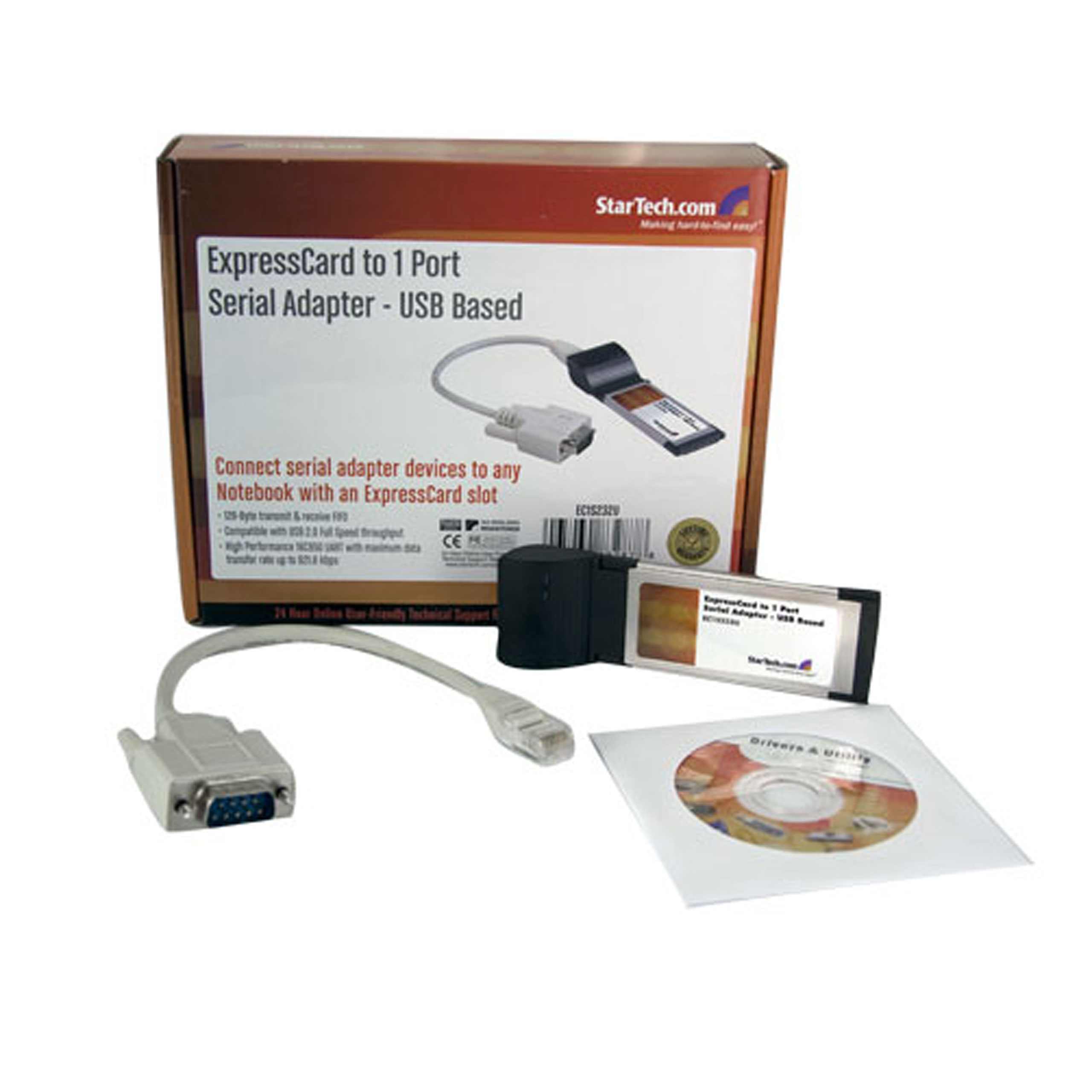

- 1 - Instruction Manual
- 1 - Driver CD
- 1 - 1 Port DB9 Break-out Cable
Package Depth (mm) 40 Package Height (mm) 140 Package Width (mm) 180 Package Weight (g) 100 Packaging Description 1 Port ExpressCard RS232 Serial Card Packaging Description India 1 Port ExpressCard RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
