EC1S232U2

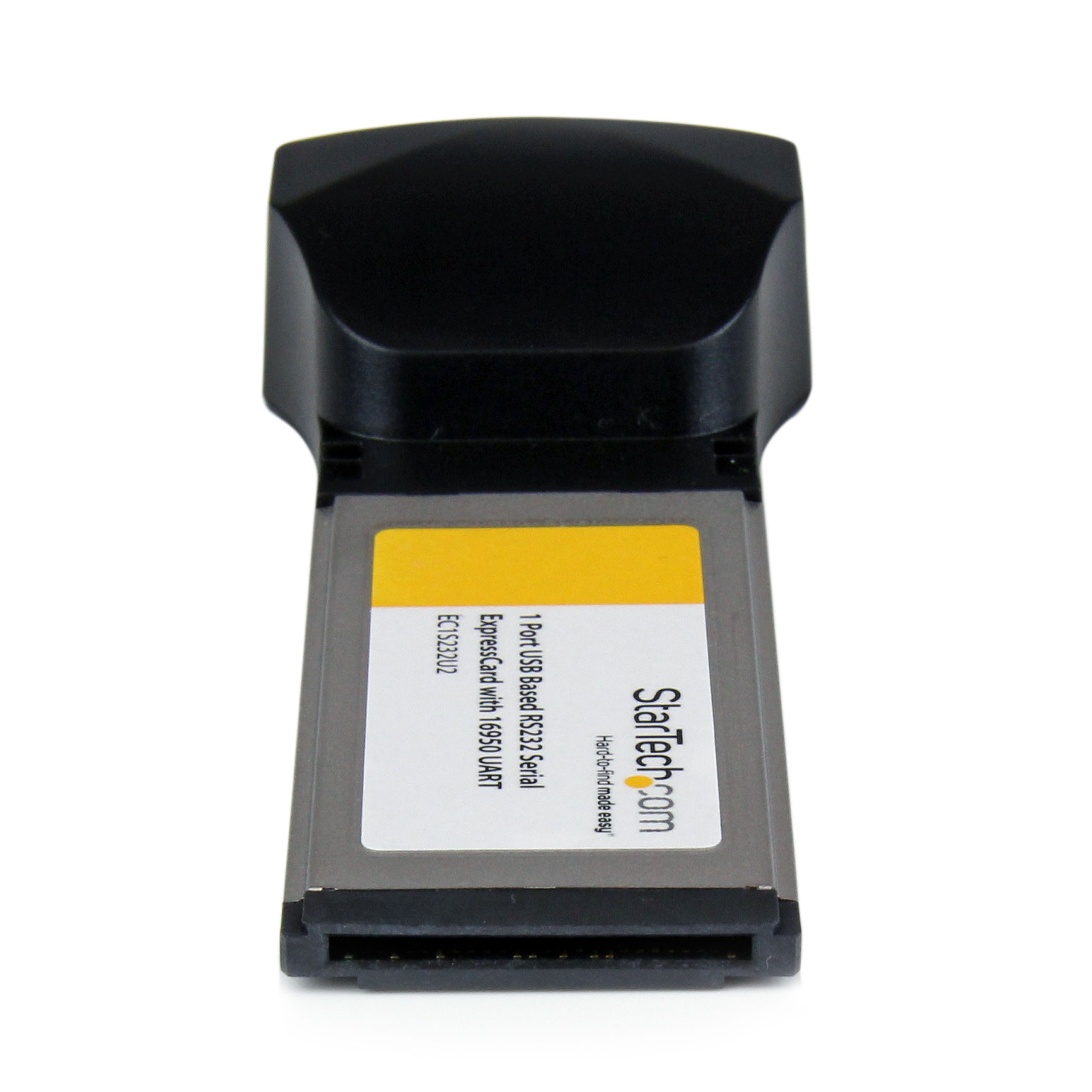

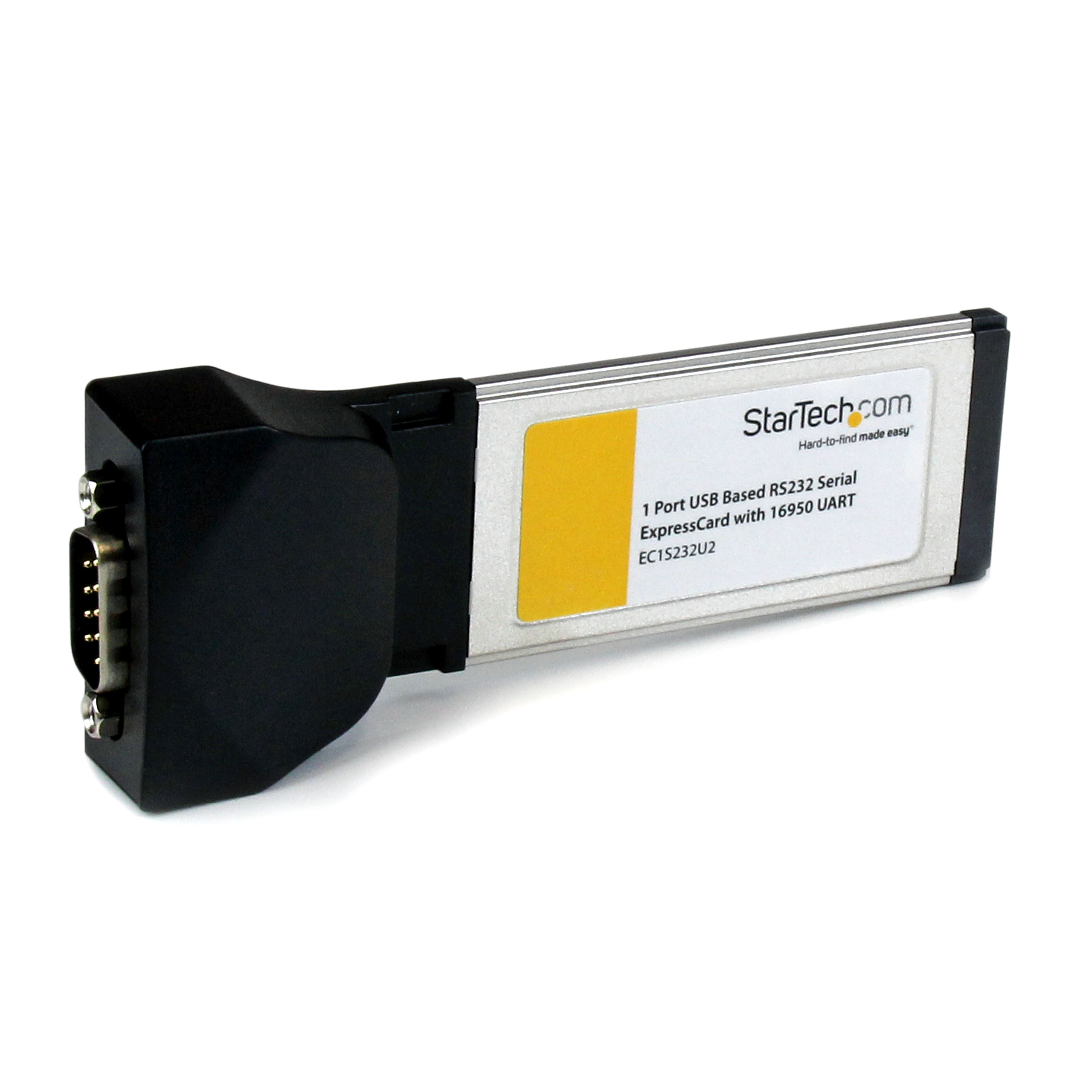

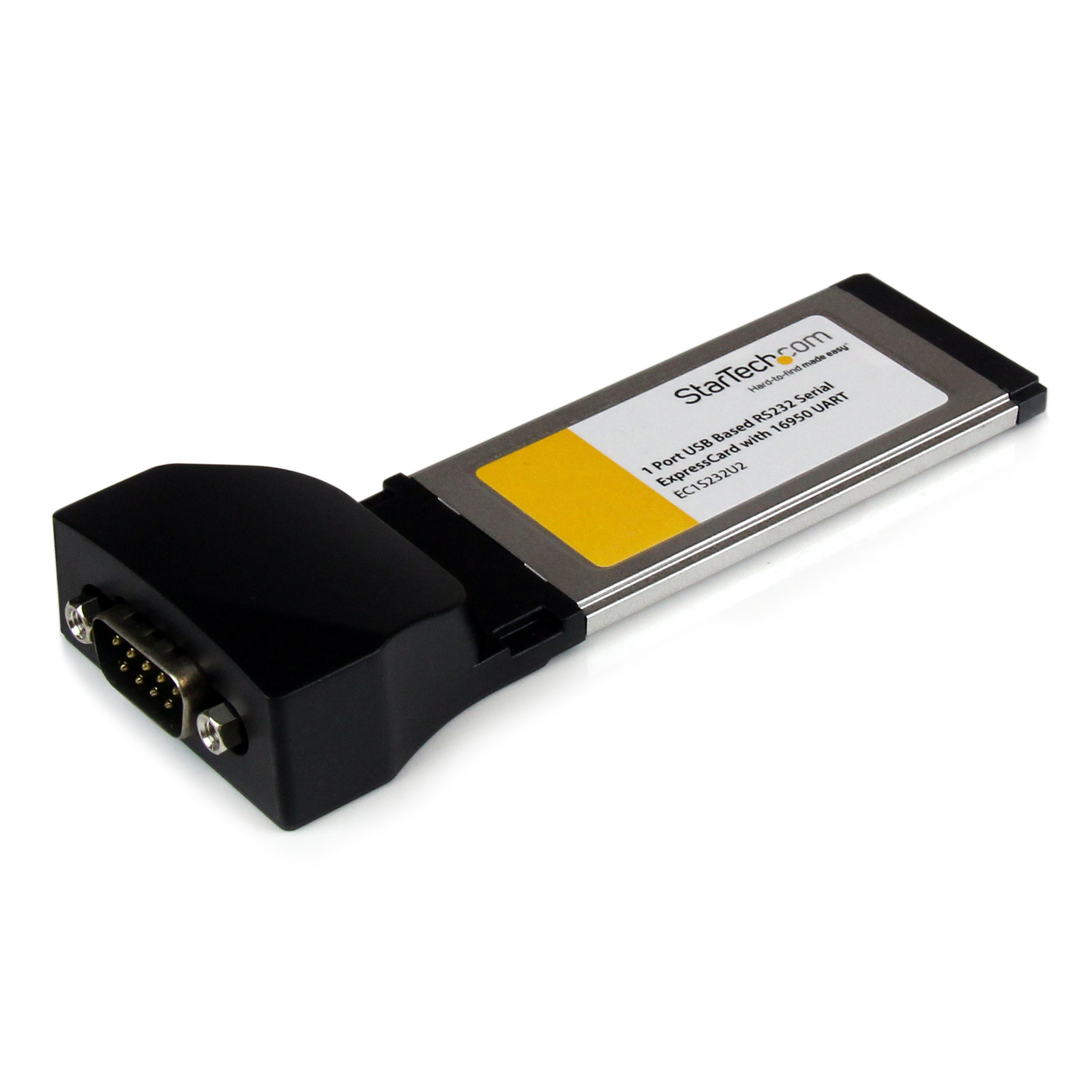

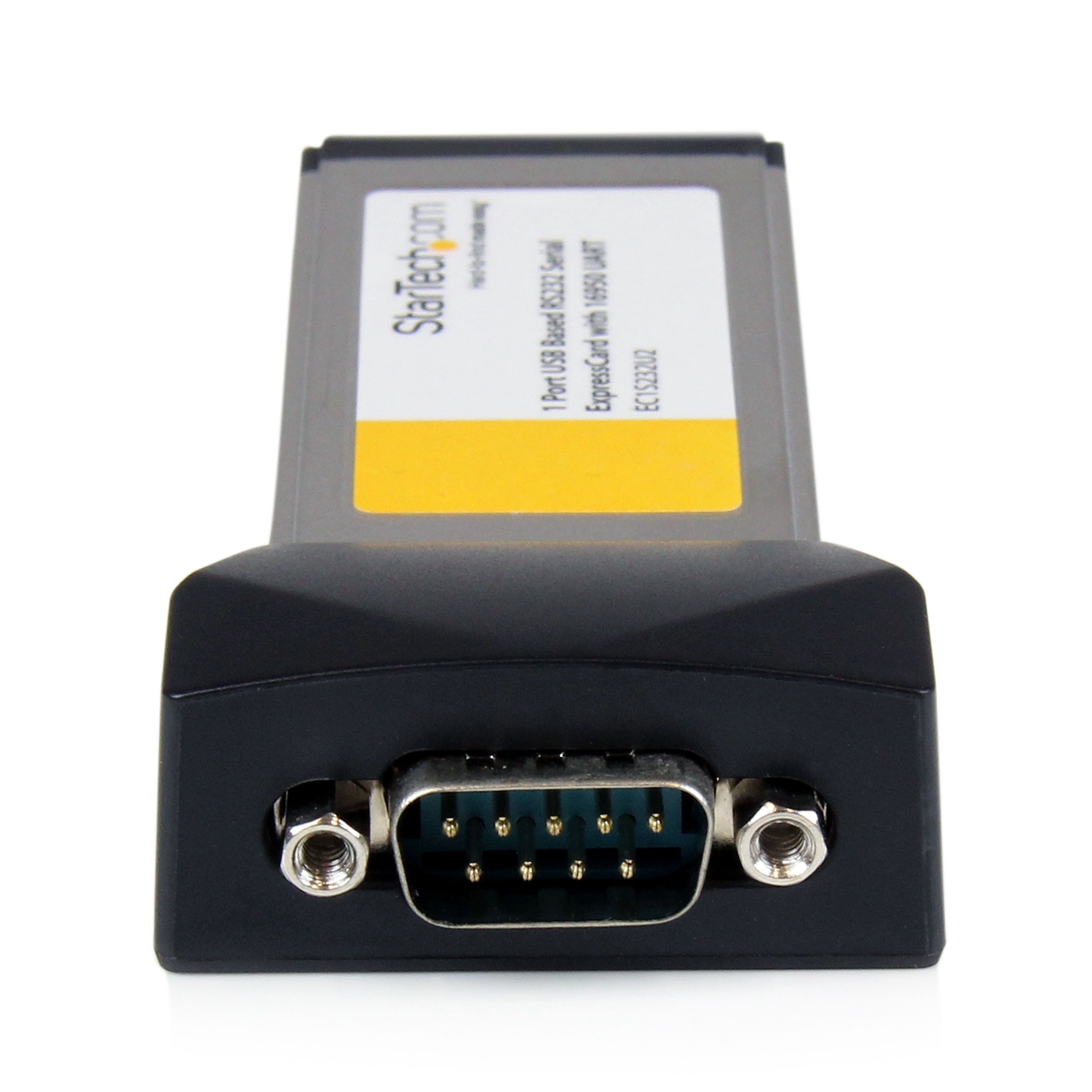

ExpressCard to 1 Port Serial Adapter - USB Based
Add a USB-based RS232 Serial port to your laptop through an ExpressCard slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name ExpressCard to 1 Port Serial Adapter - USB Based Product Number EC1S232U2 UPC 065030847483 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port ExpressCard to Serial Card Product Title (Standard) 1 Port ExpressCard to RS232 DB9 Serial Adapter Card w/ 16950 - USB Based Product Title (Long) 1 Port ExpressCard to RS232 DB9 Serial Adapter Card w/ 16950 - USB Based - TAA Product Title (AMZ) 1 Port ExpressCard to RS232 DB9 Serial Adapter Card w/ 16950 - USB Based (EC1S232U2) Title Ingram (Part 1) 1 Port ExpressCard RS232 Serial Title Ingram (Part 2) Adapter Card - USB Based Website Product Headline Add a USB-based RS232 Serial port to your laptop through an ExpressCard slot Bullet 1 512-Byte transmit & receive FIFO Bullet 2 High Performance 16C950 UART with maximum data transfer rate up to 460 Kbps Bullet 3 Compatible with USB2.0 Full Speed throughput Bullet 4 Fits into 34mm ExpressCard slots on your laptop Bullets (Consolidated) Serial adapter - ExpressCard - RS-232 Marketing Copy Applications - Adding RS232 serial devices (e.g. POS devices, PDAs, printers, ISDN terminal adapters, etc.) to a laptop computer that lacks a built-on serial port
- Connecting serial POS devices (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales) to a laptop computer, through an ExpressCard port
- Adding serial support to modern laptop computers used for a variety of healthcare applications (e.g. RS232-based patient monitoring equipment, nurses' stations, modems, etc.)
- Connecting an ExpressCard-equipped laptop to LED and digital signage boards that rely on serial communication ports
Website Search Keyword - notebook card
- expresscard to serial
- serial adapter
- USB based serial card
- serial card
- 1 port serial
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MXT100FF
- SCNM9FM
- SCNM9FF25
- SCNM9FF
- SCNM925FM
- AT925SFM
- AT925FM
- AT925FF
- MXT100_25
- MXT100
- MC6MF
- MC3MF
- ECBRACKET
Related Products - EC1S950
- EC2S950
- CB4S950
- EC1S232U
- EC1S1P55254
- EC2S55254
- EC4S952
Replacement Product ICUSB232PRO Color Black & Silver Humidity 5~85% RH Material Steel Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Steel Product Length (mm) 115 Product Width (mm) 35 Product Height (mm) 18 Product Weight (g) 33.6 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 FIFO 512 Bytes Max Baud Rate 460.8 Kbps OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

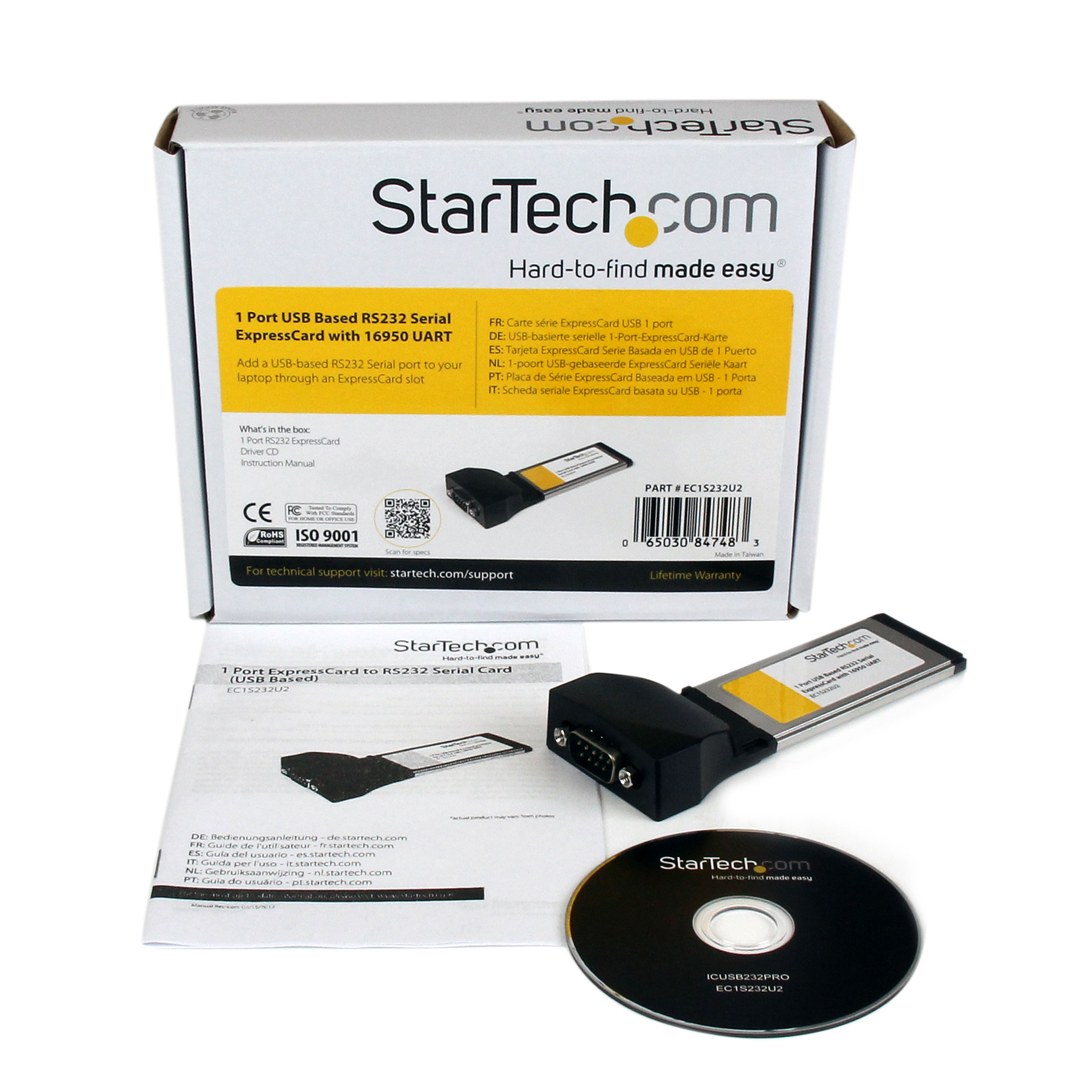

Parity Odd, Even, Mark, Space, None Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID Prolific - PL2303 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 359 Carton Height (mm) 322 Carton Quantity 65 Carton Weight Gross (g) 9000 Included in Package - 1 - 1 Port RS232 ExpressCard
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 144 Package Height (mm) 34 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 102 Packaging Description 1 Port USB Based ExpressCard Serial Card Packaging Description India 1 Port USB Based ExpressCard Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
