Main Image
EC1U2F
2 Firewire 1 USB 2.0 Combo ExpressCard Adapter
Add 1 USB 2.0 and 2 FireWire 1394a ports to a laptop through an ExpressCard slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Firewire 1 USB 2.0 Combo ExpressCard Adapter Product Number EC1U2F UPC 065030824545 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 1x USB 2x 1394 ExpressCard Adapter Card Product Title (Standard) 1x USB 2x 1394 ExpressCard Adapter Card Product Title (Long) 1 Port USB 2.0 & 2 Port FireWire ExpressCard Laptop Combo Adapter Card Product Title (AMZ) 1 Port USB 2.0 & 2 Port FireWire ExpressCard Laptop Combo Adapter Card (EC1U2F) Title Ingram (Part 1) 1 Port USB & 2 Port FireWire Exp Title Ingram (Part 2) ressCard Combo Adapter Card Website Product Headline Add 1 USB 2.0 and 2 FireWire 1394a ports to a laptop through an ExpressCard slot Bullet 1 One High Speed USB 2.0 compliant port which supports transfer rates up to 480 Mbps Bullet 2 Two IEEE1394a OHCI 1.1/1.2 compliant ports which supports transfer rates up to 400 Mbps Bullet 3 ExpressCard/34 (34mm) form factor Bullet 4 Optional external power adapter support Bullet 5 Plug-and-Play and Hot-Swap compatible Marketing Copy Applications - Add additional FireWire and USB ports to a laptop to connect more peripheral devices
- Replace failed FireWire and/or USB ports on a laptop
- Add both FireWire and USB port simultaneously to a laptop with only a single ExpressCard slot
- Connect external FireWire devices such as hard drives and card readers to a laptop computer without FireWire ports
Accessory Products - 1394_6
- 1394_10
- 1394_15
- 1394_46_6
- 1394_46_10
- 1394_46_15
- FIRE46FM
- USB2HAB6
- USB2HAB10
- USB2HAB15
- USB2HAB6T
- USB2HAB10T
- USB2HAB15T
- ECBRACKET
Related Products - EC13942
- EC230USB
- EC13941A1B
- ECUSB3S2
- EC13942A2
- ECUSB3S1
- EC400USB
- EC1394B2
Output Current 1A Output Voltage (V) 5 DC Power Source Not Included (not required for standard applications) Plug Type B Center Tip Polarity Positive TAA Compliant No OS Compatibility - Windows 98SE
- Windows ME
- Windows 2000
- Windows XP
- Windows Vista
- Windows 7
- Mac OS X
- Windows 8
- Linux

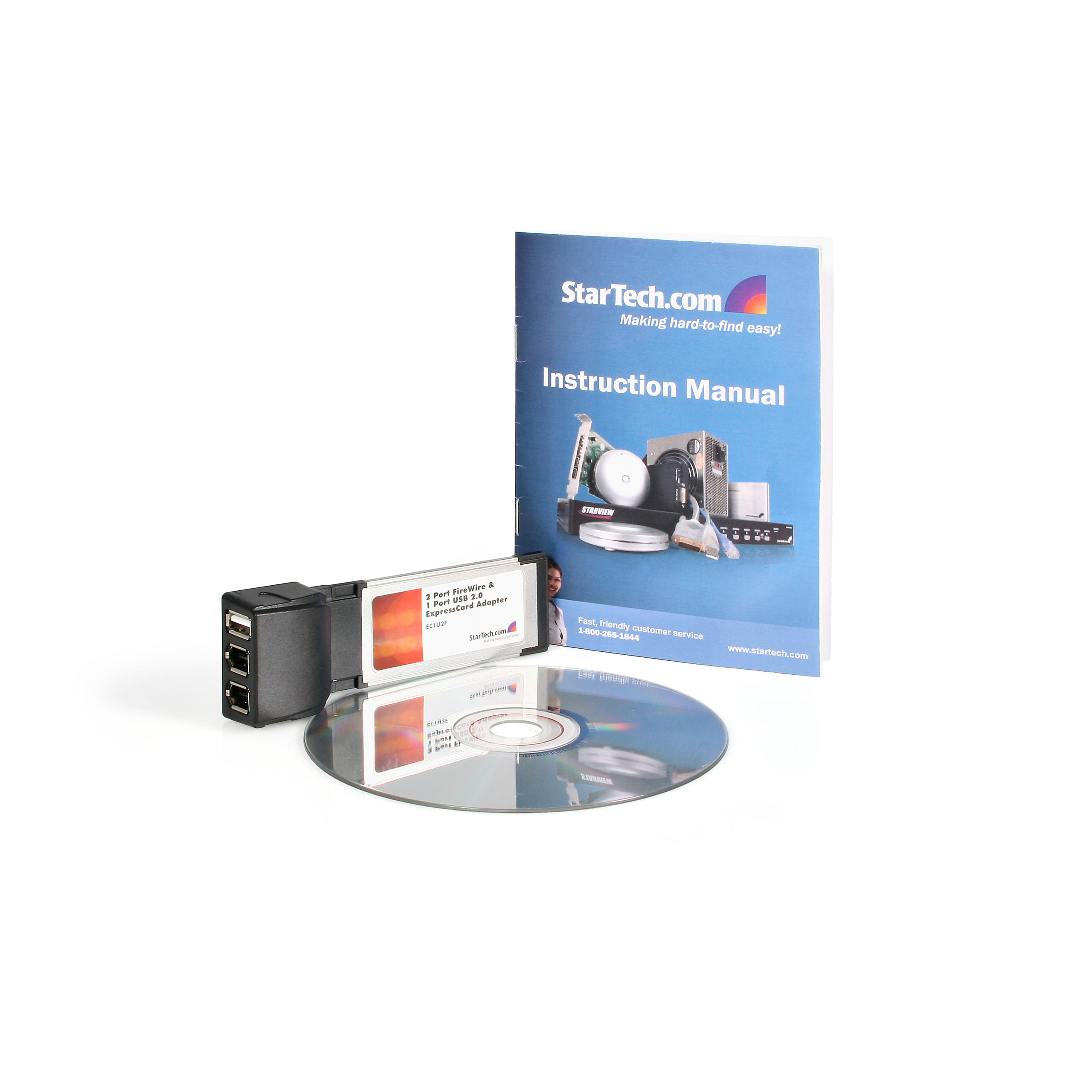

Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID Texas Instruments - XIO2200 Interface/Bridge USB 2.0 & Firewire Carton Depth (mm) 540 Carton Height (mm) 360 Carton Quantity 50 Carton Weight Gross (g) 5200 Included in Package - 1 - USB/FireWire ExpressCard
- 1 - Instruction Manual
Package Depth (mm) 170 Package Height (mm) 75 Package Width (mm) 140 Package Weight (g) 80 Packaging Description 1x USB, 2x 1394 ExpressCard Packaging Description India 1x USB, 2x 1394 ExpressCard Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
