EC1UP
1 Port ExpressCard34 Parallel Adapter USB Base
1 Port ExpressCard 34mm Parallel Adapter Card
Main Image
Product Images
Product Images
BOM Image
Product Name 1 Port ExpressCard34 Parallel Adapter USB Base Product Number EC1UP UPC 065030831765 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port ExpressCard Parallel Adapter Card Product Title (Standard) StarTech.com 1 Port ExpressCard Parallel Laptop Adapter Card Product Title (Long) 1 Port ExpressCard Parallel Laptop Adapter Card Title Ingram (Part 1) 1 Port ExpressCard Parallel Lapt Title Ingram (Part 2) op Adapter Card Website Product Headline 1 Port ExpressCard 34mm Parallel Adapter Card Bullet 1 Compliant with ExpressCard specifications 1.0 Bullet 2 Fits into 34mm ExpressCard slots Bullet 3 Easy to use and install Bullet 4 Supports plug and play Bullet 5 IEEE 1284 compliant parallel port (DB25) Marketing Copy Applications Connects USB based parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers Website Search Keyword - ExpressCard
- 1 Port
- 34
Accessory Products - SC6MF
- SC6MM
- SC10MF
- SC50MM
- PB6_
- PB10
- PC20
- PC30
- PC50
- ECBRACKET
Related Products - EC1PECP
- CB1PECP
- PEX1PECP
- PCI1PECP
- PCI1P_LP
- PEX2PECP
- PCI2S1PDV
- EC1PECPS
Product Length (mm) 122 Product Width (mm) 42 Product Height (mm) 16 Product Weight (g) 47 TAA Compliant Yes General Specifications - Bus Type: USB based ExpressCard
- Maximum Data Transfer Rate: Up to 1.5Mbps
- Connectors:
- 1x DB26 Female Connector
- 1ft Adapter Cable (DB26 male to DB25 male)
- Chipset: Prolific PL2305
OS Compatibility - Windows 2000
- Windows XP
- Windows Server 2003
- Windows Vista
- Windows 7
- Windows Server 2008 R2
- Linux
- Mac OS X
- Windows 8

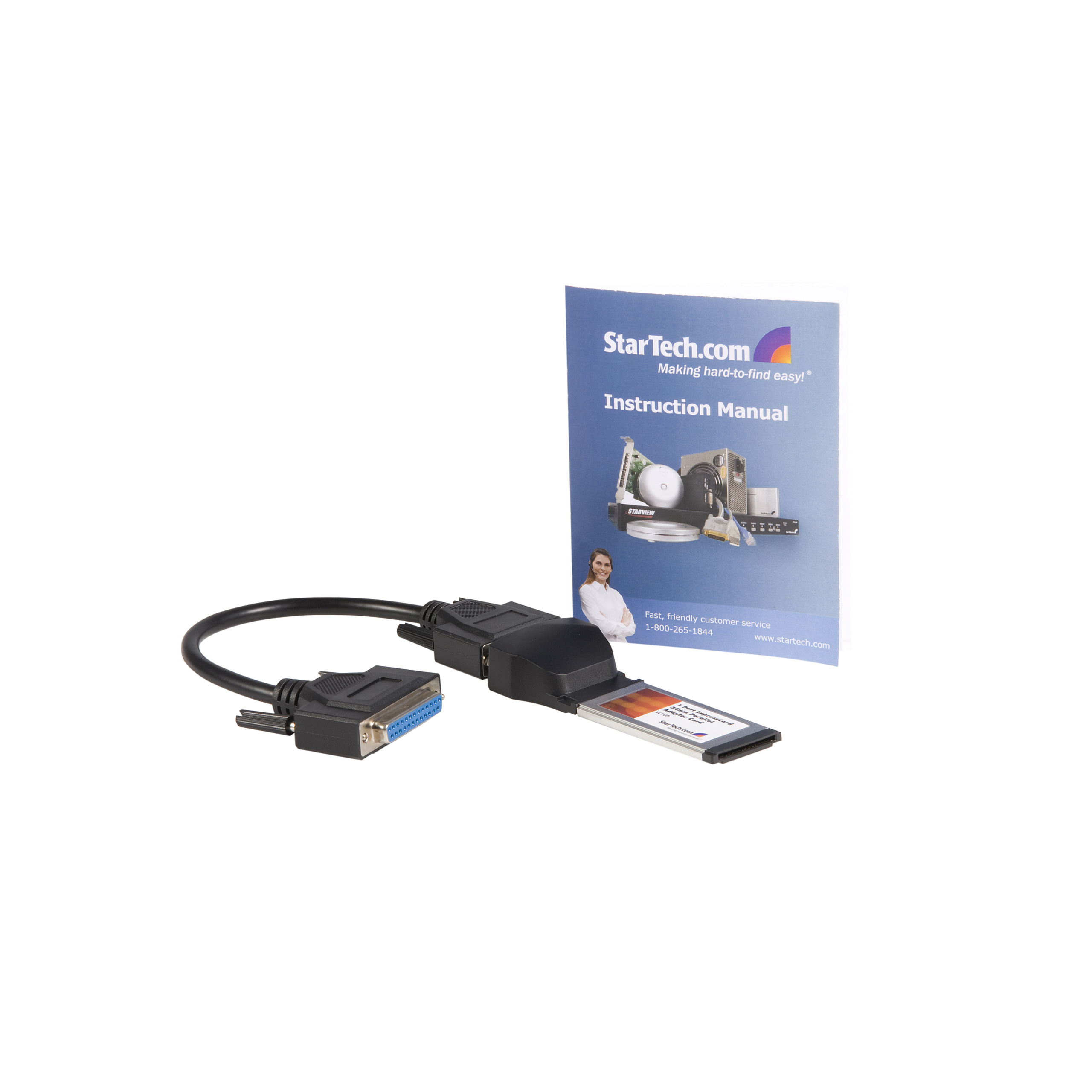

Bus Type ExpressCard (USB 2.0 Bus) Card Type 34mm ExpressCard Chipset ID Prolific - PL2305 Interface/Bridge Parallel IO Card Port Style Integrated on Card Carton Depth (mm) 750 Carton Height (mm) 230 Carton Quantity 50 Carton Weight Gross (g) 5200 Included in Package - 1 - Parallel ExpressCard
- 1 - Instruction Manual
- 1 - Parallel Adapter Cable
Package Depth (mm) 42 Package Height (mm) 144 Package Width (mm) 216 Package Weight (g) 80 Packaging Description 1 Port ExpressCard Parallel Laptop Adapter Card Packaging Description India 1 Port ExpressCard Parallel Laptop Adapter Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
