EC2000S
2 Port Gigabit ExpressCard Network Adapter
Add 2 Gigabit Ethernet ports to your laptop, through a single ExpressCard slot
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port Gigabit ExpressCard Network Adapter Product Number EC2000S UPC 065030843669 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 ExpressCard Network Adapters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 2 Port ExpressCard Gigabit NIC Adapter Product Title (Standard) Dual Port ExpressCard Gigabit Laptop Ethernet NIC Network Adapter Card Product Title (Long) Dual Port ExpressCard Gigabit Laptop Ethernet NIC Network Adapter Card Product Title (AMZ) Dual Port ExpressCard Gigabit Laptop Ethernet NIC Network Adapter Card (EC2000S) Title Ingram (Part 1) Dual Port ExpressCard Gigabit Et Title Ingram (Part 2) hernet NIC Network Card Website Product Headline Add 2 Gigabit Ethernet ports to your laptop, through a single ExpressCard slot Bullet 1 Fully compliant with IEEE 802.3, 802.3u, and 802.3ab specifications for 10/100/1000 Mbps connections Bullet 2 Supports Full and Half duplex operating modes Bullet 3 Plug-and-Play and Hot Swap compatible Bullet 4 Compliant with ExpressCard 1.0 specification Bullet 5 Microsoft® NDIS5 Checksum Offload (IPv4, TCP, UDP) and Large Send Offload support Bullets (Compact) Add 2 Gigabit Ethernet ports to your laptop, through a single ExpressCard slot - express card adapter - dual port gigabit adapter - dual port network card - 2 port gigabit server adapter - expresscard gigabit - expresscard ethernet Bullets (Consolidated) Adds two 10/100/1000Mbps Ethernet ports to an Express Card enabled laptop, or small form factor system - Enables you to connect to two separate physical networks simultaneously w/ dedicated bandwidth - Supports Full and Half duplex operating modes - Wake-on-LAN (WOL) and Remote Wake-up power management options - Plug-and-Play and Hot Swap compatible Marketing Copy Applications - Business or IT professionals that need to connect to two separate networks simultaneously
- Run a virtual machine(s) on a workstation, with access to separate physical network connections
- Replacement for a failed built-in Gigabit Ethernet port on a laptop
Website Search Keyword - ExpressCard nic
- ExpressCard network adapter
- ethernet adapter
- expresscard gigabit card
- gigabit network interface adapter
- 34mm expresscard
- expresscard34
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes On Intel® Ivy Bridge / Haswell architecture and newer based systems, only 1 network port is usable System and Cable Requirements ExpressCard slot Accessory Products - ECBRACKET
- C6PATCH6RD
- C6PATCH6BL
- C6PATCH6WH
- C6PATCH6BK
- C6PATCH6GR
- C6PATCH6GN
Related Products - EC1000S
- EC1000BT
- PEX100S
- ST1000SPEXDP
- ST1000SPEX4
- ST1000BT32
Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 151°F) Product Length (mm) 116 Product Width (mm) 34 Product Height (mm) 22 Product Weight (g) 40 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Auto MDIX Yes Buffer Size 48 KB Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 1000 Mbps OS Compatibility - Windows 7
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Linux
- Windows 8
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
Promiscuous Mode Yes Wake-On-LAN (WOL) Yes Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID Realtek - RTL8111E Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 2 - Link/Activity
- 2 - Gigabit Link

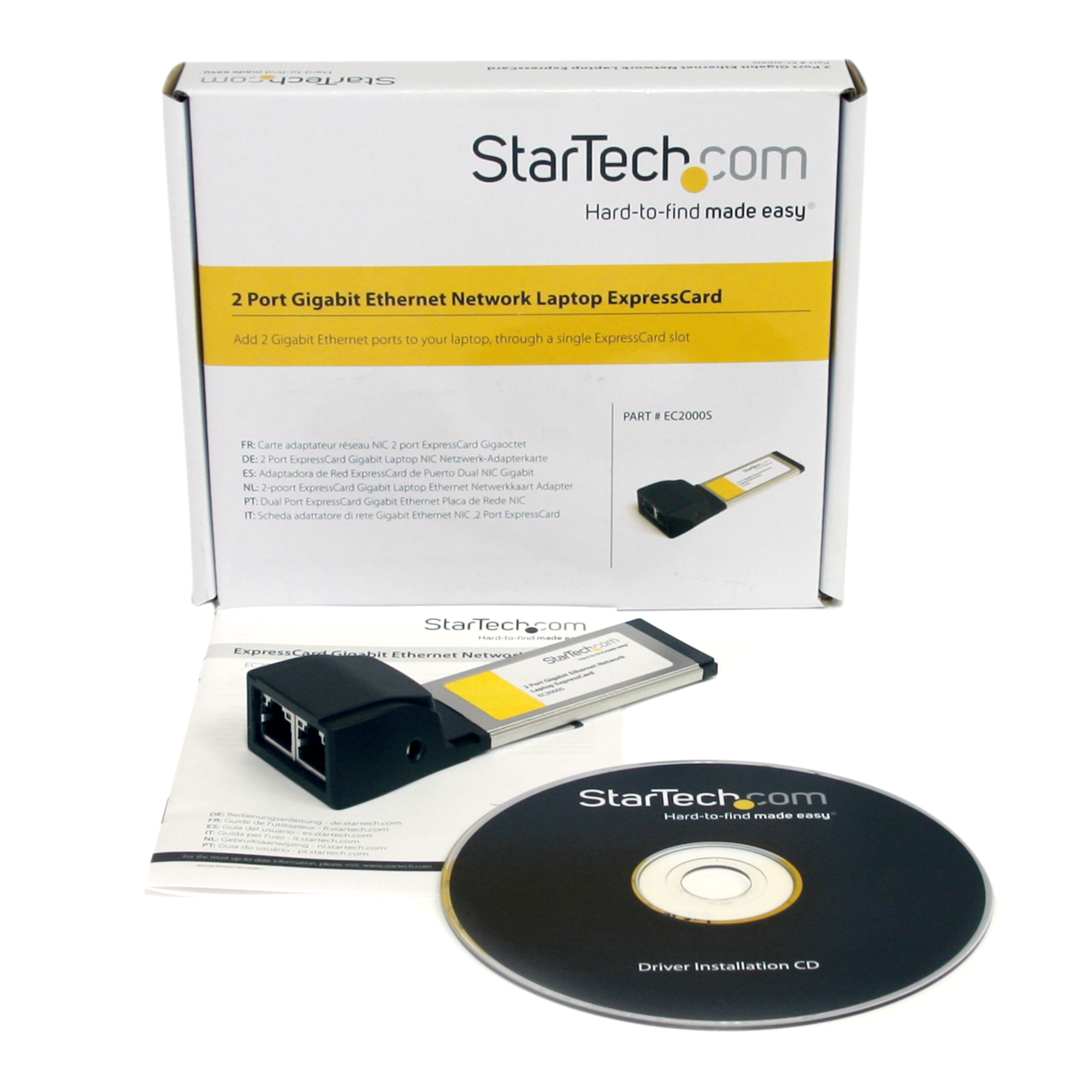

Carton Depth (mm) 447 Carton Height (mm) 346 Carton Quantity 80 Carton Weight Gross (g) 11080 Included in Package - 1 - ExpressCard Gigabit Ethernet NIC
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 144 Package Height (mm) 33 Package Width (mm) 173 Package Quantity 1 Package Weight (g) 116 Packaging Description 2 Port ExpressCard Gigabit NIC Packaging Description India 2 Port ExpressCard Gigabit NIC Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
