EC2S55254

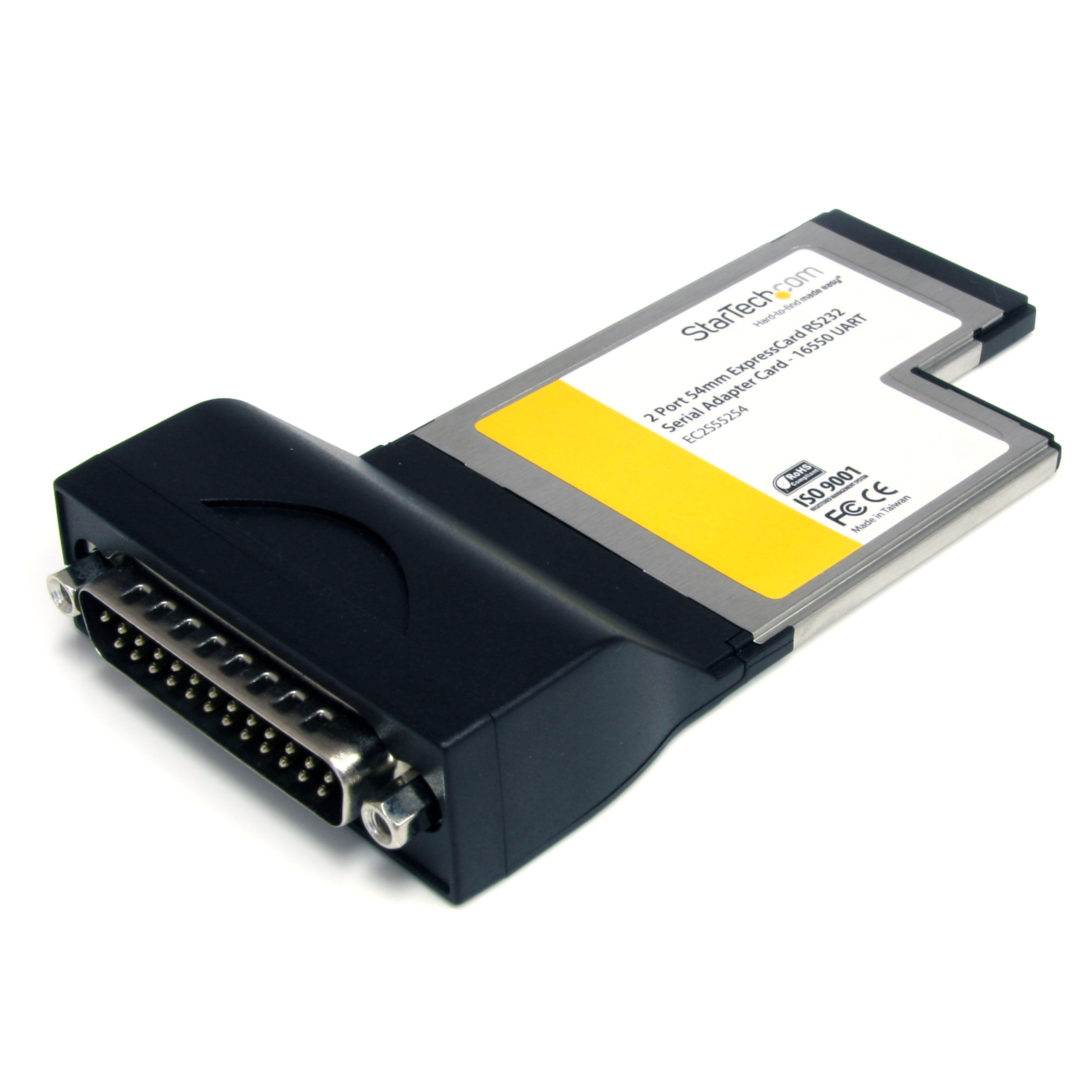

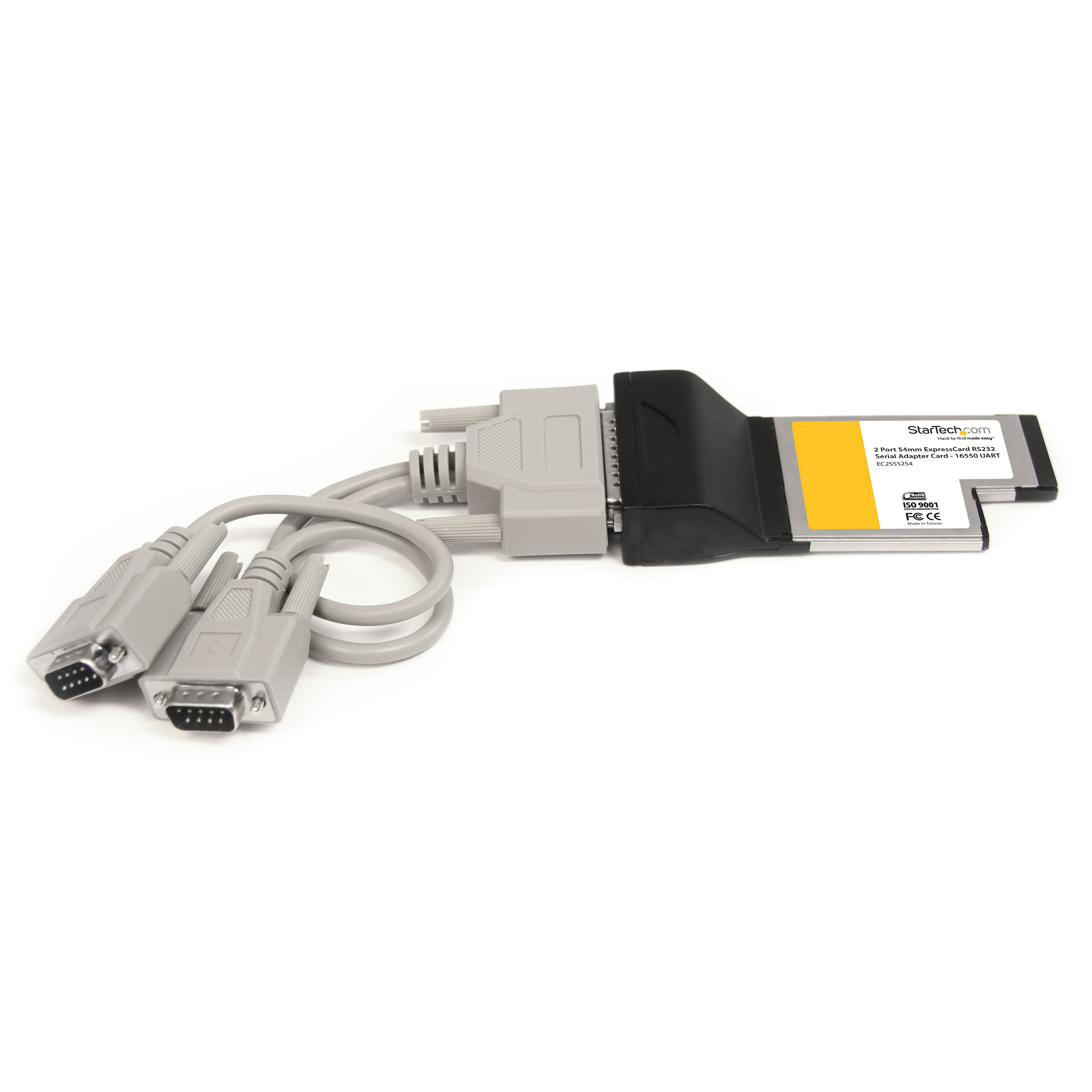

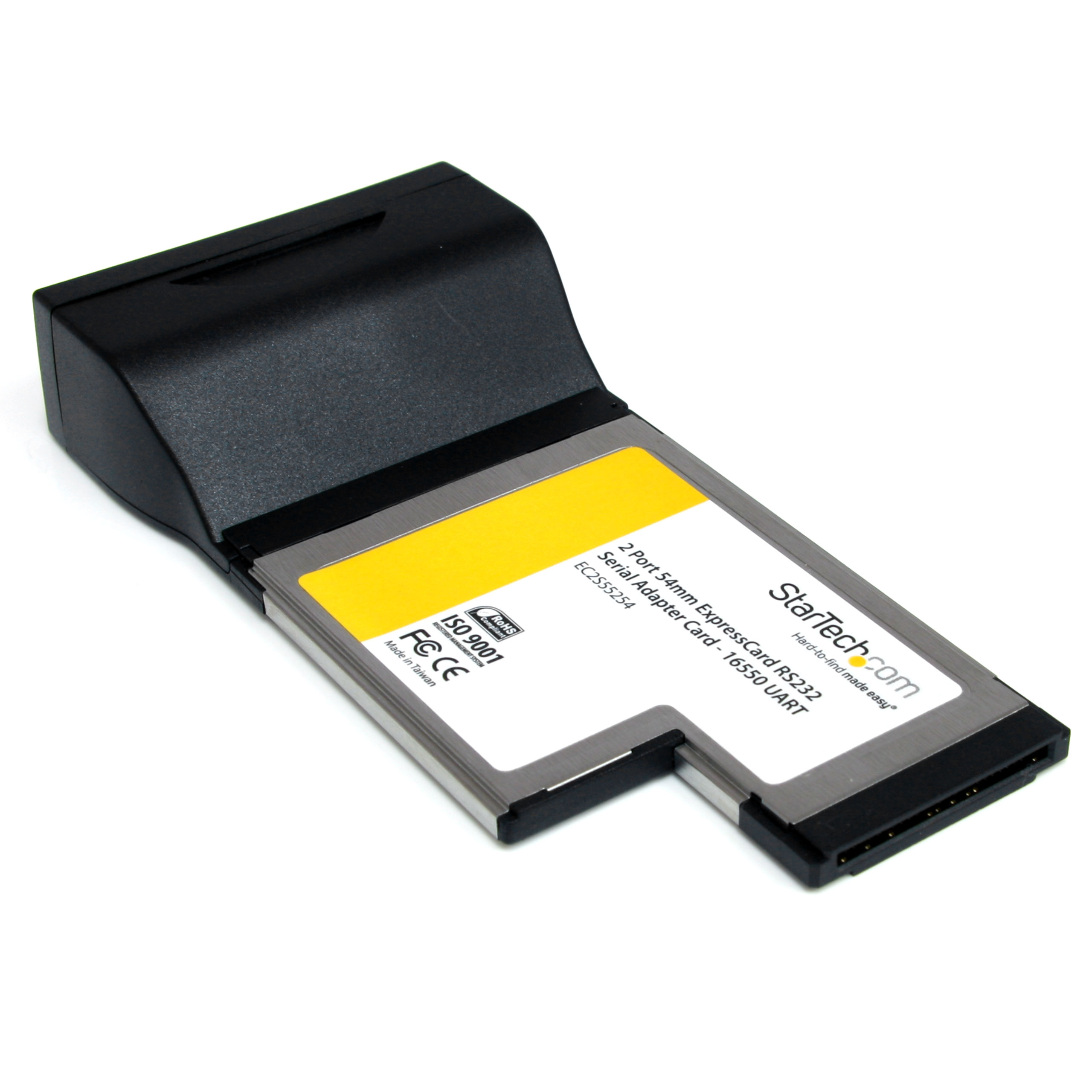

Laptop ExpressCard 54mm RS232 Serial Card 2 Port
Add 2 high-speed RS-232 Serial ports to your laptop via a 54mm ExpressCard slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Laptop ExpressCard 54mm RS232 Serial Card 2 Port Product Number EC2S55254 UPC 065030843621 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port 54mm ExpressCard Serial Card Product Title (Standard) 2 Port 54mm ExpressCard RS232 Serial Adapter Card - 16550 UART Product Title (Long) 2 Port 54mm ExpressCard RS232 Serial Adapter Card - 16550 UART Title Ingram (Part 1) 2 Port 54mm ExpressCard RS232 Se Title Ingram (Part 2) rial Adapter Card - 16550 Website Product Headline Add 2 high-speed RS-232 Serial ports to your laptop via a 54mm ExpressCard slot Bullet 1 Fully compliant with PCI Express Base Specification Revision 1.0a Bullet 2 Supports PCIe Power Management Bullet 3 Two 16C450/550 compatible UART serial ports Bullet 4 256 Byte deep transmit/receive FIFO Bullet 5 Breakout cable included Marketing Copy Applications - Embedded system coding, building, and diagnostics
- POS retail applications in grocery and other store locations to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays
- Control surveillance / security cameras in parking structures, office buildings, etc
- Perfect for mobile administrators who are required to connect to and configure routers, switches and industrial serial devices
- Add serial ports to newer systems that don't offer integrated RS232 connections, or expand the number of available RS232 ports
Website Search Keyword - 54 mm
- Express card slot
- Express card to serial
- Native PCI Express
- Serial Card
- Serial Port
- RS-232
- Two port
- full size expresscard
- wide expresscard
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - DB9CONCABL6
- MXT100
- SCNM9FF25
- SCNM9FF
- SCNM925FM
- NM9MF
- NM9FF
- MXT100FF
- SCNM9FM
- MC6MF
- MC3MF
- AT925FF
- AT925FM
Related Products - EC2S950
- EC2S952
- EC4S952
- EC4S950
- EC1S952
- EC1S950
- EC1S232U
Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 120 Product Width (mm) 59 Product Height (mm) 20 Product Weight (g) 49 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No Data Bits 5, 6, 7, 8, 9 FIFO 256 byte Flow Control None , RTS/CTS Max Baud Rate 128 Kbps OS Compatibility - Windows 7
- Linux
- Windows 8
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows 11

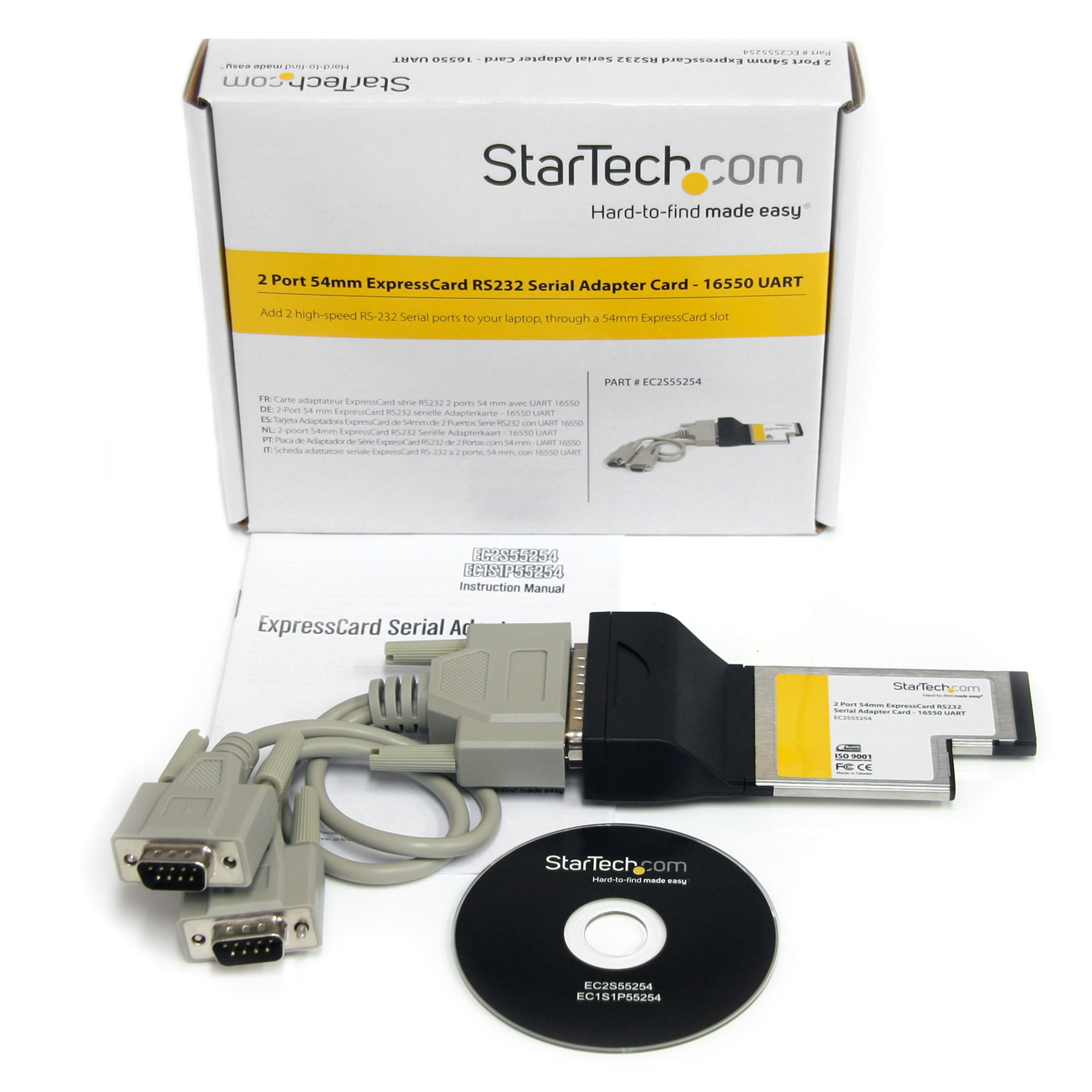

Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type ExpressCard Card Type 54mm ExpressCard Chipset ID ASIX - MCS9922CV-AA Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 400 Carton Height (mm) 305 Carton Quantity 60 Carton Weight Gross (g) 16500 Included in Package - 1 - 54mm RS232 ExpressCard

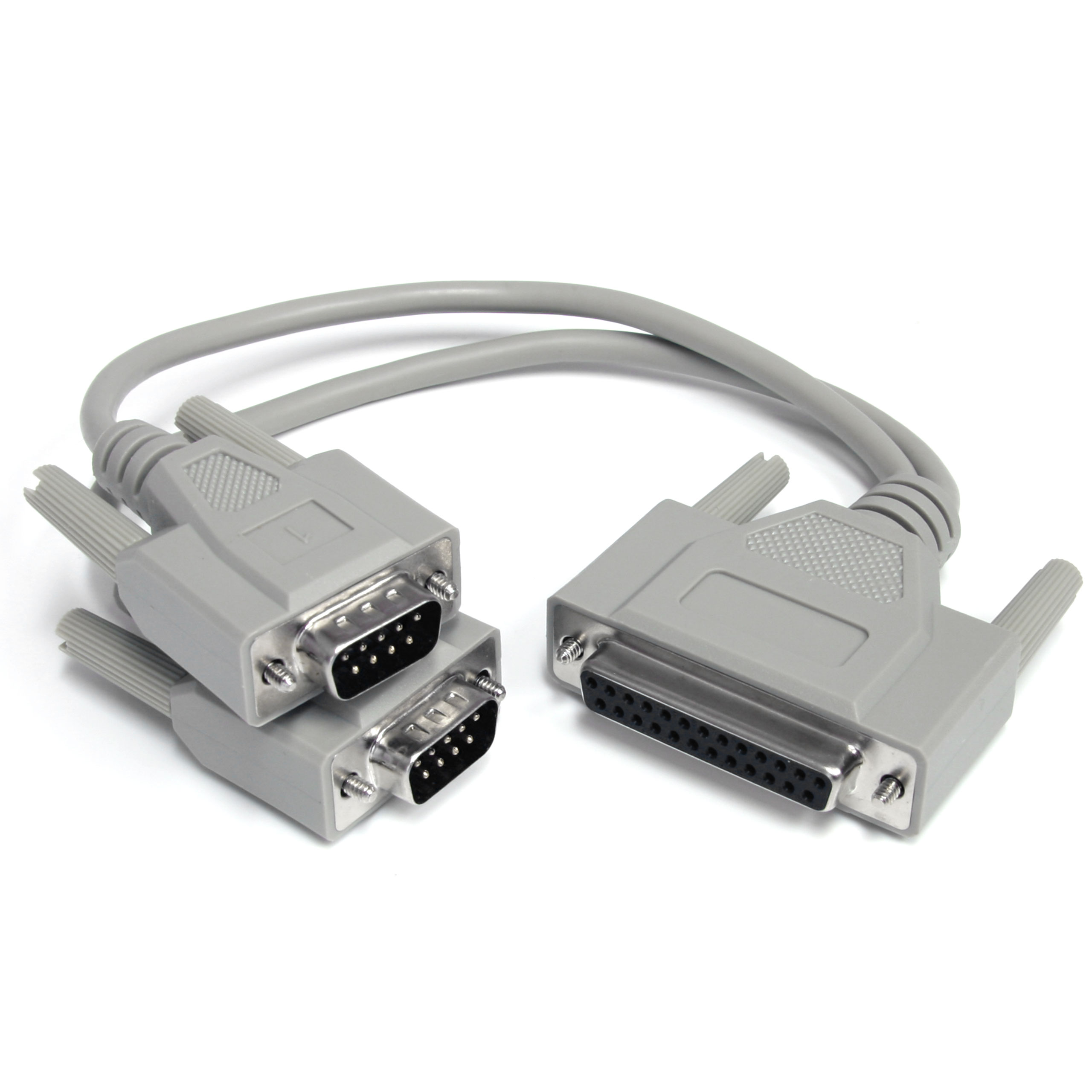

- 1 - Breakout Cable
- 1 - User Manual
- 1 - Driver CD
Package Depth (mm) 143 Package Height (mm) 30 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 258 Packaging Description 2 Port 54mm ExpressCard RS232 Serial Card Packaging Description India 2 Port 54mm ExpressCard RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/54 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
