EC2S952

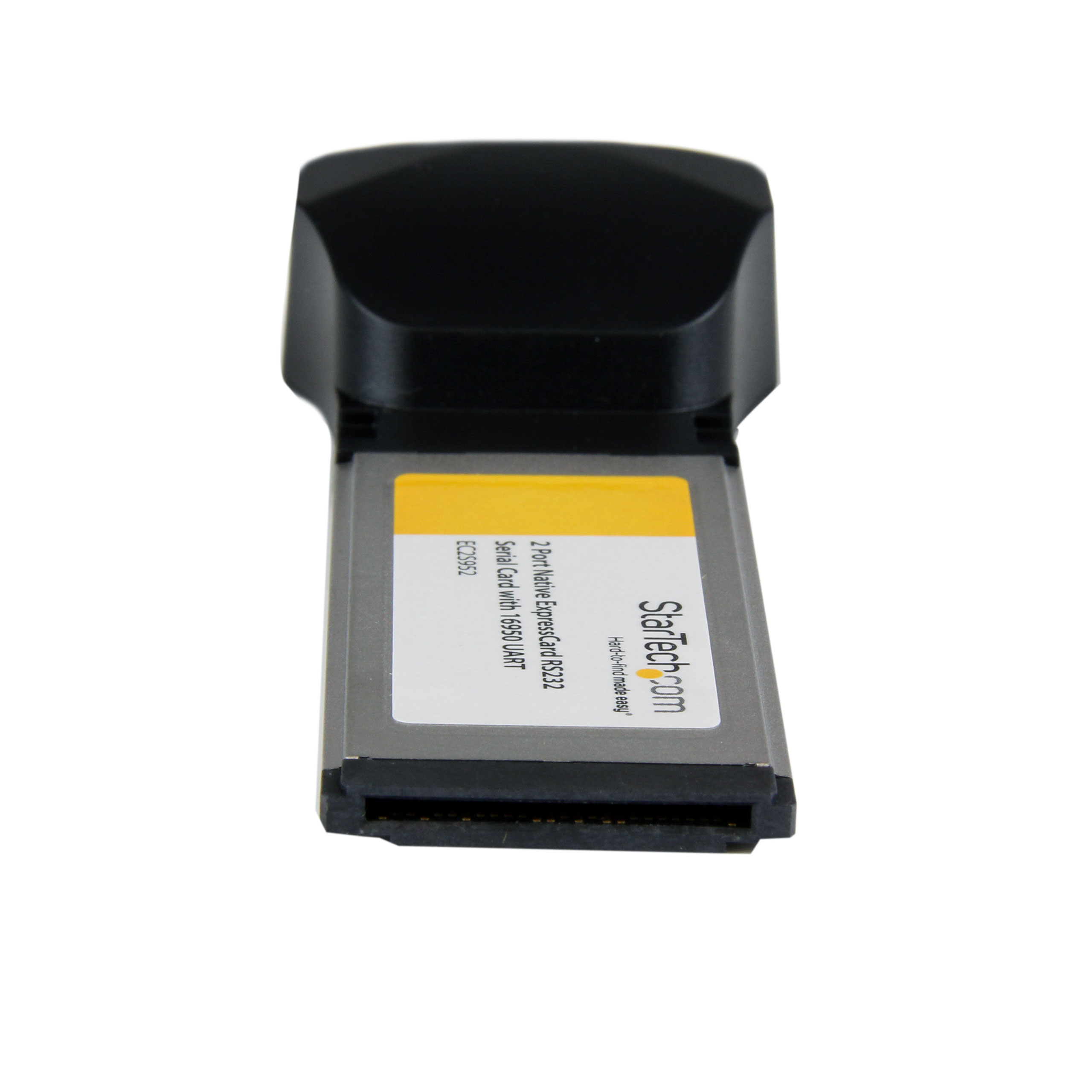

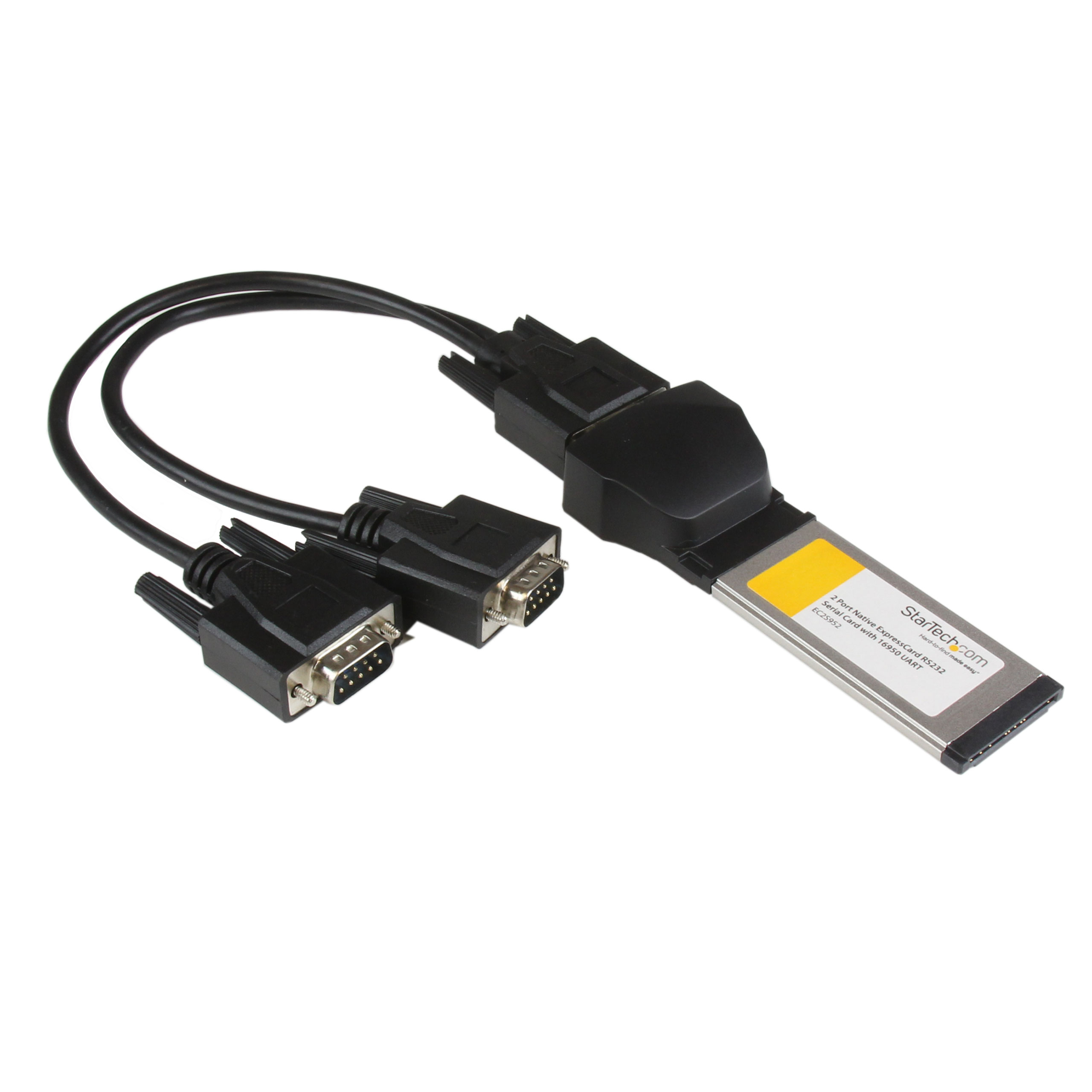

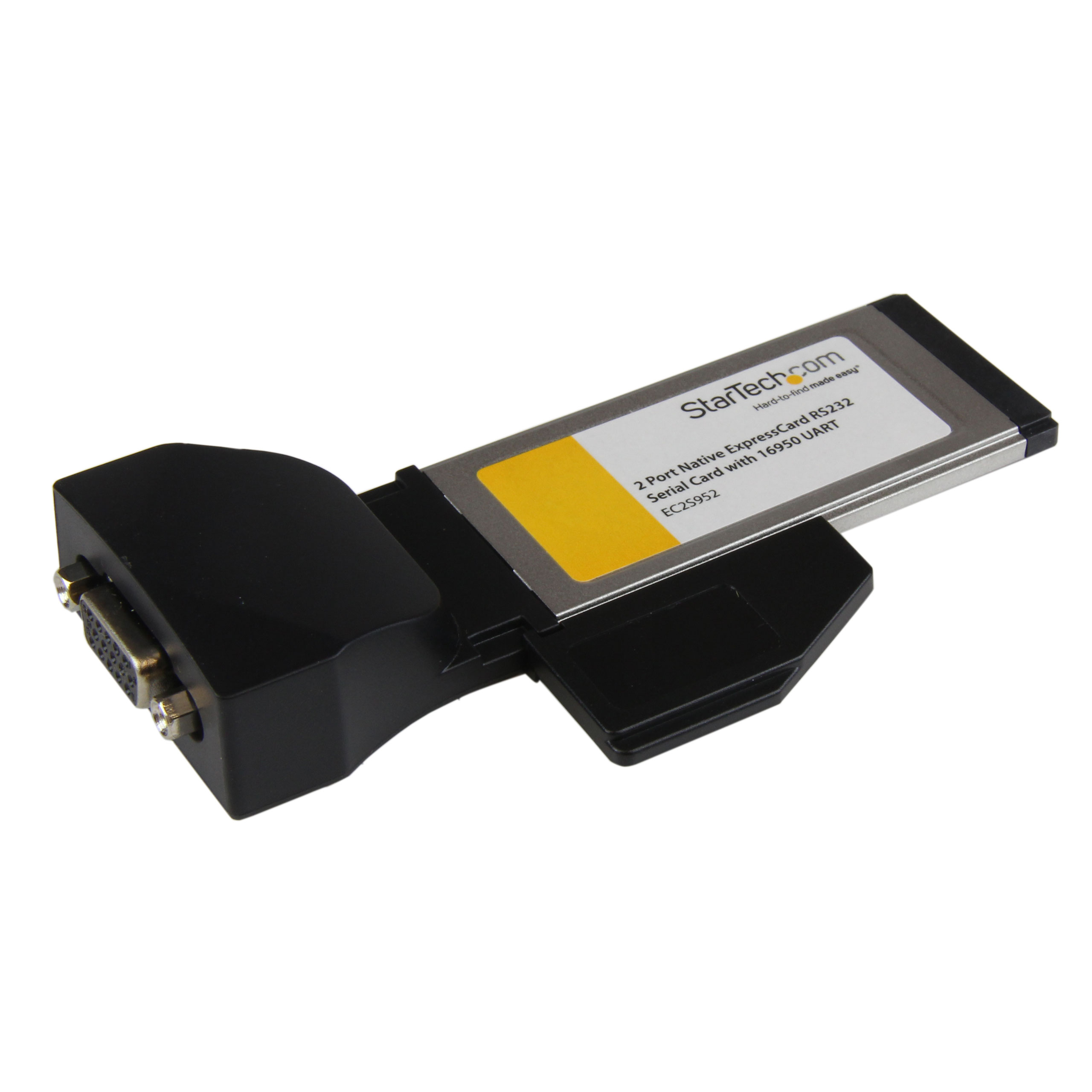

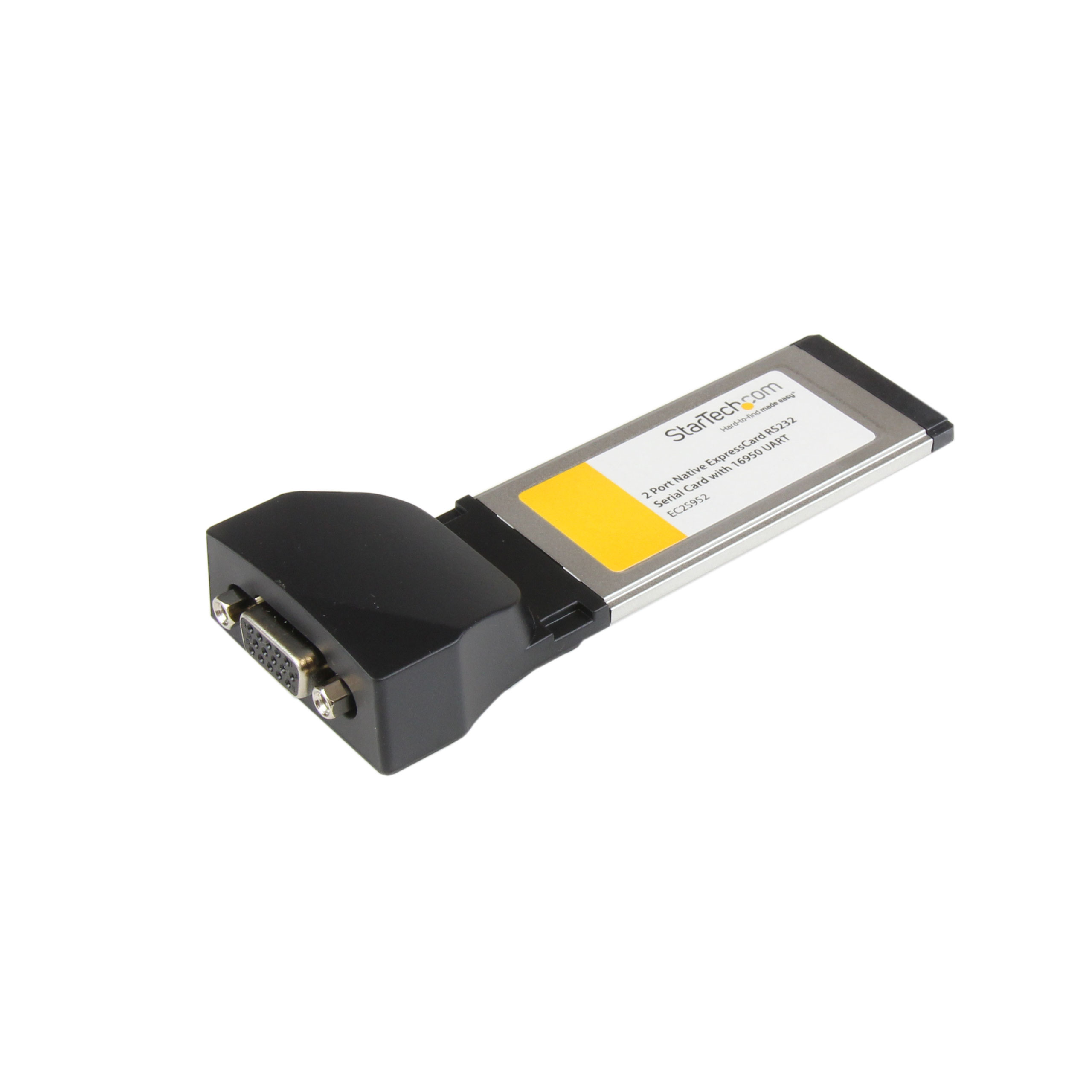

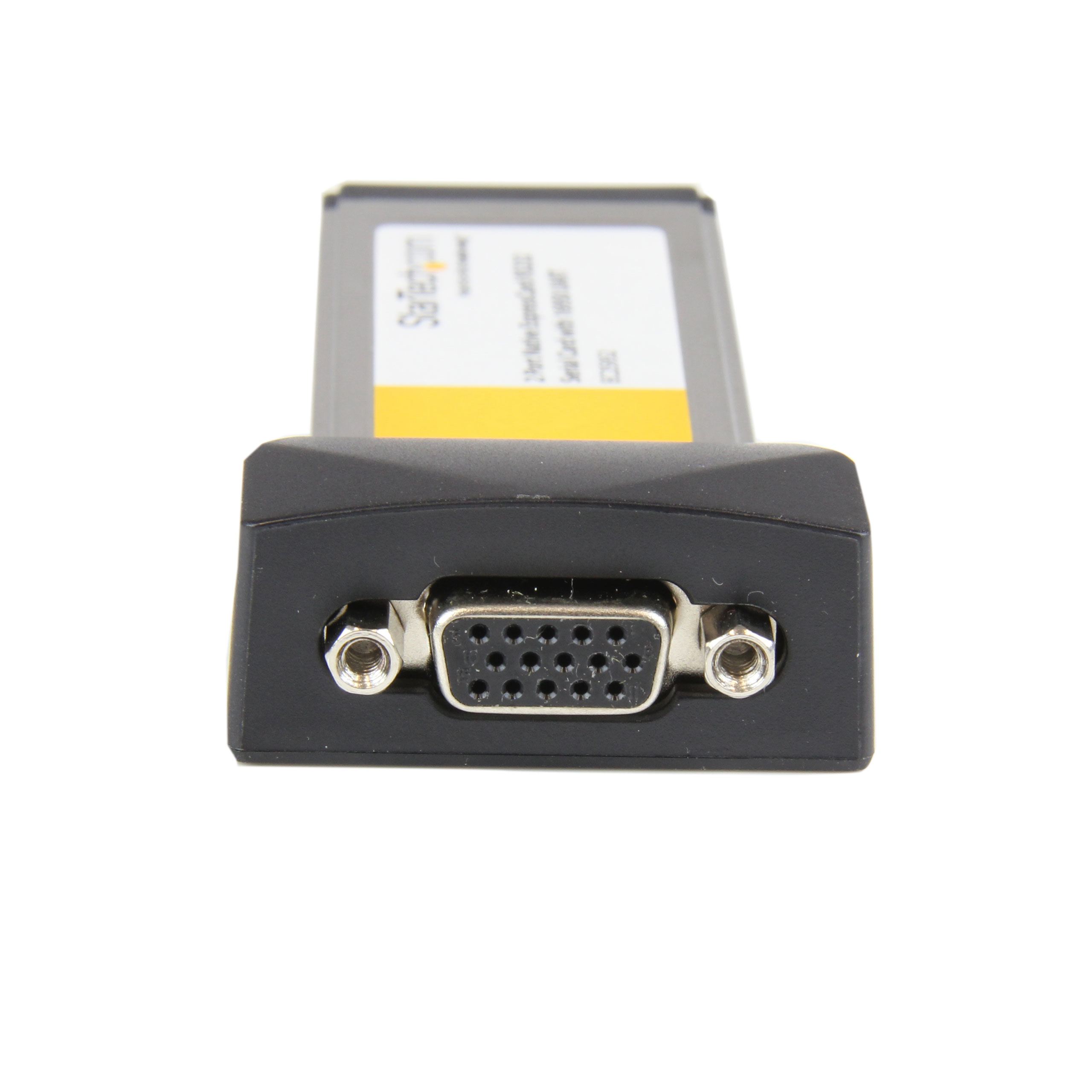

2 Port ExpressCard Serial DB9 RS232 Adapter Card
Add 2 high-speed RS-232 Serial ports to your notebook computer via an ExpressCard slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port ExpressCard Serial DB9 RS232 Adapter Card Product Number EC2S952 UPC 065030834933 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port ExpressCard Serial Adapter Card Product Title (Standard) 2 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART Product Title (Long) 2 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART Product Title (AMZ) 2 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART - Dual Port ExpressCard Serial Card (EC2S952) Title Ingram (Part 1) 2 Port Native ExpressCard Serial Title Ingram (Part 2) Adapter Card w/ 16950 UART Website Product Headline Add 2 high-speed RS-232 Serial ports to your notebook computer via an ExpressCard slot Bullet 1 128-byte deep transmit/receive FIFOs Bullet 2 Advanced FIFO fill management Bullet 3 Automated in & out-of-band flow control Bullet 4 ExpressCard 34mm and 54mm (with included adapter) Form Factor Bullet 5 Fully compliant with Express Card 1.0 Specifications Bullets (Consolidated) Serial adapter - ExpressCard - RS-232 x 2 Marketing Copy Applications - Any other serial or legacy devices
- Embedded system coding, building, and diagnostics
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc
Website Search Keyword - 34 mm
- Express card slot
- Express card to serial
- ExpressCard
- Native PCI Express
- OXPCIe952
- PCIe
- Serial Card
- Serial Port
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - DB9CONCABL6
- NM9FF
- NM9MF
- SCNM925FM
- SCNM925FM25
- SCNM925FM50
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- ECBRACKET
Related Products - CB2S485
- CB2S950
- EC2S950
- EC1S952
- PEX1P
- PEX1S952
- PEX2S952
- PEX4S952
- PEX8S952
Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 115.000 Product Width (mm) 45.000 Product Height (mm) 20.000 Product Weight (g) 36.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO 128 Bytes Max Baud Rate 115.2 Kbps OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows 11

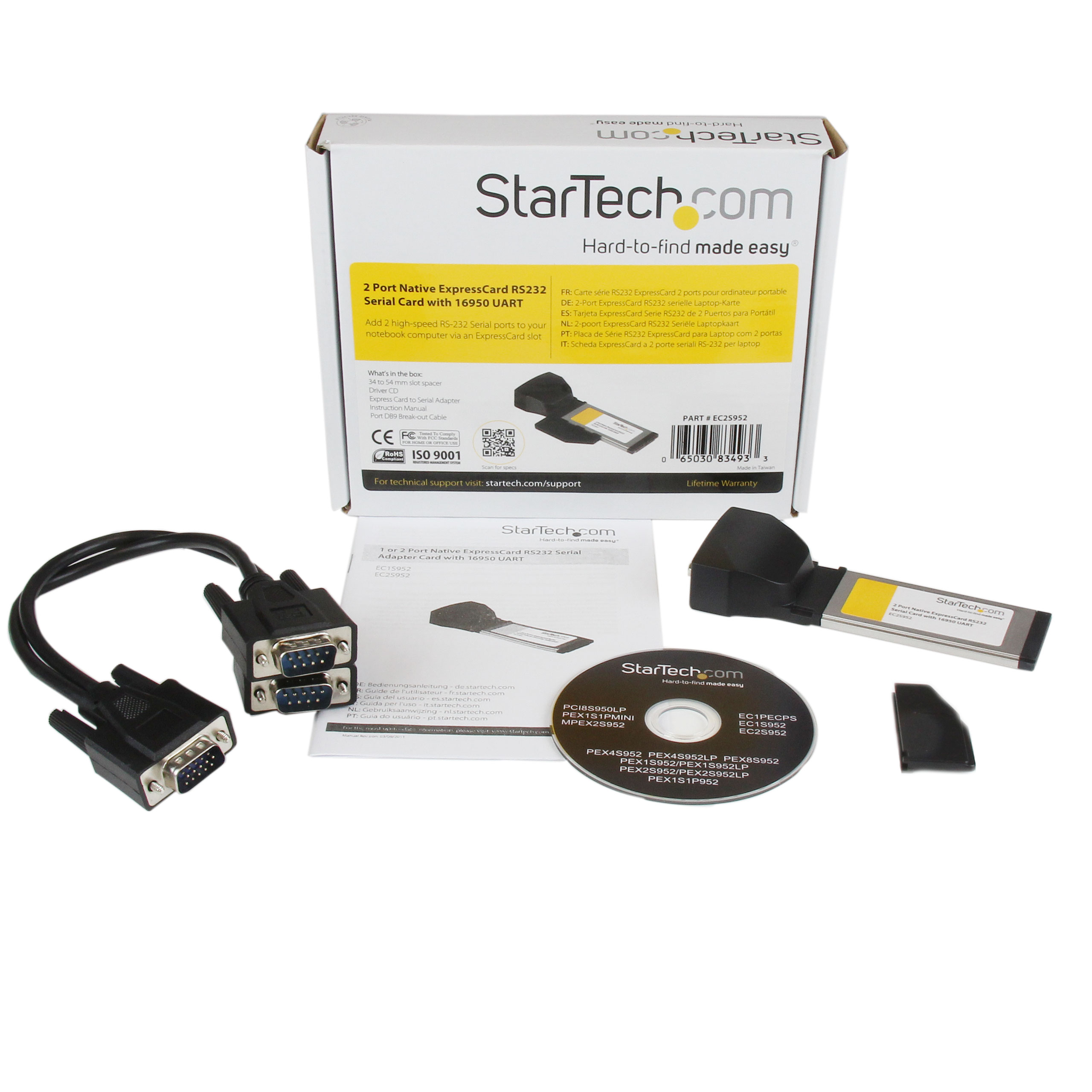

Supported Serial Protocol RS-232 Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID PLX/Oxford - OXPCIe952 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 755 Carton Height (mm) 243 Carton Quantity 50 Carton Weight Gross (g) 19200 Included in Package - 1 - 34 to 54 mm slot spacer
- 1 - Driver CD
- 1 - Express Card to Serial Adapter
- 1 - Manual

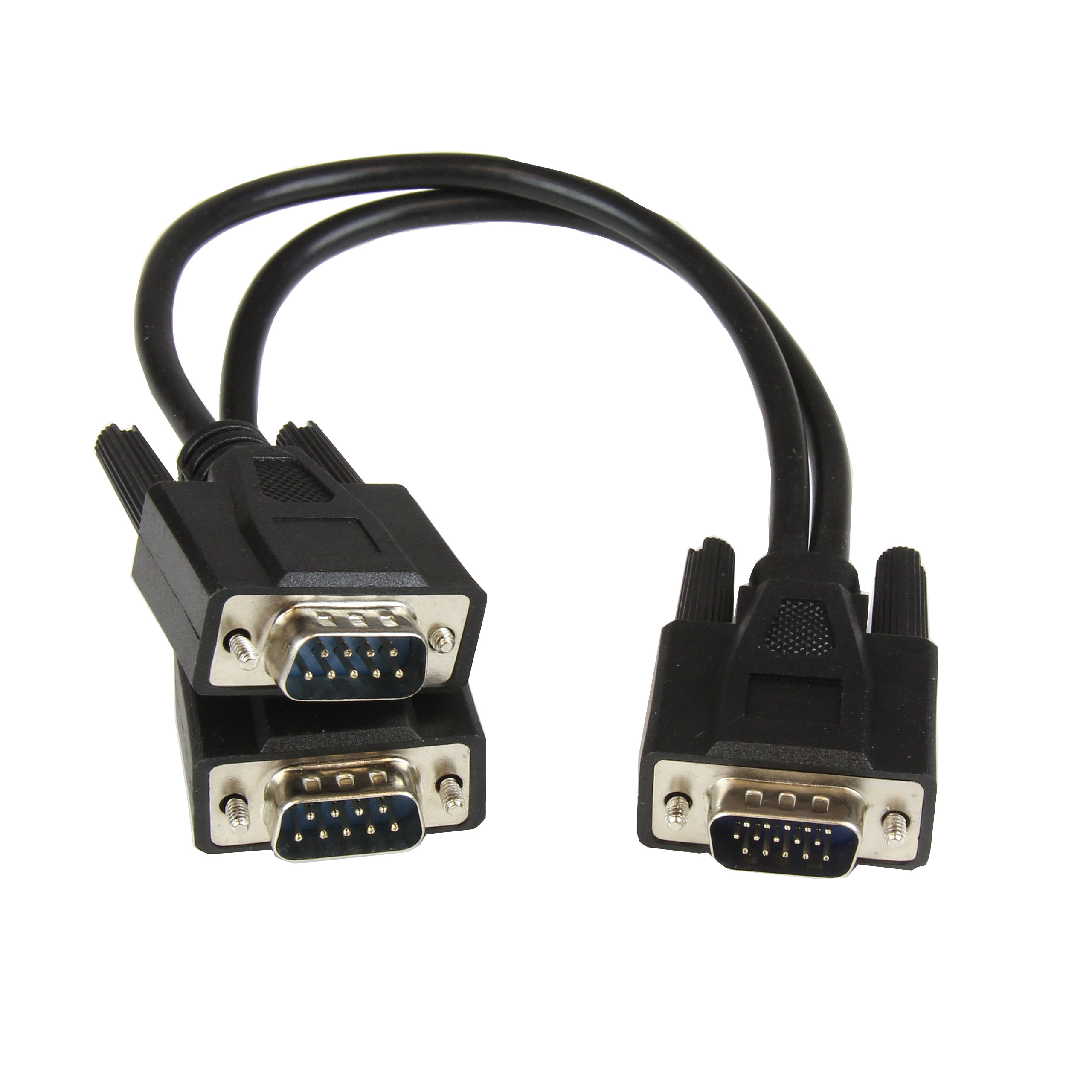

- 1 - 2 Port DB9 Break-out Cable
Package Depth (mm) 43 Package Height (mm) 148 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 360 Packaging Description 2 Port ExpressCard RS232 Serial Laptop Card Packaging Description India 2 Port ExpressCard RS232 Serial Laptop Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
