EC4S952

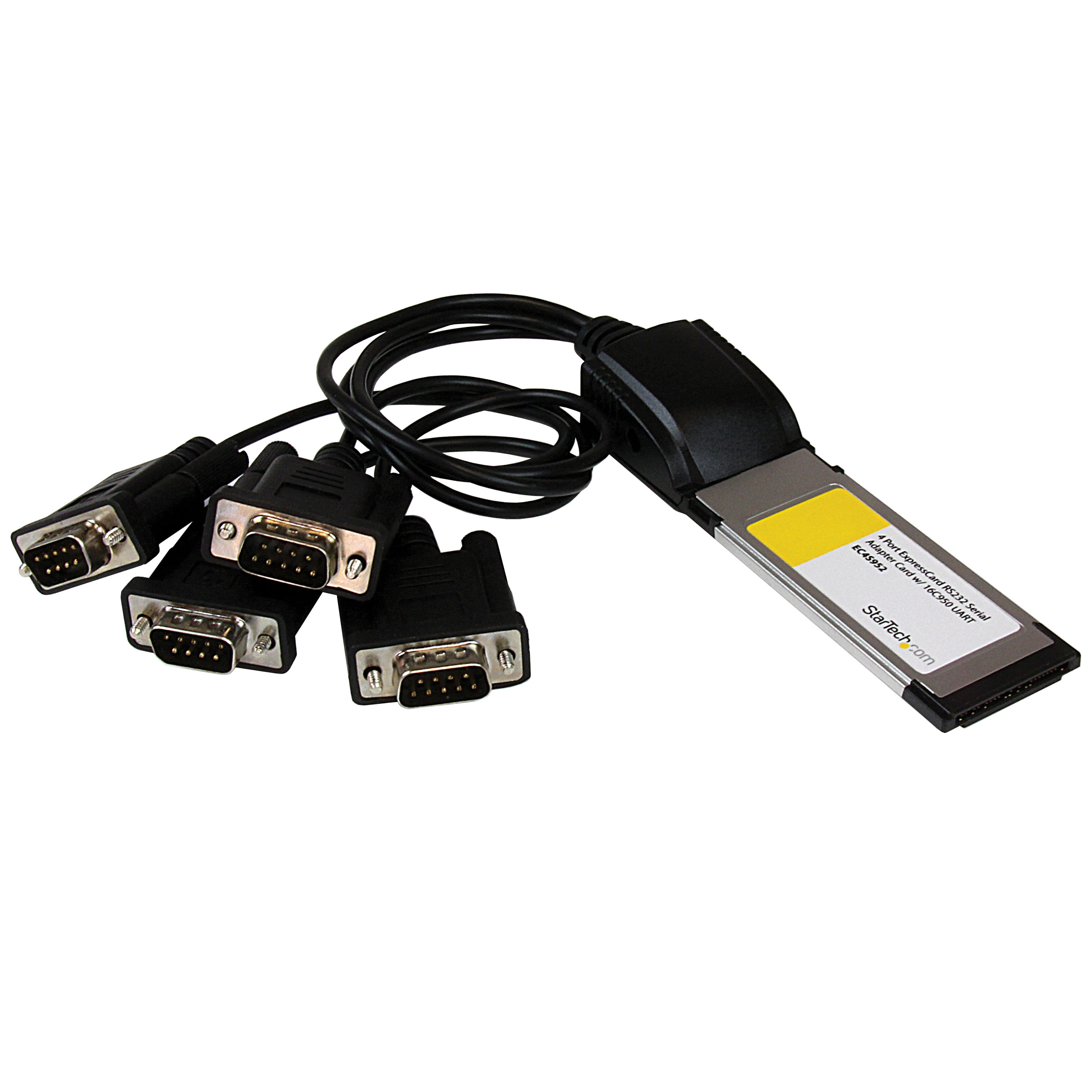

4 Port ExpressCard Serial DB9 RS232 Adapter Card
Control and communicate with up to four RS232 serial devices through a laptop ExpressCard slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port ExpressCard Serial DB9 RS232 Adapter Card Product Number EC4S952 UPC 065030840859 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 4 Port ExpressCard Serial Adapter Card Product Title (Standard) 4 Port ExpressCard RS232 Serial Adapter Card with 16C950 Product Title (Long) 4 Port Native ExpressCard RS232 Serial Adapter Card with 16C950 UART Product Title (AMZ) 4 Port Native ExpressCard RS232 Serial Adapter Card with 16C950 UART (EC4S952) Title Ingram (Part 1) 4 Port ExpressCard RS232 Serial Title Ingram (Part 2) Adapter Card w/ 16C950 UART Website Product Headline Control and communicate with up to four RS232 serial devices through a laptop ExpressCard slot Bullet 1 128-byte deep transmit/receive FIFOs Bullet 2 Automated in & out-of-band flow control Bullet 3 Compatible with ExpressCard 34mm and 54mm form factors (with included adapter) Bullet 4 Fully compliant with Express Card 1.1 Specifications Bullet 5 Single chip design optimizes speed, reliability and power Marketing Copy Applications - Embedded system monitoring and diagnostics
- POS retail applications to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Used to control multiple surveillance / security cameras in a parking structure, office building or similar location
- Industrial control, automation, and monitoring of serial machines and PCs
- Connect to routers, PDU's and other serial based devices in your server room or data center
Website Search Keyword - 34 mm
- Express card slot
- Express card to serial
- ExpressCard to serial
- Native PCI Express
- OXPCIe954
- PCIe
- Serial Card
- Serial Port
- Quad Port serial
- 54 mm
- 34mm
- 54mm
- 4 port serial laptop card
- expresscard
- laptop serial
- notebook serial
- rs232 serial
- laptop rs232
- laptop rs-232
- notebook rs232
- notebook rs-232
Microsoft WHQL Certified Yes Accessory Products - DB9CONCABL6
- NM9FF
- NM9MF
- SCNM925FM
- SCNM925FM25
- SCNM925FM50
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- ECBRACKET
Related Products - CB2S485
- CB2S950
- EC1S952
- EC2S950
- PEX1P
- PEX1S952
- PEX2S952
- PEX4S952
- PEX8S952
- EC2S952
- EC1S232U
- EC1S950
- EC4S950
Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 117 Product Width (mm) 34 Product Height (mm) 20 Product Weight (g) 300 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 128 Bytes Flow Control Xon/Xoff, Hardware, and None Max Baud Rate 921.6 Kbps OS Compatibility - Linux
- Windows Server 2012
- Windows 7
- Windows 8
- Windows 10
- Windows Server 2016
- Windows 11

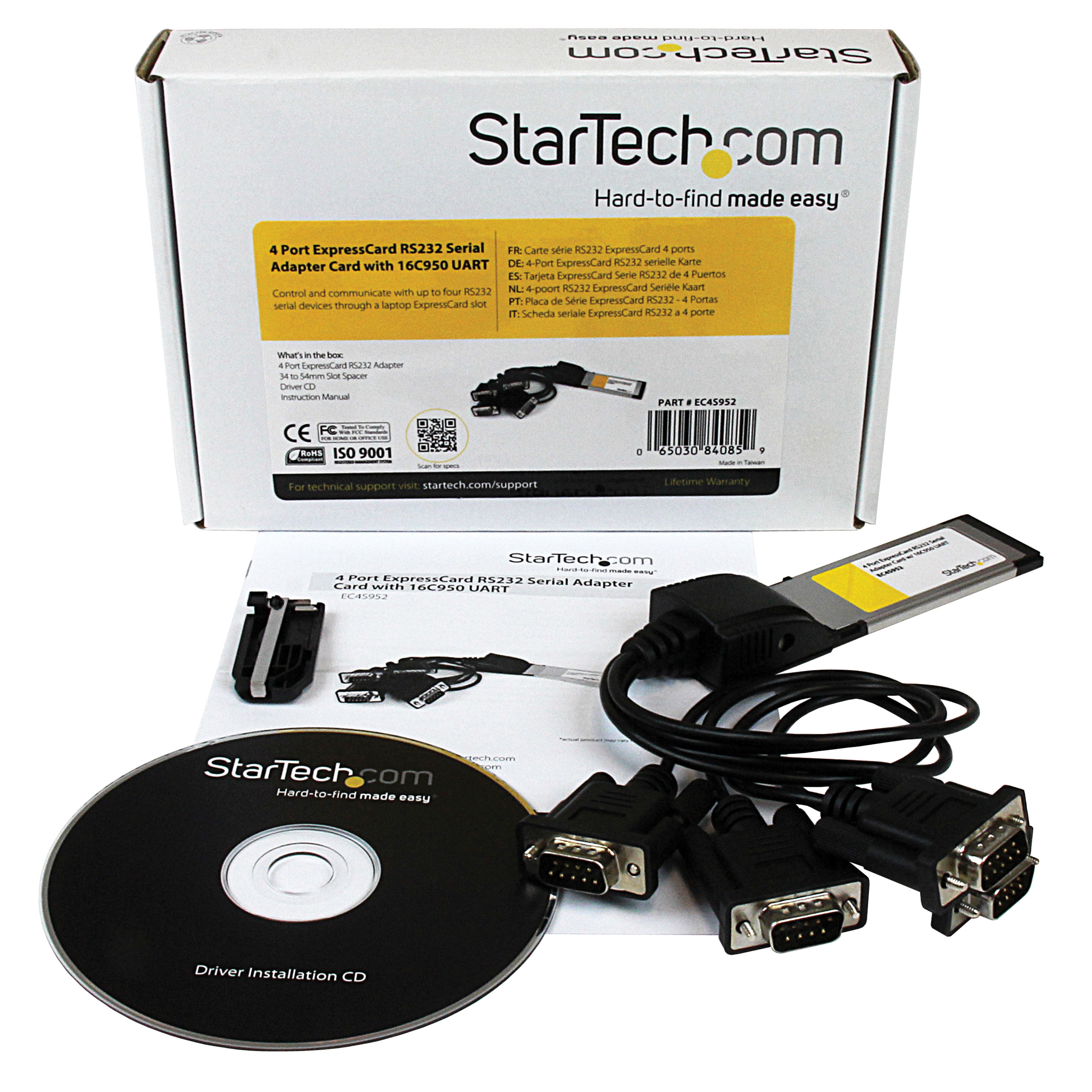

Parity None, Odd, Even, Space, and Mark Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID PLX/Oxford - OXPCIe954 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 410 Carton Height (mm) 520 Carton Quantity 50 Carton Weight Gross (g) 18500 Included in Package - 1 - 34 to 54 mm slot spacer
- 1 - Driver CD
- 1 - 4 port ExpressCard RS232 Adapter
- 1 - Instruction Manual
Package Depth (mm) 40 Package Height (mm) 160 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 300 Packaging Description 4 Port RS232 ExpressCard Serial Card Packaging Description India 4 Port RS232 ExpressCard Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
