ECESAT32

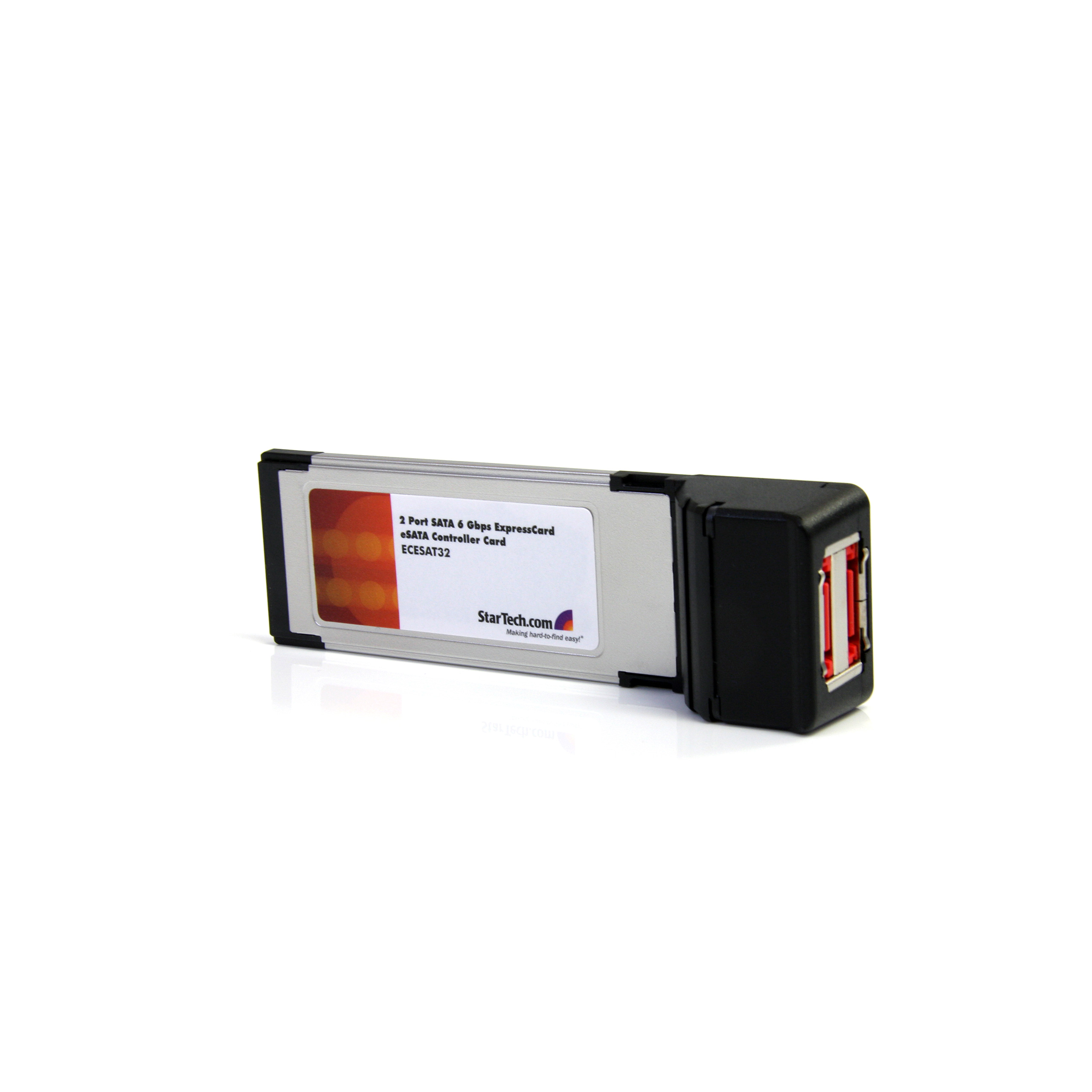

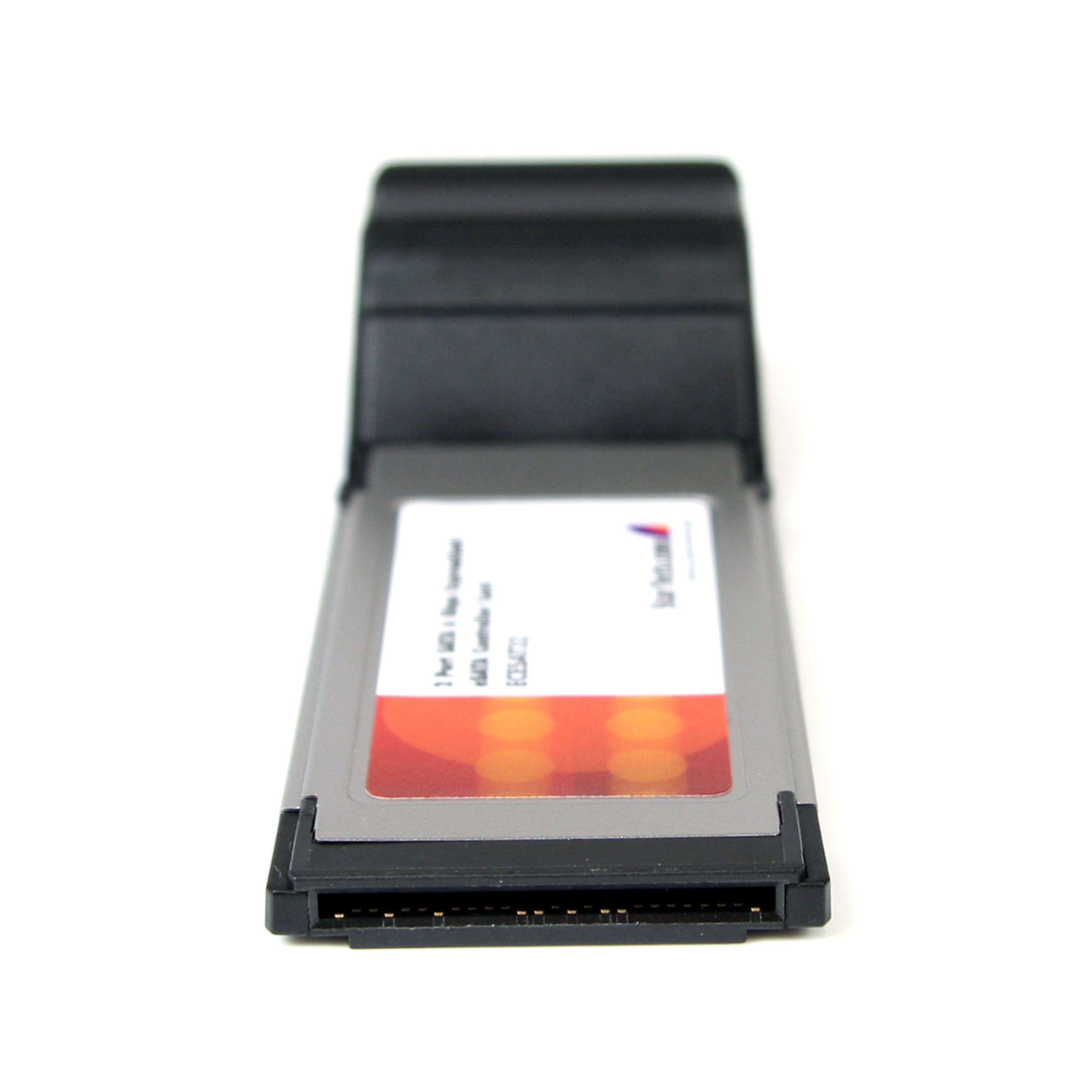

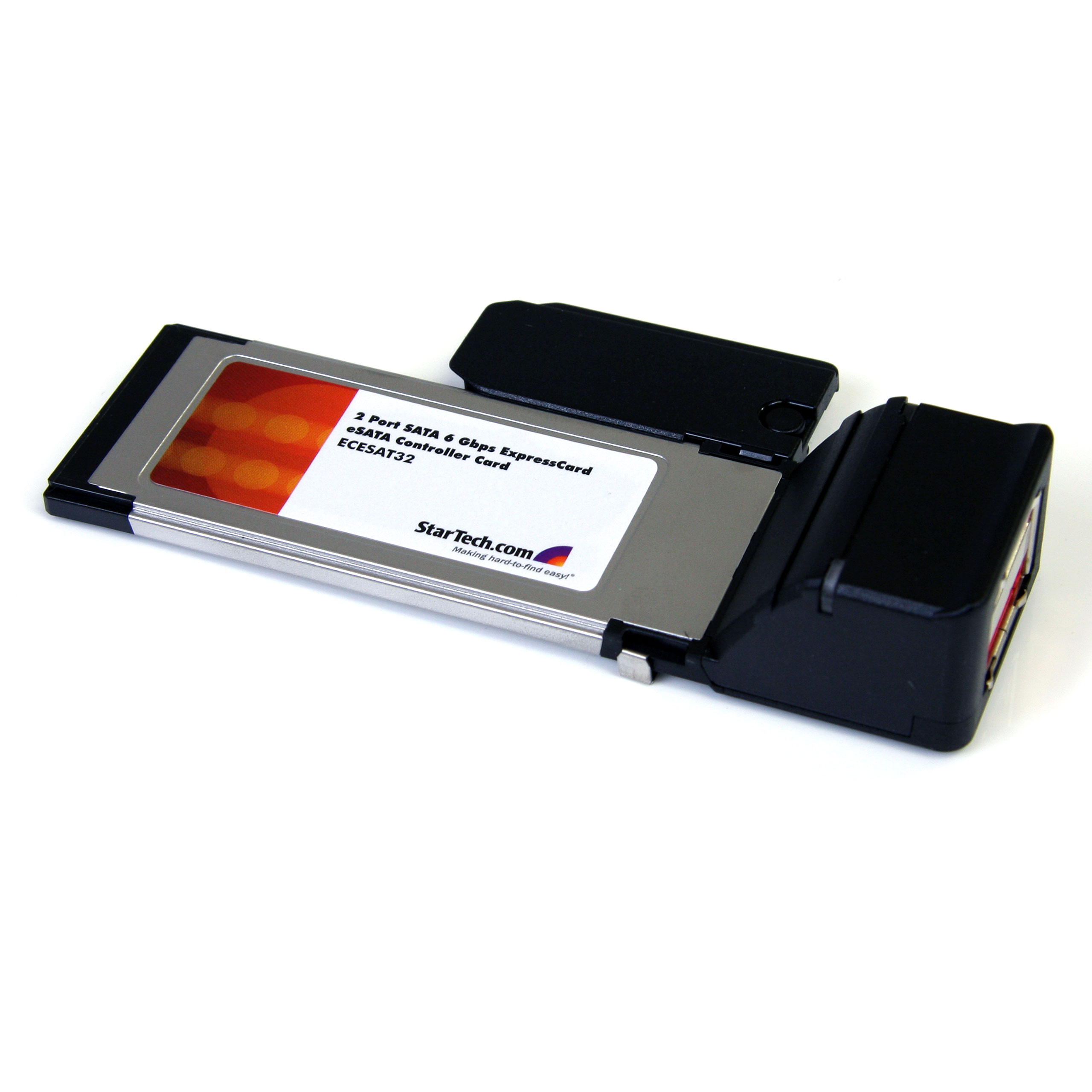

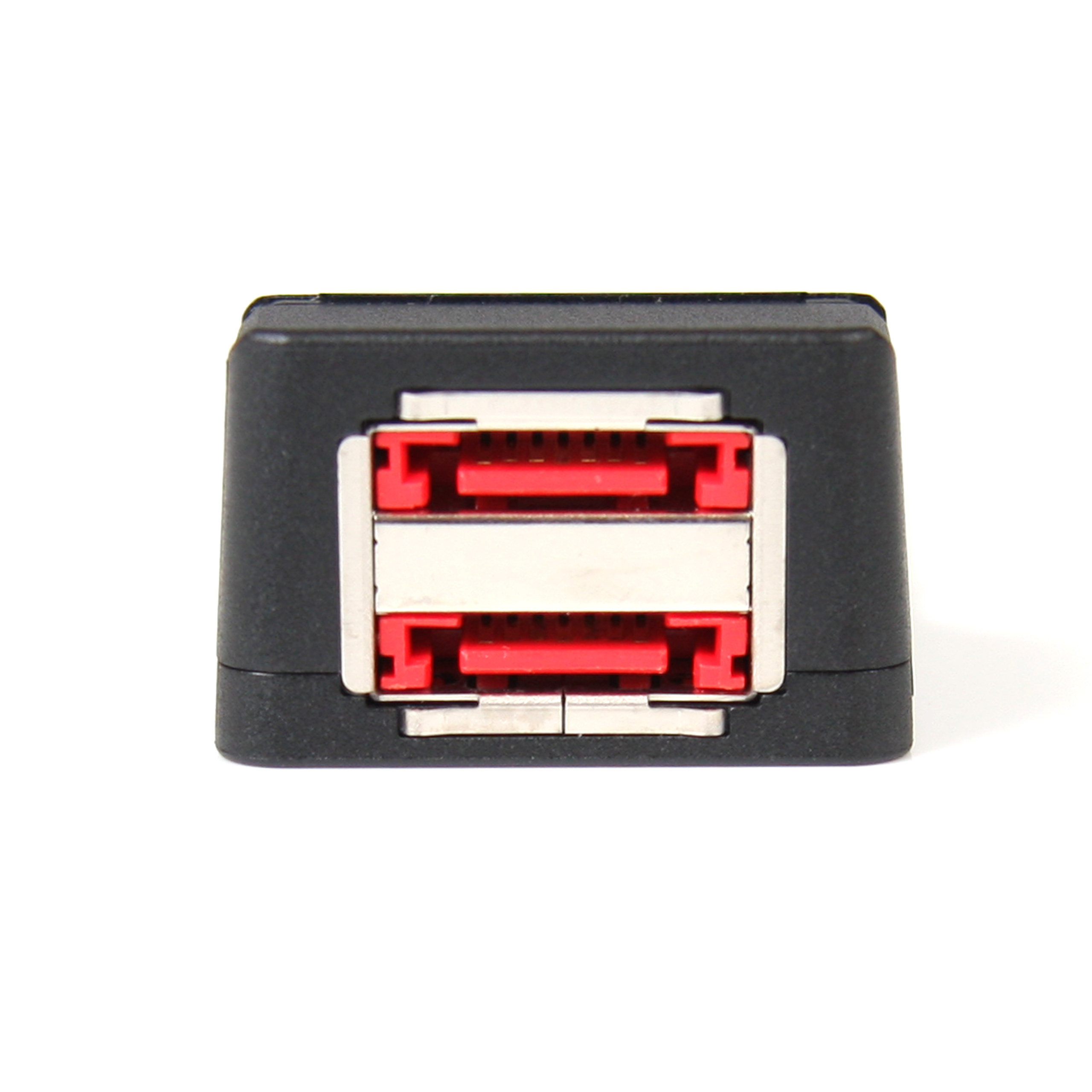

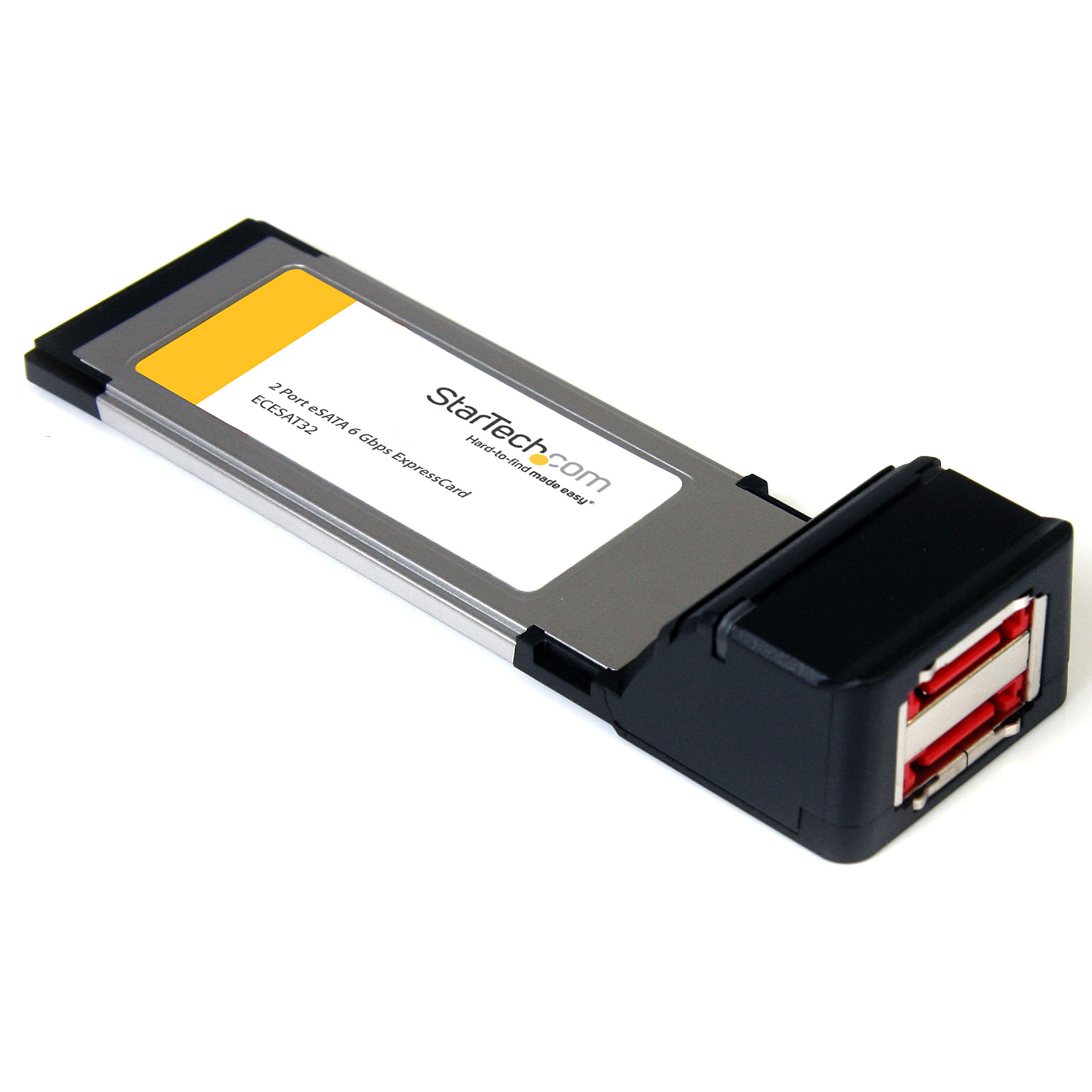

2 Port SATA Rev 3 Laptop eSATA Controller Card
Add Two External SATA 3.0 (6Gbps) Ports to a Laptop, for High Speed Access to Large External Storage Solutions
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port SATA Rev 3 Laptop eSATA Controller Card Product Number ECESAT32 UPC 065030838931 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) ExpressCard eSATA 6 Gbps Controller Card Product Title (Standard) 2 Port ExpressCard eSATA 6 Gbps Controller Card Product Title (Long) 2 Port SATA 6 Gbps ExpressCard eSATA Controller Card Product Title (AMZ) 2 Port SATA 6 Gbps ExpressCard eSATA Controller Card (ECESAT32) Title Ingram (Part 1) 2 Port SATA 6 Gbps ExpressCard e Title Ingram (Part 2) SATA Controller Card Website Product Headline Add Two External SATA 3.0 (6Gbps) Ports to a Laptop, for High Speed Access to Large External Storage Solutions Bullet 1 Supports SATA Rev 3.0 transfer speeds up to 6.0Gbps and backward compatible with SATA I/II at 1.5/3.0Gbps Bullet 2 Port Multiplier FIS-based and Command-based switching supported Bullet 3 Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands Bullet 4 Compliant with ExpressCard 2.0 standards Bullet 5 Includes a bracket for adapting the 34mm card to fit into a 54mm card slot Marketing Copy Applications - Add two eSATA 6Gbps capable ports to an ExpressCard-equipped laptop
- Connect high performing multi-drive external eSATA enclosures
Website Search Keyword - ExpressCard
- eSATA
- SATA 6Gbps
- SATA 3
- SATA III
- SATA 600
Microsoft WHQL Certified Yes Special Notes Accessory Products - ECBRACKET
- ESATA3
- ESATA6
- SATA2ESATA6
Related Products - ECESATA1
- ECESATA254
- ECESATUSB1
- ECESATA22
- CBESAT2
- CBESATA2
- PEXESAT32
- PEXSAT32
Humidity 15~90% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 112 Product Width (mm) 34 Product Height (mm) 21 Product Weight (g) 40 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant No Maximum Data Transfer Rate up to 6 Gbps OS Compatibility - Linux
- Windows 8
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- Windows 11
- Windows Server 2022
- Windows Server 2019

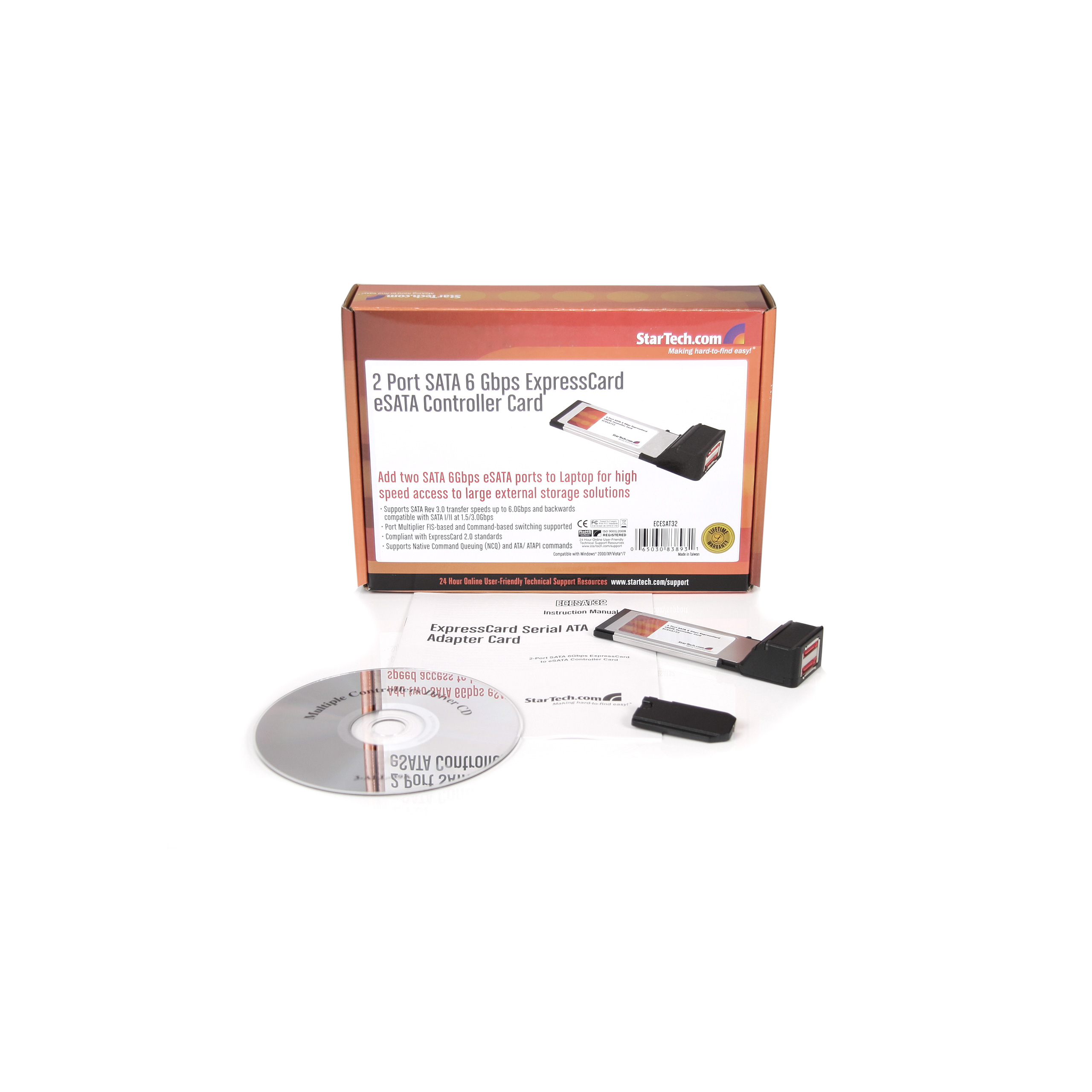

Port Multiplier Yes RAID No SATA Type and Rate SATA III (6 Gbps) Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID Marvell - 88SE9128 Interface/Bridge eSATA Carton Depth (mm) 457.2 Carton Height (mm) 330 Carton Quantity 40 Carton Weight Gross (g) 9600 Included in Package - 1 - eSATA ExpressCard
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - 34mm to 54mm adapter bracket
Package Depth (mm) 158.8 Package Height (mm) 44.5 Package Width (mm) 222.2 Package Quantity 1 Package Weight (g) 210 Packaging Description ExpressCard eSATA 6 Gbps Controller Packaging Description India ExpressCard eSATA 6 Gbps Controller Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Legacy
