ECESATA1
1x eSATA II ExpressCard Adapter - Slim eSATA

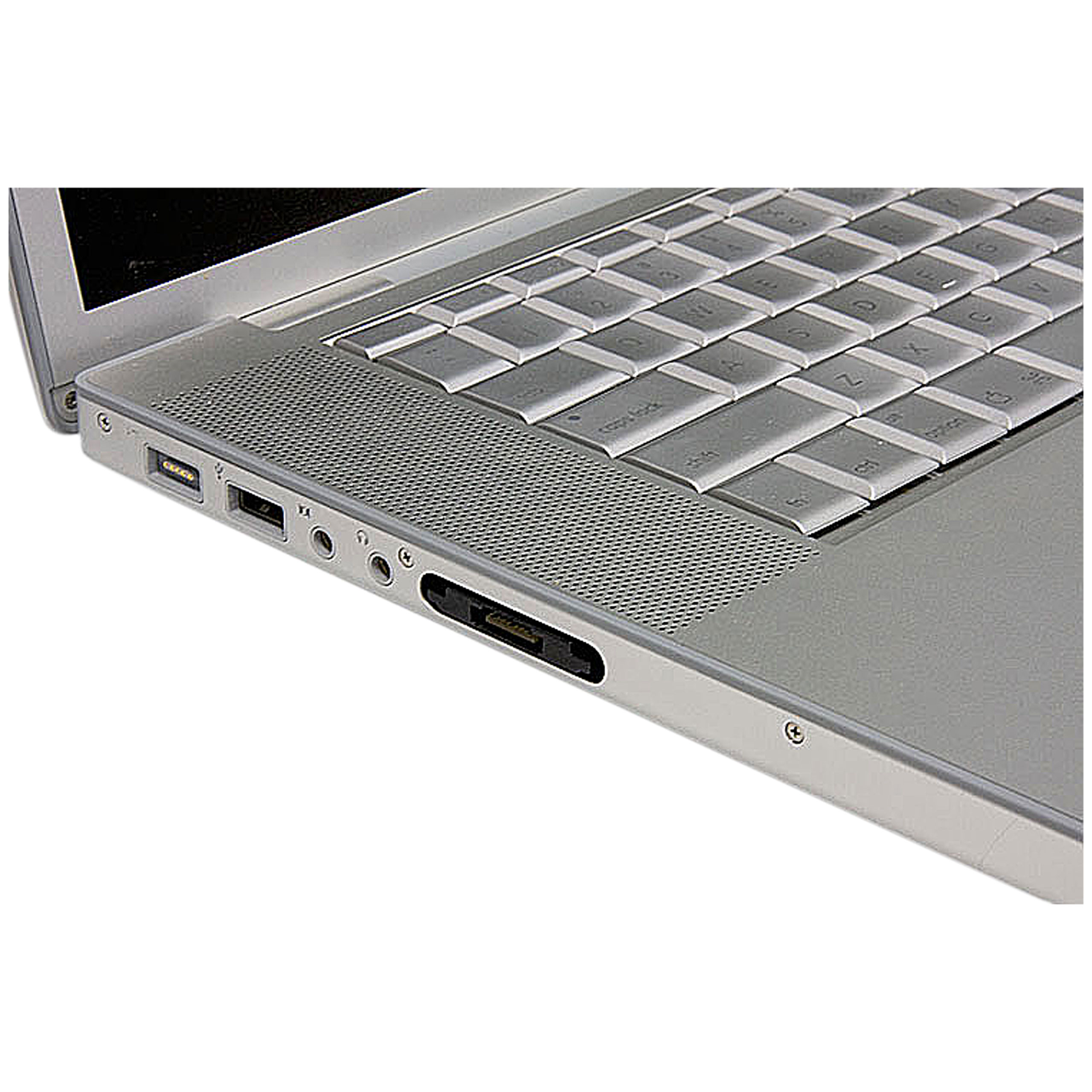

Add a slim flush mounting eSATA port to a laptop through ExpressCard
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image

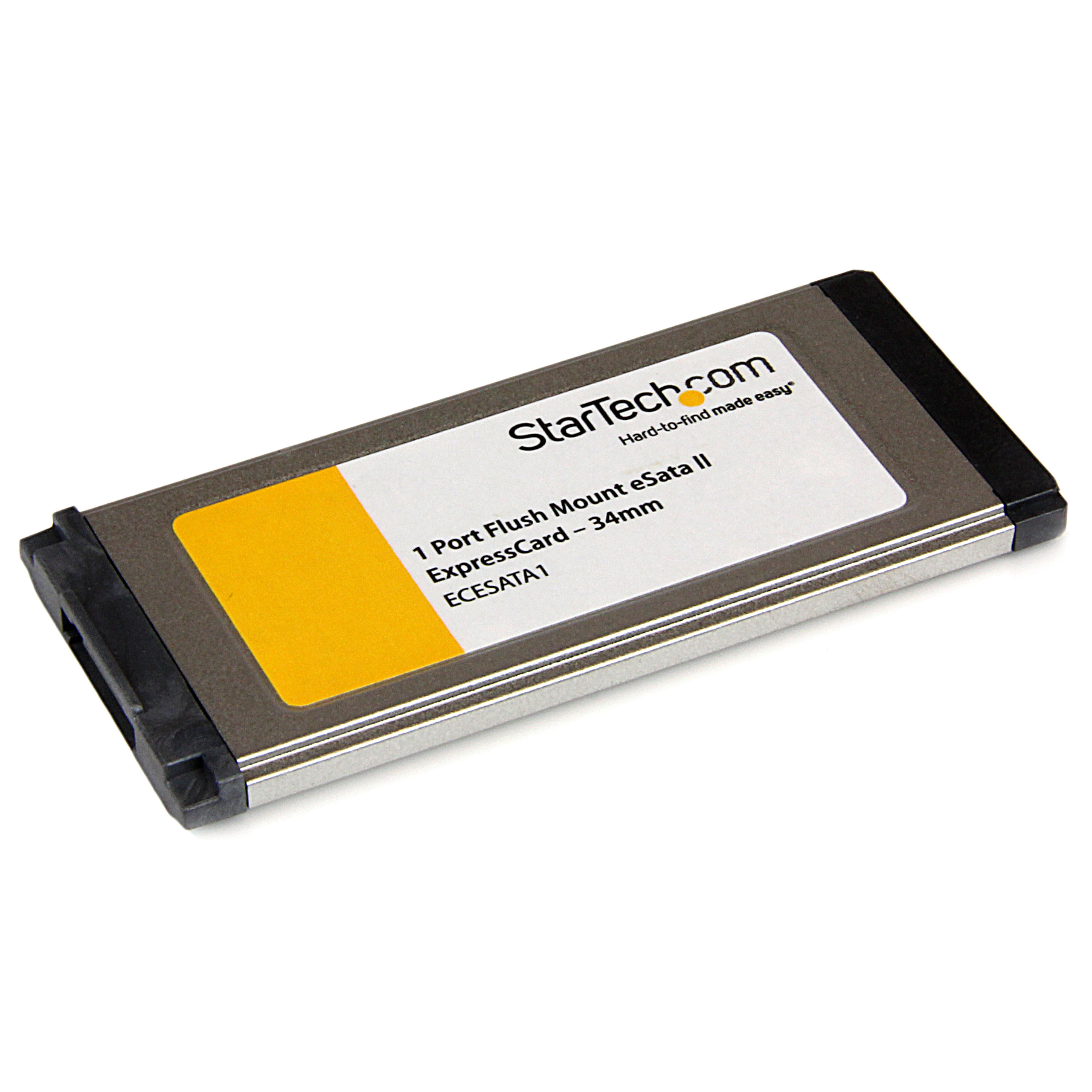

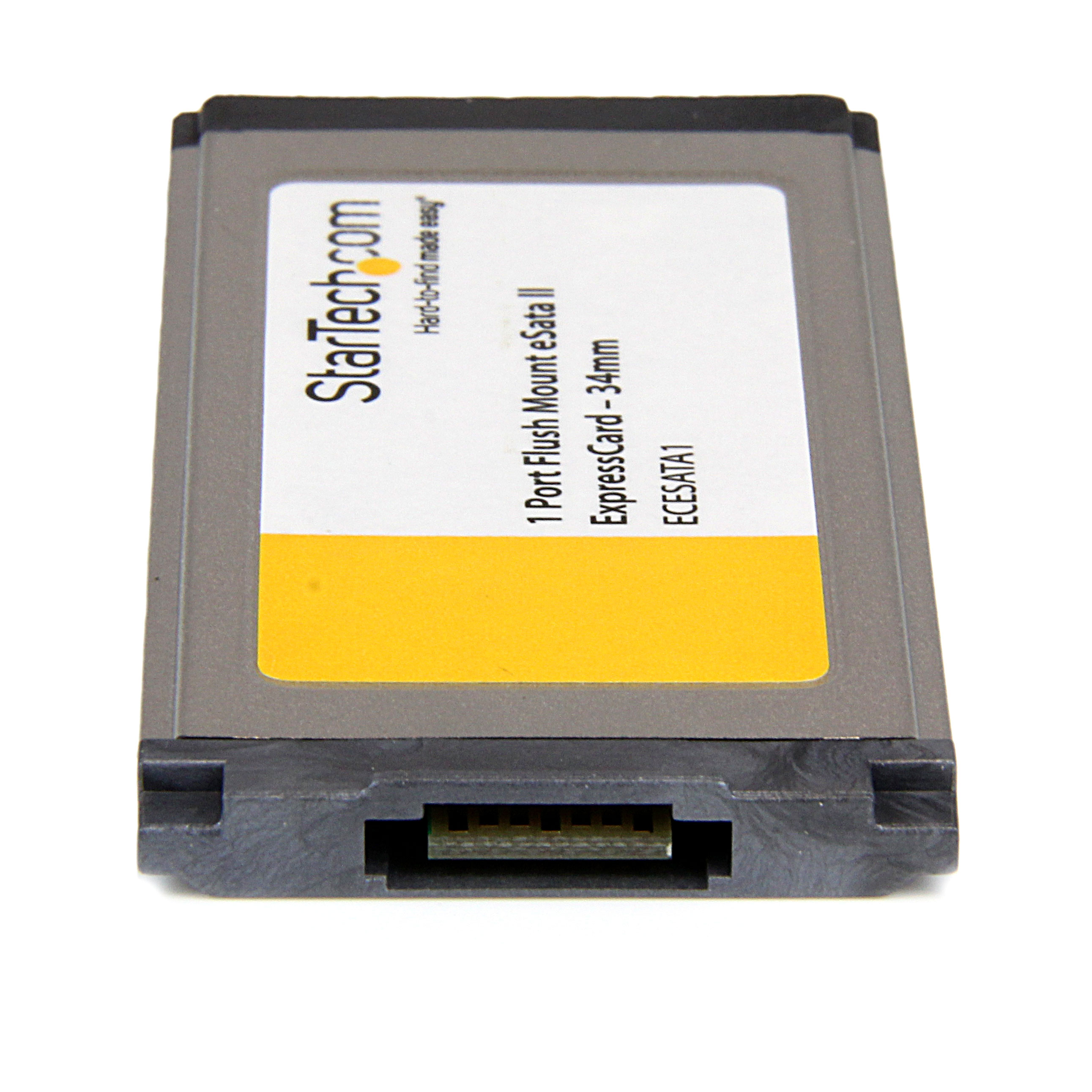

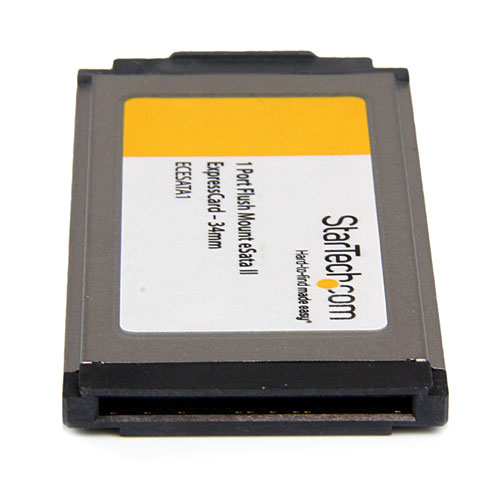

Product Name 1x eSATA II ExpressCard Adapter - Slim eSATA Product Number ECESATA1 UPC 065030835442 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1x Flush Mount ExpressCard eSATA Adapter Product Title (Standard) 1 Port Flush Mount ExpressCard 34mm eSATA II Controller Adapter Card Product Title (Long) 1 Port Flush Mount ExpressCard 34mm eSATA II Controller Adapter Card Product Title (AMZ) 1 Port Flush Mount ExpressCard 34mm eSATA II Controller Adapter Card (ECESATA1) Title Ingram (Part 1) 1 Port Flush Mount ExpressCard e Title Ingram (Part 2) SATA Controller Adapter Card Website Product Headline Add a slim flush mounting eSATA port to a laptop through ExpressCard Bullet 1 Slim ExpressCard design for a flush-mounting appearance Bullet 2 Support for Port Multiplier with command based switching Bullet 3 Fully compliant with SATA revision 1/2 specifications with supported transfer rates up to 3.0 Gbps Bullet 4 Compliant with ExpressCard Specification 1.0 and ExpressCard 34 Form Factor Bullet 5 Legacy Command Queuing (LCQ) and Native Command Queuing (NCQ)compliant Marketing Copy Applications - Adding eSATA capabilities to an ExpressCard enabled system or laptop
- Mobile users who want to leave ExpressCard adapters installed, without worry about damaging the card or slot while on the move

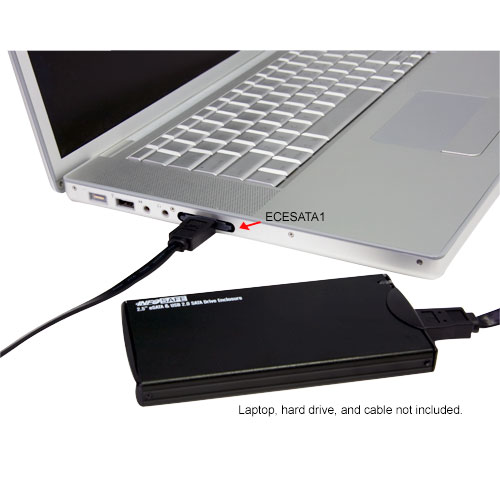

- Connecting external storage devices over a high speed eSATA interface
Website Search Keyword - NCQ
- LCQ
- Port Multipliers
- ESATA
- SATA 2
- SATA II
- Controller Card
- External SATA
- ExpressCard
- Express Card
- Recessed
Accessory Products - ECBRACKET
- ESATA3
- ESATA6
- ESATAPLATE1
- ESATCASE2
- SATA2ESATA6
Related Products - CBSATA2
- ECESATA22
- ECESATA254
Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 75 Product Width (mm) 34 Product Height (mm) 4 Product Weight (g) 17.2 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant No OS Compatibility - Linux
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Windows 8
- Windows 7
- Mac OS X Yosemite (10.10)
- Mac OS X El Capitan (10.11)

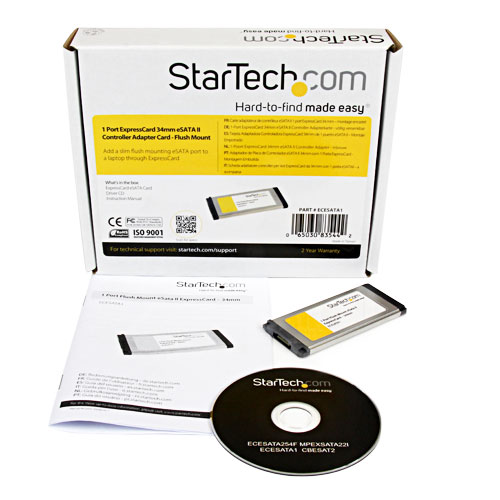

Port Multiplier Yes RAID No SATA Type and Rate SATA II (3 Gbps) Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID Silicon Image - SiI3132 Interface/Bridge eSATA Carton Depth (mm) 750 Carton Height (mm) 250 Carton Quantity 50 Carton Weight Gross (g) 11200 Included in Package - 1 - Driver CD
- 1 - ExpressCard eSATA Card
- 1 - Instruction Manual
Package Depth (mm) 40 Package Height (mm) 145 Package Width (mm) 210 Package Weight (g) 200 Packaging Description 1x Flush Mount ExpressCard eSATA Card Packaging Description India 1x Flush Mount ExpressCard eSATA Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
