ECESATA254

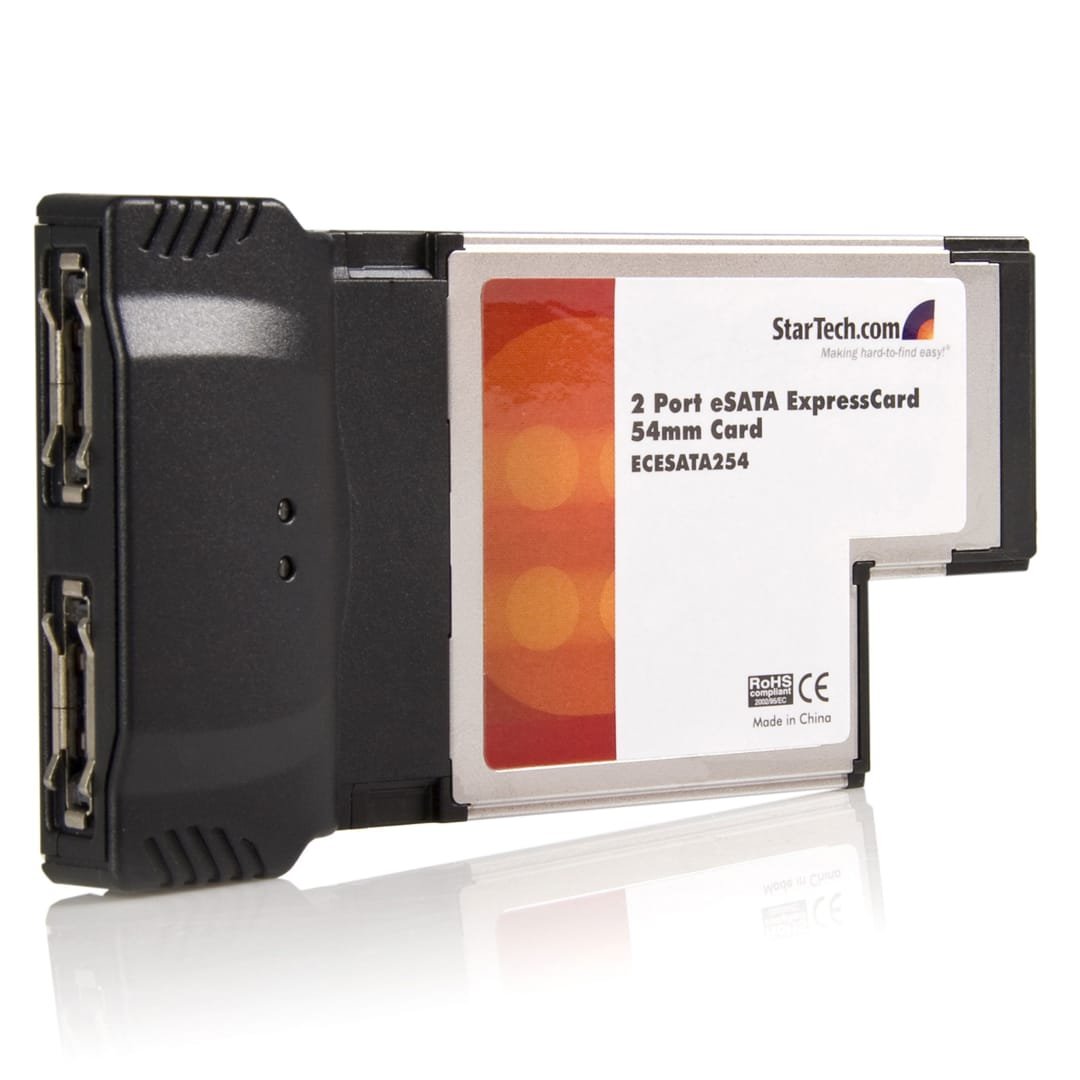

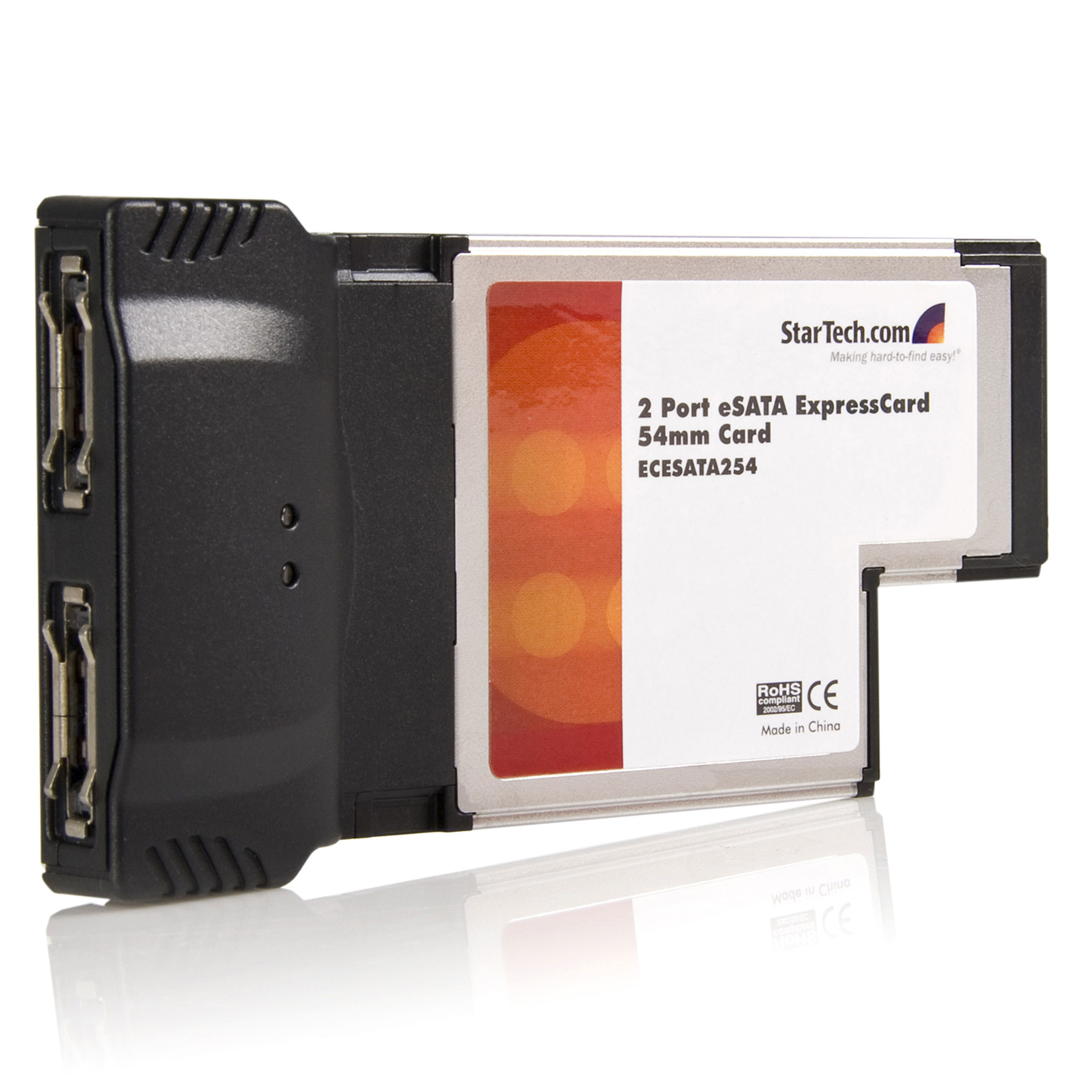

2 Port eSATA ExpressCard 54mm Card
Add two eSATA ports to a computer through an ExpressCard/54 slot
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port eSATA ExpressCard 54mm Card Product Number ECESATA254 UPC 065030832564 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 2 Port ExpressCard eSATA Controller Card Product Title (Standard) StarTech.com 2 Port ExpressCard eSATA Controller Card Product Title (Long) 2 Port ExpressCard 54mm eSATA II Controller Adapter Card Title Ingram (Part 1) 2 Port ExpressCard 54mm eSATA Co Title Ingram (Part 2) ntroller Adapter Card Website Product Headline Add two eSATA ports to a computer through an ExpressCard/54 slot Bullet 1 Compliant with Serial ATA 1.0 specifications and ExpressCard 54mm Form Factor Bullet 2 Supports Native Command Queuing (NCQ) hard drives Bullet 3 Hot-Swapping capabilities Bullet 4 Compatible with PCI Express 1-lane (x1) Bullet 5 Works with SATA I/II devices with transfer speeds up to 3.0 Gbps Marketing Copy Applications - Connects devices using eSATA standard connection to your notebook
- With a quicker maximum data transfer rate (3 Gbps), it makes it easier to do data off loads
Website Search Keyword - Controller Adapter Card
- Controller Card
- 2 Port
- eSATA
- ExpressCard
System and Cable Requirements Notebook with an ExpressCard 54mm slot Accessory Products - ESATA3
- ESATA6
- SATA2ESATA6
Related Products - CBESATA2
- ECESATA22
- SAT2510U2E
- SAT3510U2E
- SAT2520U2ER
- SAT3520U2ER
- SAT5210U2E
- SAT3510BU2E
Product Length (mm) 113 Product Width (mm) 59.5 Product Height (mm) 16 Product Weight (g) 40 TAA Compliant No Maximum Data Transfer Rate 3 Gbps OS Compatibility - Linux
- Windows 7
- Windows 8
- Mac OS X Yosemite (10.10)
- Mac OS X Mavericks (10.9)
- Windows 10
- Mac OS X El Capitan (10.11)
- Windows 11

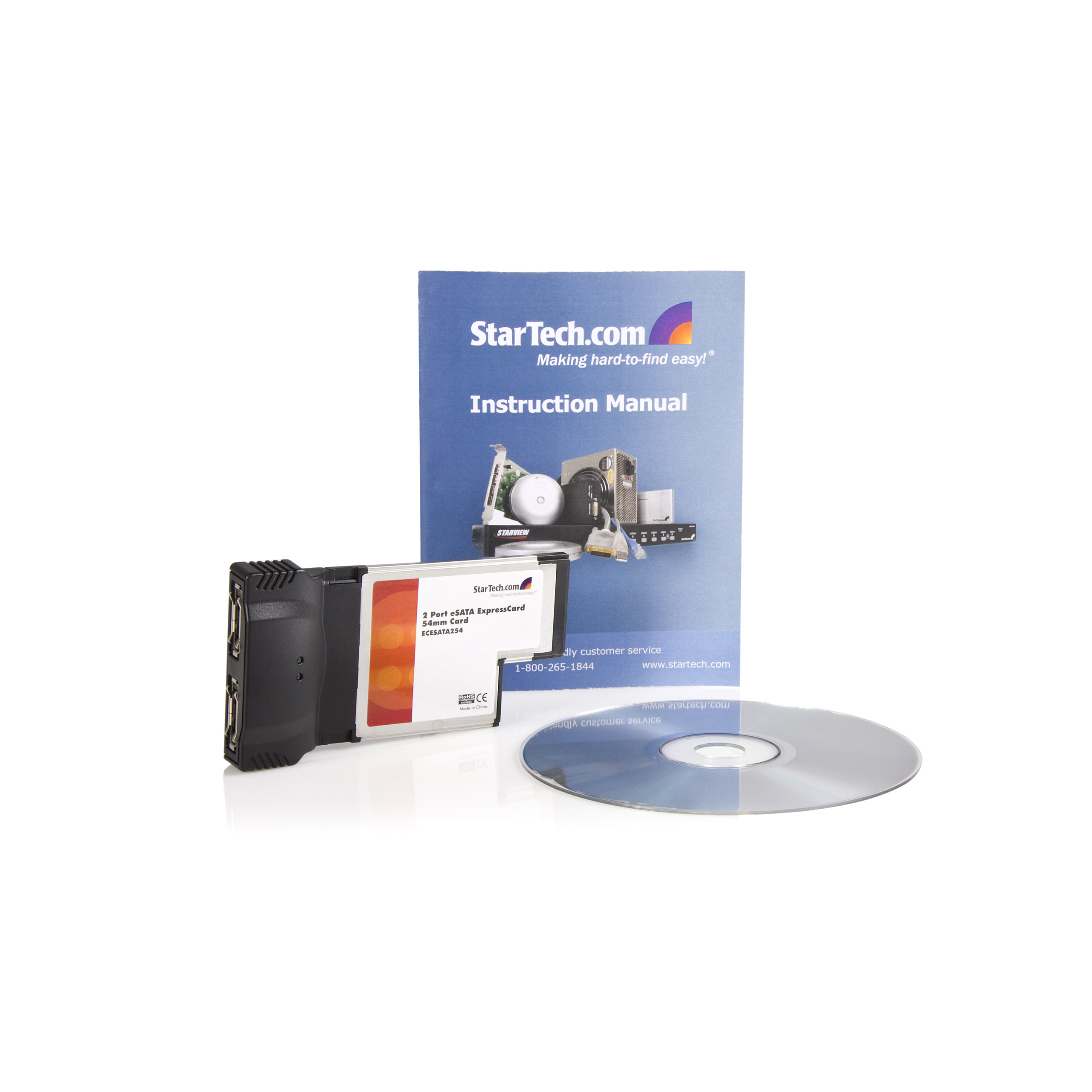

Port Multiplier Yes RAID No SATA Type and Rate SATA II (3 Gbps) Bus Type ExpressCard Card Type 54mm ExpressCard Chipset ID Silicon Image - SiI3132 Interface/Bridge eSATA Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 6000 Included in Package - 1 - eSATA ExpressCard
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 170 Package Height (mm) 64 Package Width (mm) 182 Package Weight (g) 110 Packaging Description 2 Port ExpressCard/54 eSATA Controller Packaging Description India 2 Port ExpressCard/54 eSATA Controller Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/54 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
