ECESATA254F

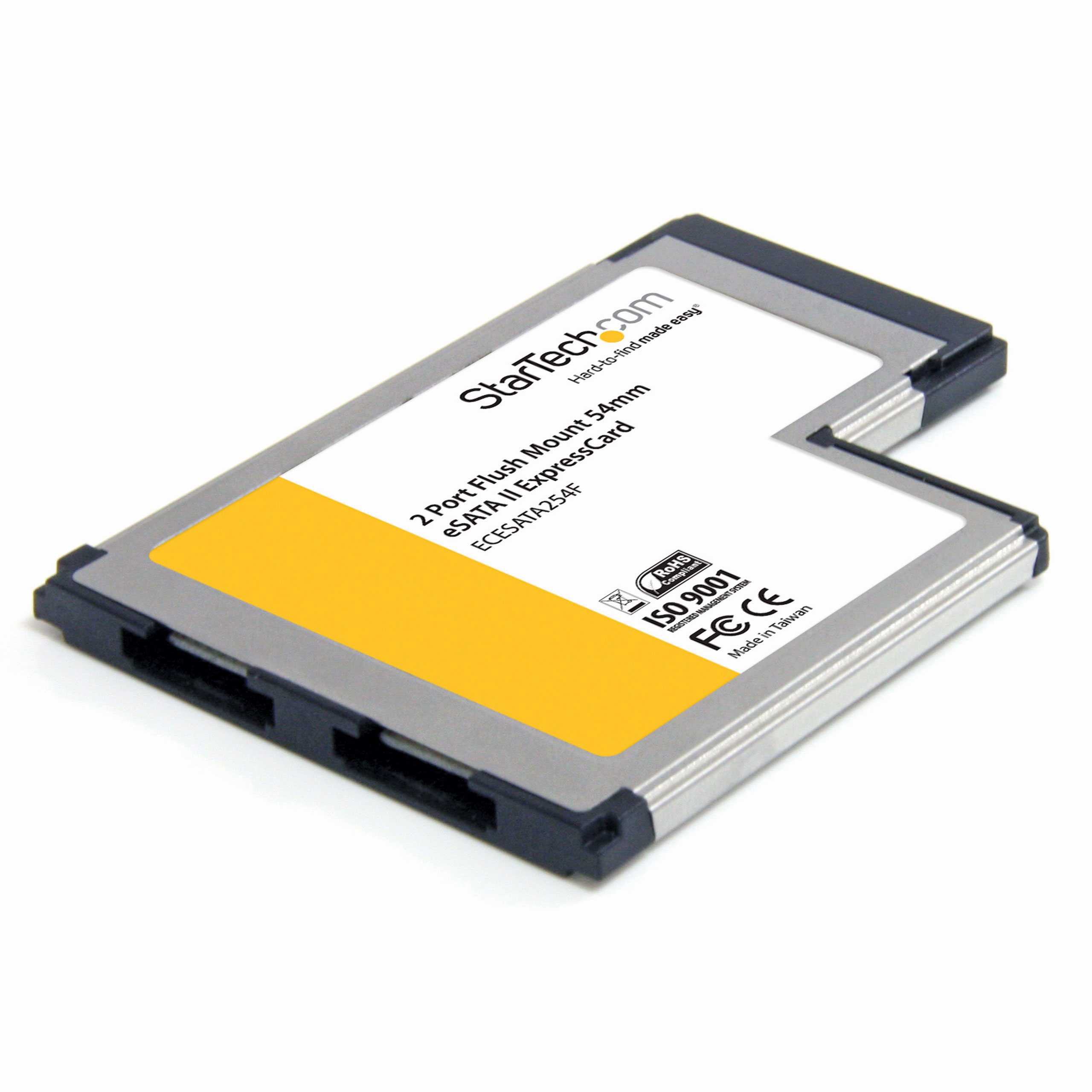

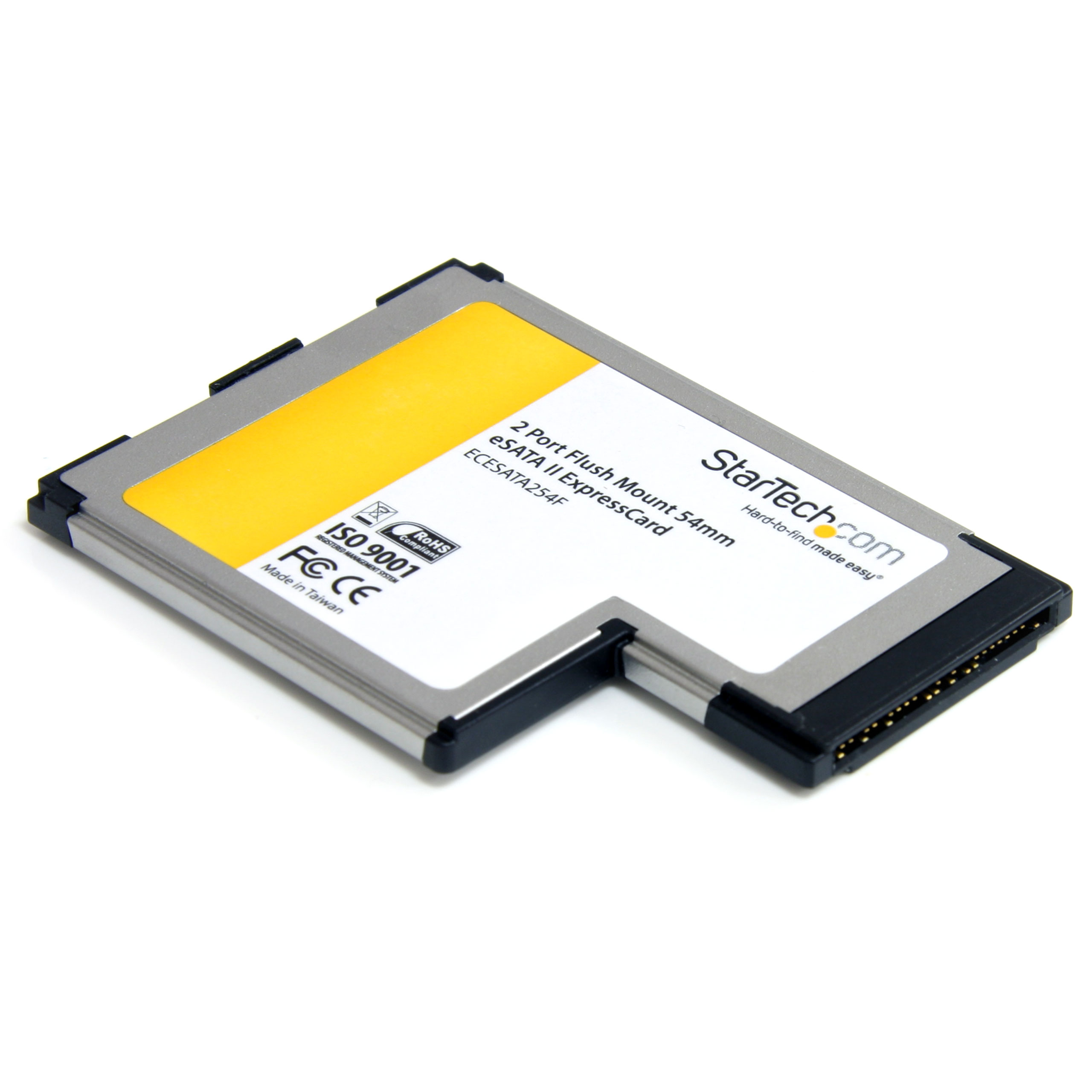

ExpressCard eSATA Controller Card Flush Mount 54mm

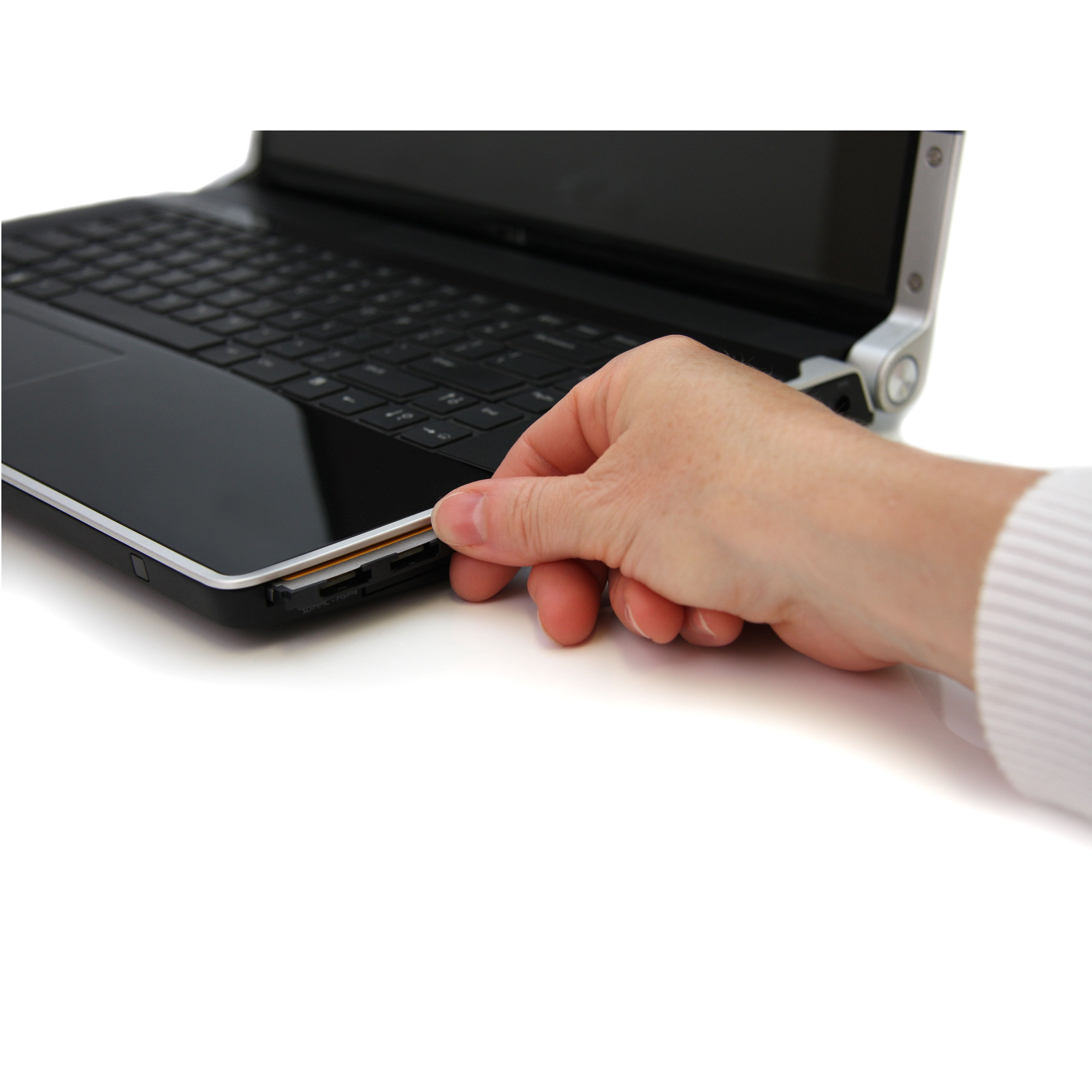

Add 2 flush mounted eSATA ports to a laptop through an ExpressCard/54 slot
Main Image
Product Images
Product Images
BOM Image
Product Name ExpressCard eSATA Controller Card Flush Mount 54mm Product Number ECESATA254F UPC 065030842495 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) Flush Mount ExpressCard eSATA Controller Product Title (Standard) 2 Port Flush Mount ExpressCard 54mm eSATA II Controller Adapter Card Product Title (Long) 2 Port Flush Mount ExpressCard 54mm eSATA II Controller Adapter Card Product Title (AMZ) 2 Port Flush Mount ExpressCard 54mm eSATA II Controller Adapter Card (ECESATA254F) Title Ingram (Part 1) 2 Port Flush Mount ExpressCard 5 Title Ingram (Part 2) 4mm eSATA II Controller Card Website Product Headline Add 2 flush mounted eSATA ports to a laptop through an ExpressCard/54 slot Bullet 1 Support for large capacity SATA drives through a 48-bit LBA Bullet 2 PCI Express revision 1.0a compliant Bullet 3 Two independent eSATA channels Bullet 4 Unique, flush-mount slim ExpressCard/54 (54mm) form factor design Bullet 5 Support for Legacy Command Queuing (LCQ) and Native Command Queuing (NCQ) Bullets (Consolidated) Storage controller - 2 Channel - eSATA 3Gb/s - 300 MBps - ExpressCard/54 Marketing Copy Applications - Add high speed eSATA connectivity to a laptop that lacks built-in eSATA ports
- Connect eSATA peripherals such as external hard drives and optical drives, at native SATA speeds
Website Search Keyword - expresscard 54mm
- expresscard54
- esata expresscard
- 2 port esata
- flushmount esata expresscard
- flush mount expresscard
- slim esata expresscard
System and Cable Requirements ExpressCard/54 slot Accessory Products - ESATA3
- ESATA6
- GCESATAFF
- SATA2ESATA6
Related Products - ECESATA1
- ECESATA22
- PEXESATA1
- PEXESATA2
- ECESAT32
- PEXESAT32
- CBESAT2
- CBESATA2
- ECESATA254
- PCIESATA2I
Power Source Not Included (not required for standard applications) Color Black & Silver Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 75.000 Product Width (mm) 54.000 Product Height (mm) 5.000 Product Weight (g) 22.500 Storage Temperature -65°C to 150°C (-85°F to 302°F) TAA Compliant Yes Maximum Data Transfer Rate 3.0 Gbps OS Compatibility - Windows 7
- Linux
- Windows Server 2012
- Windows 8

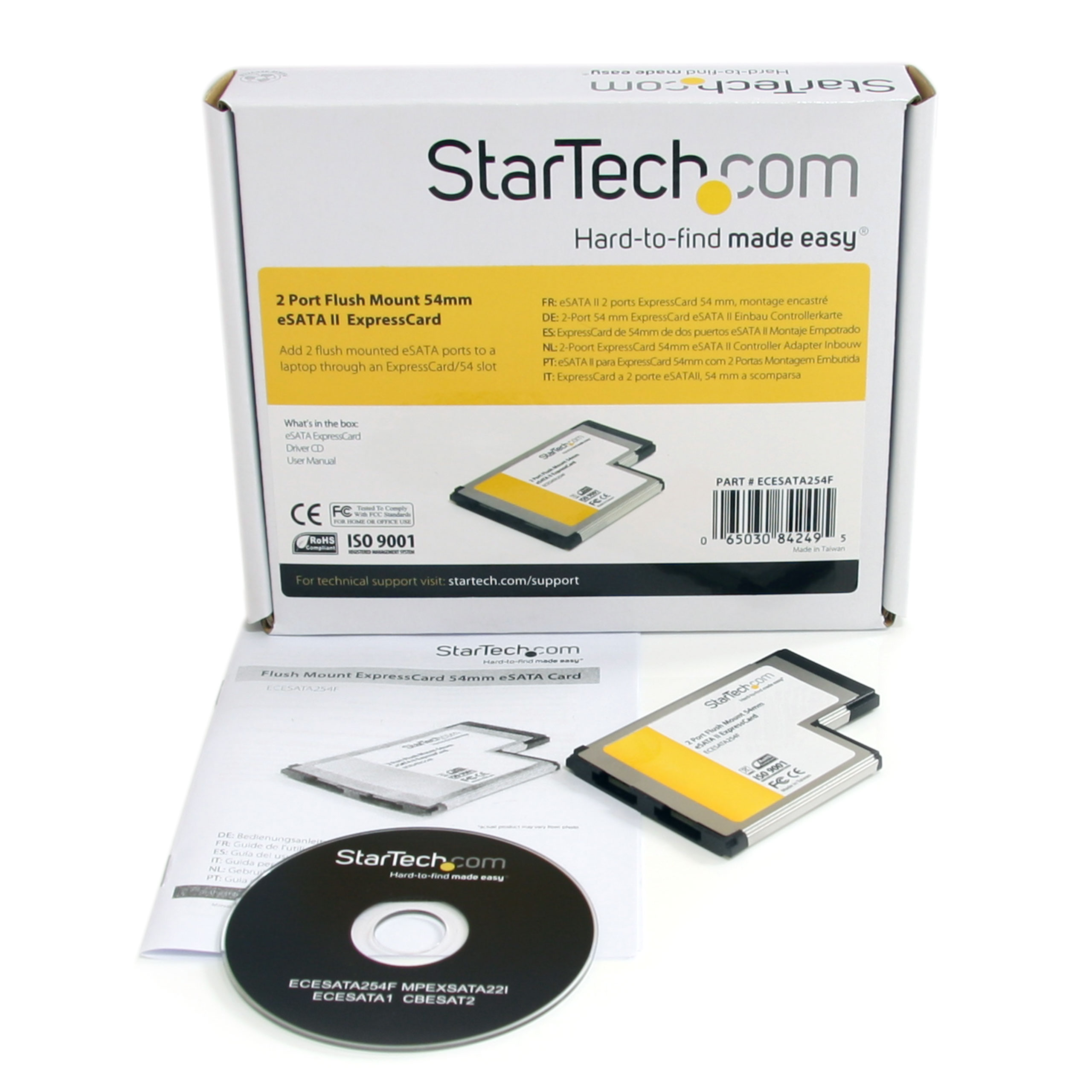

Port Multiplier Yes RAID No SATA Type and Rate SATA II (3 Gbps) Bus Type ExpressCard Card Type 54mm ExpressCard Chipset ID Silicon Image - SiI3132 Interface/Bridge eSATA Carton Depth (mm) 440 Carton Height (mm) 230 Carton Quantity 50 Carton Weight Gross (g) 5400 Included in Package - 1 - eSATA ExpressCard
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 145 Package Height (mm) 30 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 88 Packaging Description Flush Mount ExpressCard eSATA Controller Packaging Description India Flush Mount ExpressCard eSATA Controller Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/54 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Aaron Rabena
