ECHDCAP

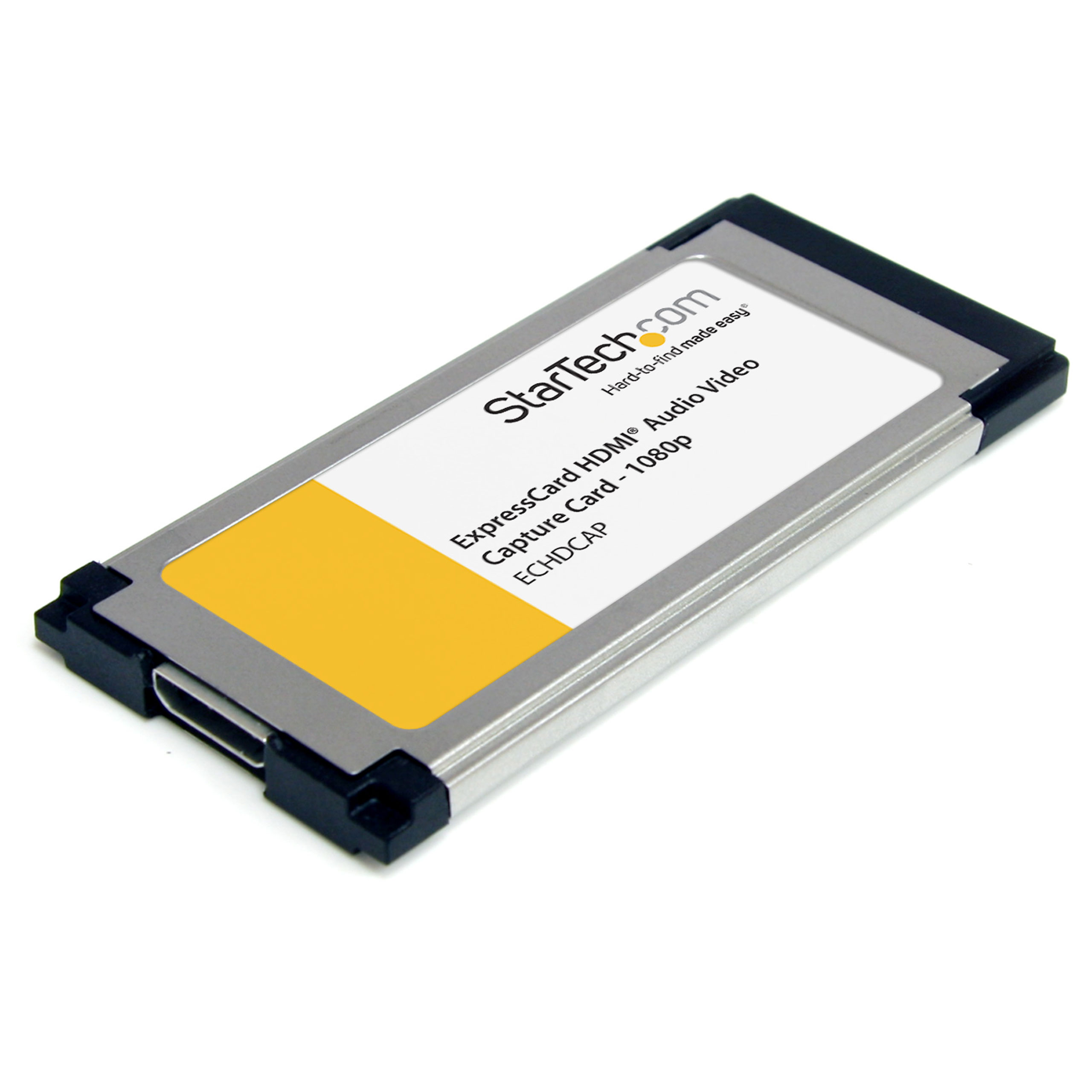

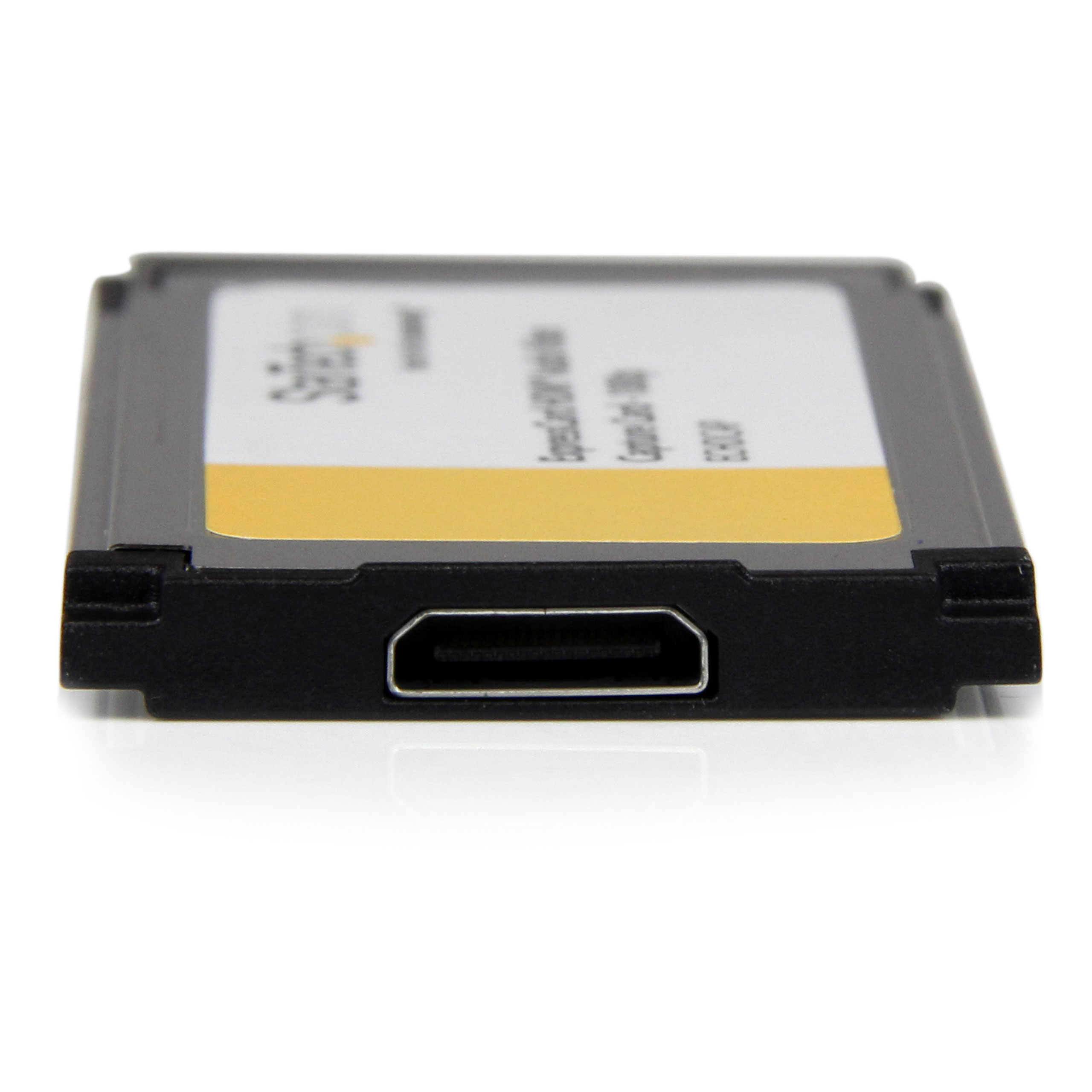

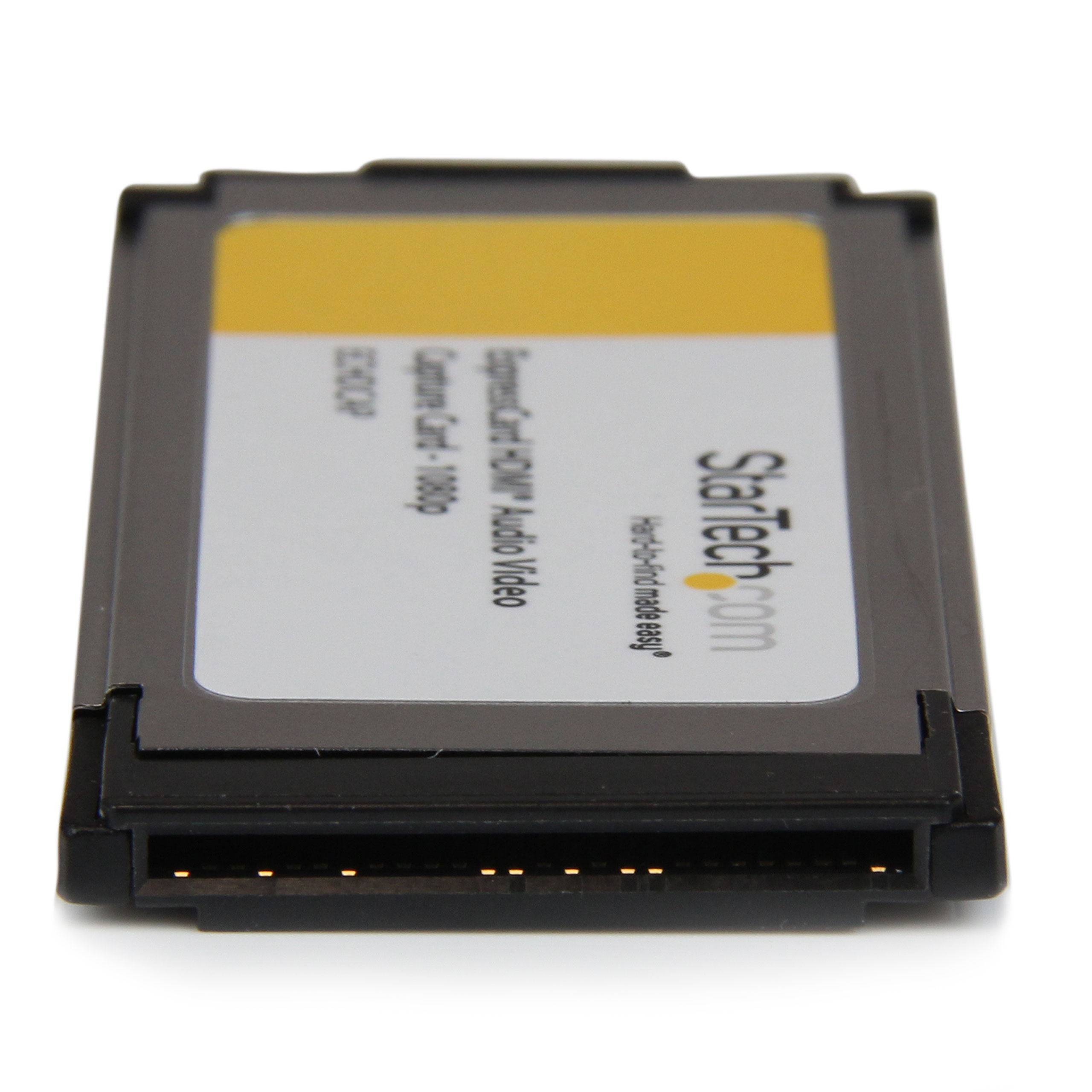

ExpressCard 1080p Capture Card for HDMI
Capture and convert the audio/video from an HDMI® source, through a 34mm ExpressCard slot
Main Image
Product Images
Product Images
BOM Image
Product Name ExpressCard 1080p Capture Card for HDMI Product Number ECHDCAP UPC 065030846325 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 PCI Express Capture Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX096X Product Title (Short) HDMI ExpressCard HD Video Capture Card Product Title (Standard) HDMI® to ExpressCard HD Video Capture Card Adapter 1080p Product Title (Long) HDMI to ExpressCard HD Video Capture Card Adapter 1080p Product Title (AMZ) HDMI® to ExpressCard HD Video Capture Card Adapter 1080p (ECHDCAP) Title Ingram (Part 1) HDMI® to ExpressCard HD Video Ca Title Ingram (Part 2) pture Card Adapter 1080p Website Product Headline Capture and convert the audio/video from an HDMI® source, through a 34mm ExpressCard slot Bullet 1 Capture from HDMI® input sources (source must be un-encrypted) Bullet 2 Supports HDMI audio Bullet 3 Full 1080p video capture Bullet 4 NTSC and PAL systems supported Bullet 5 16:9 and 4:3 Aspect Ratio Bullets (Consolidated) Capture and convert the audio/video from an HDMI® source - through a 34mm ExpressCard slot and#8212; ExpressCard HDMI Capture and#8212; ExpressCard Video Capture and#8212; Laptop Video Capture Card and#8212; HDMI Laptop Card and#8212; HD Video Capture Card Adapter - Full 1080p Video Capture Marketing Copy Applications - Record and convert digital un-encrypted video to your laptop
- Import recorded videos into your computer system for editing and make your own compilation
- HDMI Screen capture
Website Search Keyword - ExpressCard capture card
- 1080p capture card
- audio video capture card
- HD capture card
- hdmi capture card
- ExpressCard HD Video Capture
- HDMI laptop capture card
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements CPU: Intel Core2 Duo (for 720p capture) Intel Core i5 (For 1080pcapture) Memory: 1 GB Video: DirectX 9.0c Compatible Graphics Card Accessory Products - HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMM6
- HDMM10
- HDMM15
Related Products - PEXHDCAP
- SVID2USB23
- SVID2USB2NS
- PCI1394_2LP
Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 75 Product Width (mm) 35 Product Height (mm) 5 Product Weight (g) 16 TAA Compliant Yes Maximum Digital Resolutions 1080p OS Compatibility - Windows 7
- Windows Vista
- Windows XP
- Windows 8
- Windows 10
- Windows 11
Supported Resolutions Audio Yes AV Input HDMI Chipset ID Mstar - MST3367CMK Converter Type Format Converter Industry Standards - NTSC, PAL-M, PAL-60, PAL
- Video Encoding: MPEG4/H.264
- DirectShow Compatible

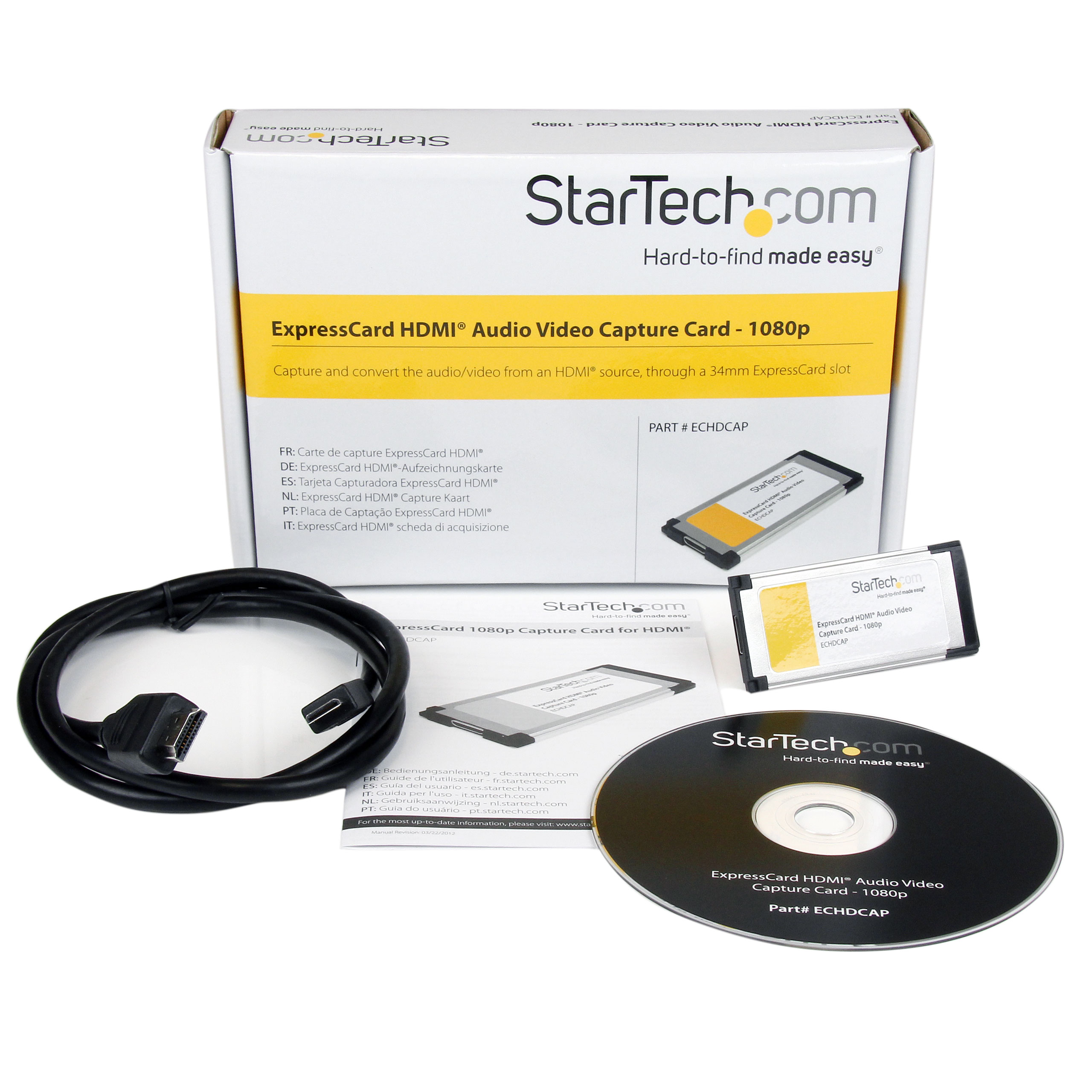

Carton Depth (mm) 470 Carton Height (mm) 40 Carton Quantity 50 Carton Weight Gross (g) 8800 Included in Package - 1 - ExpressCard Capture Card
- 1 - Driver / Software CD
- 1 - Instruction Manual
- 1 - Mini-HDMI to HDMI Cable
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 176 Packaging Description ExpressCard HDMI® Capture Card Packaging Description India ExpressCard HDMI® Capture Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 Mini HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-08-21 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Legacy
