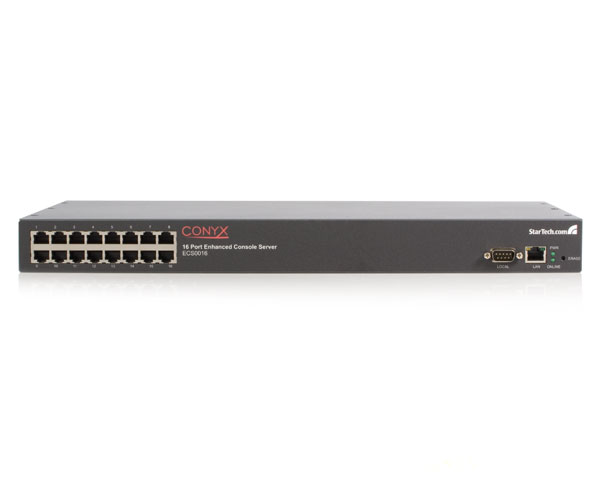

Main Image
ECS0016GB
Main Image

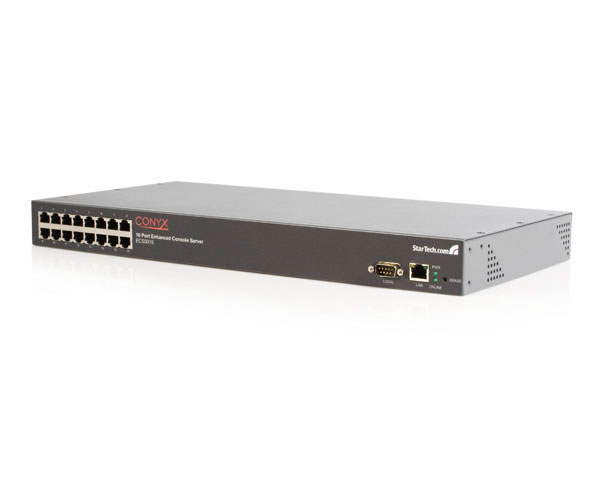

Product Images
Product Images
Product Name 16 Port Enhanced Console Server Product Number ECS0016GB UPC 065030834056 Lifecycle status Discontinued Warranty 4 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 16 Port Enhanced Serial Console Server Product Title (Standard) StarTech.com 16 Port Enhanced Serial Console Server - Console server - 16 ports - EN, Fast EN, RS-232 - 1U - rack-mountable Product Title (Long) 16 Port Enhanced RS232 Serial Console Server Title Ingram (Part 1) 16 Port Enhanced RS232 Serial Co Title Ingram (Part 2) nsole Server Bullet 1 DHCP client for dynamic IP assignment Bullet 2 Nagios support for tracking of internet routing, NRPE, finding free HD space on servers, and 3,500+ other tracking services Bullet 3 Offline data logging (Syslog, NFS, CIFS) Bullet 4 Out-of-band access (external dial-up modem) Bullet 5 Port triggers with SMNP and email alerts Marketing Copy Applications - Data Center Management
- Managed Service Provider
- Network Operations Center (NOC)
- PBX Management
- Remote Branch Office Administration
Website Search Keyword - APC7900 control
- Cisco 2500 Series
- Cisco 2509 2510 2511 2512 replacement
- Console Manager
- Console Server
- Console Switch
- Nagios
- OSS Open Source
- out-of-band management
- Secure Console Server
- Serial Console Server
- Terminal Server
Accessory Products - GC98FF
- GC98MF
- M45PATCH10BL
- M45PATCH15BL
- M45PATCH3BL
- M45PATCH6BL
- SCNM9FF
- SCNM9FM
- SV1115IPEXT
- SV1641HDIE
- SV441HDIE
- SV841HDIE
Related Products - NETRS232_1GB
- NETRS232_2GB
- NETRS232_4GB
- NETRS2321EGB
Color Gray Material Steel Operating Temperature 5 ~ 44 Storage Temperature -30 ~ +60 TAA Compliant No General Specifications - : 1 x DB-9 RS-232 console and modem serial port
- : 1 x RJ-45 10/100Base-T Ethernet port
- :16MB Embedded Flash
- Console Connectors: 16 x RJ-45 RS-232 serial ports
- Memory: 64MB SDRAM
- Power: Internal 100-240V AC
Maximum Number of Users Unlimited Carton Depth (mm) 530 Carton Height (mm) 350 Carton Quantity 5 Carton Weight Gross (g) 18850 Included in Package - 1 - DCE Connector
- 1 - DTE Connector
- 1 - ECS0016GB Enhanced Console Server
- 1 - Power Cable
- 1 - Software CD
- 2 - CAT5 Cables
- 2 - Mounting Brackets
Package Depth (mm) 90 Package Height (mm) 315 Package Width (mm) 510 Package Weight (g) 3530 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Daryl Hunt
