ECUSB3S1

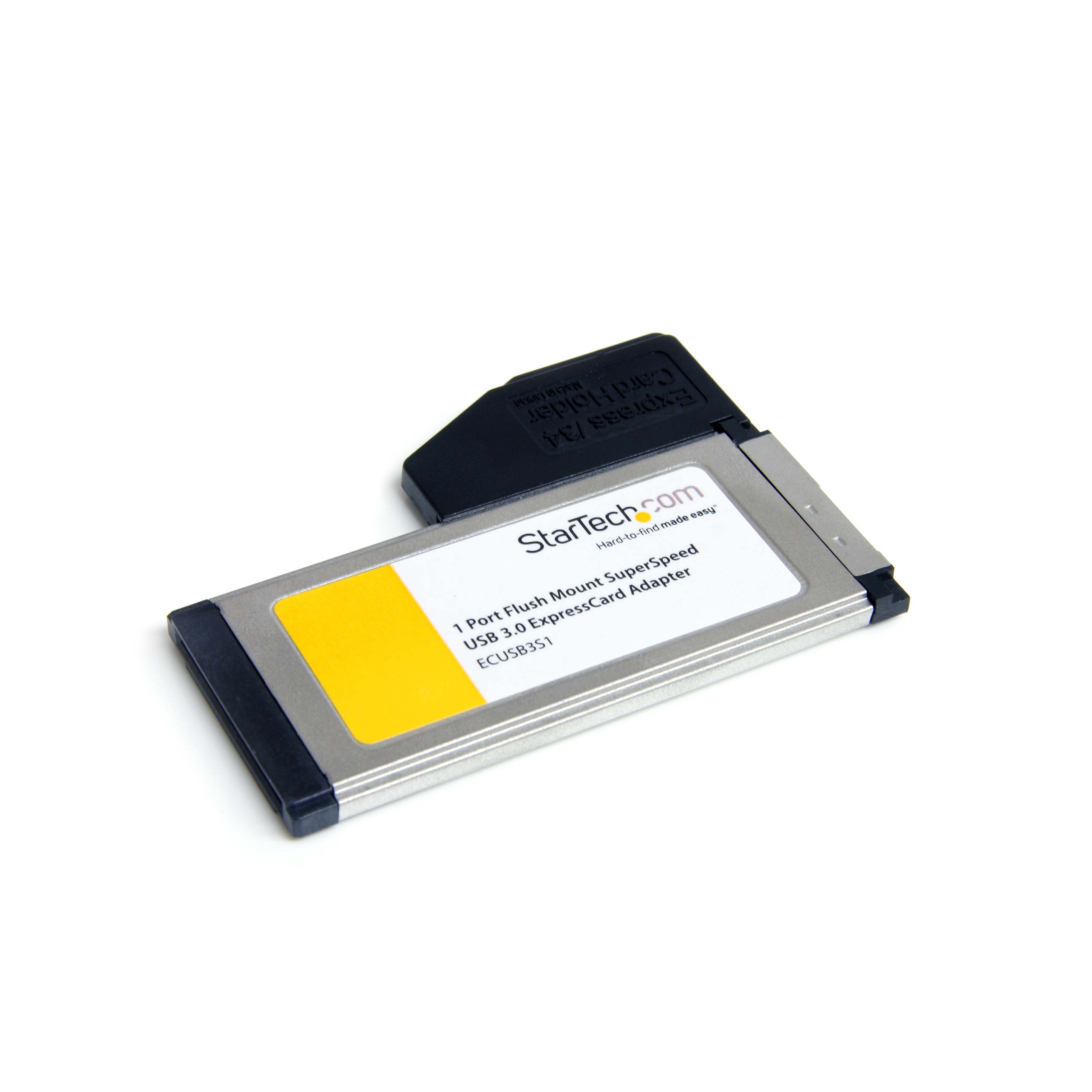

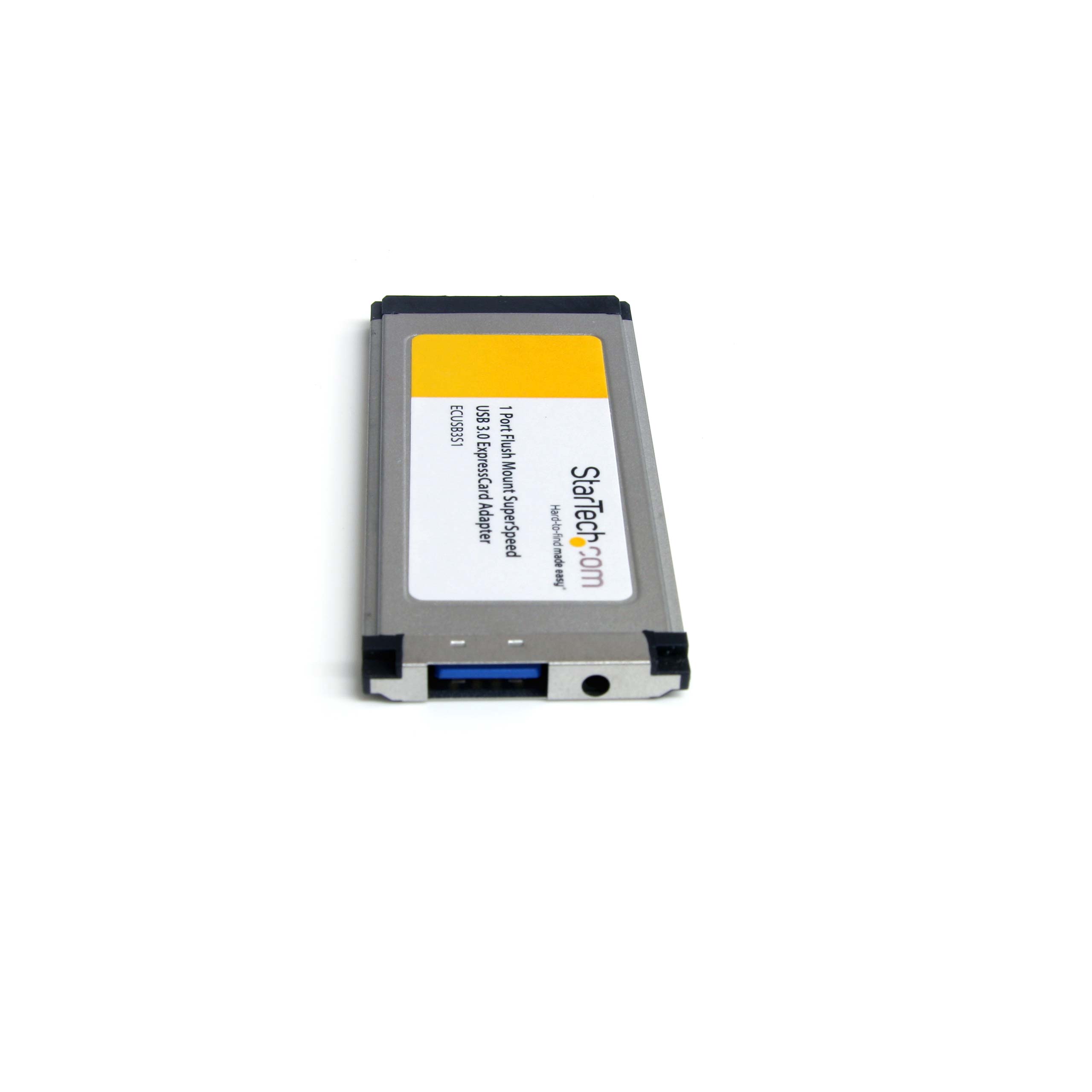

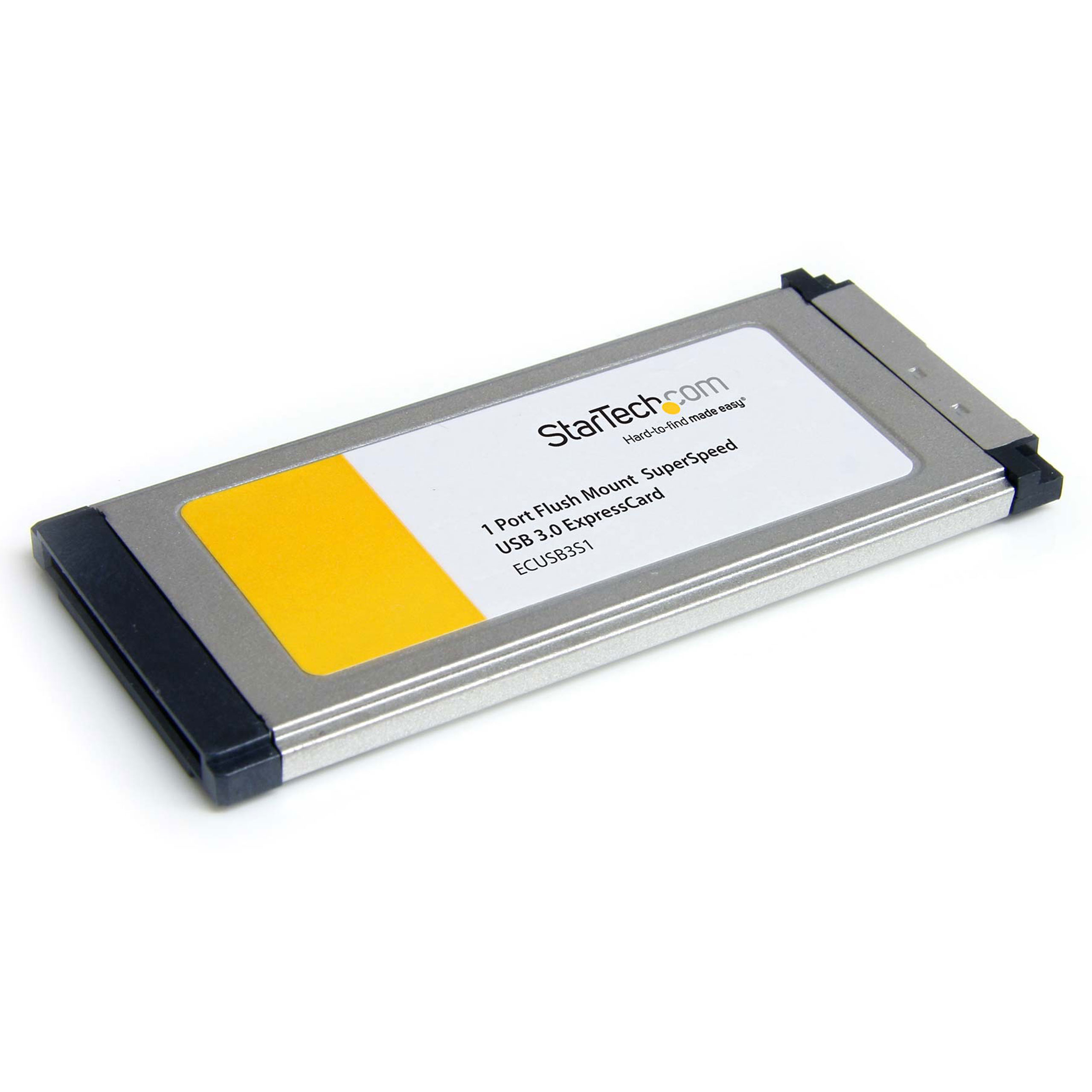

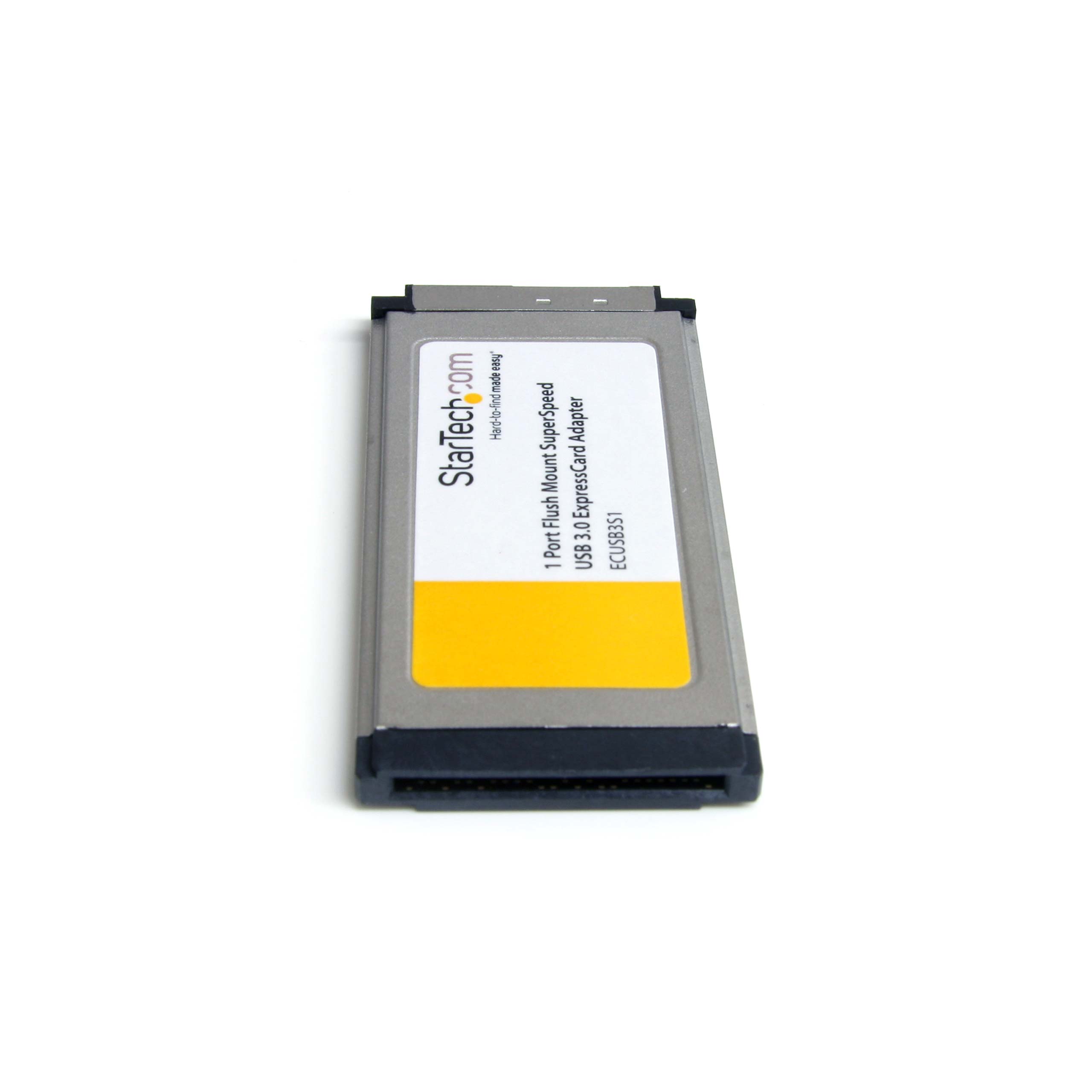

1 Port Slim USB 3.0 ExpressCard Adapter w/ UASP
Flush mount a USB 3.0 ExpressCard adapter into a laptop ExpressCard slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1 Port Slim USB 3.0 ExpressCard Adapter w/ UASP Product Number ECUSB3S1 UPC 065030842280 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) 1P ExpressCard USB 3 Product Title (Short) 1x Flush Mount ExpressCard USB 3 Card Product Title (Standard) 1 Port Flush Mount ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support Product Title (Long) 1 Port Flush Mount ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support Product Title (AMZ) 1 Port Flush Mount ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support - ExpressCard USB 3.0 Adapter (ECUSB3S1) Title Ingram (Part 1) 1Port Slim USB 3.0 ExpressCard Title Ingram (Part 2) Adapter w/ UASP Website Product Headline Flush mount a USB 3.0 ExpressCard adapter into a laptop ExpressCard slot Bullet 1 Unique flush-mount form factor design Bullet 2 SuperSpeed USB 3.0 compliant host interface with support for transfer rates up to 5 Gbps Bullet 3 Provides up to 850mA of power over USB Bullet 4 Backward compatible with USB 2.0/1.x devices Bullet 5 Compliant with USB 3.0 base specification 1.0 and xHCI specification 0.95 Marketing Copy Applications - Upgrade an older laptop with USB 3.0 connectivity
- Expand on your laptop expansion capabilities with an additional USB port
- Users who need USB connectivity, but do not need to swap between other ExpressCard adapters, so will leave the card installed in the card slot
- Mobile users who want to leave ExpressCard adapters installed, without worry about damaging the card or slot while on the move
- Connect high performance USB 3.0 external storage devices to a laptop
Website Search Keyword - USB 3.0 expresscard
- flush mount card
- 34mm expresscard adapter
- superspeed usb 3.0
- 1 Port ExpressCard SuperSpeed USB 3.0 Card Adapter - Flush Mount slim
Special Notes The maximum throughput of this card is limited by the host bus interface. If used with ExpressCard Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with ExpressCard Gen 2.0 enabled computers, the max throughput is 5 Gbps. System and Cable Requirements Available ExpressCard slot Accessory Products - USB3SAB10
- USB3SAB3
- USB3SAB6
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3SAUB3BK
- USB3SAUB1
- USB3SAUB3
- USB3SEXTAA6
- USB3SAA6
Related Products - ECUSB3S2
- PEXUSB3S11
- ECESATUSB1
- PEXUSB3S2
- EC230USB
- EC400USB
Replacement Product ECUSB3S11 Input Voltage 5 DC Power Source Not Included (not required for standard applications) Plug Type A Center Tip Polarity Positive Humidity 5% ~ 95% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 75 Product Width (mm) 35 Product Height (mm) 5 Product Weight (g) 17 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant No OS Compatibility - Windows 7
- Windows XP
- Windows Vista
- Windows Server 2003
- Windows 8

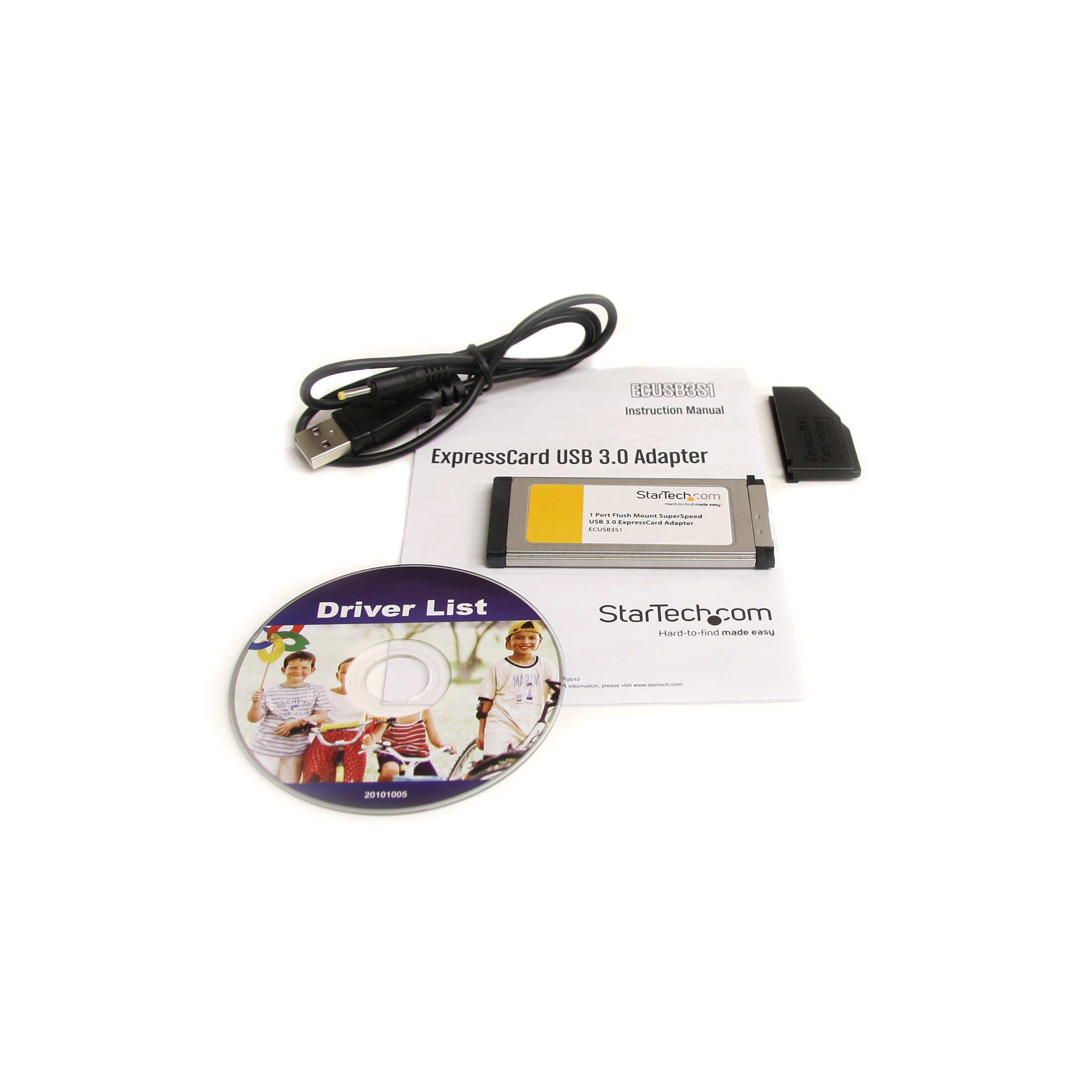

UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID Renesas/NEC - µPD720200 Interface/Bridge USB 3.2 Gen 1 (5Gbps) IO Card Port Style Integrated on Card Carton Depth (mm) 320 Carton Height (mm) 500 Carton Quantity 100 Carton Weight Gross (g) 11952 Included in Package - 1 - Slim ExpressCard adapter
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - DC to USB Adapter Cable
- 1 - 34mm to 54mm Stabilizer Bracket
Package Depth (mm) 130 Package Height (mm) 30 Package Width (mm) 160 Package Weight (g) 99 Packaging Description 1x Flush Mount ExpressCard USB 3.0 Card Packaging Description India 1x Flush Mount ExpressCard USB 3.0 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
