ECUSB3S11

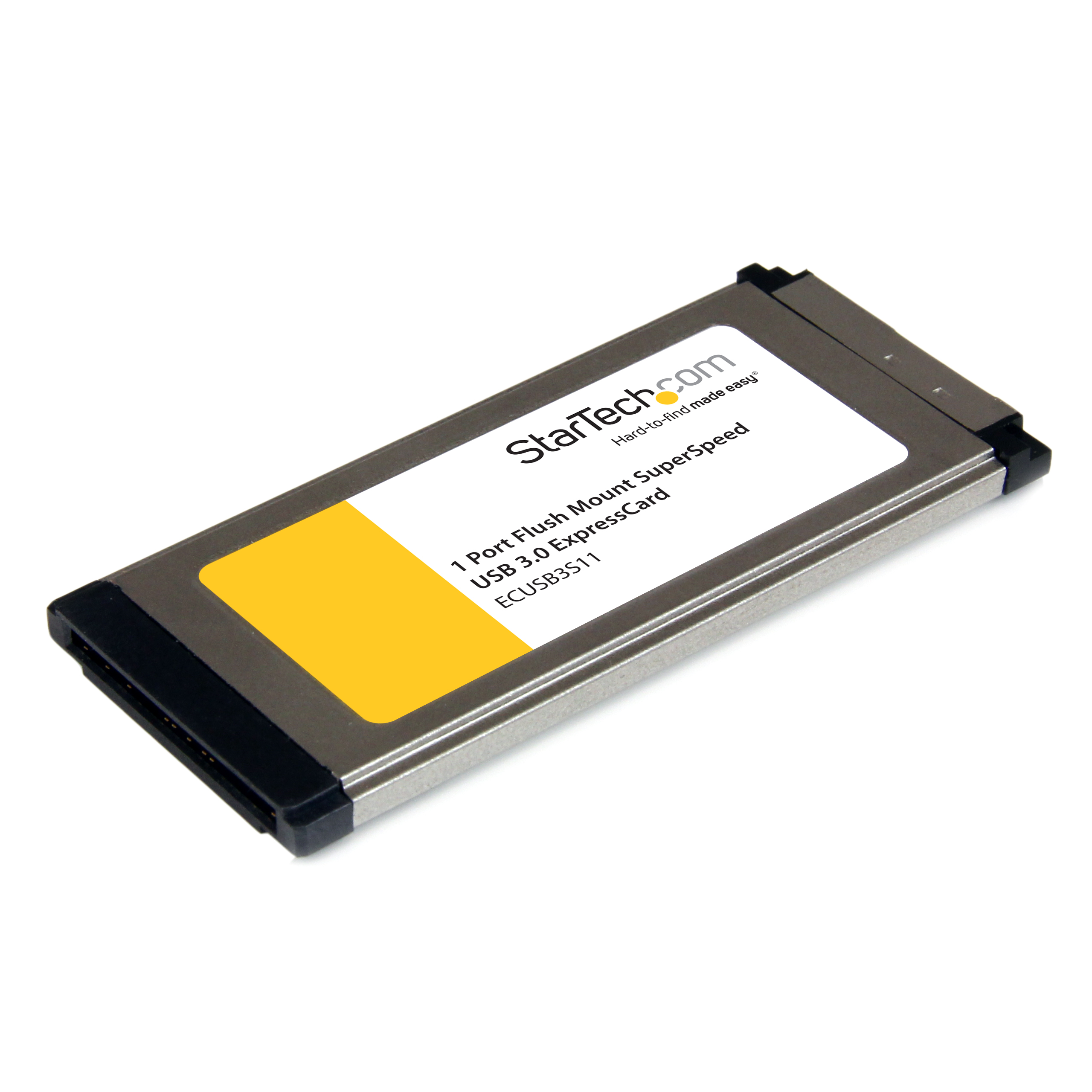

1 Port Slim USB 3.0 ExpressCard Adapter w/ UASP

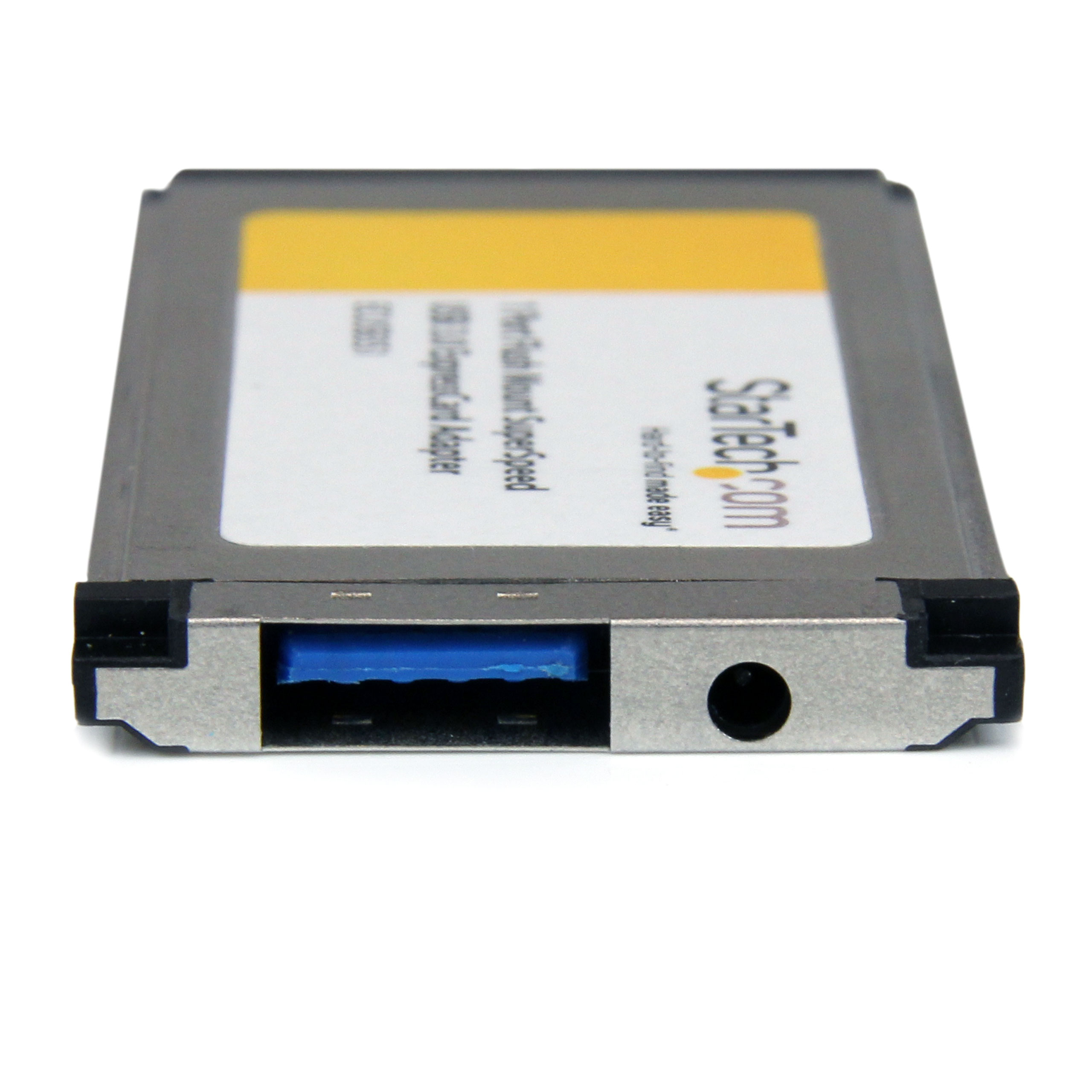

Add a USB 3.0 (USB 3.2 Gen 1) port connection that inserts flush into a laptop ExpressCard slot
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 1 Port Slim USB 3.0 ExpressCard Adapter w/ UASP Product Number ECUSB3S11 UPC 065030849890 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB 3.0 ExpressCard Adapter Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Quick-Start Guide https://images.salsify.com/image/upload/s--r9-pPJtV--/9e8197d215dc122e08c3e39236b9b8e3d6302de8.pdf Driver Firmware Product Title (Ultra-Short) 1P ExpressCard USB 3 Product Title (Short) 1x Flush Mount ExpressCard USB 3.0 Card Product Title (Standard) 1 Port Flush Mount ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support - 5Gbps Product Title (Long) 1 Port Flush Mount ExpressCard SuperSpeed USB 3.0 (5Gbps) Card Adapter with UASP Support - TAA Product Title (AMZ) 1 Port Flush Mount ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support - 5Gbps - ExpressCard USB 3.0 Adapter (ECUSB3S11) Title Ingram (Part 1) 1Port Slim USB 3.0 ExpressCard Title Ingram (Part 2) Adapter w/ UASP Website Product Headline Add a USB 3.0 (USB 3.2 Gen 1) port connection that inserts flush into a laptop ExpressCard slot Bullet 1 Unique flush-mount form factor design Bullet 2 SuperSpeed USB 3.2 Gen 1 compliant host interface with support for transfer rates up to 5 Gbps Bullet 3 Provides up to 850mA of power over USB Bullet 4 Backward compatible with USB 2.0/1.x devices Bullet 5 Compliant with USB 3.2 Gen 1 base specification 1.0 and xHCI specification 0.95 Bullets (Compact) Add a USB 3.2 Gen 1 (5Gbps) port that inserts flush into a laptop's ExpressCard slot - Unique flush-mount form-factor design - Works with most Windows based operating systems - UASP - Fits in 34mm ExpressCard slots - Includes 34mm to 54mm bracket Bullets (Consolidated) Add a USB 3.2 Gen 1 port connection that inserts flush into a laptop ExpressCard slot on your laptop - 1-Port USB 3.2 Gen 1 ExpressCard Adapter with UASP - Slim ExpressCard USB 3.2 Gen 1 Card/Flush Mount USB 3.2 Gen 1 ExpressCard/USB 3.2 Gen 1 ExpressCard Adapter - Unique flush-mount form-factor design - Works with most Windows based operating systems - Supports UASP/SuperSpeed USB 3.2 Gen 1 support with data transfer rates up to 5Gbps - Fits in 34mm ExpressCard slots without sticking out/Includes 34mm to 54mm bracket Marketing Copy Marketing Copy (No HTML) The Flush Mount 1-Port USB 3.0 ExpressCard lets you add a single USB 3.0 port connection to your laptop through an ExpressCard slot. The USB 3.0 adapter uses a unique form factor design that allows it to sit fully in a standard 34mm ExpressCard slot without sticking out. The port sits virtually flush with the sides of the laptop, enabling you to leave the card installed even while on the move, without fear of damage to the card or slot. Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details. The USB 3.0 ExpressCard adapter supports data transfer rates up to 5Gbps, and is still backward compatible with USB 2.0 at up to 480Mbps, or USB 1.1/1.0 at up to 12/1.5 Mbps respectively. Backed by a StarTech.com 2-year warranty and free lifetime technical support. UASP is supported in Windows, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive. Applications - Add a SuperSpeed USB 3.2 Gen 1 port through an ExpressCard slot, without having to worry about damaging the card or slot while on the move
- Connect high performance USB 3.2 Gen 1 external storage devices, printers or external video adapters to a laptop
- Upgrade an older laptop to USB 3.2 Gen 1 capability
- Add an extra USB 3.2 Gen 1 port to a laptop with limited USB 3.2 Gen 1 ports available
Website Search Keyword - USB 3.0 expresscard
- flush mount card
- 34mm expresscard adapter
- superspeed usb 3.0
- 1 Port ExpressCard SuperSpeed USB 3.0 Card Adapter - Flush Mount slim
- ECUSB3S1
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes The maximum throughput of this card is limited by the host bus interface. If used with ExpressCard Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with ExpressCard Gen 2.0 enabled computers, the max throughput is 5 Gbps. System and Cable Requirements Available ExpressCard slot Accessory Products - USB3SAB6
- USB3SAB10
- USB3SAUB1
- USB3SAUB3
- USB3SEXTAA6
- USB3SAA6
- USB3SAB3
Related Products - ECUSB3S2
- ECUSB3S254F
- ECUSB3S1
- ECUSB3S22
Color Black & Silver Humidity 5% ~ 95% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 75.000 Product Width (mm) 34.000 Product Height (mm) 5.000 Product Weight (g) 24.000 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant Yes OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

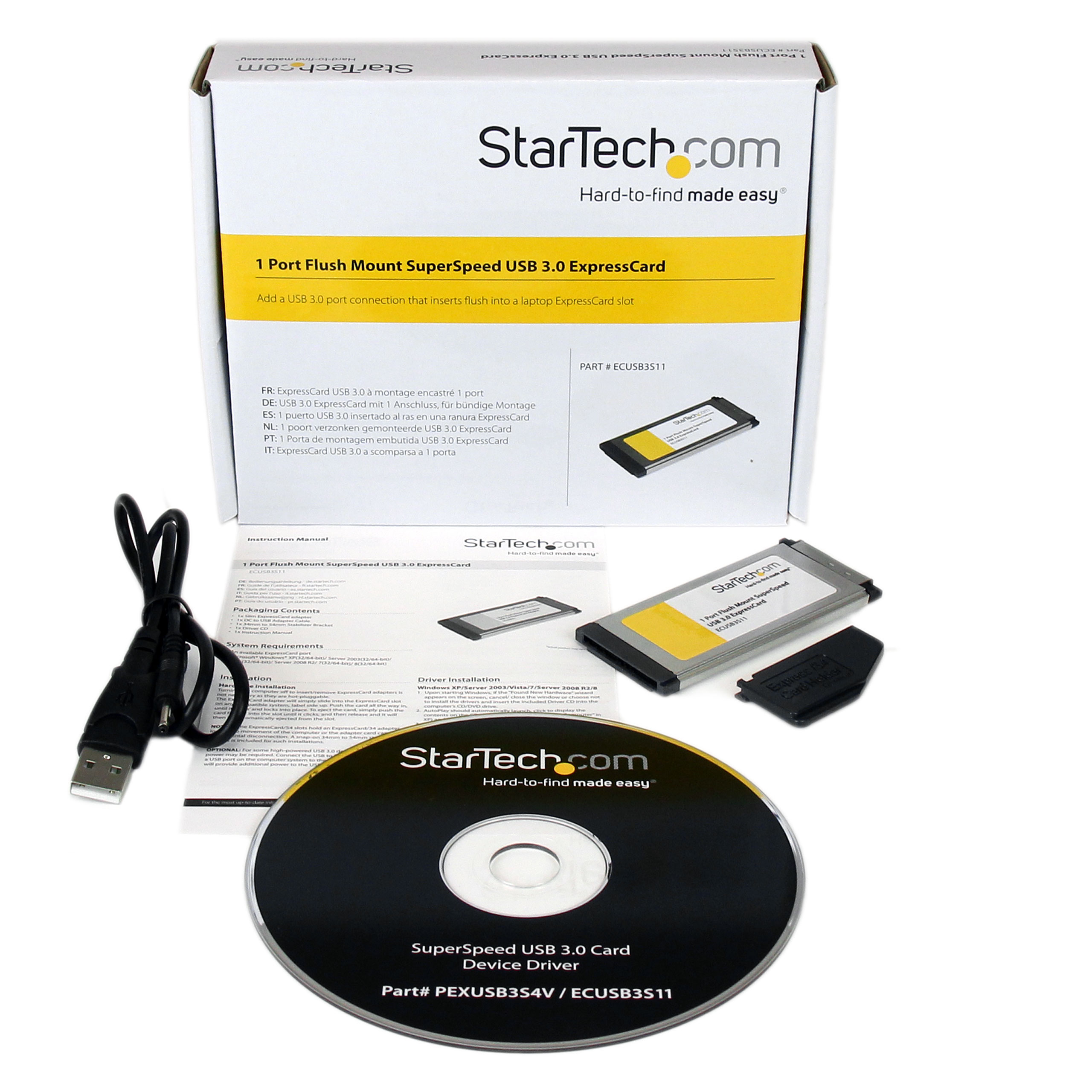

UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID Renesas/NEC - µPD720202 Interface/Bridge USB 3.2 Gen 1 (5Gbps) IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 484 Carton Height (mm) 334 Carton Quantity 100 Carton Weight Gross (g) 12042 Included in Package - 1 - Slim ExpressCard adapter
- 1 - 34mm to 54mm Stabilizer Bracket
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - DC to USB Adapter Cable
Package Depth (mm) 130 Package Height (mm) 30 Package Width (mm) 158 Package Quantity 1 Package Weight (g) 108 Packaging Description 1 Port Flush Mount USB 3.0 ExpressCard Packaging Description India 1 Port Flush Mount USB 3.0 ExpressCard Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-25 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,MX,NL,SE,UK,US Primary Technology None Product Development Specialist Yiming Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
