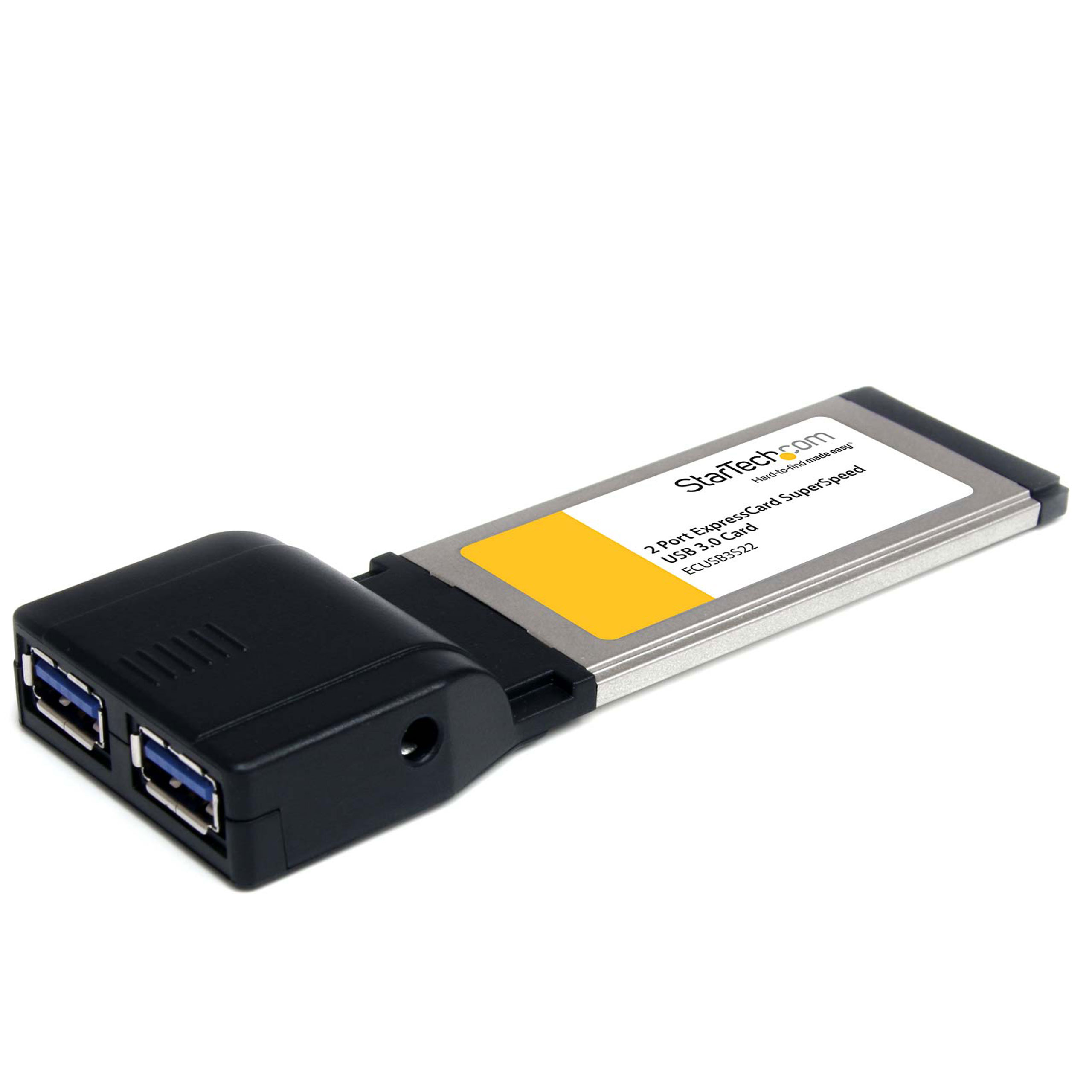

ECUSB3S22
2 Port USB 3 0 ExpressCard

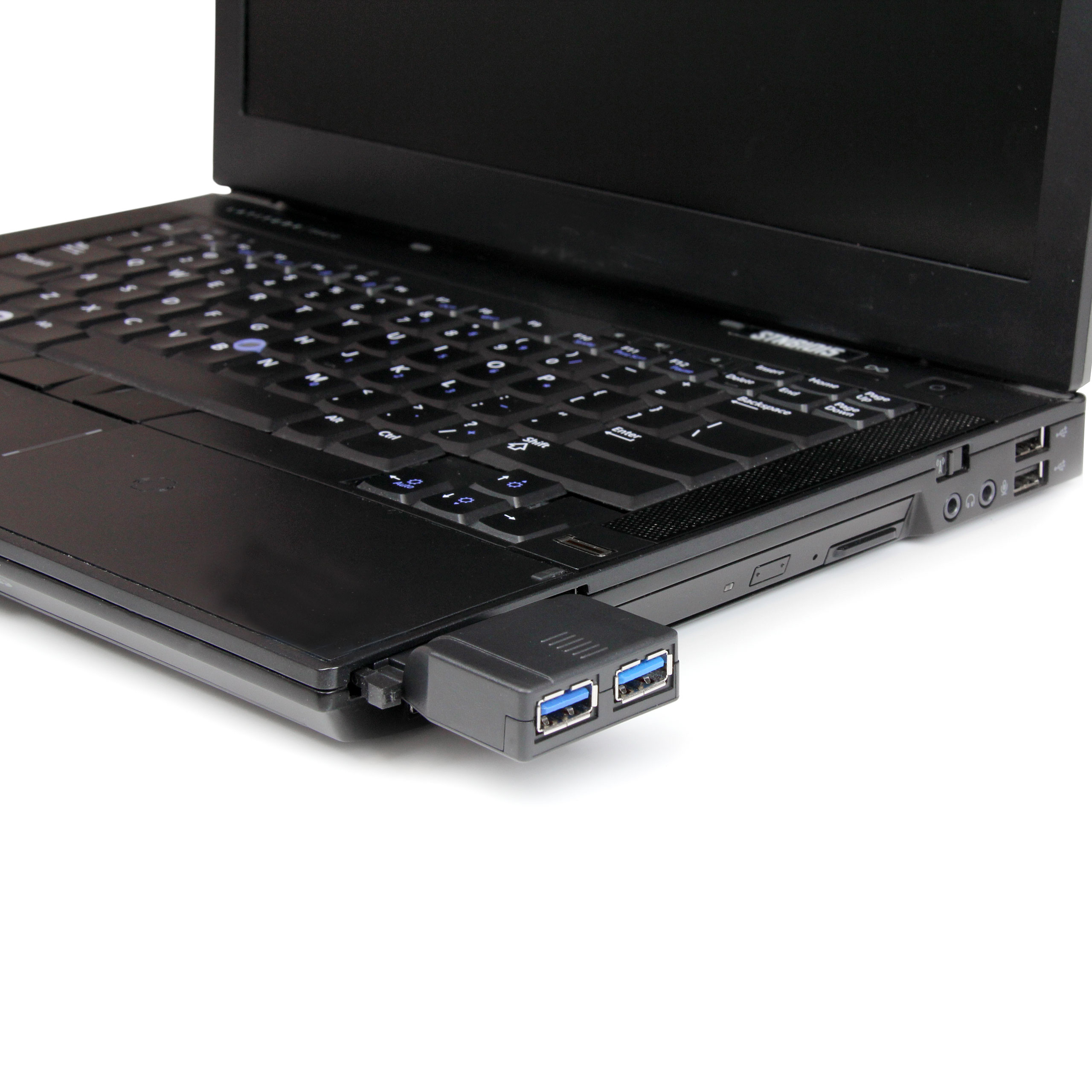

Add 2 USB 3.0 (USB 3.2 Gen 1) Ports to a Laptop through an ExpressCard Slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port USB 3 0 ExpressCard Product Number ECUSB3S22 UPC 065030845717 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - ExpressCard Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 2P ExpressCard USB 3 Product Title (Short) 2 Port ExpressCard USB 3.0 Card Adapter Product Title (Standard) 2 Port ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support, 5Gbps, TAA Product Title (Long) 2 Port ExpressCard SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP Support - TAA Product Title (AMZ) 2 Port ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP - USB 3.0 Controller - USB 3.0 ExpressCard - 5Gbps - USB 3.0 Adapter , TAA (ECUSB3S22) Title Ingram (Part 1) 2Port USB 3.0 ExpressCard w/ Title Ingram (Part 2) UASP Support Website Product Headline Add 2 USB 3.0 (USB 3.2 Gen 1) Ports to a Laptop through an ExpressCard Slot Bullet 1 Two SuperSpeed USB 3.2 Gen 1 compliant ports, with support for transfer rates up to 5 Gbps Bullet 2 Built-in external DC power connector (optional) Bullet 3 Compliant with USB 3.2 Gen 1 base specification 1.0 and xHCI specification 0.96 Bullet 4 Backward compatible with USB 2.0/1.x devices Bullet 5 Compliant with PCI Express specification 2.0 Bullets (Consolidated) USB adapter - ExpressCard - USB 3.2 Gen 1 - 5Gbps - for P/N: USB3S2SAT3CB Marketing Copy Applications - Laptop users looking to extend the life of their older mobile computers by adding USB 3.2 Gen 1 connectivity
- Expand on your laptop expansion capabilities with additional USB ports

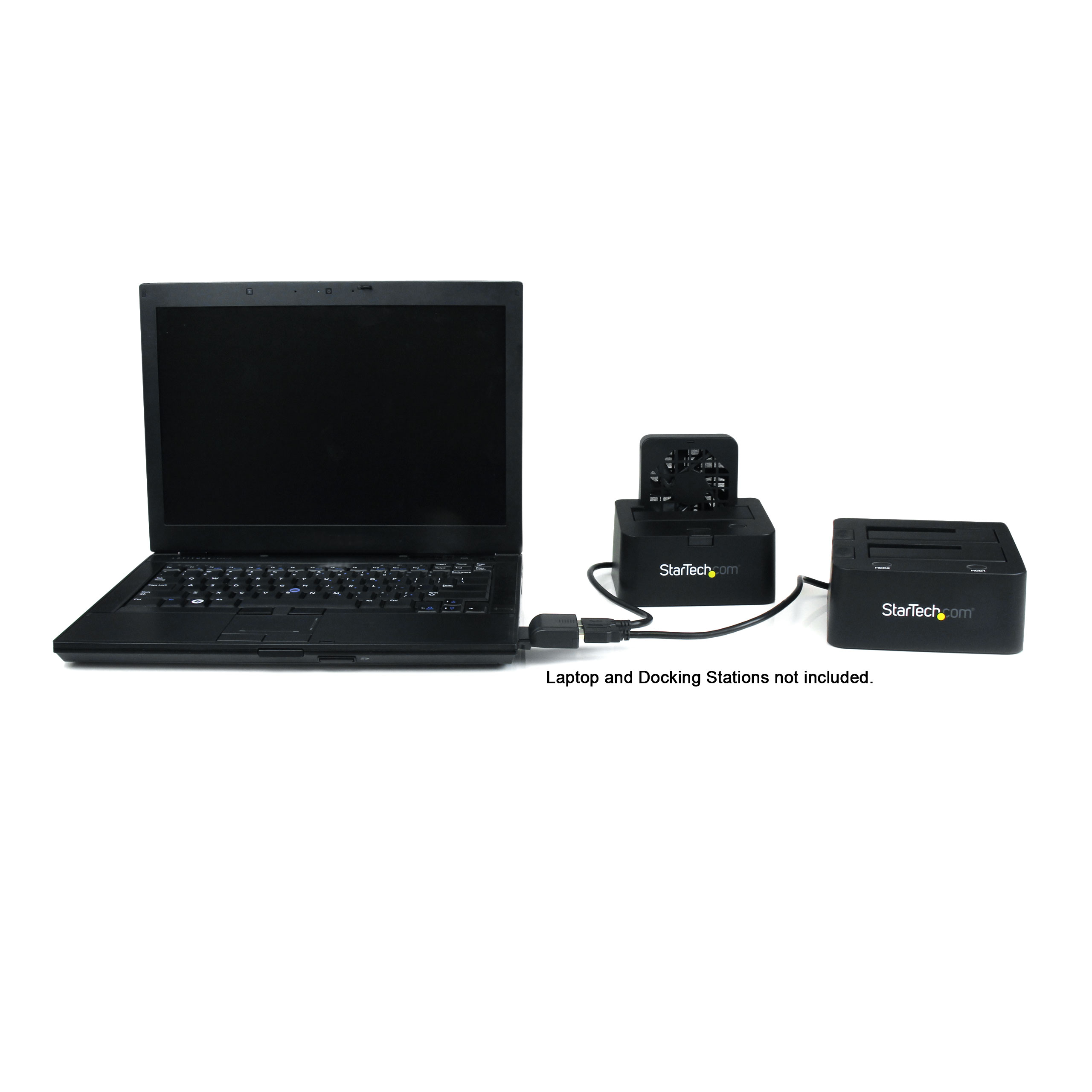

- Professionals or home users looking to expand a laptops storage capabilities with high performance USB 3.2 Gen 1 external storage devices for large videos/images/etc.
- IT professionals looking to backup or archive large amounts of data off of a laptop quickly
Website Search Keyword - SuperSpeed
- usb 3.0
- expresscard 2.0
- 5 Gbps
- expresscard/34
- expresscard 34mm
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Due to the power limitations of the ExpressCard interface this adapter cannot supply 900mA of current to both ports. Some devices like External 2.5” Hard Drives may require an additional power adapter. </br></br> The maximum throughput of this card is limited by the host bus interface. If used with ExpressCard Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with ExpressCard Gen 2.0 enabled computers, the max throughput is 5 Gbps Accessory Products - USB3SAB3BK
- USB3SAUB1
- USB3SAUB3
- USB3SAB6BK
- USB3SEXTAA6
- USB3SAB1
- USB3SAB10BK
- USB3SAA6BK
- ECBRACKET
Related Products - ECUSB3S1
- PEXUSB3S11
- PEXUSB3S2
- PEXUSB3S22
- ECUSB3S2
- ECUSB3S254F
- PEXUSB3S4
- MPEXUSB3S2
Output Voltage (V) 5 DC Power Source Not Included (not required for standard applications) Plug Type B Humidity 0% ~ 60% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 115 Product Width (mm) 40 Product Height (mm) 12 Product Weight (g) 32 Storage Temperature -20°C to 150°C (-4°F to 302°F) TAA Compliant Yes Maximum Data Transfer Rate 5 Gbps OS Compatibility - Windows 7
- Windows 8
- Windows 10
- Windows 11

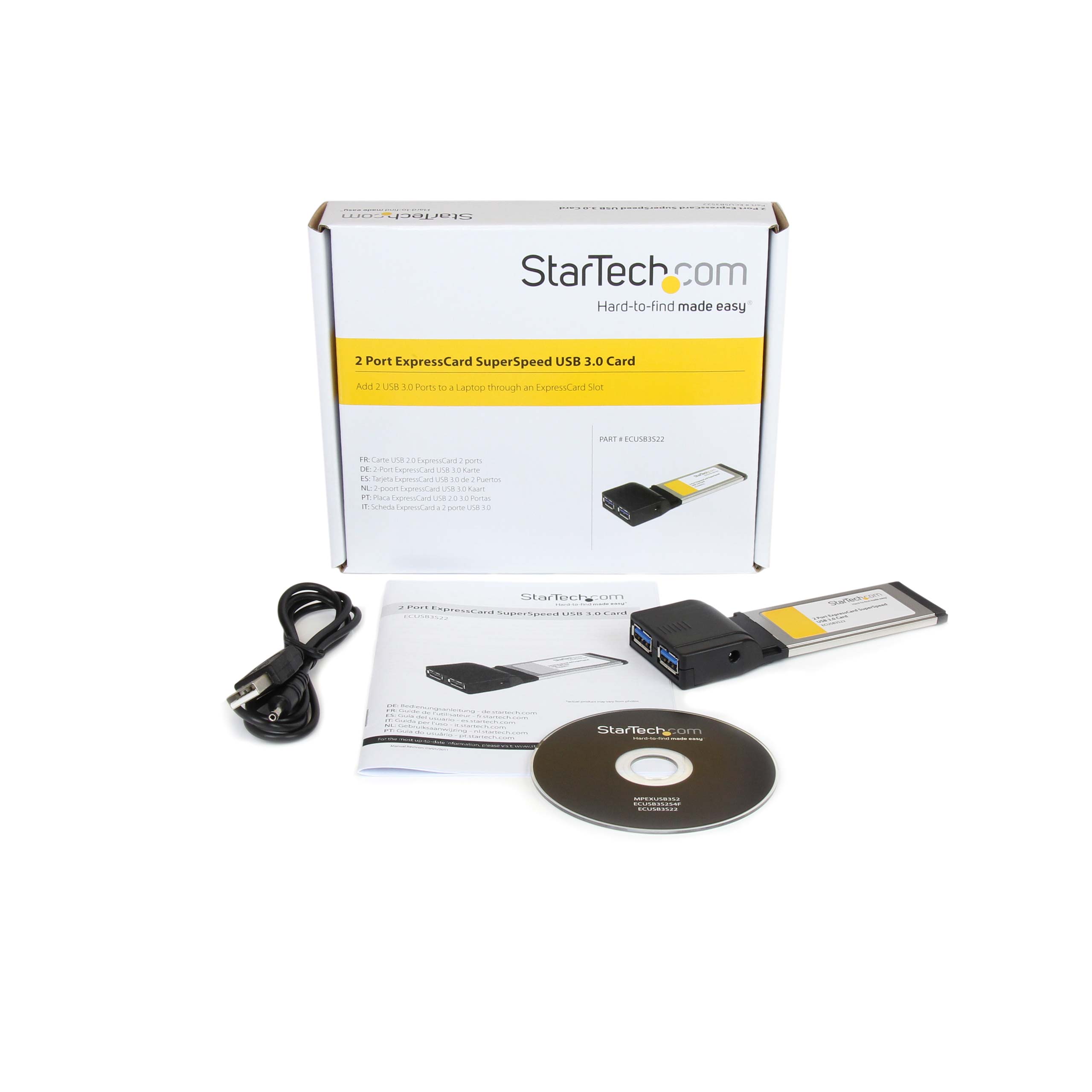

UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type ExpressCard Card Type 34mm ExpressCard Chipset ID Renesas/NEC - µPD720200 Interface/Bridge USB 3.2 Gen 1 (5Gbps) USB Port Type USB-A Carton Depth (mm) 357 Carton Height (mm) 314 Carton Quantity 75 Carton Weight Gross (g) 10288 Included in Package - 1 - ExpressCard USB 3.0 Card
- 1 - Driver CD
- 1 - USB to DC Power Cable
- 1 - Instruction Manual
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 173 Package Quantity 1 Package Weight (g) 126 Packaging Description 2 Port ExpressCard USB 3.0 Card Packaging Description India 2 Port ExpressCard USB 3.0 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ExpressCard/34 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,NL,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
