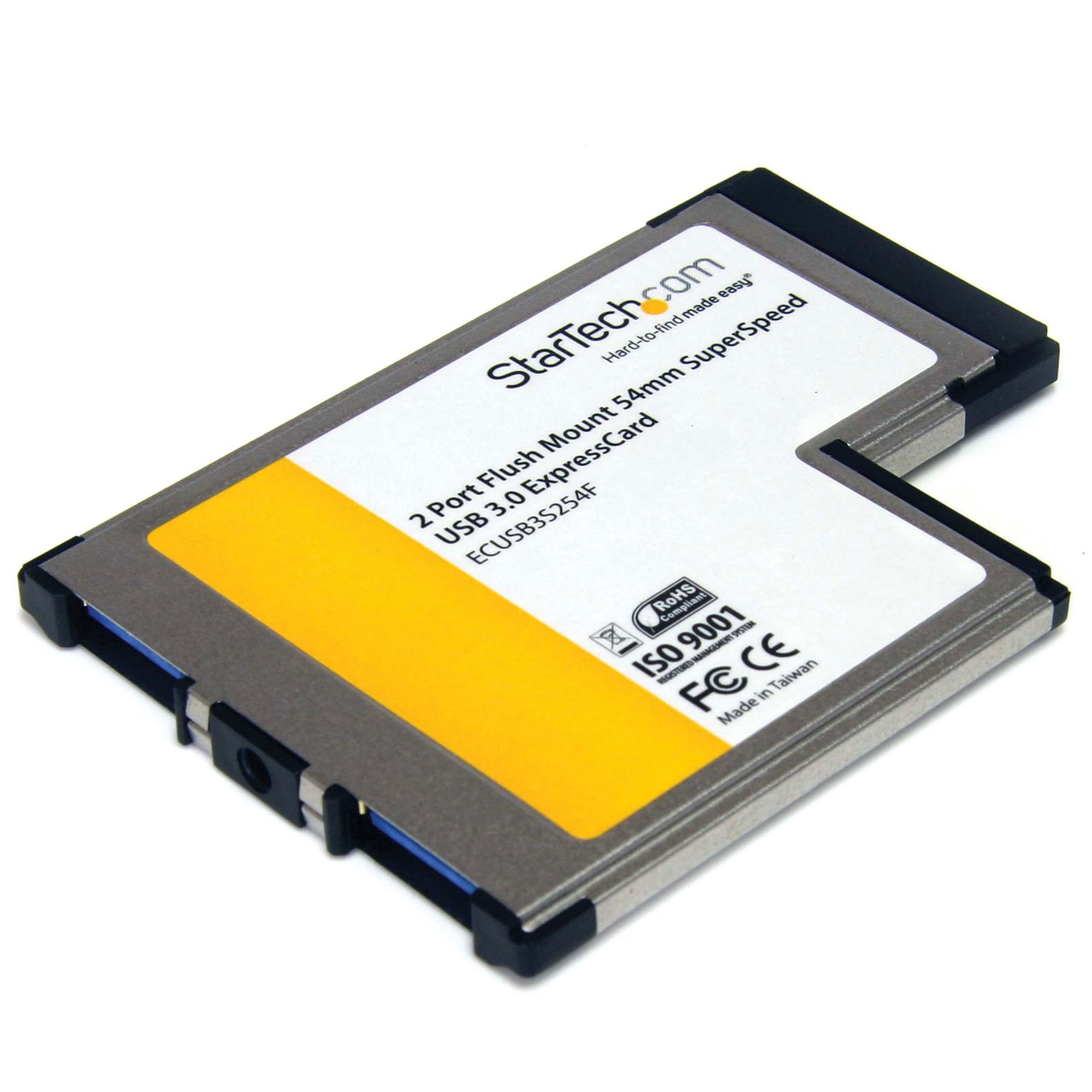

ECUSB3S254F
2 Port Flush Mount ExpressCard SuperSpeed USB 3 0 Card Adapt
Add two flushmount USB 3.0 (USB 3.2 Gen 1) ports to your ExpressCard-enabled laptop
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port Flush Mount ExpressCard SuperSpeed USB 3 0 Card Adapt Product Number ECUSB3S254F UPC 065030843577 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - ExpressCard Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 2P ExpressCard USB 3 Product Title (Short) Flush Mount ExpressCard 54mm USB 3 Card Product Title (Medium) x Product Title (Standard) 2 Port Flush Mount ExpressCard 54mm SuperSpeed USB 3.0 Card Adapter with UASP Support, 5Gbps, TAA Product Title (Long) 2 Port Flush Mount ExpressCard 54mm SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP Support - TAA Product Title (AMZ) 2 Port Flush Mount ExpressCard 54mm SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP - Dual Port Laptop ExpressCard USB 3 Controller , TAA (ECUSB3S254F) Title Ingram (Part 1) 2Port Flat 54mm ExpressCard USB Title Ingram (Part 2) 3 Card w/ UASP Support Website Product Headline Add two flushmount USB 3.0 (USB 3.2 Gen 1) ports to your ExpressCard-enabled laptop Bullet 1 Unique flush-mount form factor design Bullet 2 Two SuperSpeed USB 3.2 Gen 1 compliant ports with support for transfer rates up to 5 Gbps Bullet 3 Backward compatible with USB 2.0/1.x devices Bullet 4 Compliant with USB 3.2 Gen 1 base specification 1.0 and xHCI specification 0.95 Bullet 5 Compliant with PCI Express specification 2.0 Bullets (Consolidated) Add two flushmount USB 3.2 Gen 1 ports to your ExpressCard-enabled laptop - Compatible with Dell Latitude E5530 - 2 Port Flush Mount 54mm ExpressCard USB 3.2 Gen 1 Card Adapter with UASP Support - ExpressCard USB 3 Controller/5 Gbps USB 3.2 Gen 1 Expresscard/Expresscard Laptop Card - 2Port USB 3.2 Gen 1 Adapter Card 54mm USB3 Card/EC USB 3.2 Gen 1 Card with UASP - 2 Port Notebook USB 3.2 Gen 1 Express Card with optional built-in external DC power connector - Expand laptop expansion capabilities with additional USB ports Marketing Copy Applications - Users who need USB connectivity, but do not need to swap between other ExpressCard adapters, so will leave the card installed in the card slot

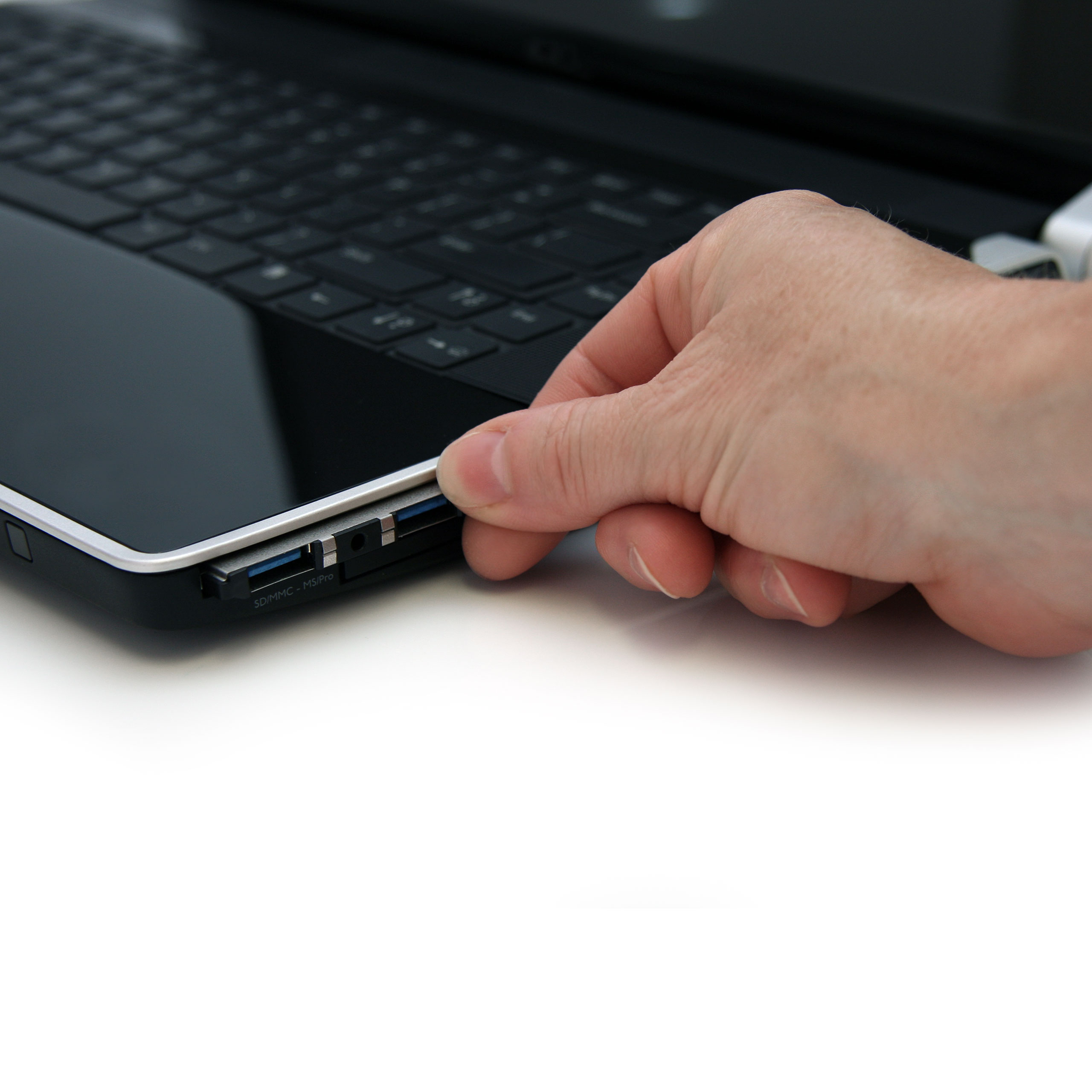

- Mobile users who want to leave ExpressCard adapters installed, without worry about damaging the card or slot while on the move
- Connect high performance USB 3.2 Gen 1 external storage devices to a laptop
- Upgrade an older laptop with USB 3.2 Gen 1 connectivity
- Expand on your laptop expansion capabilities with additional USB ports
Website Search Keyword - USB ExpressCard Adapter
- USB ExpressCard Module
- USB 3.0 card
- SuperSpeed USB
- 5 Gbps
- USB 2.0 card
- Flushmount
- flush mount
- expresscard/54
- expresscard 54mm
- Flat Card
- flushing fitting
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes The maximum throughput of this card is limited by the host bus interface. If used with ExpressCard Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with ExpressCard Gen 2.0 enabled computers, the max throughput is 5 Gbps. System and Cable Requirements Available ExpressCard/54 slot Accessory Products - USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3SAUB1
- USB3SAUB3
- USB3SAUB3BK
- USB3SEXTAA6
- USB3SAA6
Related Products - ECUSB3S1
- ECUSB3S2
- PEXUSB3S2
- PEXUSB3S11
- ECESATA1
- ECESATA254F
Output Voltage (V) 5 DC Power Source Not Included (not required for standard applications) Plug Type A Center Tip Polarity Positive Color Black & Silver Material Steel Operating Temperature 0°C to 85°C (32°F to 185°F) Primary Material Steel Product Length (mm) 74 Product Width (mm) 54 Product Height (mm) 5 Product Weight (g) 25 Storage Temperature -65°C to 125°C (-85°F to 257°F) TAA Compliant Yes OS Compatibility - Windows 7
- Windows 8
- Windows 10
- Windows 11

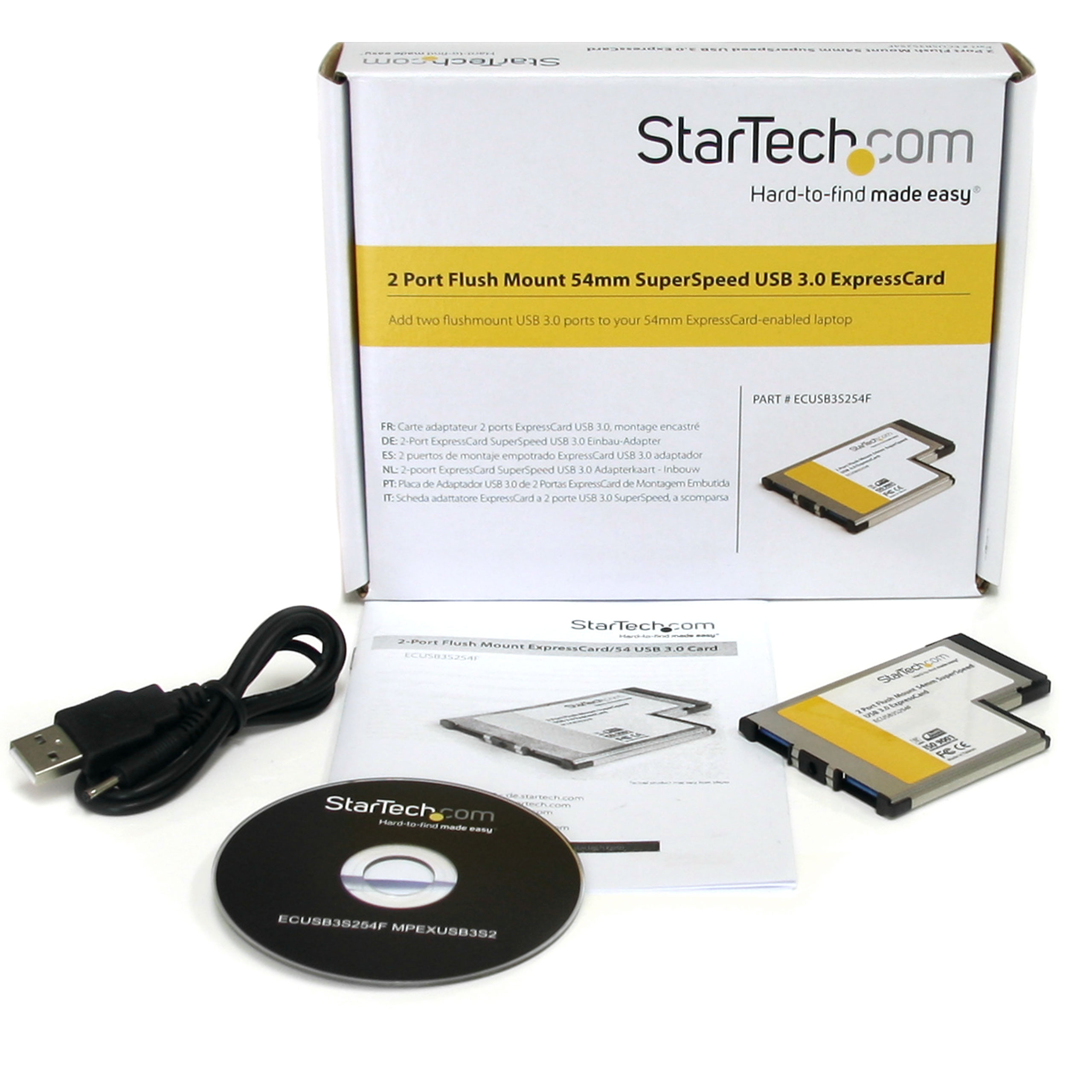

UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type ExpressCard Card Type 54mm ExpressCard Chipset ID Renesas/NEC - µPD720200 Interface/Bridge USB 3.2 Gen 1 (5Gbps) USB Port Type USB-A Carton Depth (mm) 350 Carton Height (mm) 320 Carton Quantity 75 Carton Weight Gross (g) 8778 Included in Package - 1 - ExpressCard USB 3.0 Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB to DC Power Adapter Cable
Included In Package for Label - 1 - Instruction Manual
- 1 - Driver CD
- 1 - Expresscard USB 3.0 Card
- 1 - USB To DC Converter Cable
Package Depth (mm) 143 Package Height (mm) 32 Package Width (mm) 173 Package Quantity 1 Package Weight (g) 102 Packaging Description 2x Flush Mount ExpressCard/54 USB 3 Card Packaging Description India 2x Flush Mount ExpressCard/54 USB 3 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
