ED1508X
Main Image

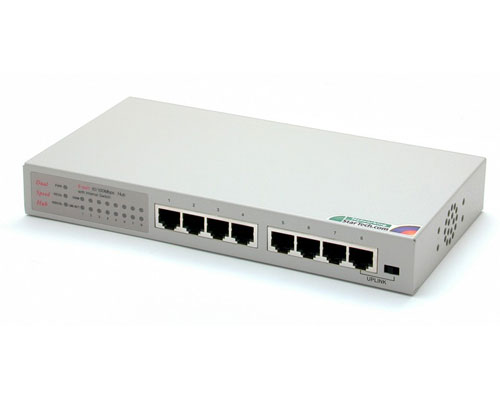

Product Name *D*8-Port 10/100-Mbps Desktop Ethernet Hub Product Number ED1508X UPC 065030781367 Taxonomy Product > Legacy Discontinued Product Title (Long) *D*8-Port 10/100-Mbps Desktop Ethernet Hub Bullet 1 Complies with IEEE 802.3 and 802.3u standards. Bullet 2 Complies with Fast Ethernet Class II Hub specifications. Bullet 3 Provides one 10Mbps segment and one 100Mbps segment inside the hub. Bullet 4 Provides eight 10/100Mbps auto-negotiation ports. Bullet 5 Built-in internal bridge which allows communications between the 10Mbps and 100Mbps ports. Marketing Copy The StarTech.com 8-port 10/100 Mbps desktop Ethernet hub is small in size but big in value. It is a dual segment device that is capable of auto selecting to run at either 10 Mbps or 100 Mbps. Each port has two LED indicators that show the link speed and activity for quick and easy monitoring. Applications - Perfect for creating a fast small business network
- Great for adding small workgroups to an existing network
TAA Compliant No General Specifications - Standards: IEEE 802.3 & 802.3u
- 10/100Mbps Ports: (8) shielded RJ-45 ports
- Uplink Port: Slide switch turns port 8 into an uplink port
- LEDs: Power, Collision, Link Status/Activity, 100Mbps
- Dimensions: 220 x 117 x 30 mm (8.7 x 4.6 x 1.18 inches)
- Weight: 820 g (1.81 lbs)
- Power: 5VDC, 3 Amps
- Temperature: 0~55 degrees C (0~131 degrees F)
- Humidity: 10~95 % (non-condensing)
- Emissions: FCC Class A, CE Mark
Included in Package - 1 - 8 PORT ETHERNET HUB
- 1 - POWER ADAPTER
- 1 - POWER CORD
- 1 - INSTRUCTION MANUAL
- 1 - SET OF PLATES AND SCREWS
en-US Content Approved Yes
