ED1524SX
Main Image

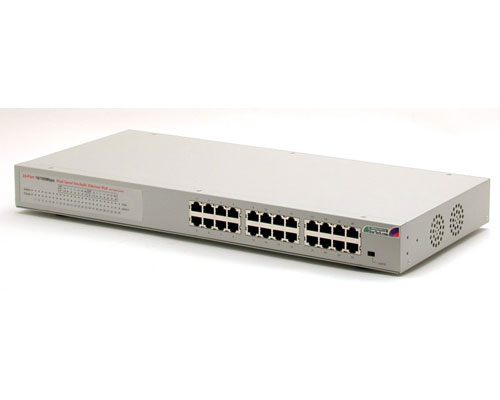

Product Name *D**Replaced by ES3124R* 24-Port 10/100-Mbps Stackable Rackmount Ethernet H Product Number ED1524SX UPC 065030782111 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D**Replaced by ES3124R* 24-Port 10/100-Mbps Stackable Rackmount Ethernet H Bullet 1 Complies with IEEE 802.3 and 802.3u standards. Bullet 2 Complies with Fast Ethernet Class II Hub specifications. Bullet 3 Provides one 10Mbps segment and one 100Mbps segment inside the hub. Bullet 4 Provides stacking capability so many hubs can operate as one, bypassing the 100Base-T 2 hub cascade limit. Bullet 5 Built-in internal bridge which allows communications between the 10Mbps and 100Mbps ports. Marketing Copy This 24-port 10/100-Mbps Ethernet hub from StarTech.com incorporates auto sensing RJ-45 connectors to select the optimum transmission speed, as well as internal switching that allows communication between ports operating at 10 Mbps and those operating at 100 Mbps. When you need to expand your network, the StarTech.com ED1524SX allows up to 8 hubs to be stacked, all acting as one hub. Applications - Perfect for creating a fast business network
- Great for adding workgroups to an existing network
Accessory Products - ET9003ST
- ET9003SC
Related Products - ED1516SX
- ED1532SX
TAA Compliant No General Specifications - Standards: IEEE 802.3 & 802.3u
- 10/100Mbps Ports: (24) shielded RJ-45 ports
- Uplink Port: One shielded RJ-45 port
- LEDs: Power, Utilization, 10M Collision, 100M Collision, Link Status/Activity, 100Mbps
- Dimensions: 441 x 171 x 45 mm (17.4 x 6.7 x 1.75 inches)
- Weight: 2.1 kg (4.6 lb)
- Power: 110~220V AC, 50~60 Hz
- Temperature: 0~55 deg C (0~131 deg F)
- Humidity: 10~95%
- Emissions: FCC Class A, CE Mark
Included in Package - 1 - 24 PORT ETHERNET HUB
- 1 - SET OF PLATES AND SCREWS
- 1 - DOUBLE ENDED CONNECTOR
- 1 - INSTRUCTION MANUAL
- 1 - POWER CORD
