EOC110K
Ethernet Over Coaxial Media Converter Kit
Extend an Ethernet network over Coaxial cable up to 1.5 miles (2.4km)
Main Image
Product Images
Product Images
BOM Image
Product Name Ethernet Over Coaxial Media Converter Kit Product Number EOC110K UPC 065030840880 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Ethernet Over Coaxial LAN Extender Kit Product Title (Standard) 10/100 Mbps Ethernet Over Coaxial LAN Extender Kit - 2.4km Product Title (Long) 10/100 Mbps Ethernet Over Coaxial LAN Extender Kit - 2.4km Title Ingram (Part 1) 10/100 Mbps Ethernet Over Coaxia Title Ingram (Part 2) l LAN Extender Kit - 2.4km Website Product Headline Extend an Ethernet network over Coaxial cable up to 1.5 miles (2.4km) Bullet 1 Compliant with HCNA (ITU G.9954 – HPNA 3.1) Bullet 2 Transparent TCP/IP Operations Bullet 3 Auto-MDIX and Auto-negotiation 10Base-T or 100Base-TX and Full or Half-Duplex on the Ethernet port Bullet 4 Plug-and-play design for simple installation; no configuration or software required Bullet 5 Status LEDs for simple monitoring of the device and connection status Marketing Copy Applications - Extend an Ethernet network across an existing closed circuit camera network (over coax) without interrupting the analog TV signal
- Provide high-speed connectivity to a user or network segment that is in an isolated area of a large complex or in another building
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues at extreme distances
- Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, and other harsh environment applications
- Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related network communications
- Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)
Website Search Keyword - Ethernet Extender
- Ethernet over Coax
- HomePNA
- CopperGate
- Media Converter
- Point to Multi-point
- Point to Point
- HomePNA 3.1
- Network over cable
- Closed circuit
Accessory Products - BNCCOAXFM
- INSERTVIDF
- CRG6FT
- CRG6FT5PK
- CRG6F
- WIRRG6CMR
- WIRC5ERG6CMR
- M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
- M45PATCH10GR
- M45PATCH15BK
- M45PATCH15BL
- M45PATCH25BK
- M45PATCH25BL
- EOC110R
Related Products - 110VDSLEXT
- IMC110MMSC
- MCM110SC2
- MCM110SC2P
- MCM110ST2
- MCM110ST2P
- MCMGBSC055
- MCMGBSC15
- MMC110MMST
- MCM110ST
Replacement Product EOC1110K Equivalent Part Number in the EU EOC110KEU Equivalent Part Number in the UK EOC110KGB Input Voltage 115V AC Output Current 2A Output Voltage (V) 5 DC Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 280 Product Width (mm) 138 Product Height (mm) 77 Product Weight (g) 320 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Maximum Data Transfer Rate Max Transfer Distance 2.4 km (1.5 mi) MTBF (hours) 57,000 Hours Industry Standards - HCNA (ITU G.9954 – HPNA 3.1)
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX

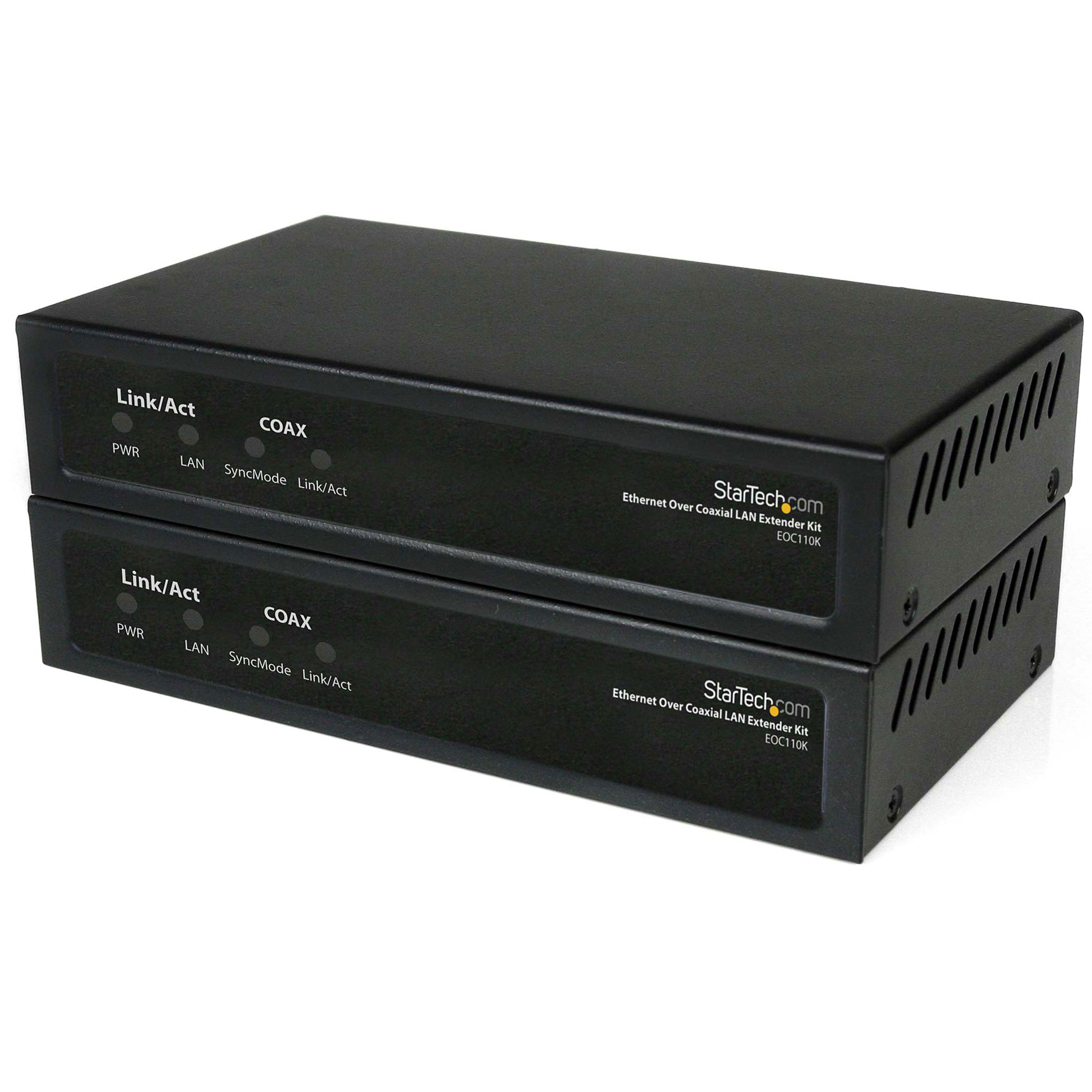

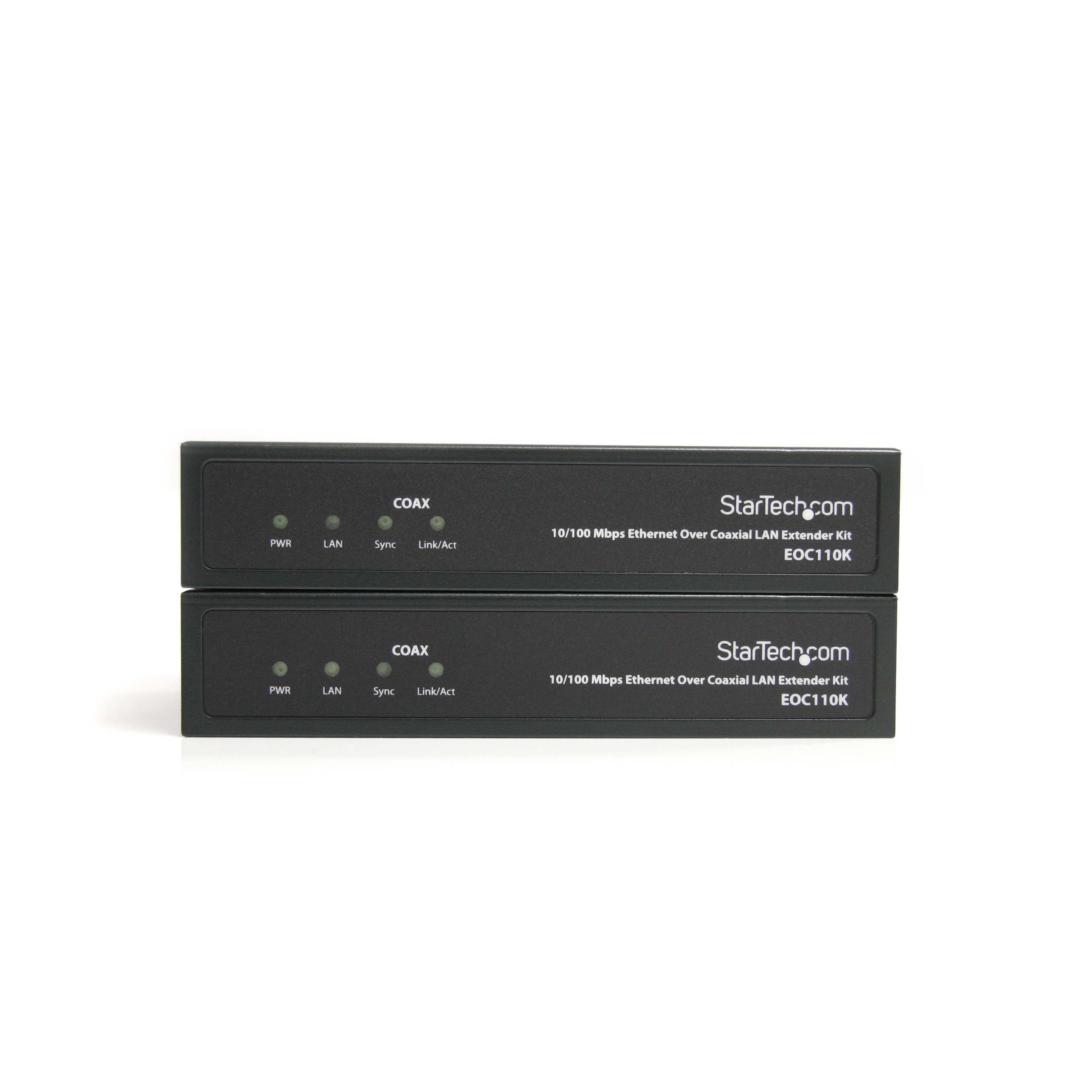

LED Indicators - 1 - Power
- 1 - LAN Link/Activity
- 1 - Coax Sync
- 1 - Coax Link/Activity

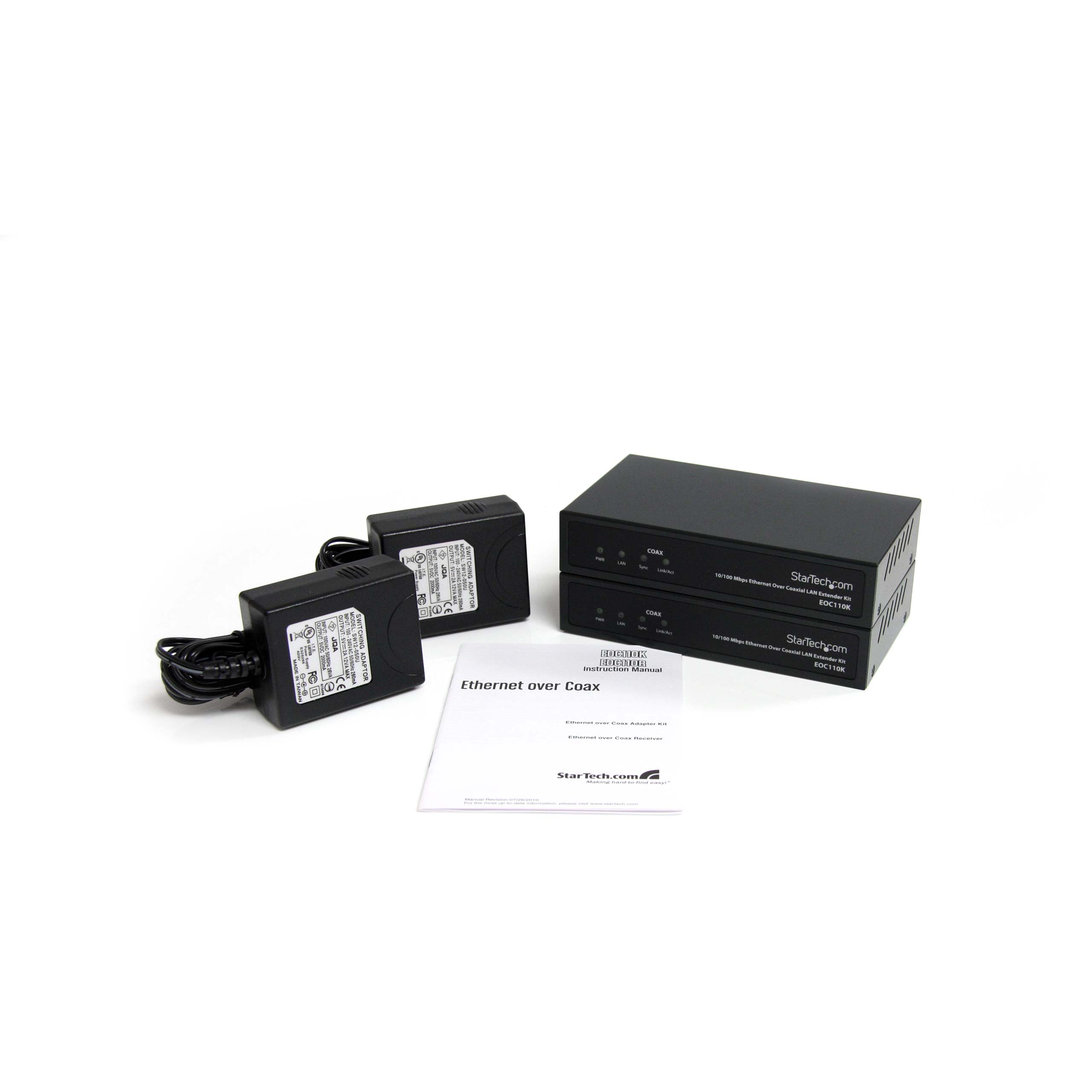

Carton Depth (mm) 420 Carton Height (mm) 240 Carton Quantity 5 Carton Weight Gross (g) 8300 Included in Package - 2 - Coax to Ethernet Media Converter
- 2 - Power Adapters
- 1 - User Manual

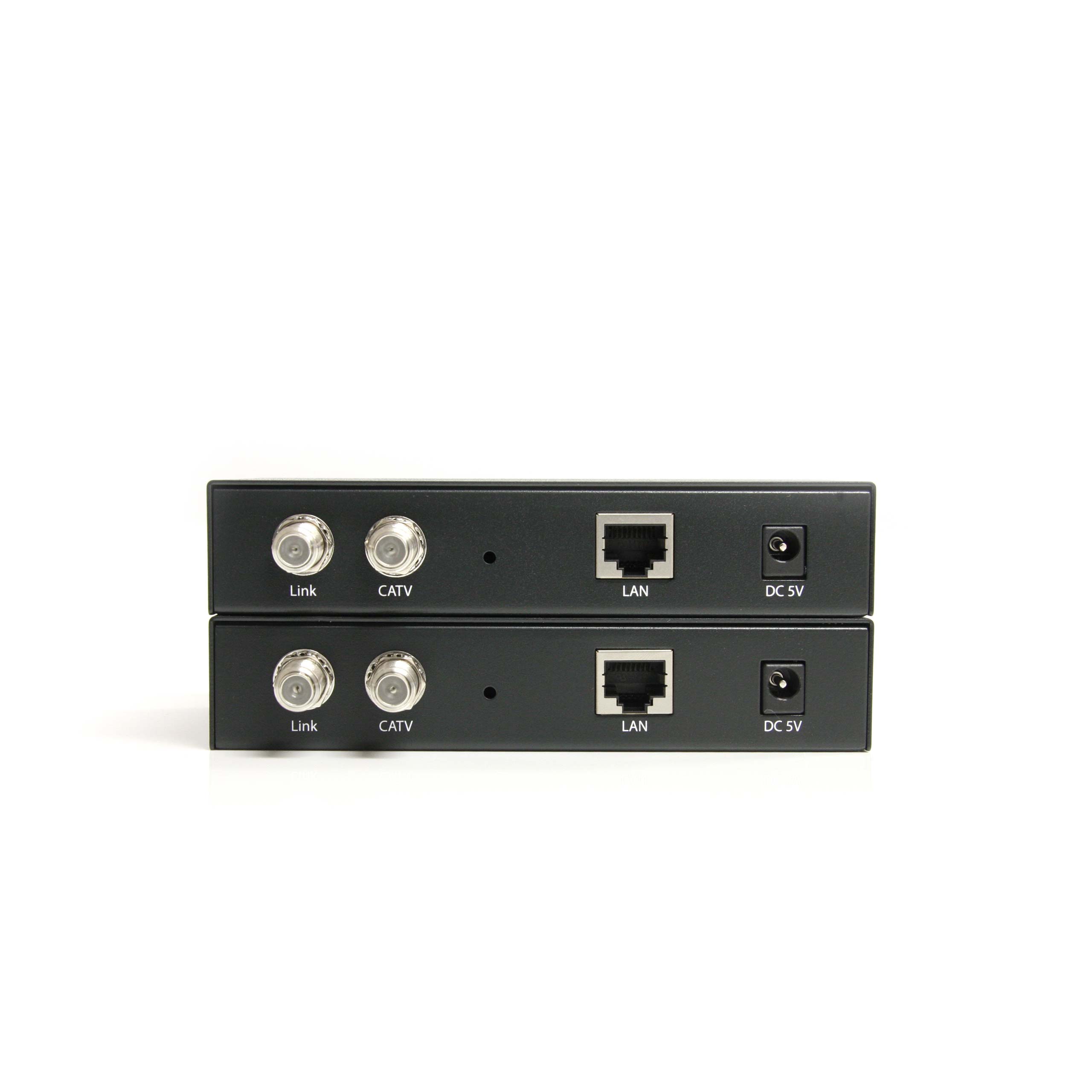

Package Depth (mm) 200 Package Height (mm) 165 Package Width (mm) 240 Package Weight (g) 1420 Packaging Description 10/100 Mbps LAN Extender over Coax - 2.4km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RF Coax (F-Type) Connector 2 (Quantity) 2 Host Connector 1 RF Coax (F-Type) Host Connector 1 (Quantity) 2 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
