EOC110R
Ethernet Over Coaxial Media Converter Receiver
Extend an Ethernet network over Coaxial cable up to 1.5 miles (2.4km) - Receiver only
Main Image
Product Images
Product Images
BOM Image
Product Name Ethernet Over Coaxial Media Converter Receiver Product Number EOC110R UPC 065030841153 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) Ethernet Over Coaxial LAN Receiver Product Title (Standard) 10/100 Mbps Ethernet Over Coaxial LAN Extender Receiver - 2.4km Product Title (Long) 10/100 Mbps Ethernet Over Coaxial LAN Extender Receiver - 2.4km Title Ingram (Part 1) 10/100 Ethernet Over Coaxial LAN Title Ingram (Part 2) Extender Receiver - 2.4km Website Product Headline Extend an Ethernet network over Coaxial cable up to 1.5 miles (2.4km) - Receiver only Bullet 1 Auto-MDIX and Auto-negotiation 10Base-T or 100Base-TX and Full or Half-Duplex on the Ethernet port Bullet 2 Compliant with HCNA (ITU G.9954 – HPNA 3.1) Bullet 3 Plug and Play design for simple installation; no configuration or software required Bullet 4 Status LEDs for simple monitoring of the device and connection status Bullet 5 Supports point to point, and point to multi-point topologies Marketing Copy Applications - Extend an Ethernet network across an existing closed circuit camera network (over coax) without interrupting the analog TV signal
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues at extreme distances
- Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, and other harsh environment applications
- Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related network communications
- Provide high-speed connectivity to a user or network segment that is in an isolated area of a large complex or in another building
- Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)
Website Search Keyword - CopperGate
- Ethernet Extender
- Ethernet over Coax
- HomePNA
- HomePNA 3.1
- Media Converter
- Point to Multi-point
- Point to Point
- Network over cable
- Closed circuit
Accessory Products - BNCCOAXFM
- CRG6F
- CRG6FT
- CRG6FT5PK
- INSERTVIDF
- M45PATCH10BK
- M45PATCH10BL
- M45PATCH10GR
- M45PATCH15BK
- M45PATCH15BL
- M45PATCH25BK
- M45PATCH25BL
- M45PATCH6BK
- M45PATCH6BL
- WIRC5ERG6CMR
- WIRRG6CMR
- EOC110K
Related Products - 110VDSLEXT
- IMC110MMSC
- MCM110SC2
- MCM110SC2P
- MCM110ST
- MCM110ST2
- MCM110ST2P
- MCMGBSC055
- MCMGBSC15
- MMC110MMST
Equivalent Part Number in the EU EOC110REU Equivalent Part Number in the UK EOC110RGB Input Current 260 mA Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 5 DC Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 280 Product Width (mm) 139 Product Height (mm) 77 Product Weight (g) 320 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Maximum Data Transfer Rate Max Transfer Distance 2.4 km (1.5 mi) MTBF (hours) 57,000 Hours Industry Standards - IEEE 802.3u 100BASE-TX
- IEEE 802.3 10BASE-T
- HCNA (ITU G.9954 – HPNA 3.1)

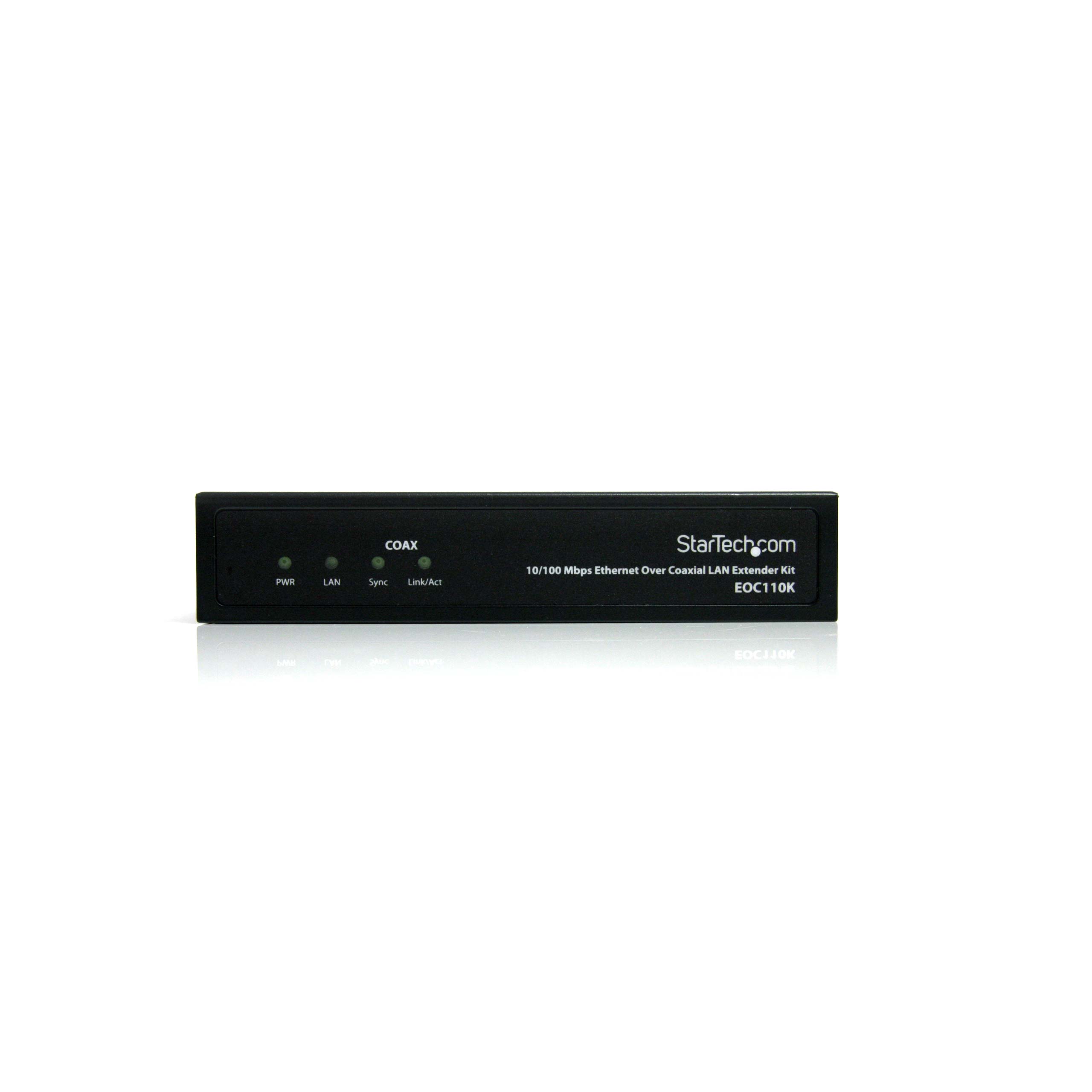

LED Indicators - 1 - Coax Link/Activity
- 1 - Coax Sync
- 1 - LAN Link/Activity
- 1 - Power

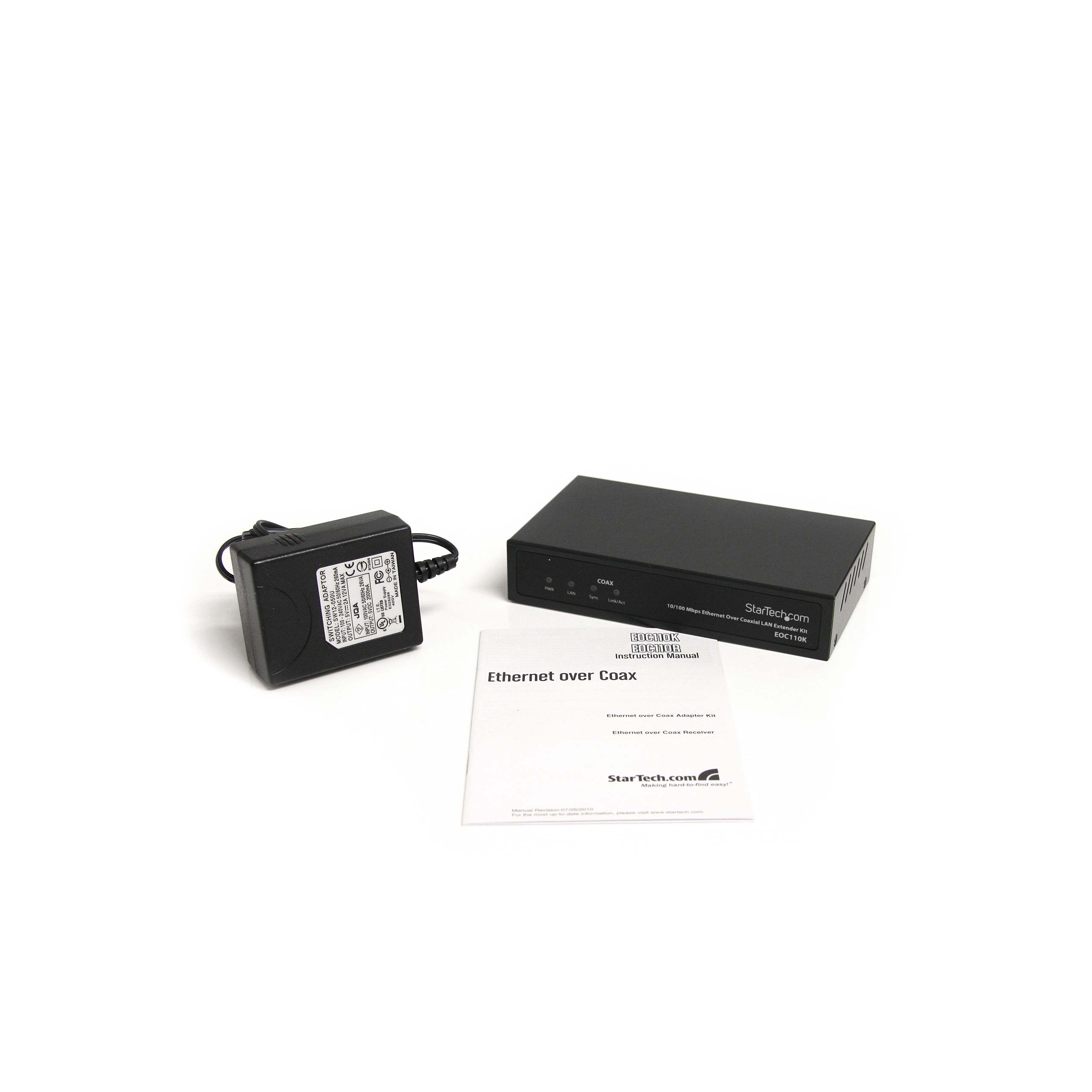

Carton Depth (mm) 400 Carton Height (mm) 260 Carton Quantity 12 Carton Weight Gross (g) 12000 Included in Package - 1 - Coax to Ethernet Media Receiver
- 1 - Power Adapter
- 1 - User Manual
Package Depth (mm) 188 Package Height (mm) 75 Package Width (mm) 230 Package Weight (g) 900 Packaging Description 10/100 LAN Extender over Coax - Receiver Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Host Connector 1 RF Coax (F-Type) Host Connector 1 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
