EOC1110K
Gb Ethernet Coax Extender - IP to Coax Converter

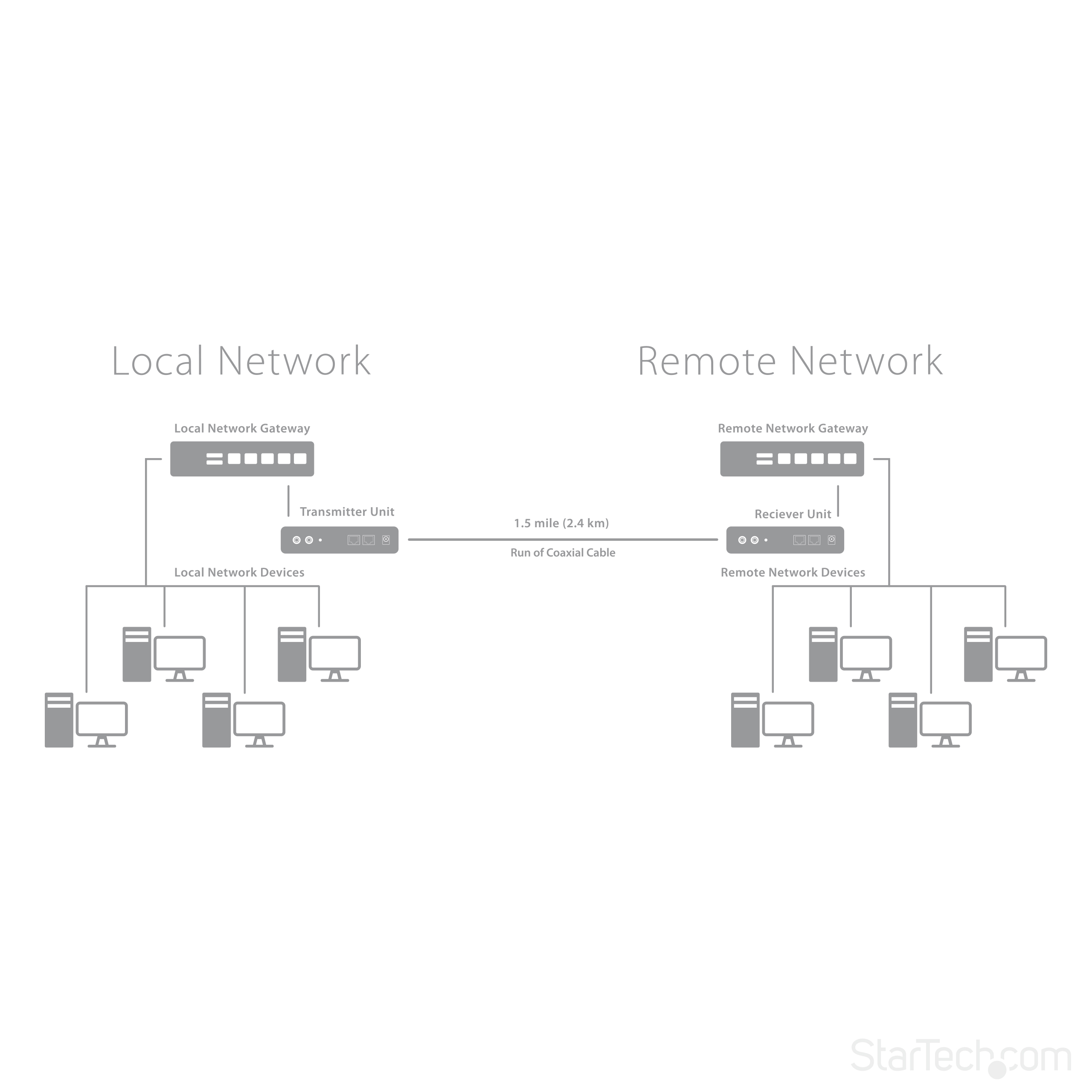

Extend an Ethernet network over Coaxial cable up to 1.5 miles (2.4km)
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name Gb Ethernet Coax Extender - IP to Coax Converter Product Number EOC1110K UPC 065030848916 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Extenders Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) GbE to Coax Extender Product Title (Short) Gigabit Ethernet over Coax Extender Product Title (Standard) Gigabit Ethernet over Coaxial Unmanaged Network Extender Kit - 2.4km Product Title (Long) Gigabit Ethernet over Coaxial Unmanaged Network Extender Kit - 2.4km - TAA Product Title (AMZ) Gigabit Ethernet over Network Extender Kit - 2.4km IP to Coax Converter - RJ45 LAN Ethernet to RG6 Coax Internet Adapter Kit (EOC1110K) Title Ingram (Part 1) Gigabit Ethernet Coax Extender - Title Ingram (Part 2) IP to Coax Converter - 2.4km Website Product Headline Extend an Ethernet network over Coaxial cable up to 1.5 miles (2.4km) Bullet 1 Compliant with HCNA (ITU G.9954 – HPNA 3.1) Bullet 2 Transparent TCP/IP Operations Bullet 3 Auto-MDIX and Auto-negotiation 10/100/1000Base-T and Full or Half-Duplex on the Ethernet port Bullet 4 Plug-and-play design for simple installation; no configuration or software required Bullet 5 Status LEDs for simple monitoring of the device and connection status Bullets (Compact) Extend an Ethernet network over Coaxial cable up to 1.5 miles (2.4km) - ip to coax converter - coax ethernet extender - ethernet over coaxial - ethernet over rg6 - gigabit ethernet over coax Bullets (Consolidated) Extend an Ethernet network over Coaxial cable up to 1.5 miles (2.4km) - GbE over Coaxial Network Extender Kit - Unmanaged 1000Mbps Ethernet Extender/IP to Coax Converter - Coaxial Ethernet Extender/Ethernet Over RG6/Gigabit Ethernet Over Coax - Gigabit Network Extender/RJ45 Ethernet to RG6 Coax Adapter Kit - Extend your network to remote areas - Perfect for heritage buildings without wireless - Use with existing coaxial infrastructure without causing interference to CCD or CATV signals Marketing Copy Marketing Copy (No HTML) The Gigabit Ethernet over Coaxial Unmanaged LAN Extender Kit (2.4km) includes both end points, and allows you to span a 10/100/1000Mbps Ethernet network over extremely long distances (up to 2.4 km/1.5 mi) while still maintaining high-speed network connectivity. The ethernet over coax extender allows you to run the connection over existing coaxial cable, with little to no modification required, making it a perfect solution for a broad range of applications, including connecting isolated user stations from the same or separate building, or overcoming infrastructure obstacles and distances (e.g. older stone/concrete architecture) where new wiring or wireless connectivity may be impossible. The gigabit coax ethernet adapter kit helps to eliminate expense by allowing CCD or CATV video and Ethernet network data to share the same coaxial cable without interference. This ethernet over coax extender kit is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Extend an Ethernet network across an existing closed circuit camera network (over coax) without interrupting the analog TV signal

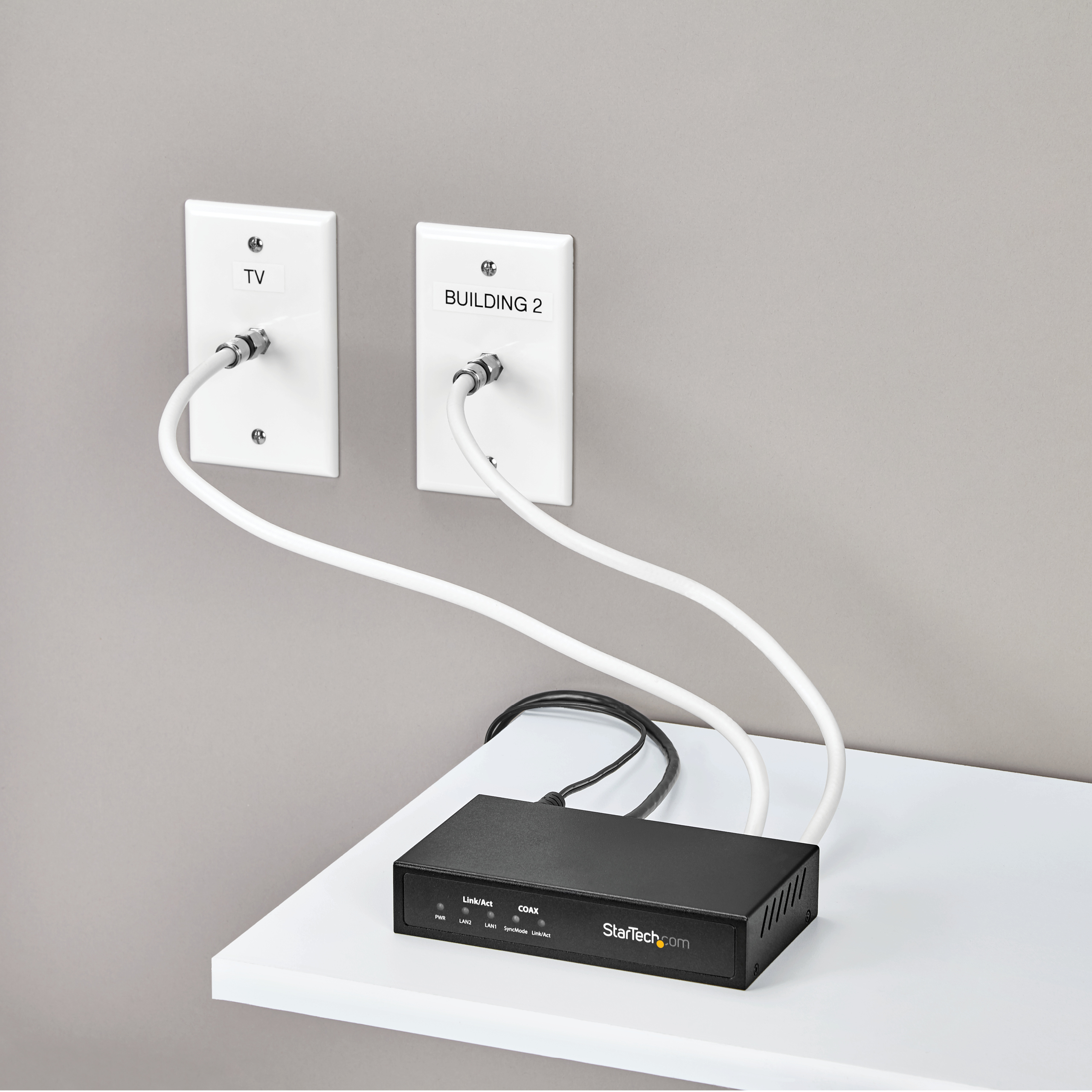

- Provide high-speed connectivity to a user or network segment that is in an isolated area of a large complex or in another building
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues at extreme distances
- Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, and other harsh environment applications
- Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related network communications
- Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)
Website Search Keyword - Ethernet Extender
- Ethernet over Coax
- HomePNA
- CopperGate
- Media Converter
- Point to Multi-point
- Point to Point
- HomePNA 3.1
- Network over cable
- Closed circuit
- short haul modem
- coaxial modem
- extender modem
- EOC110K
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement

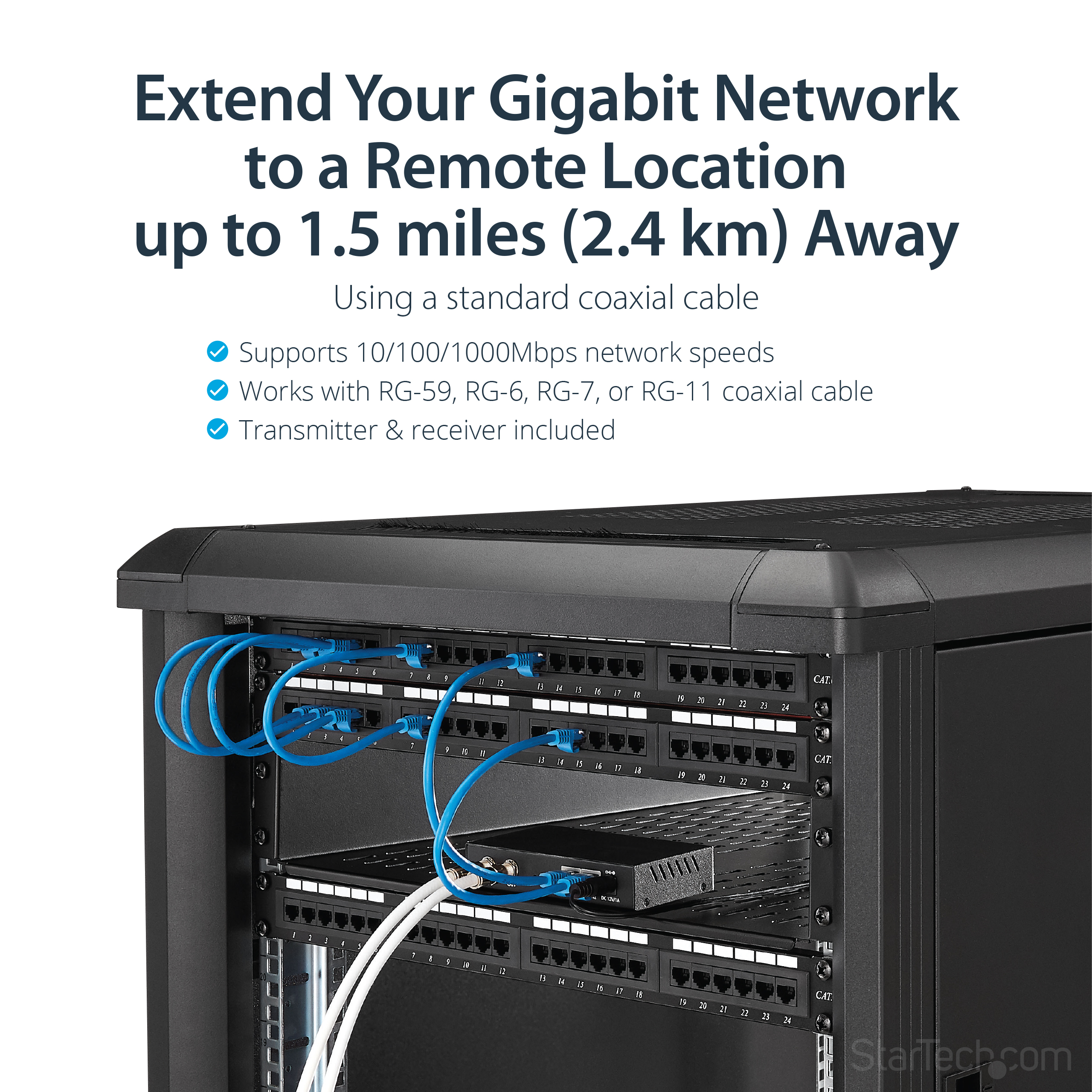

System and Cable Requirements 75Ω (ohm) coaxial RG-59, RG-6, RG-7, or RG-11 cable is required Accessory Products - BNCCOAXFM
- INSERTVIDF
- CRG6FT
- CRG6FT5PK
- CRG6F
- WIRRG6CMR
- WIRC5ERG6CMR
- M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
- M45PATCH10GR
- M45PATCH15BK
- M45PATCH15BL
- M45PATCH25BK
- M45PATCH25BL
- SVA12M2NEUA
- SVA12M5NA
Related Products - 110VDSLEXT
- IMC110MMSC
- MCM110SC2
- MCM110SC2P
- MCM110ST2
- MCM110ST2P
- MCMGBSC055
- MCMGBSC15
- MMC110MMST
- MCM110ST
Input Current 0.36A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 4 Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 77.000 Product Width (mm) 138.000 Product Height (mm) 29.000 Product Weight (g) 667.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate Max Transfer Distance 2.4 km (1.5 mi) MTBF (hours) 57,000 Hours Industry Standards - HCNA (ITU G.9954 – HPNA 3.1)
- IEEE 802.3 10BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3u 100BASE-TX

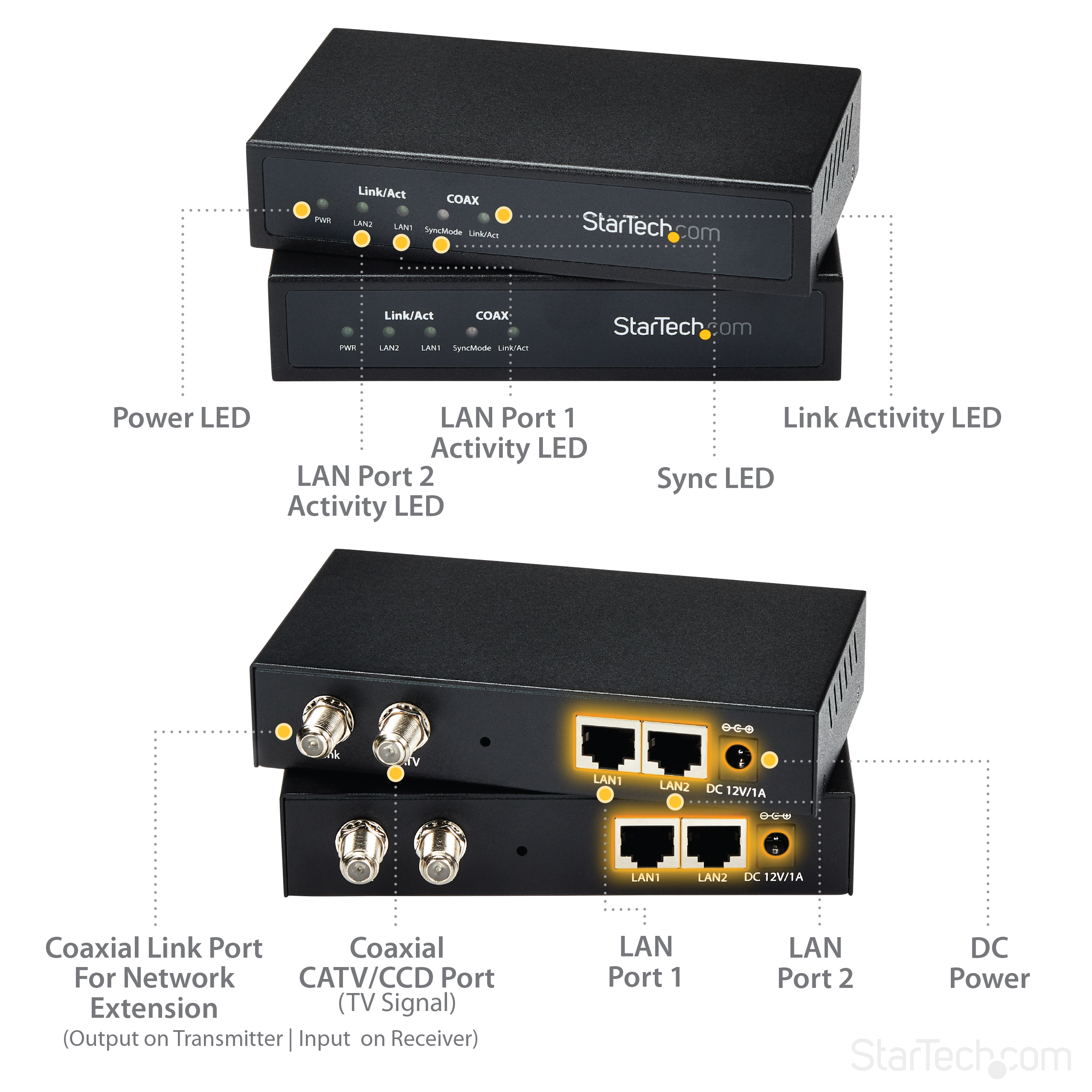

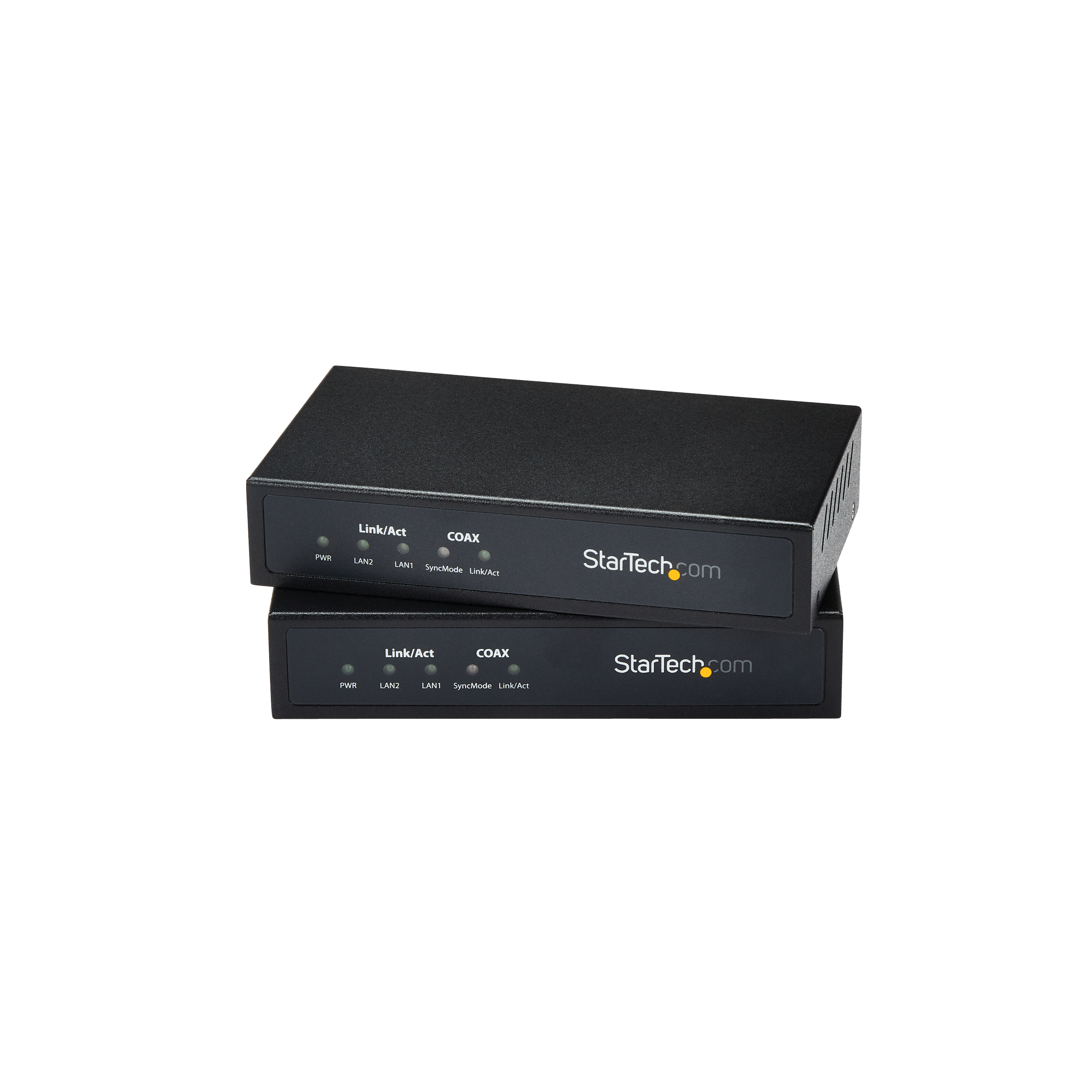

LED Indicators - 1 - Power
- 1 - LAN Link/Activity
- 1 - Coax Sync
- 1 - Coax Link/Activity

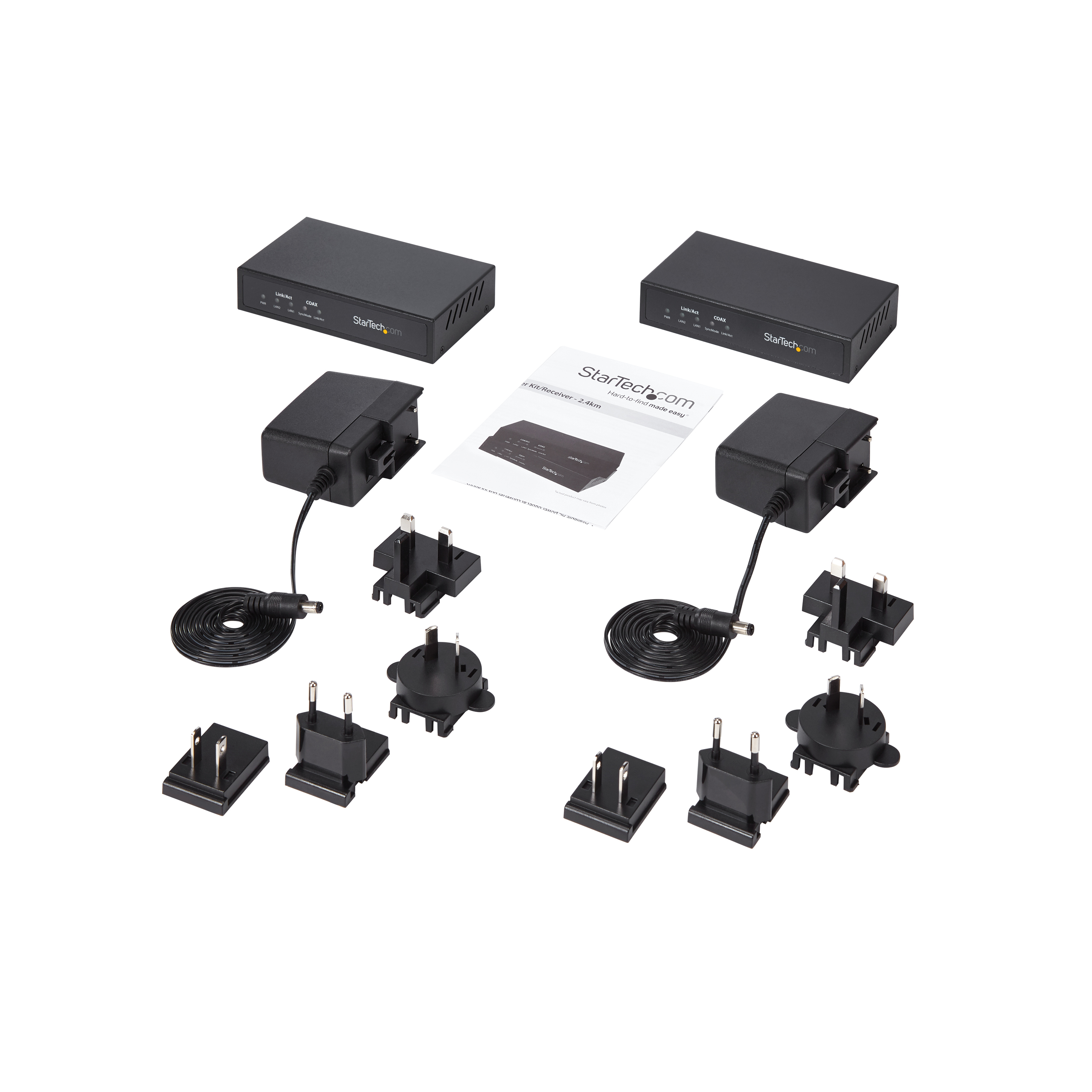

Carton Depth (mm) 427 Carton Height (mm) 231 Carton Quantity 5 Carton Weight Gross (g) 8766 Included in Package - 1 - Local Unit
- 2 - Universal Power Adapters (NA/EU/UK) or AU in Austrlia
- 1 - User Manual
- 1 - Remote Unit

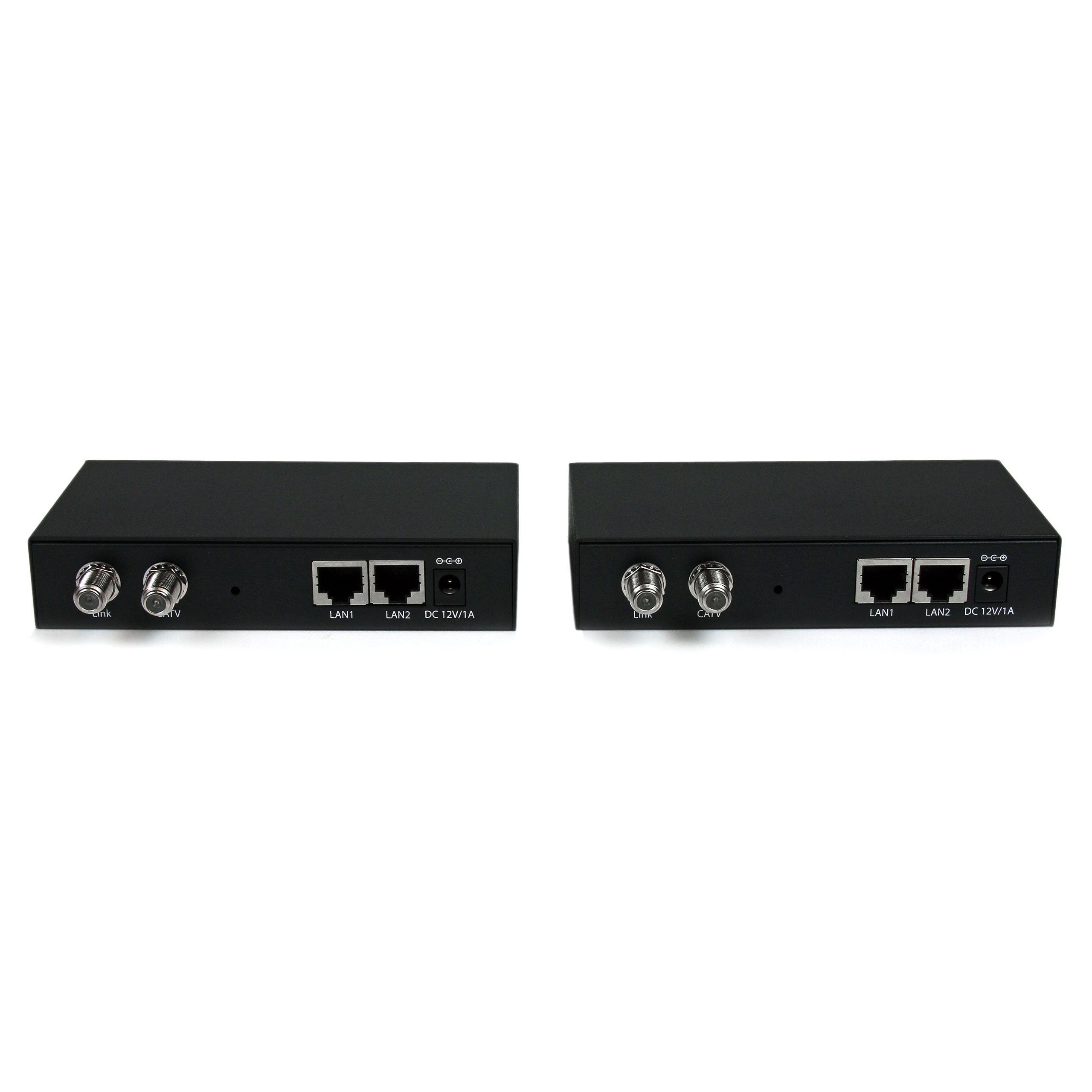

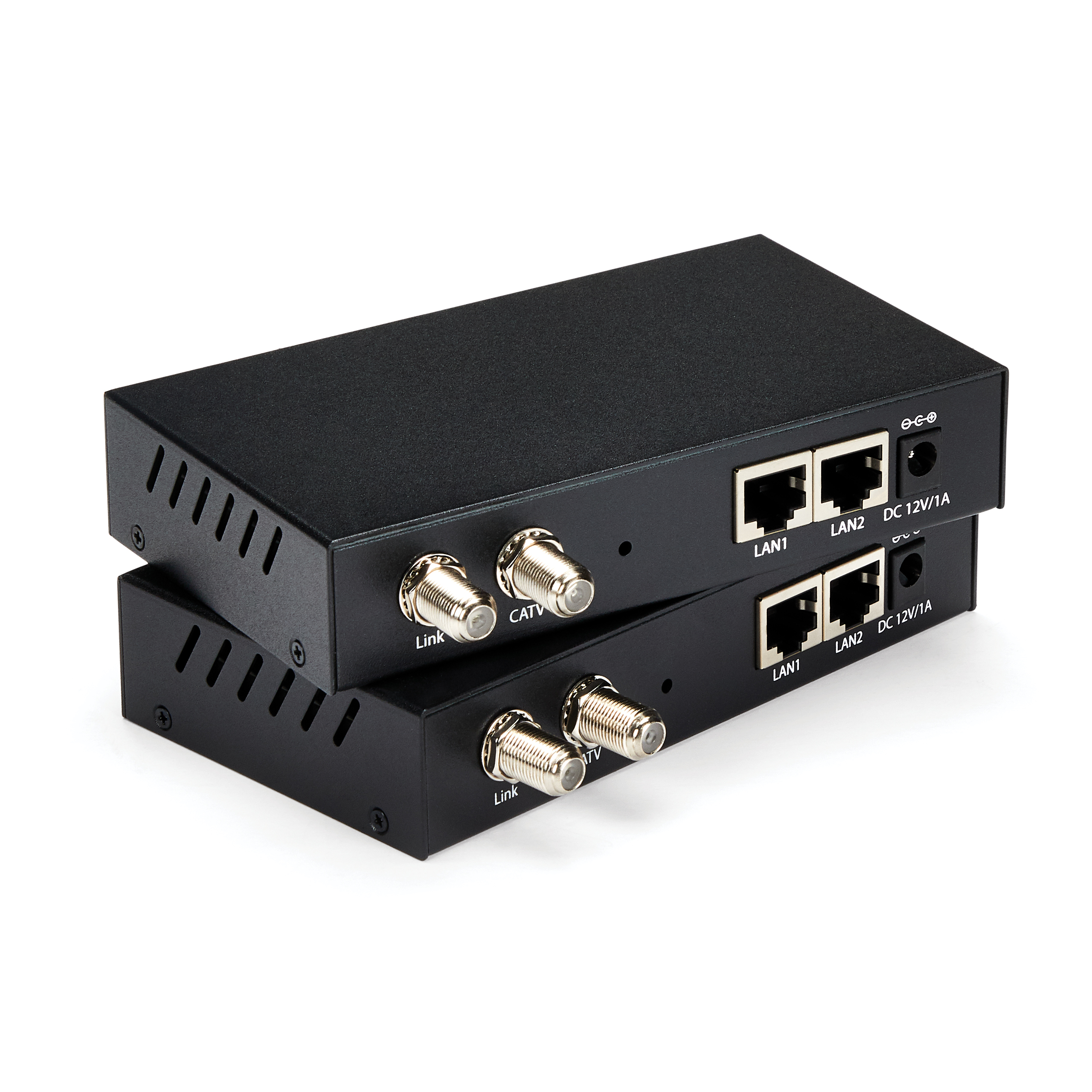

Package Depth (mm) 238 Package Height (mm) 164 Package Width (mm) 195 Package Quantity 1 Package Weight (g) 1567 Packaging Description Gigabit LAN Extender over Coax - 2.4km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RF Coax (F-Type) Connector 2 (Quantity) 2 Host Connector 1 RF Coax (F-Type) Host Connector 1 (Quantity) 2 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-08-21 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
