EOC1110R
Ethernet Over Coaxial Media Converter Receiver
Extend an Ethernet network over Coaxial cable up to 1.5 miles (2.4km) - Receiver only
Main Image
Product Images
Product Images
BOM Image
Product Name Ethernet Over Coaxial Media Converter Receiver Product Number EOC1110R UPC 065030849258 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Ethernet Over Coaxial LAN Receiver Product Title (Standard) Gigabit Ethernet Over Coaxial LAN Extender Receiver - 2.4 km Product Title (Long) Gigabit Ethernet Over Coaxial LAN Extender Receiver - 2.4 km Product Title (AMZ) Gigabit Ethernet over Coaxial LAN Extender Receiver 2.4 km (1.5 mi) - IP to Coax Converter - Ethernet over RG6 Coax Receiver (EOC1110R) Title Ingram (Part 1) Gigabit Ethernet Over Coaxial LA Title Ingram (Part 2) N Extender Receiver - 2.4km Website Product Headline Extend an Ethernet network over Coaxial cable up to 1.5 miles (2.4km) - Receiver only Bullet 1 Auto-MDIX and Full or Half-Duplex on the Ethernet port Bullet 2 Compliant with HCNA (ITU G.9954 – HPNA 3.1) Bullet 3 Plug and Play design for simple installation; no configuration or software required Bullet 4 Status LEDs for simple monitoring of the device and connection status Bullet 5 Supports point to point, and point to multi-point topologies Bullets (Consolidated) Extend an Ethernet network over Coaxial cable - Up to 1.5 miles (2.4km) - Uses existing coaxial cable: RG-59, RG-6, RG-7, or RG-11 - Supports up to 32 nodes - Receiver only - IP to Coax converter - Ethernet to coax adapter - Ethernet over coaxial - Ethernet over RG6 - Gigabit Ethernet over coax Marketing Copy Applications - Extend an Ethernet network across an existing closed circuit camera network (over coax) without interrupting the analog TV signal
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues at extreme distances
- Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, and other harsh environment applications
- Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related network communications
- Provide high-speed connectivity to a user or network segment that is in an isolated area of a large complex or in another building
- Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)
Website Search Keyword - CopperGate
- Ethernet Extender
- Ethernet over Coax
- HomePNA
- HomePNA 3.1
- Media Converter
- Point to Multi-point
- Point to Point
- Network over cable
- Closed circuit
- EOC110R
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements 75Ω (ohm) coaxial RG-59, RG-6, RG-7, or RG-11 cable is required Accessory Products - BNCCOAXFM
- CRG6F
- CRG6FT
- CRG6FT5PK
- INSERTVIDF
- M45PATCH10BK
- M45PATCH10BL
- M45PATCH10GR
- M45PATCH15BK
- M45PATCH15BL
- M45PATCH25BK
- M45PATCH25BL
- M45PATCH6BK
- M45PATCH6BL
- WIRC5ERG6CMR
- WIRRG6CMR
- EOC1110K
- SVA12M2NEUA
- SVA12M5NA
Related Products - 110VDSLEXT
- IMC110MMSC
- MCM110SC2
- MCM110SC2P
- MCM110ST
- MCM110ST2
- MCM110ST2P
- MCMGBSC055
- MCMGBSC15
- MMC110MMST
Input Current 260 mA Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 140.000 Product Width (mm) 90.000 Product Height (mm) 90.000 Product Weight (g) 320.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate Max Transfer Distance 2.4 km (1.5 mi) MTBF (hours) 57,000 Hours Industry Standards - IEEE 802.3ab 1000BASE-T
- HCNA (ITU G.9954 – HPNA 3.1)

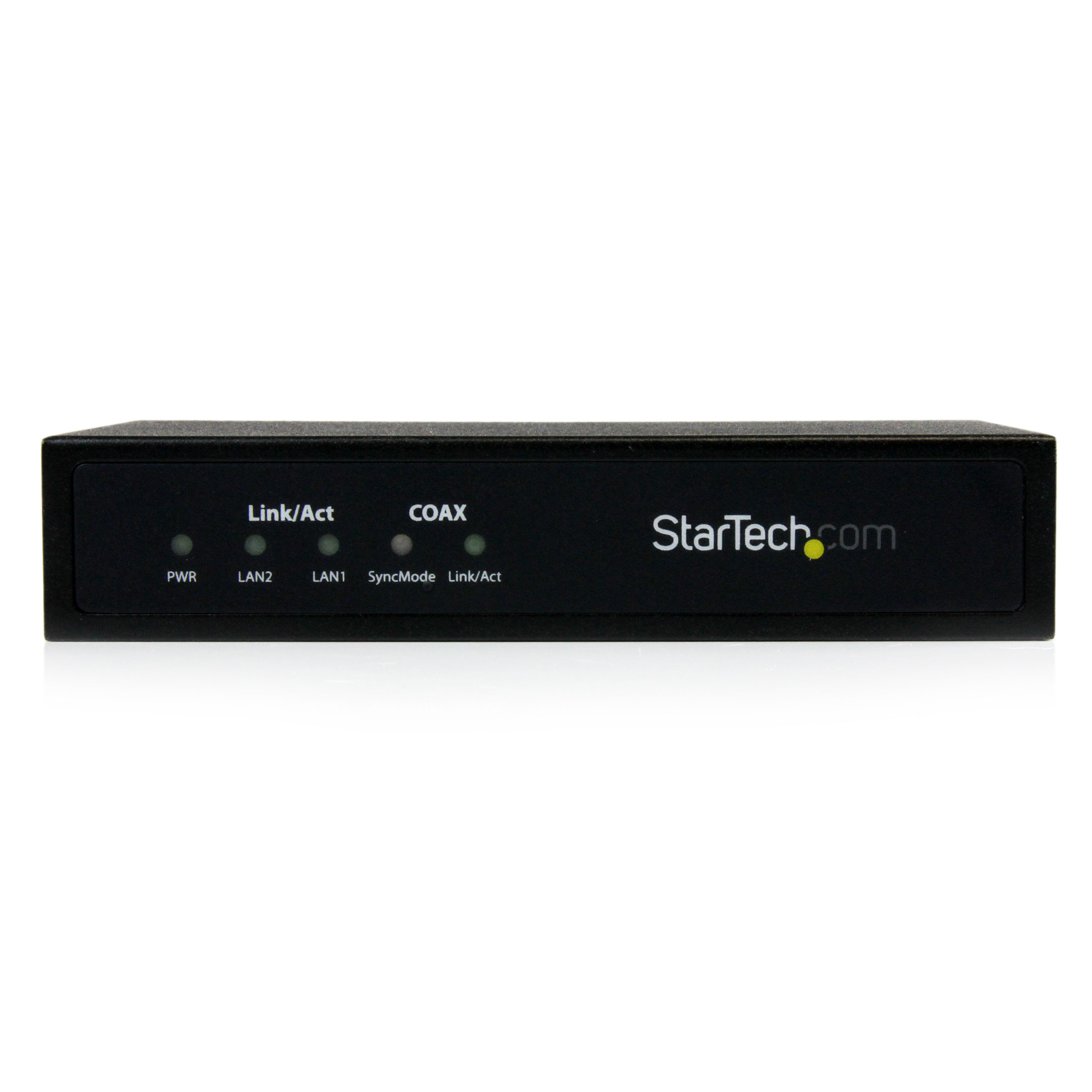

LED Indicators - 1 - Coax Link/Activity
- 1 - Coax Sync
- 1 - LAN Link/Activity
- 1 - Power

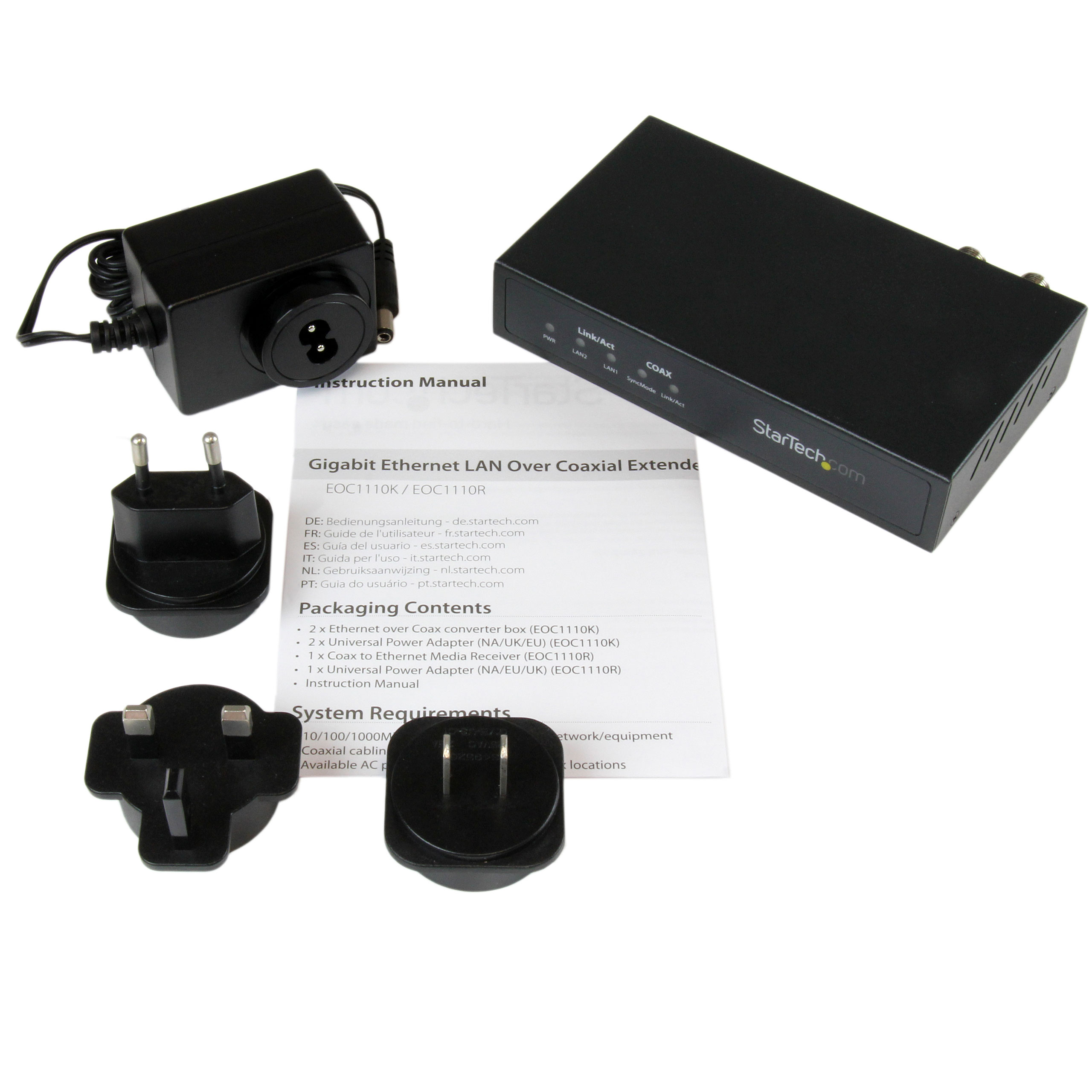

Carton Depth (mm) 406 Carton Height (mm) 273 Carton Quantity 12 Carton Weight Gross (g) 9340 Included in Package - 1 - Coax to Ethernet Media Receiver
- 1 - Universal Power Adapter (NA/EU/UK/AU)
- 1 - User Manual
Package Depth (mm) 189 Package Height (mm) 79 Package Width (mm) 234 Package Quantity 1 Package Weight (g) 708 Packaging Description Gigabit LAN Extender over Coax - Receiver Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Host Connector 1 RF Coax (F-Type) Host Connector 1 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-08-21 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
