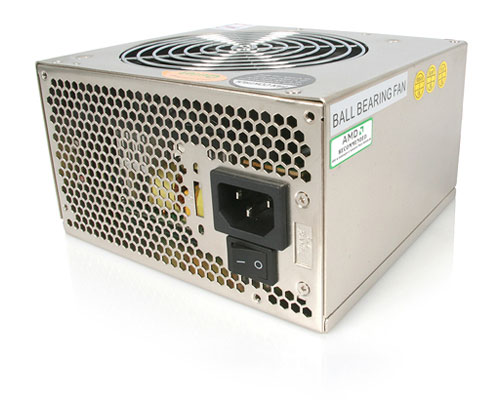

600W EPS12v 2.2 ATX12V 2.01 P4 Silent Power Supply with 12cm Fan

Main Image

Product Name	600W EPS12v 2.2 ATX12V 2.01 P4 Silent Power Supply with 12cm Fan
Product Number	EPSPOW600HS
UPC	065030819626
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	1
Country of Origin History (2)	China

Product Title (Long)	600W EPS12v 2.2 ATX12V 2.01 P4 Silent Power Supply with 12cm Fan
Bullet 1	ATX12V 2.01 compliant and 24/20 pin split ATX connector for compatibility with existing standards
Bullet 2	Generous number of accessory connectors
Bullet 3	Nickel-plated finish
Bullet 4	Premium EMI/RFI power filtration provides low noise and ripple for stable power delivery
Bullet 5	Quad+1 protection against: short circuit, over power, over voltage, no load
Marketing Copy	This 600 Watt, Silent power supply is the perfect addition to dual-core processor and current entry server systems. With Active Power Factor Correction for more efficient power distribution, as well as Four 12V power rails and premium EMI/RFI power filtration for low noise and ripple, this is the ideal solution for delivering stable power to the most demanding devices. Plus, with Quad+1 protection from short circuit, over power, over voltage and no-load situations, as well as a 12cm dual ball bearing fan for superior air flow, you can rest assured that this power supply will be as dependable as you need it to be. Compliant with Intel's Server System Infrastructure (SSI), the EPSPOW600HS offers a generous number of accessory connectors, including SATA and PCI Express connectors, to maximize your configuration possibilities
Applications	Ideal for adding PCI Express and SATA power support to existing computers The perfect choice for new system builds and upgrades
Website Search Keyword	PCI-e

Accessory Products
ATX2024FM
ATXPOWEXT
LP4PCIEXADAP
PXT101
PYO2L
PYO2S
PYO2SL
Related Products
ATX2PW400PRO
ATX2PW450PRO
ATX2PW550PRO
Material Nickel-plated Steel
Product Length (mm) 150
Product Width (mm) 140
Product Height (mm) 86
Product Weight (g) 2500
TAA Compliant No
General Specifications
Dual 12V Power Rail: Yes
Input Current/Draw: 115V (10A), 230V (5.5A)
MTBF: 100,000 hours @ 25 deg. C.
Fan Bearing Type Ball Bearing
Fans 1 - 120 mm
Included in Package
1 - Instruction Manual
1 - Power supply
1 - Standard power cable

Accessory Products	ATX2024FM ATXPOWEXT LP4PCIEXADAP PXT101 PYO2L PYO2S PYO2SL
Related Products	ATX2PW400PRO ATX2PW450PRO ATX2PW550PRO

Fan Bearing Type	Ball Bearing
Fans	1 - 120 mm
