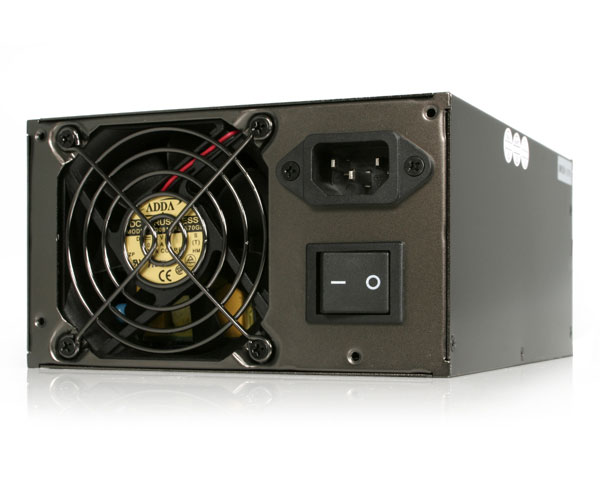

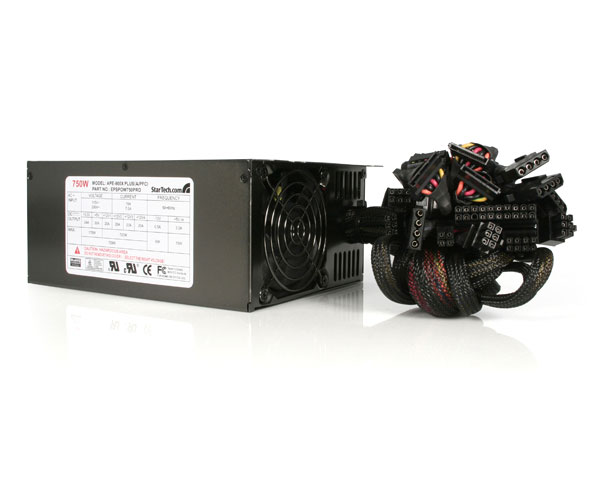

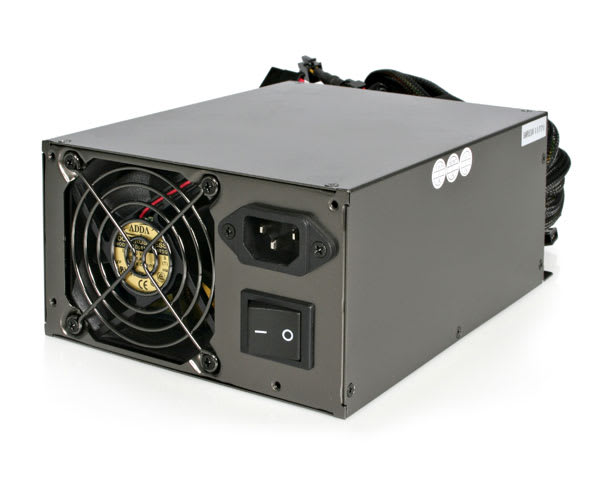

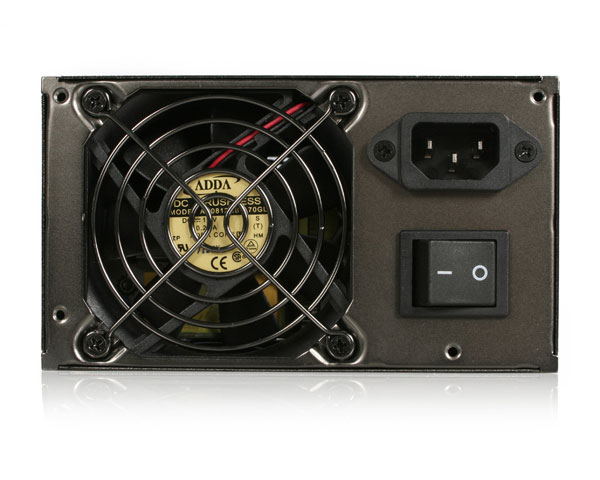

Product Name 750 Watt Dual Fan EPS Power Supply Product Number EPSPOW750PRO UPC 065030824132 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Long) WattSmart 750W EPS12V Ver 2.91 80 PLUS Power Supply Bullet 1 Two Dual Ball Bearing 80mm fans for extended life span Bullet 2 Over Current Protection (OCP), 240VA Protection, Over Voltage Protection, Over Power Protection and Short Circuit Protection Bullet 3 Cable-tube (mesh) on main power cables for better cable management and neatness to improve airflow in system Bullet 4 High performance components designed for extra long life span and providing maximum system performance Bullet 5 Anti-corrosive nickel-plated Marketing Copy Applications - SLi ready for full support of NVIDIA's high end graphic PC cards
- Installations requiring 80PLUS certification standard for higher efficiency power supplies, and for server/workstation upgrades or system builds required to meet new Energy Star specifications
- Designed with active power factor correction and RoHS compliance to meet requirements for installations in UK and Europe
- Servers and systems incorporating multiple hard drives such as SAS hard drives or hard drives with 10000 or greater RPM speeds
Website Search Keyword - nvidia sli ready certified
- 80PLUS
- EPS12V 2.91 APFC Active PFC power factor correction
- high efficiency
Accessory Products PXT101 Related Products - EPSPOW650PRO
- EPSPOW850PRO
- ATX2PW550PRO

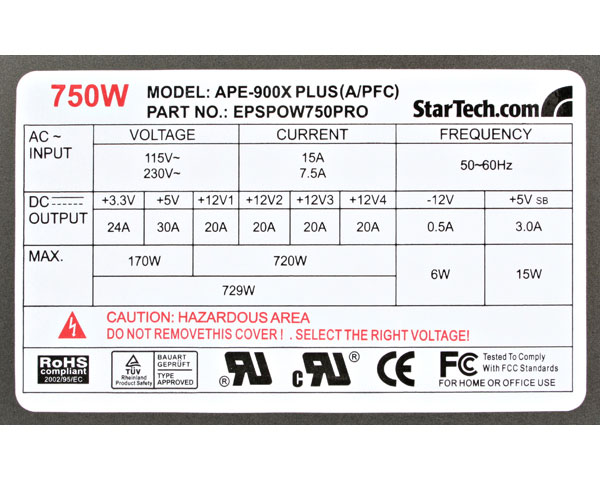

Input Current 15A @ 115V~ / 7.5A @ 230V~ Color Black Material Nickel-plated Steel Operating Temperature Product Length (mm) 190 Product Width (mm) 150 Product Height (mm) 86 Product Weight (g) 2950 Storage Temperature -20 degrees ~ 80 degrees C TAA Compliant No General Specifications - +3.3V DC Output: 24A
- +5V DC Output: 30A
- +12V1 DC Outout: 20A
- +12V2 DC Outout: 20A
- +12V3 DC Outout: 20A
- +12V4 DC Outout: 20A
- -12V DC Output: 0.5A
- +5V sb DC Output: 3.0A
- Peak Output: 850W

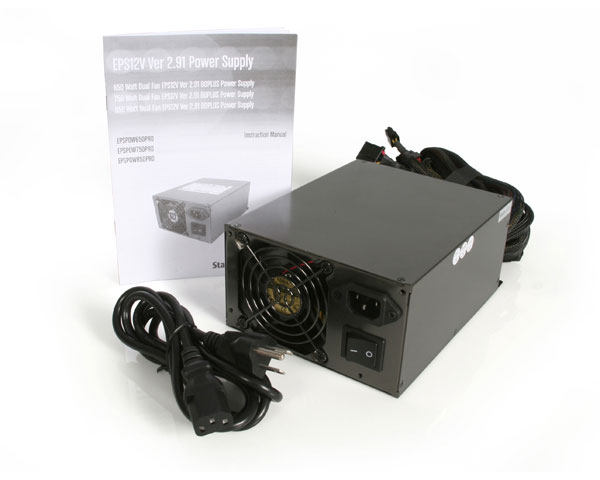

MTBF (hours) 100,000 Hours @ 25°C Noise Level Fan Bearing Type Ball Bearing Fans 2 - 80 mm Carton Depth (mm) 263 Carton Height (mm) 354 Carton Quantity 10 Carton Weight Gross (g) 21300 Included in Package - 1 - Power Supply
- 1 - Power Cord
- 1 - Manual
Package Depth (mm) 100 Package Height (mm) 300 Package Width (mm) 200 Package Weight (g) 3350 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 EPS12V Power (12V, 336W) Connector 2 (Quantity) 1 Connector 3 PCIe Power (6-Pin, 12V, 75W) Connector 3 (Quantity) 4 Connector 4 ATX Power (4-Pin, 12V, 192W) Connector 4 (Quantity) 1 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 6 Connector 6 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 6 (Quantity) 6 Connector 7 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 7 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
