ES3105
Main Image

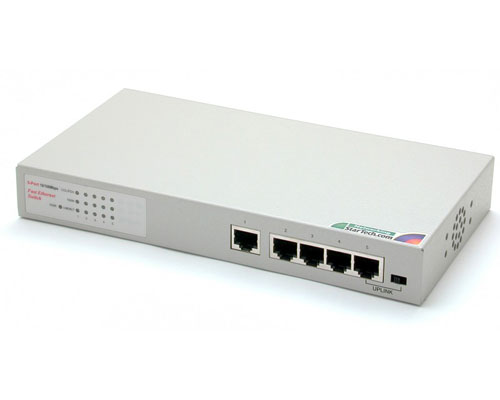

Product Name *D*5-Port 10/100-Mbps Ethernet Switch - Full Duplex Product Number ES3105 UPC 065030782746 Taxonomy Product > Legacy Discontinued Product Title (Long) *D*5-Port 10/100-Mbps Ethernet Switch - Full Duplex Bullet 1 Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards. Bullet 2 Simple and economical way to bridge 10BaseT network and 100BaseTX network. Bullet 3 Easily connect and segment five Fast Ethernet hubs or segments. Bullet 4 All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function. Bullet 5 Supports store-and-forward switching architecture. Marketing Copy Whether you need to mix 10Mbps and 100Mbps connections, or want to extend your network beyond your current cabling length limitations, the StarTech.com full-duplex, 5-Port 10/100-Mbps Ethernet switch will be an invaluable addition to your expanding network. Up to 5 Fast Ethernet hubs or segments can be connected via RJ-45 ports and LED's for each port indicate network status at a glance. TAA Compliant No General Specifications - Standards: IEEE 802.3 10BaseT and 802.3u 100BaseTX
- 10/100Mbps Ports: (5) RJ-45
- Switching Architecture: Store and Forward
- Filter/Forward Rate: 148,800 packets/sec.
- MAC Address: 8K
- Buffer Size: 1MB
- Nway Auto-negotiation: on all ports
- Full-Duplex/Half-Duplex: on all ports
- Switch LED: Power
- Port LEDs: Link/Activity, 100M, Collision/Full-Duplex
- Dimensions: 220 x 117 x 30 mm (8.67 x 4.61 x 1.18 in.)
- Weight: 800g (1.76 lb.)
- Power: 5V DC, 3A
- Operating Temperature: 0-55 deg C (32-131 deg F)
- Operating Humidity: 10-95% non-condensing
- Emission: FCC Class A & CE Mark
Included in Package - 1 - 5 PORT ETHERNET HUB
- 1 - POWER CORD
- 1 - POWER ADAPTOR
- 1 - INSTRUCTION MANUAL
- 1 - SET OF SCREWS AND PLATES
en-US Content Approved Yes
