ES3132RGB
Main Image

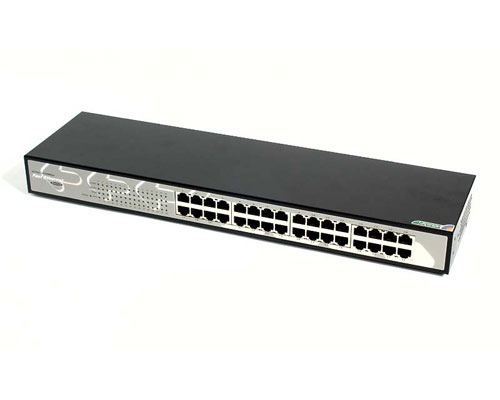

Product Name 24 Port 10/100 Mbps Ethernet Switch Product Number ES3132RGB UPC 065030800761 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) 24 Port 10/100 Mbps Ethernet Switch Bullet 1 Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards. Bullet 2 Simple and economical way to bridge 10BaseT network and 100BaseTX network. Bullet 3 Easily connect and segment 32 Fast Ethernet hubs. Bullet 4 IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex. Bullet 5 All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function. Marketing Copy Whether you need to mix 10Mbps and 100Mbps connections, or want to extend your network beyond your current cabling length limitations, the StarTech.com full-duplex, 32-Port 10/100-Mbps Ethernet switch will be an invaluable addition to your expanding network. Up to 32 Fast Ethernet PCs, hubs or cascaded switches can be connected via the RJ-45 ports. LED's for each port indicate network status at a glance. Power Source AC Adapter Included Color Gray TAA Compliant No General Specifications - Standards: IEEE 802.3 10BaseT and 802.3u 100BaseTX
- 10/100Mbps Ports: (32) RJ-45
- Switching Architecture: Store and Forward
- Filter/Forward Rate: 148,800 packets/sec.
- MAC Address: 4K
- Buffer Size: 1 MByte
- Nway Auto-negotiation: on all ports
- Switch LED: on all ports
- Port LEDs: Link/Activity, 100M, Collision/Full-Duplex
- Dimensions: 440 x 120 x 45 mm (17.3 x 4.7 x 1.75 in.)
- Weight: 2.6 kg (5.6 lb.)
- Power: 100~240VAC, full range internal power supply
- Operating Temperature: 0-55 deg C (32-131 deg F)
- Operating Humidity: 10-95% non-condensing
- Emission: FCC Class B & CE Mark
Connector 1 RJ-45 Connector 1 (Quantity) 1 en-US Content Approved Yes
