Main Image
ET1000S40LC2

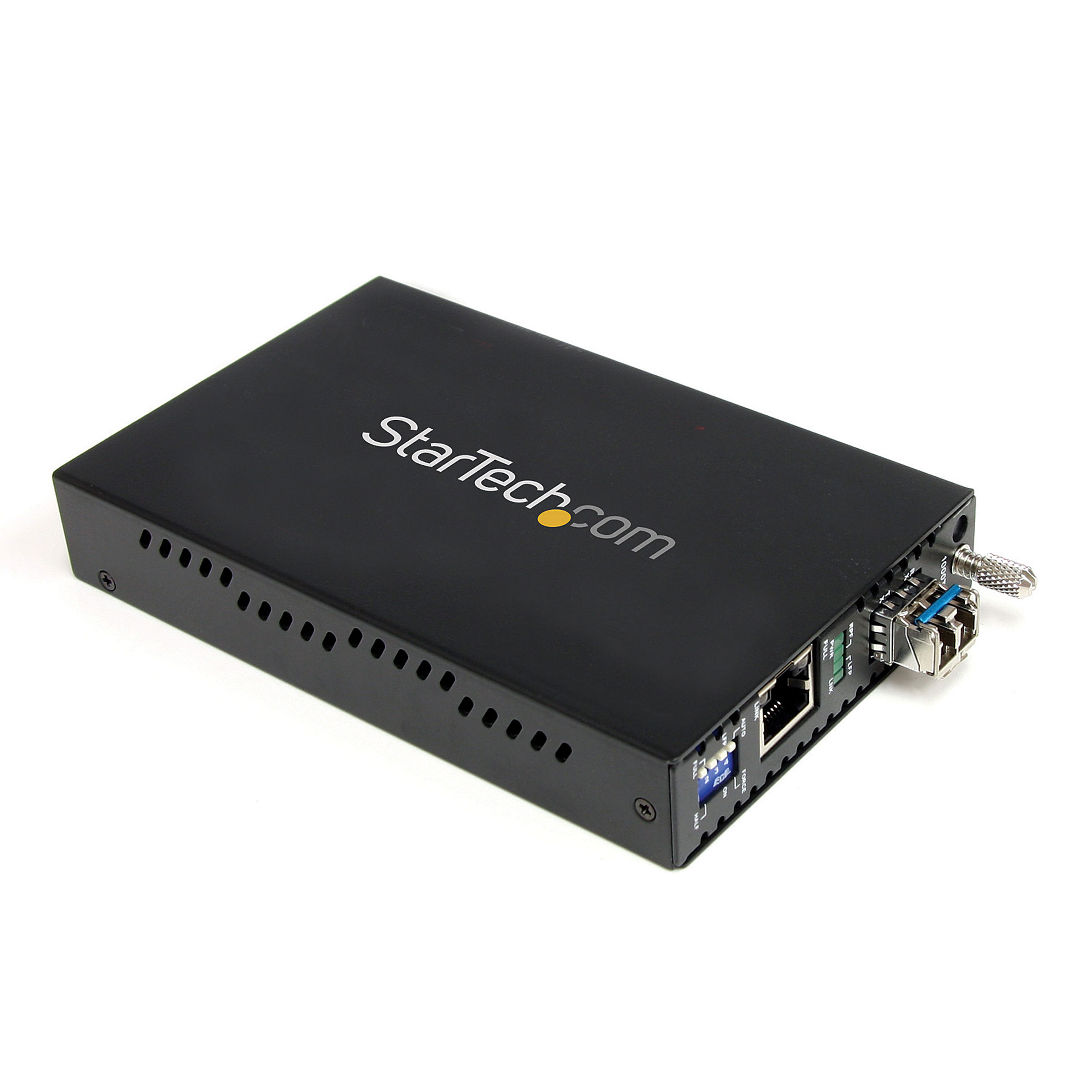

Gigabit Single Mode Fiber Media Converter LC
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Gigabit Single Mode Fiber Media Converter LC Product Number ET1000S40LC2 UPC 065030846066 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Single Mode Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Gigabit Fiber Media Converter LC 40 km Product Title (Medium) x Product Title (Standard) 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km, TAA Product Title (Long) 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km - TAA Product Title (AMZ) Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Network - 40km - Gigabit Ethernet - 1310nm- with SFP Transceiver , TAA (ET1000S40LC2) Title Ingram (Part 1) Gigabit Single Mode Fiber Media Title Ingram (Part 2) Converter LC 40 km Website Product Headline Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber Bullet 1 Advanced features include Link-loss forwarding, remote monitor status, two frame lengths Bullet 2 Easy installation Bullet 3 Maximum Fiber Cable length of 40 Km Bullet 4 Supports full or half-duplex operation Bullets (Consolidated) Convert and extend a Gigabit Ethernet connection up to 24.8 miles (40km) over Single Mode LC fiber - GbE Single Mode Fiber Media Converter/Gigabit Ethernet Media Converter - Fiber Optic Converter/1000 Base-SX Fiber Converter - RJ45 Gigabit to Fiber/1000Mbps RJ45 to LC Converter - Convert Ethernet to fiber as a standalone device - Can be installed into the ETCHS2U 20 slot chassis - Rugged steel casing for durability in harsh environments/Cost-effective way to extend or bridge a network Marketing Copy Marketing Copy (No HTML) Applications - Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over single mode fiber cable
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Perfect for secure connections required by government agencies where EMI is not acceptable
- Connect traffic control/monitoring systems at extreme distances to the main office
Website Search Keyword - Ethernet Fiber Media Converter
- Media Converter
- LC
- gigabit
- 1000Base-LX
- fibre converter
- coax to fiber
- coax to fibre
- ethernet to fiber
- copper to fibre
- ethernet fibre
- copper to optical
- copper to fiber
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - C6PATCH10BL
- C6PATCH15BL
- ETCHS2U
- SFPLHSM
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET91000SC
- ET91000SM40
- MCMGBSC15
- ET91000MMSM
- ET91000LC
- MCMGBSC055

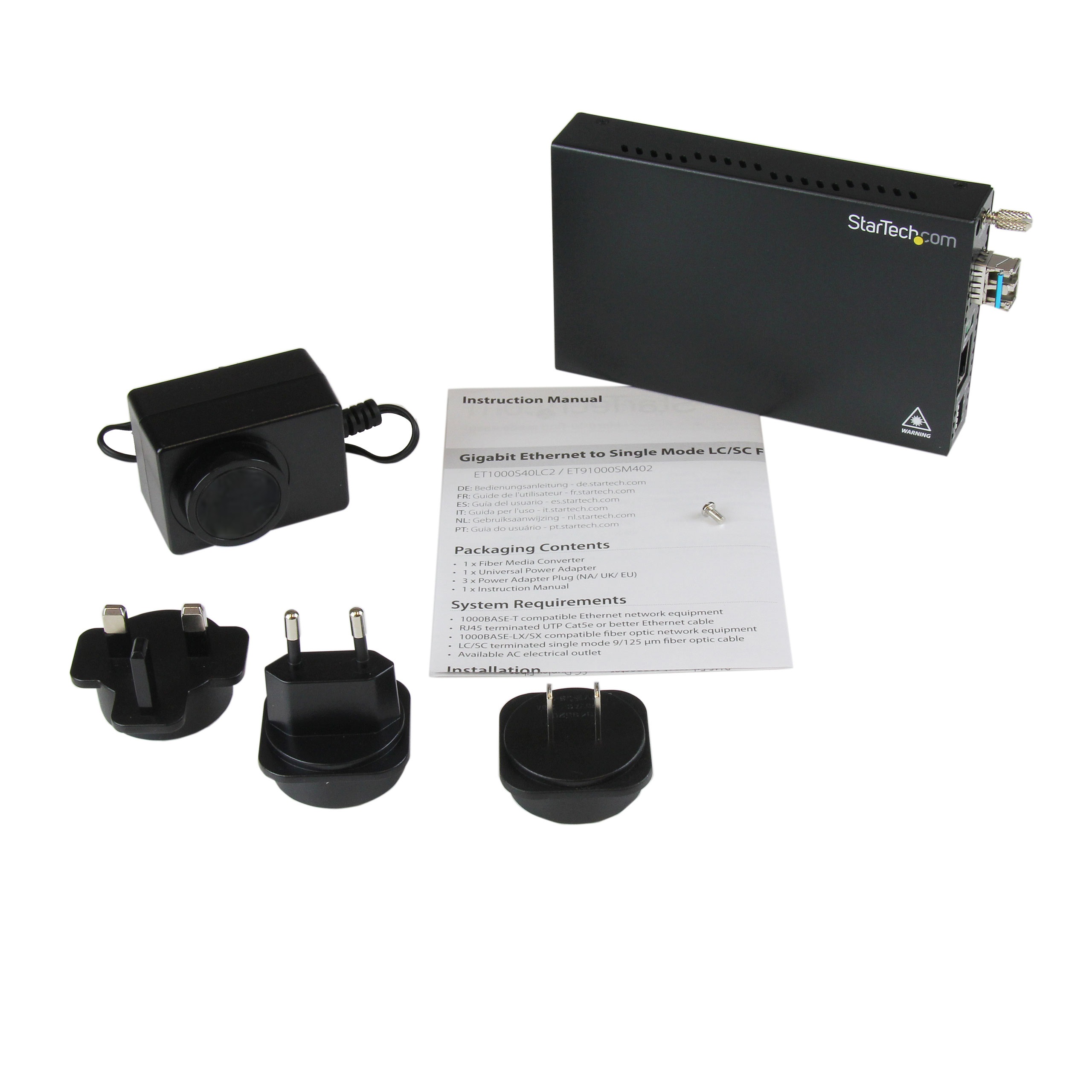

Input Current 0.36A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 155 Product Width (mm) 87 Product Height (mm) 24 Product Weight (g) 407 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Jumbo Frame Support 9K max. Maximum Data Transfer Rate 2000 Mbps (full duplex mode) Max Transfer Distance 40 km (24.8 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector LC Industry Standards Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 441 Carton Height (mm) 302 Carton Quantity 15 Carton Weight Gross (g) 12364 Included in Package - 1 - Fiber Media Converter
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Instruction Manual
- 1 - Grounding Screw
Package Depth (mm) 206 Package Height (mm) 91 Package Width (mm) 137 Package Quantity 1 Package Weight (g) 772 Packaging Description Gigabit Ethernet to LC Fiber Converter 40 km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 LC Duplex Fiber Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
