ET1000SM40LC
Gigabit Single Mode Media Converter (LC-40Km)
Convert and extend a Gigabit Ethernet connection up to 40 km over Single Mode LC fiber
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Gigabit Single Mode Media Converter (LC-40Km) Product Number ET1000SM40LC UPC 065030827324 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) 1000BASE-LX LC Fiber Media Converter Product Title (Standard) 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km Product Title (Long) 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km Title Ingram (Part 1) Gigabit Single Mode Fiber Media Title Ingram (Part 2) Converter LC 40 km Website Product Headline Convert and extend a Gigabit Ethernet connection up to 40 km over Single Mode LC fiber Bullet 1 Advanced features include Link-loss forwarding, loop-back test, remote monitor status, two frame lengths Bullet 2 Cost-effective way to extend/bridge networks using fiber cabling Bullet 3 Easy to use and install Bullet 4 Maximum Fiber Cable length of 40 Km Bullet 5 Supports full or half-duplex operation Marketing Copy Applications Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over single mode cable Website Search Keyword - Ethernet Fiber Media Converter
- Media Converter
- LC
- gigabit
- 1000Base-LX
Accessory Products - C6PATCH10BL
- C6PATCH15BL
- SMFIBLCSC1
Related Products - ET90110SC
- ET90110ST
- ET90110WDM
- ET91000SC

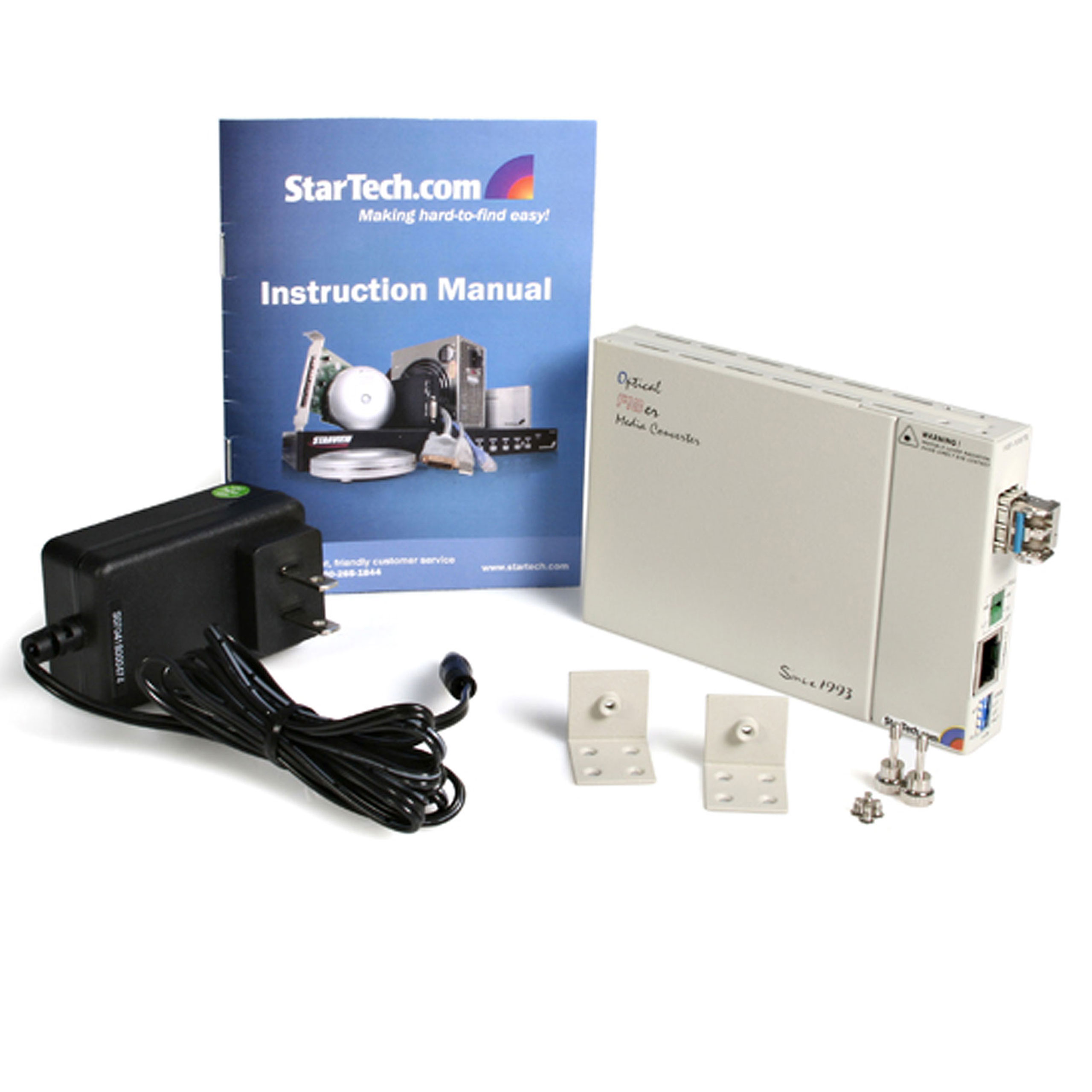

Replacement Product ET1000S40LC2 Equivalent Part Number in the UK ET1000SMLCGB Input Voltage 115V-230V AC Output Current 1A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 123 Product Width (mm) 86 Product Height (mm) 20 Product Weight (g) 400 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 2000 Mbps (full duplex mode) Max Transfer Distance 40 km (24.8 mi) Wavelength 1310nm Fiber Connector LC Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 490 Carton Height (mm) 315 Carton Quantity 12 Carton Weight Gross (g) 9240 Included in Package - 1 - Fiber Media Converter
- 2 - Mounting Brackets (w/ Screws)
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 78 Package Height (mm) 191 Package Width (mm) 234 Package Weight (g) 670 Packaging Description Gigabit Ethernet to LC Fiber Converter 40 km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LC Duplex Fiber Connector 1 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
