ET10GSFP
10GbE Fiber Media Converter Open SFP Managed
Convert and extend a high-speed, copper (10GBASE-T) connection over fiber (10GBASE-R), using the 10Gbe SFP+ transceiver of your choice
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 10GbE Fiber Media Converter Open SFP Managed Product Number ET10GSFP UPC 065030864169 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Open Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) 10Gb Media Converter Product Title (Short) 10GbE Fiber Media Converter - Open SFP+ Product Title (Medium) 10 Gigabit Ethernet Copper-to-Fiber Media Converter - Open SFP+ - Managed Product Title (Standard) 10 Gigabit Ethernet Copper-to-Fiber Media Converter - Open SFP+ - Managed - 10G Ethernet Media Converter Product Title (Long) 10 Gigabit Ethernet Copper-to-Fiber Media Converter - Open SFP+ - Managed - TAA Product Title (AMZ) 10 Gigabit Ethernet Copper-to-Fiber Media Converter - Open SFP+ - Managed - 10G Ethernet Media Converter (ET10GSFP) Title Ingram (Part 1) 10GbE Fiber Media Converter Title Ingram (Part 2) with an Open SFP+ Slot - Managed Website Product Headline Convert and extend a high-speed, copper (10GBASE-T) connection over fiber (10GBASE-R), using the 10Gbe SFP+ transceiver of your choice Bullet 1 Achieve faster network access over longer distances, and extend your 10Gb copper (RJ45) network using fiber optic cable Bullet 2 Integrate into your network using the SFP+ transceiver of your choice — the open SFP+ slot is compatible with most 10Gbps SFP+ modules Bullet 3 Manage and customize the media converter to fit your needs, using the serial console management port Bullet 4 Empty expansion bay lets you install an additional converter card using a compatible StarTech.com ET91000 series media converter card module Bullet 5 Four link fault pass-through (LFP) modes (UTP to fiber, fiber to UTP, two-way, disabled) Bullets (Compact) Convert & extend a high-speed, copper connection over fiber, using the 10Gbe SFP+ transceiver of your choice - 10 Gigabit Ethernet Copper-to-Fiber Media Converter with Open SFP+ Slot - Flexible setup using the SFP+ module that's best for your network Bullets (Consolidated) Convert and extend a high-speed copper (10GBASE-T) connection over fiber (10GBASE-R) using the 10Gbe SFP+ transceiver of your choice - 10 Gigabit Ethernet Copper-to-Fiber Media Converter/Open SFP+/Managed - 10G Ethernet Media Converter w/ SFP+ Slot - Extend your network over long distances using fiber-optic cable - Flexible setup using the SPF+ module that's best for your network/Customize to fit your needs using the serial console management port - Empty expansion bay/Supports LFP Marketing Copy Marketing Copy (No HTML) Applications - Open SFP slot lets you customize your connection mode or distance using most MSA-compliant transceivers
- Transmit full 10 Gigabit network speeds to remote areas over longer distances than copper (RJ45) cabling
- Use fiber-optic cable to extend or bridge your network to a separate building
- Install a second converter card using a compatible StarTech.com ET91000 series media card module (for example, ET91000SFP2C - sold separately)
Website Search Keyword - Fiber media converter
- 10 Gigabit Fiber media converter
- 10Gbps Fiber media converter
- 10Gbe Fiber media converter
- 10 Gigabit Ethernet Fiber media converter
- 10gb Fiber media converter
- open sfp fiber media converter
- 10g media converter
- 10g copper to fiber converter
- copper to fiber
- fiber to copper
- sfp+ media converter
- managed 10G media converter
- fiber optic media converter
- fiber to ethernet media converter
- Fiber Optic transmitter
- ethernet media converter
- ethernet to fiber
- multimode fiber media converter
- Gigabit Ethernet Fiber Media Converter with Open SFP Slot
- fiber ethernet media converter
- multimode fiber ethernet media converter
- multimode fiber converter
- 10gb media converter
- 10 gigabit media converter
- 10gb fiber media converter
- 10gb fiber converter
- Ethernet fiber extender
- managed Fiber Media Converter
- managed 10gb Fiber Media Converter
- open sfp ethernet media converter
- open sfp 10 gigabit fiber media converter
- rj45 to fiber media converter
- single SFP+ slot media converter
- rj45 to fiber converter
- rj45 to fiber
- network media converter
- Long distance ethernet
- fiber to copper network converter
- copper to fiber network converter
- ethernet network media converter
- 10 gigabit ethernet fiber media converter
- 10 gigabit fiber converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Fiber protocols, data transfer speeds and distances are dependent on the SFP+ transceiver used (sold separately). System and Cable Requirements - MSA-compliant 10 Gigabit SFP+ transceiver module (Mini-GBIC).
- The media converter can only be used with 10 Gigabit SFP+ modules and will not support 10/100/1000Mbps modules.
Accessory Products - PEX10000SFP
- PEX20000SFPI
- ST10000SPEX
- ST20000SPEXI
- SFP10GSRST
- SFPCMM3M
- SFPCMM2M
- SFPCMM1M
- C6ASPAT3BL
- C6ASPAT35BL
- C6ASPAT14BK
- ET91000SFP2C
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET91000SM10
- ET91000SM20
- MCM1110SFP
- MCM1110MMLC
- ET91000SFP2
Input Current 0.75 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~85% RH (Non-condensing) Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 169.000 Product Width (mm) 98.000 Product Height (mm) 45.000 Product Weight (g) 656.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10 Gbps Fiber Operating Mode Full-Duplex Fiber Type - Multi Mode
- Single Mode
Flow Control None Jumbo Frame Support 9.6K max. Maximum Data Transfer Rate 20 Gbps (Full-Duplex) MTBF (hours) 57,000 Hours Remote Management Ability Yes Switching Architecture None Fiber Connector Open Industry Standards - IEEE 802.3ae 10GBASE-R (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-SW, 10GBASE-LW, 10GBASE-EW)
- IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3an (10GBASE-T)

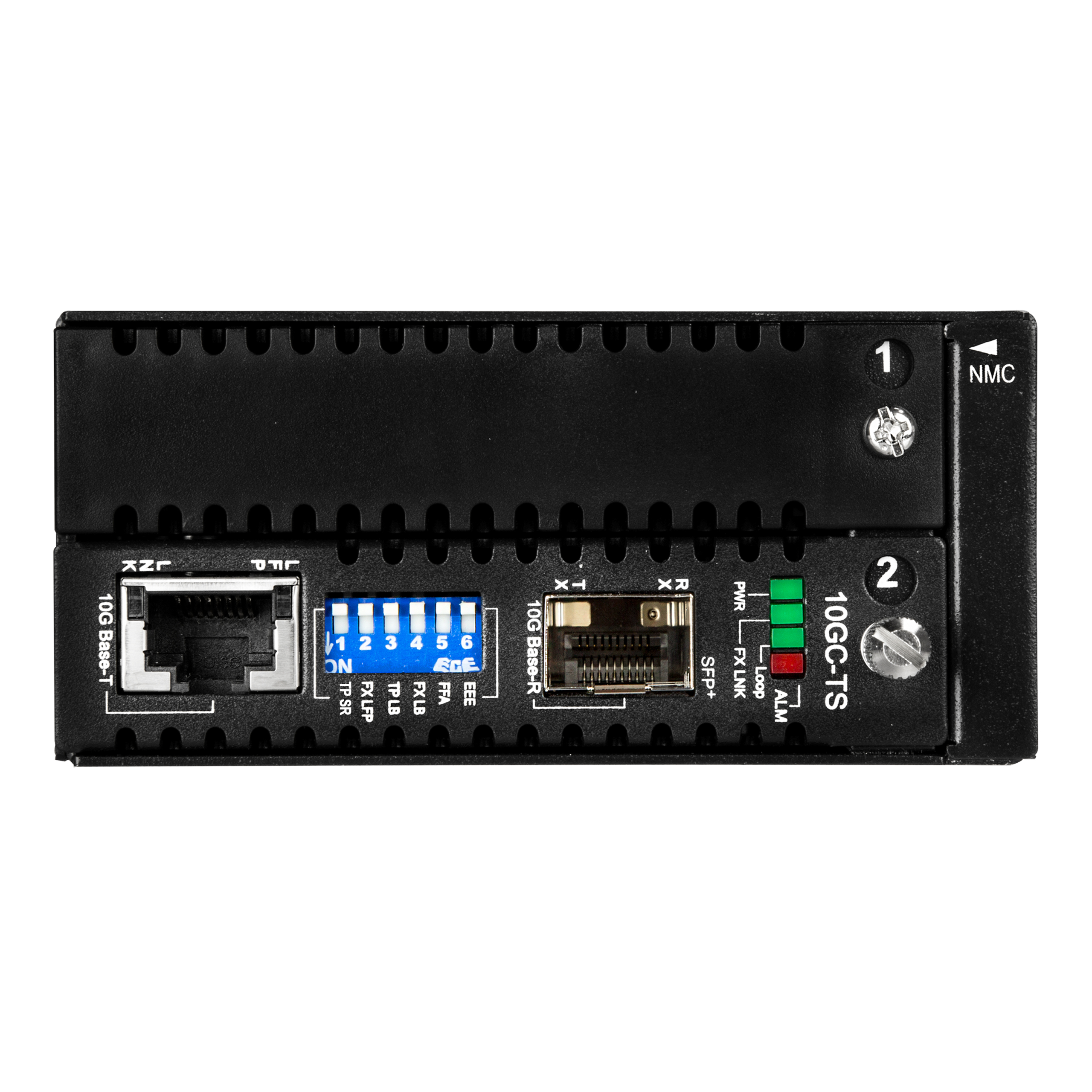

LED Indicators - 1 - Power
- 1 - Fiber Link
- 1 - UTP (RJ45) Link
- 1 - Link fault pass-through (LFP)
- 1 - Loop
- 1 - Alarm

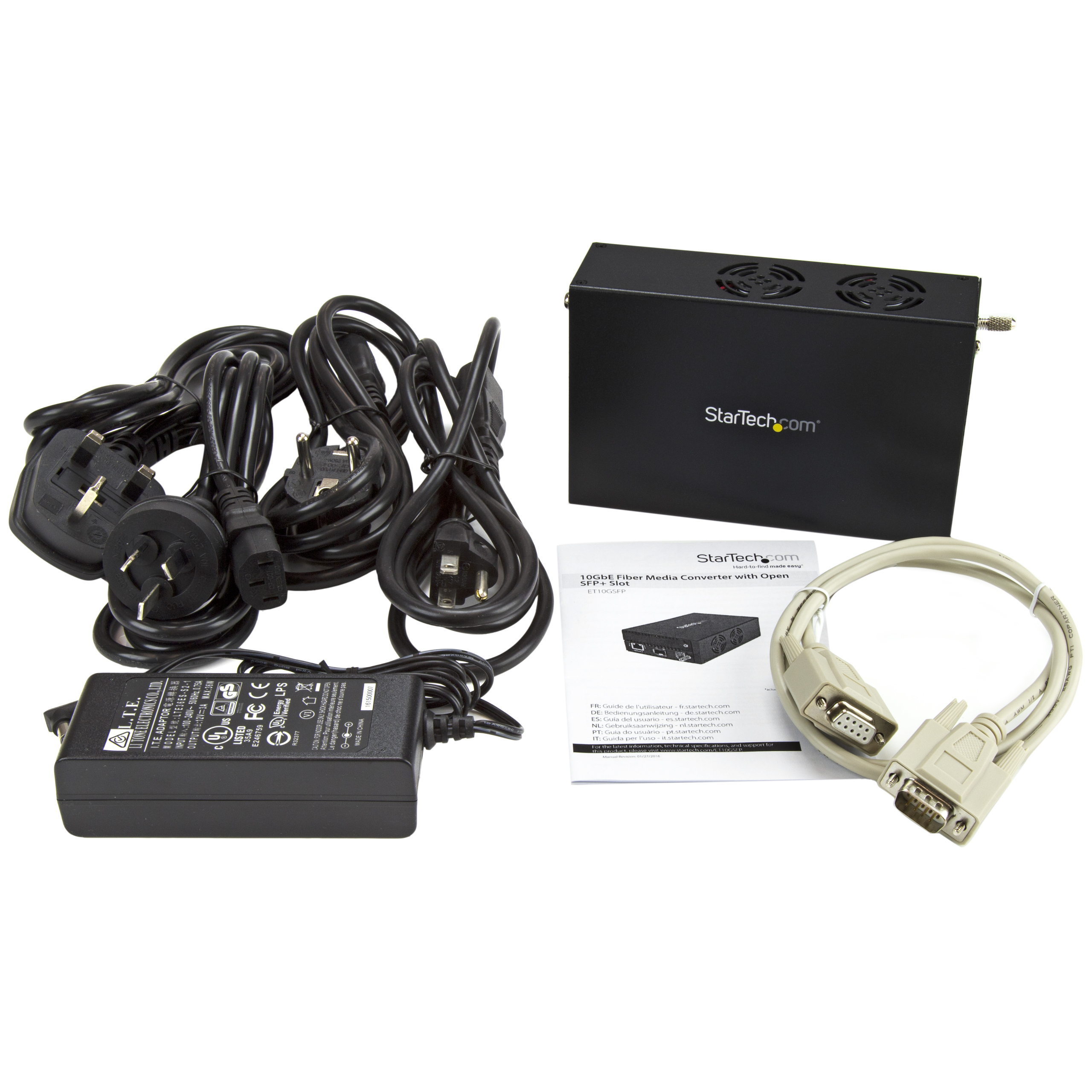

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 366 Carton Height (mm) 356 Carton Quantity 8 Carton Weight Gross (g) 16552 Included in Package - 1 - 10Gb Ethernet fiber media converter
- 4 - power cords (NA/EU/UK/AU)
- 1 - universal power adapter
- 1 - quick start guide
- 1 - grounding screw
Package Depth (mm) 233 Package Height (mm) 81 Package Width (mm) 334 Package Quantity 1 Package Weight (g) 1926 Packaging Description 10GbE Fiber Media Converter with Open SFP+ Slot Packaging Description India 10GbE Fiber Media Converter with Open SFP+ Slot Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 SFP+ Slot Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Host Connector 3 DB-9 Serial Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-11-09 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-03-11 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
