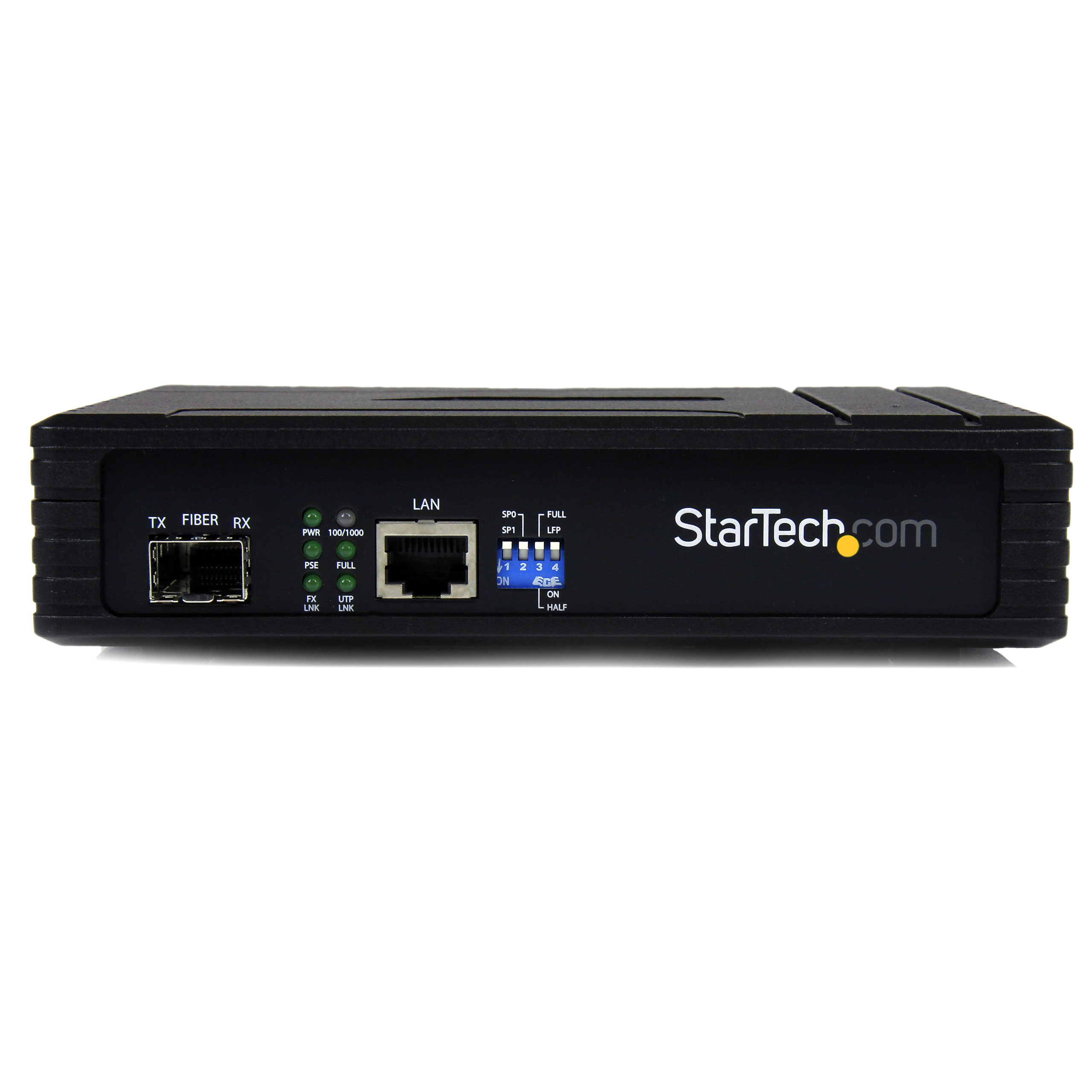

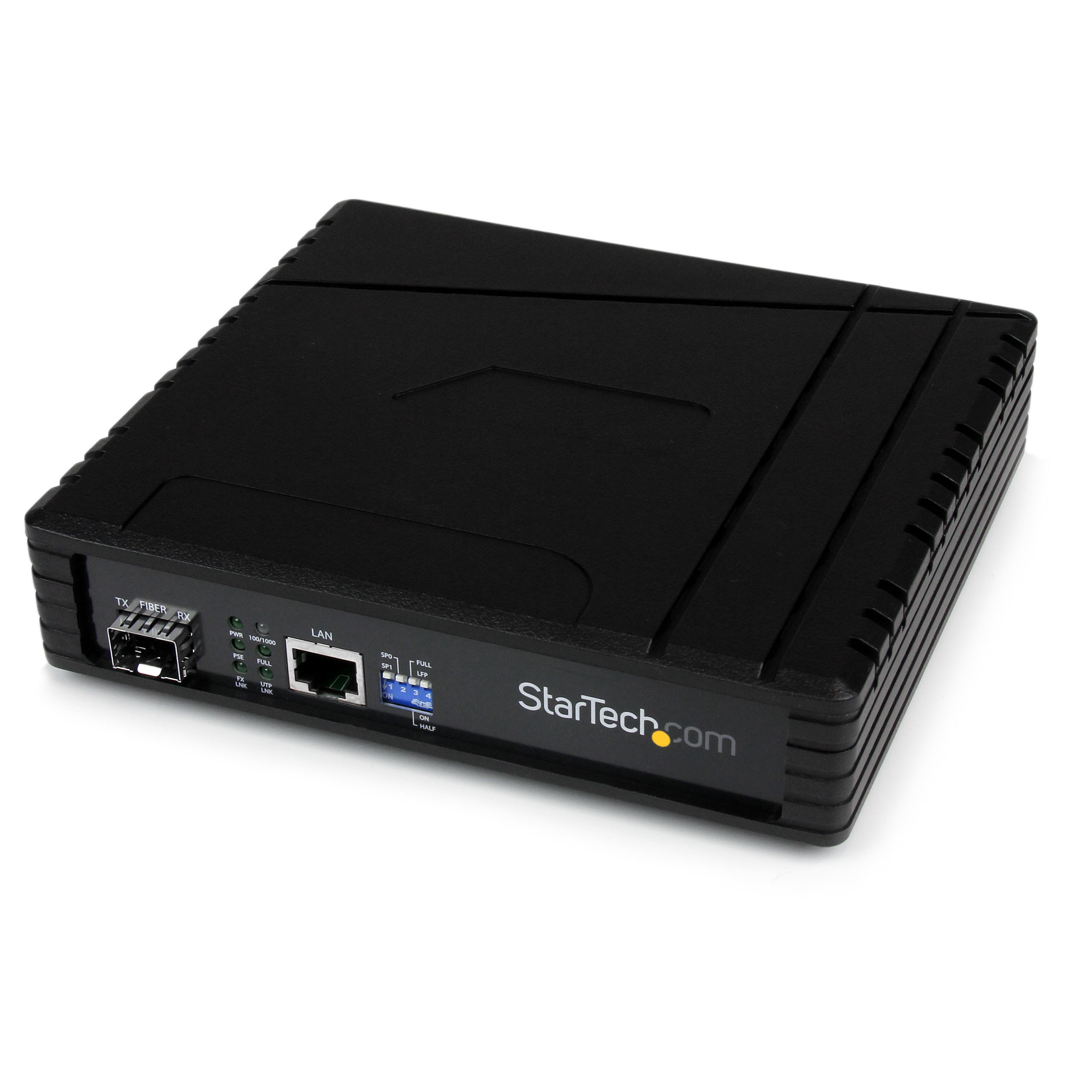

ET1110PSE
PoE Gigabit Ethernet Fiber Media Converter - SFP
Power an individual PoE-capable device with this open SFP PSE Media Converter
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name PoE Gigabit Ethernet Fiber Media Converter - SFP Product Number ET1110PSE UPC 065030846462 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Open Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) PoE Fiber Converter Product Title (Short) Gigabit PoE Fiber Media Converter - SFP Product Title (Standard) Gigabit Ethernet PoE Open SFP Fiber Media Converter – PSE Product Title (Long) Gigabit Ethernet PoE Open SFP Fiber Media Converter – PSE Product Title (AMZ) Gigabit Ethernet PoE Open SFP Fiber Media Converter – PSE - Open SFP Media Converter - 10/100/1000Base-T to 1000Base-SX/LX (ET1110PSE) Title Ingram (Part 1) PSE / PoE Gigabit Ethernet Fiber Title Ingram (Part 2) Media Converter - Open SFP Website Product Headline Power an individual PoE-capable device with this open SFP PSE Media Converter Bullet 1 10/100/1000Base-T to 1000Base-SX/LX Media Converter with open SFP slot Bullet 2 IEEE 802.3af Compliant PSE (power sourcing equipment) Bullet 3 Supports Link Fault Pass-Through (LFPT) function Bullet 4 Supports 1632 bytes (max.) packets Bullet 5 10/100/1000 Mbps Ethernet Auto-negotiation or Forced Mode Bullets (Consolidated) Power an individual PoE-capable device with this open SFP PSE Media Converter - PoE Gigabit Ethernet Fiber Media Converter with Open SFP Slot - Power over Ethernet Open SFP Media Converter/1000Base-SX/LX Ethernet Media Converter - Power over Ethernet Media Converter with PSE port - PoE Fiber Converter lets you use standard Ethernet cabling to deliver power and data - Install equipment in locations without a power outlet - Extend a GbE connection over fiber using the Gigabit SFP of your choice Marketing Copy Applications - Works well in industrial applications, where standard power outlets are not available or are too costly to install
- Perfect for powering a Wireless Access Point (WAP) in a business environment
- Power a security camera/ network webcam situated in a remote area where power connection is not possible, over an Ethernet connection
- Enable remote installation of touchscreens or information kiosks
- Connecting PoE device data and power to Gigabit fiber backbone
Website Search Keyword - Power over Ethernet Media Converter
- Power over Ethernet Fiber Media Converter
- Power over Ethernet Fibre Media Converter
- PoE Media Converter
- PoE Fiber Media Converter
- PoE Fibre Media Converter
- PSE Media Converter
- PSE Fiber Media Converter
- PSE Fibre Media Converter
- Gigabit Fibre
- PSE
- PoE
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) Accessory Products - SFPSXMM
- SFPG1340C
- SFPLHSM
- SFPG1320C
- SFPG1580C
Input Voltage 110V-240V AC Power Consumption (In Watts) 5 Power Source AC Adapter Included Color Black Humidity 10~90% RH (non-condensing) Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 165 Product Width (mm) 145 Product Height (mm) 35 Product Weight (g) 277 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex General Specifications Power Output: 48V DC at 15.4W Supported MTBF (hours) 75,000 Hours @ 25°C Switching Architecture Store and Forward Chipset ID Marvell - 88E6131 Fiber Connector Open Industry Standards - IEEE 802.3af Power over Ethernet
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3x
- IEEE 802.3z 1000BASE-SX
LED Indicators - 1 - Power
- 2 - Link (TX/FX)
- 2 - Duplex (TX/FX)
- 1 - TX Speed

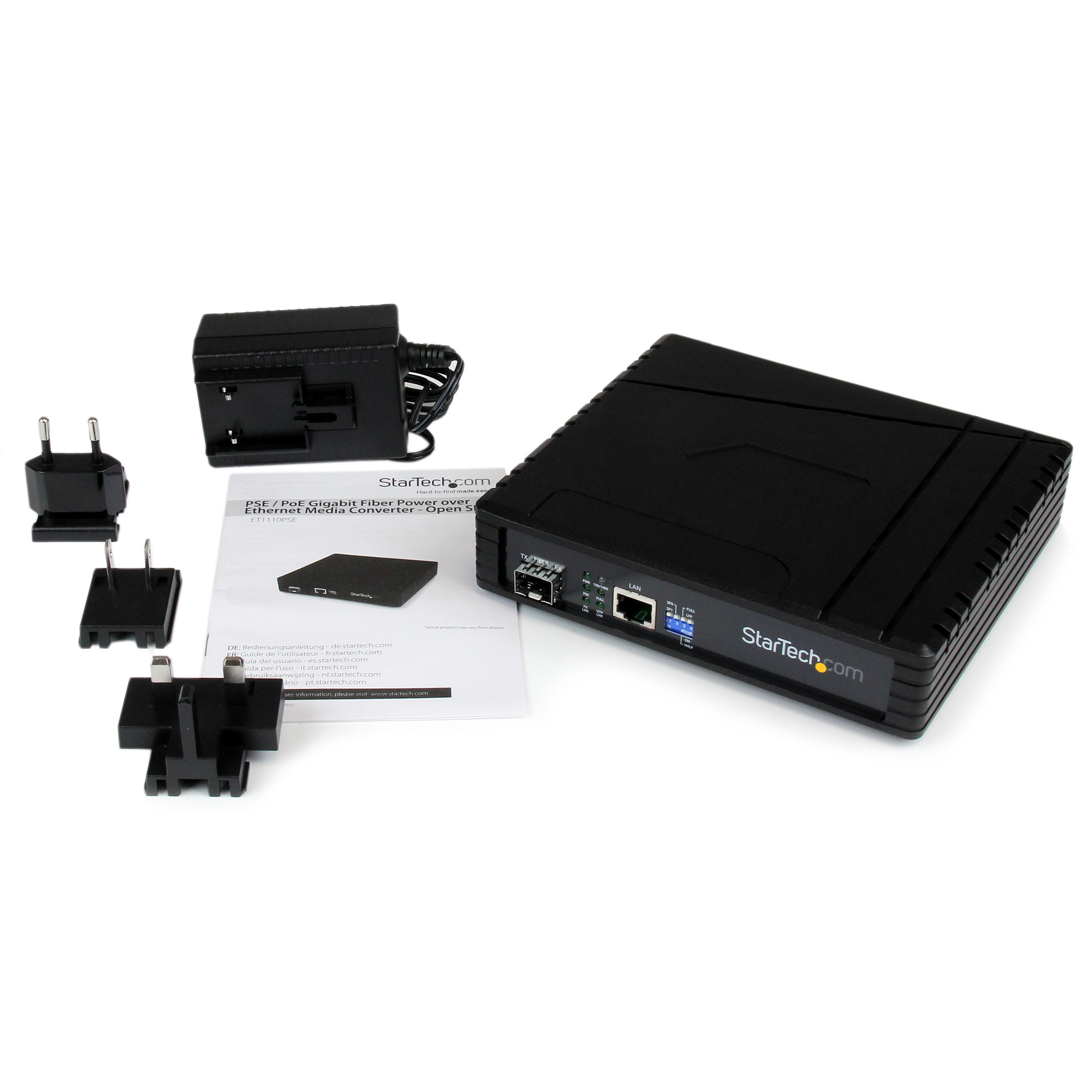

Power over Ethernet Yes Wave Division Multiplexing (WDM) No Carton Depth (mm) 400 Carton Height (mm) 270 Carton Quantity 12 Carton Weight Gross (g) 8509 Included in Package - 1 - PSE/PoE Fiber Media Converter
- 1 - Universal Power Adapter (NA/EU/UK)
- 1 - Instruction Manual
Package Depth (mm) 190 Package Height (mm) 75 Package Width (mm) 235 Package Quantity 1 Package Weight (g) 626 Packaging Description PSE/PoE Media Converter with Open SFP - 48V/15W Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 SFP Slot Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-08-21 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
